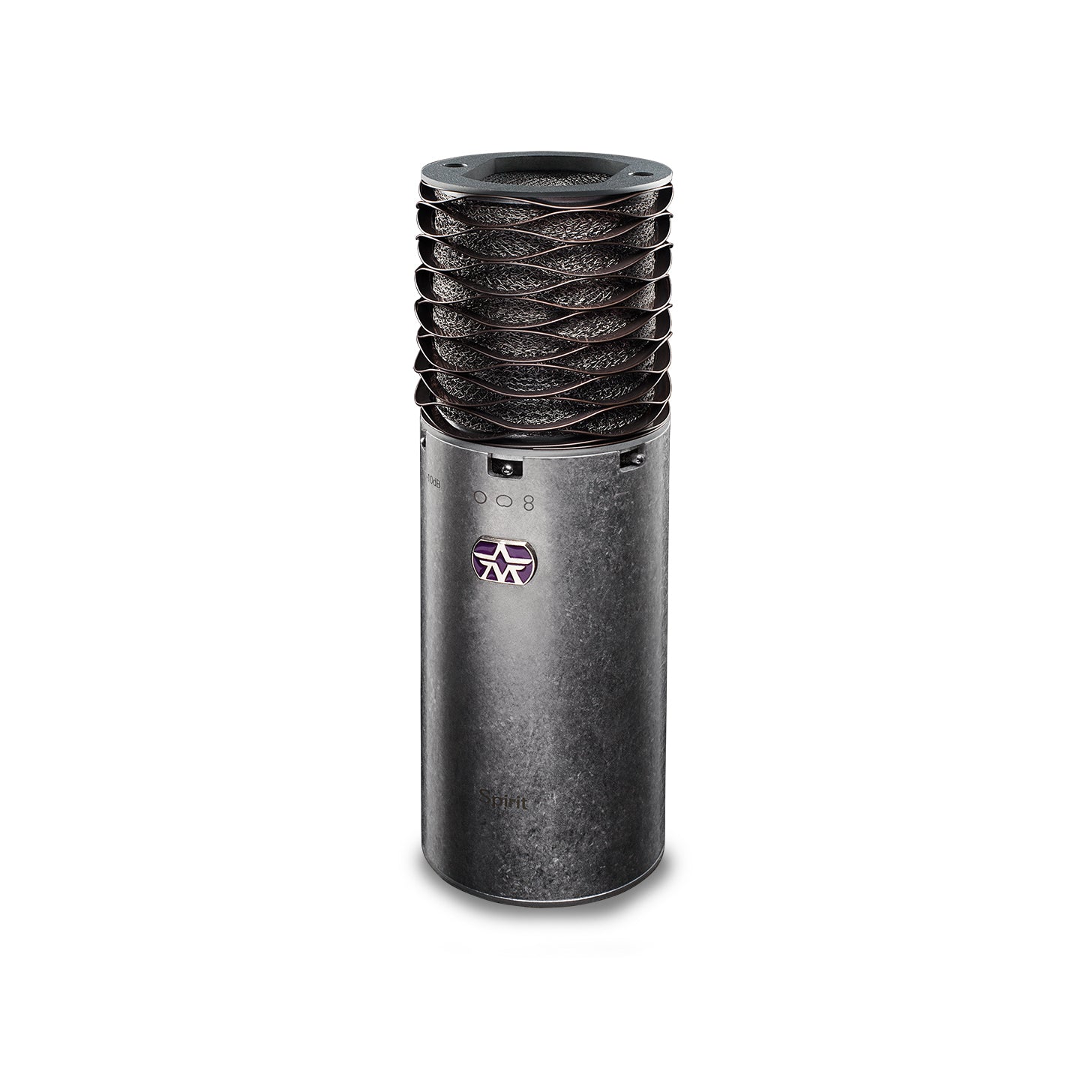

Aston Spirit

The Aston Spirit is a high-performance switchable pattern microphone utilising a 1” gold evaporated capsule. A switch on the mic body selects from Omni, Cardioid or Figure-of-Eight polar patterns. It is versatile enough to use with most instruments and excels on acoustic guitar and vocals. Its Aston 33 panel selected capsule is teamed with high-end transformer balanced circuitry using only the best components.
The Spirit is designed to deliver a beautifully open sound with sparkling harmonics. This highly accurate microphone gives a stunningly natural and transparent recording, capturing all the detail in the high range but without adding the harshness that some condenser microphones seem to.

Specification

• Transducer Type: Condenser
• Acoustic Operating Principle: Pressure Gradient
• Frequency Response: 20Hz – 20kHz (+/-3dB)
• Equivalent Noise Level: 14dB A-Weighted
• Sensitivity at 1kHz into 1kohm: 23.7mV/Pa
• Maximum SPL for THD 0.5%: 138dB
• Signal-to-Noise Ratio (rel. 94dB SPL): 80dB A-Weighted
• Polar pattern: Omni/Cardioid/Figure-of-Eight
• Pad Switches: -20dB/-10dB/0dB
• Low-Cut Filter: 80Hz
• Product length: 175 mm / 6.89 in
• Product width: 54 mm / 2.13 in
• Product weight: 625 g / 1.38 lb
