Trident A-Range Dual Channel Strip

$4,750 Dólares

Cantidad

- +

Trident A-Range Dual Channel Strip

$4,750 Dólares

Title

Default Title

  • Descripción del Producto


      In 1972 Trident Studios decided to buy a new recording console and decided to build one themselves. The first console was designed purely for Trident Studios and was designated the A-Range. It was hand-built to the standards Trident set. In those days, the integrated circuit (or ‘chip’) had not been invented, so all of the circuits used individual transistors (known nowadays as ‘discrete’ design). This and the use of inductors in the lower and upper mid equaliser sections are said to account for much of the unique sound of the A-Range. From this first successful design was born Trident Audio Developments Ltd, which went on to become a leading manufacturer of music recording consoles. One of the company’s earliest advertising slogans was ‘designed by recording engineers for recording engineers’. This became a key component of what made the ‘Trident Sound’ unique.

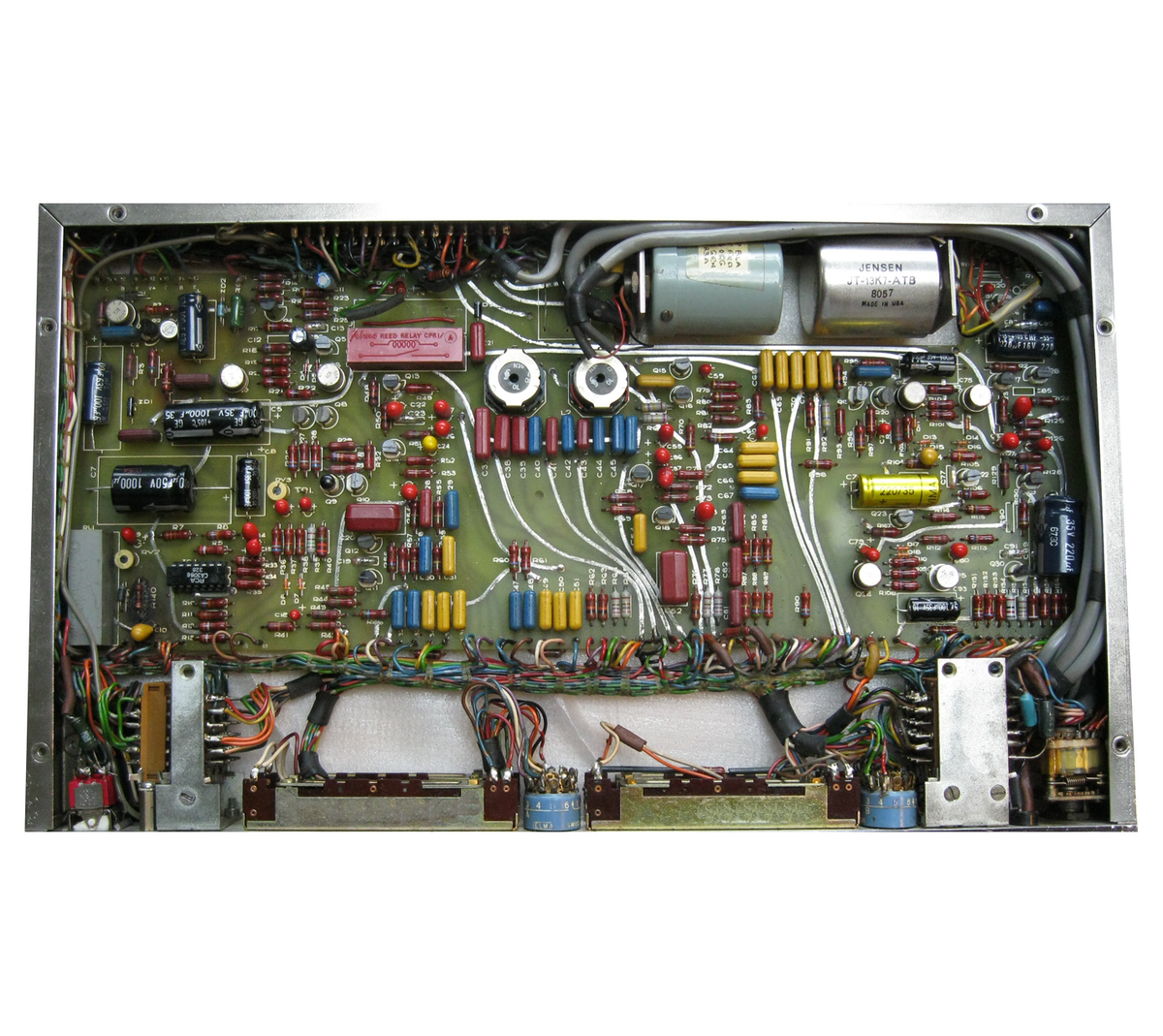

      The 2-channel A-Range rack unit is an exact replica of the original all-discrete transistor circuitry and faithfully follows the original console’s design. So much so that it has taken three years of circuit analysis and testing by PMI Audio Group who undertook the mammoth task of recreating the circuitry. Trident Audio Developments and PMI Audio are extremely pleased and proud to offer this unique piece of recording history. Only thirteen A-Range consoles were ever built and a number are still in use today despite being nearly forty years old. This says a lot about the heritage of these iconic items of recording equipment and the artists that have used them, which include Elton John, Dire Straits, David Bowie, Rod Stewart and Stevie Wonder to name but a few.

      Input Impedance:
      Microphone: 600 ohm transformer balanced
      Line: 10k ohm transformer balanced

      Output Impedance:
      Less than 100 ohm electronically balanced

      Gain:
      Microphone: 0dB to +60dB
      Line: -10dB to +10dB

      Noise:
      Microphone: Less than -126dBu ref 150 ohm (20Hz-20kHz)
      Line: Less than -85dBu (EQ In 20Hz-20kHz)

      Maximum Levels:
      Mic Input: +24dBu at all frequencies
      Line Input: +24dBu at all frequencies

      Distortion:
      Mic Input: Less than 0.05% T.H.D. (-50dBu input +4dBu output)
      Line Input: Less than 0.05% T.H.D. (+4dBu input +4dBu output)

      Frequency Response:
      Mic Input: ±1dB 20Hz to 20kHz
      Line Input: ±1dB 20Hz to 20kHz

      Nominal Operating Level:
      +4dBu

      Peak LED Threshold:
      +10dBu
