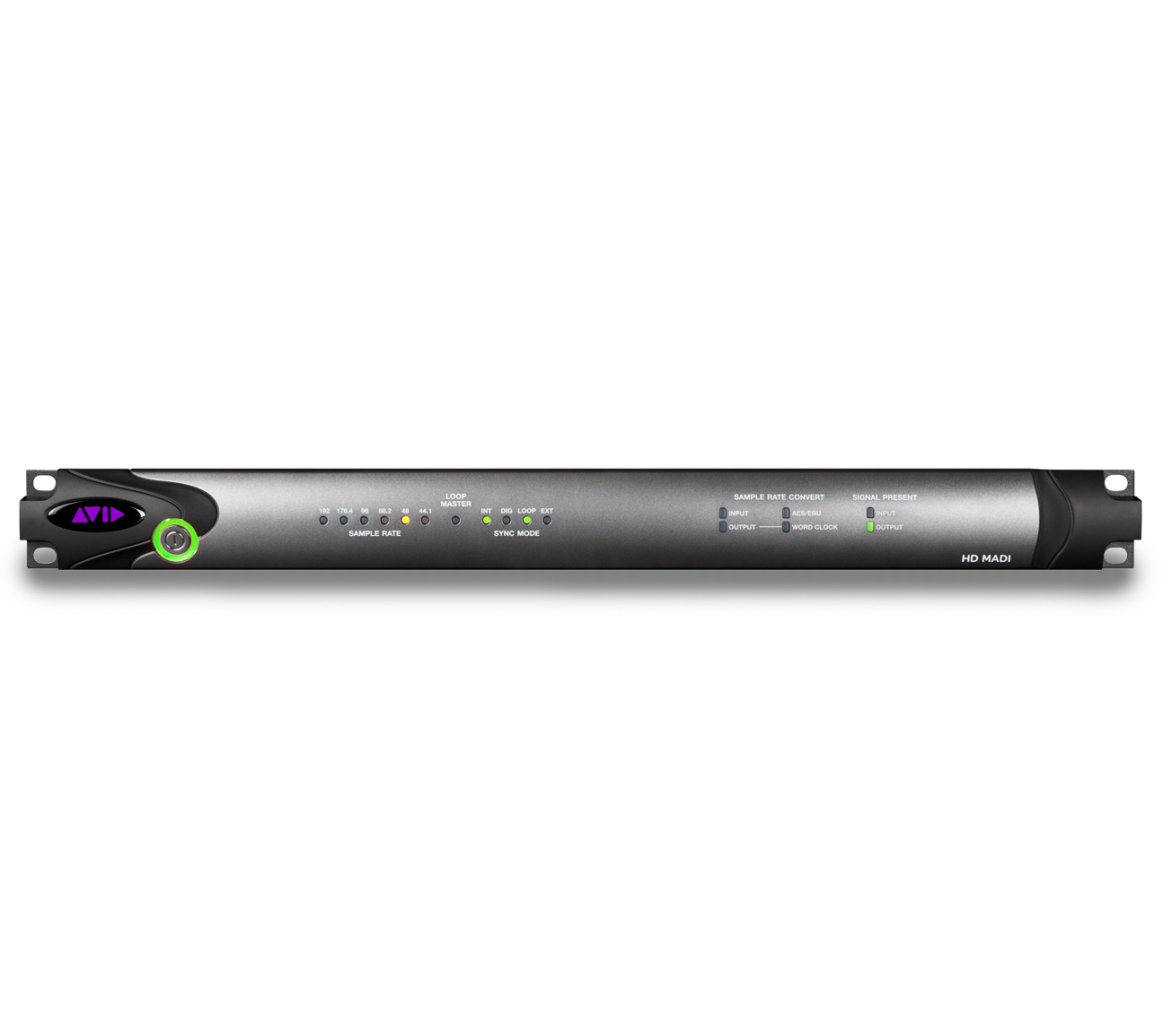

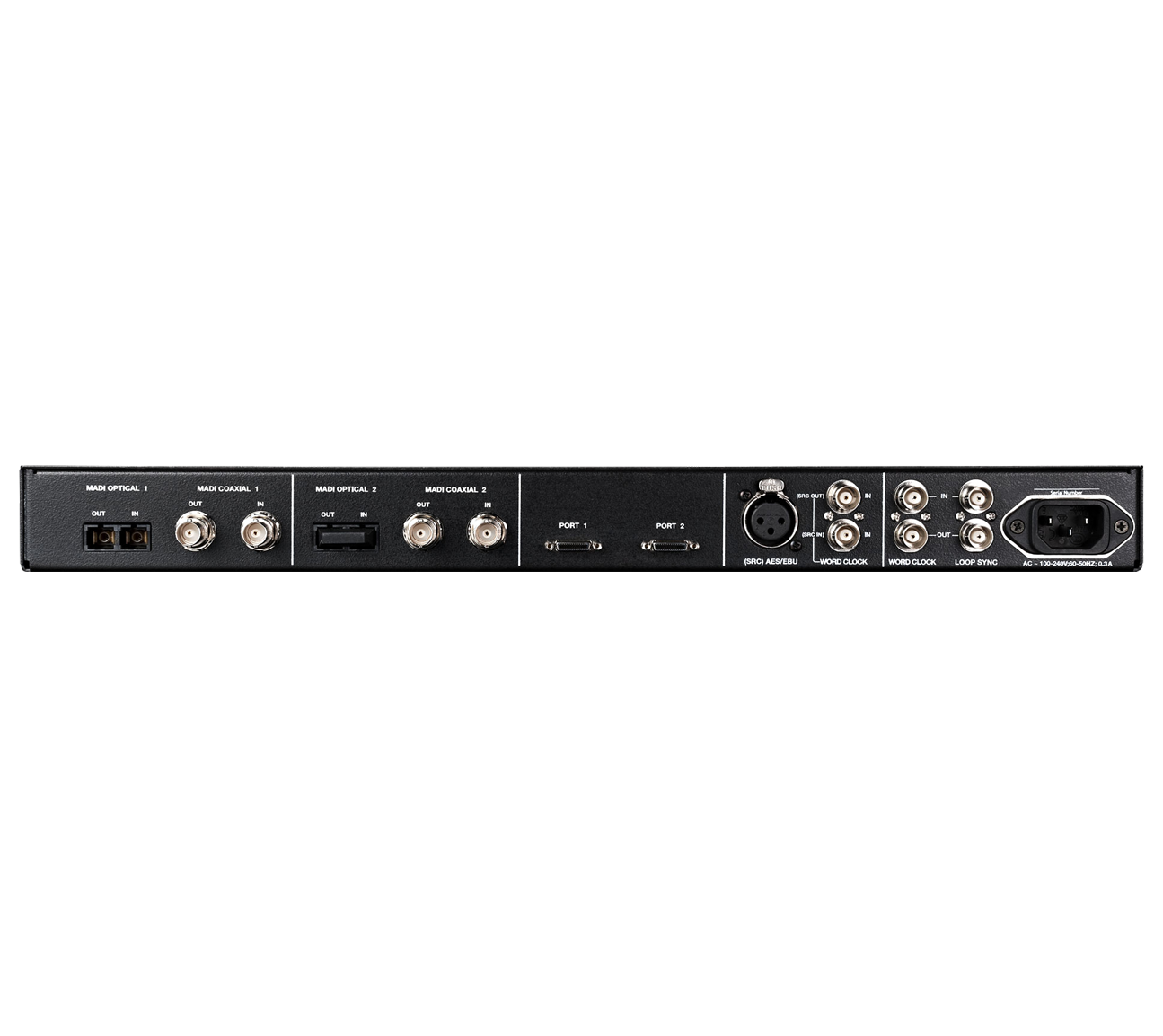

The next generation of Pro Tools|HD is here! The HD MADI from Avid gives you 64 channels of MADI connectivity. Boasting bi-directional sample rate conversion, the HD MADI makes sure your ICON or Pro Tools|HD rig can slide into any MADI environment, at any sample rate, and hit the ground running. Since you have 64 channels of MADI I/O available on all inputs and outputs, you'll find the HD MADI to be a very useful addition to any Pro Tools|HD studio. And the inclusion of both coaxial and optical I/O makes the HD MADI an easy fit.

• 64-channel MADI interface
• Coax and optical connectors
• Cable lengths >1 mile with optical I/O
• Bidirectional sample rate conversion for input and output
• Easy integration into complex mixed sample rate environments
• Supports Varispeed mode (56 channels)
• Send and receive up to 64 audio streams between Pro Tools|HD and other MADI devices
• Maintain maximum audio fidelity, with up to 24-bit/192kHz sample rate support
• Gain connection and routing flexibility through optical and coaxial connections: 2 MADI inputs (optical and coaxial), 2 MADI outputs (simultaneous optical and coaxial)
• Built-in SRC on all I/O channels
• Completely integrates with Pro Tools|HD for full input, output, and routing control
• Sync to an external clock through dedicated BNC Word Clock and XLR AES/EBU connections when using SRC on output
• Keep things in sync with versatile clock support, including Internal, Loop Sync, Word Clock, AES/EBU, and MADI
• Gain better device compatibility with 64-channel (non-Varispeed) and 56-channel (Varispeed) support (at 48kHz)
• Integrate Pro Tools|HD with MADI-equipped VENUE live sound systems for recording and Virtual Soundcheck
• Verify and troubleshoot signals through status indicators and global I/O signal LEDs
• Compact 1U rackmountable design overcomes space limitations
• Connects to Pro Tools|HD through 2 DigiLink Mini connections (32 audio channels each; cables and adapters included)

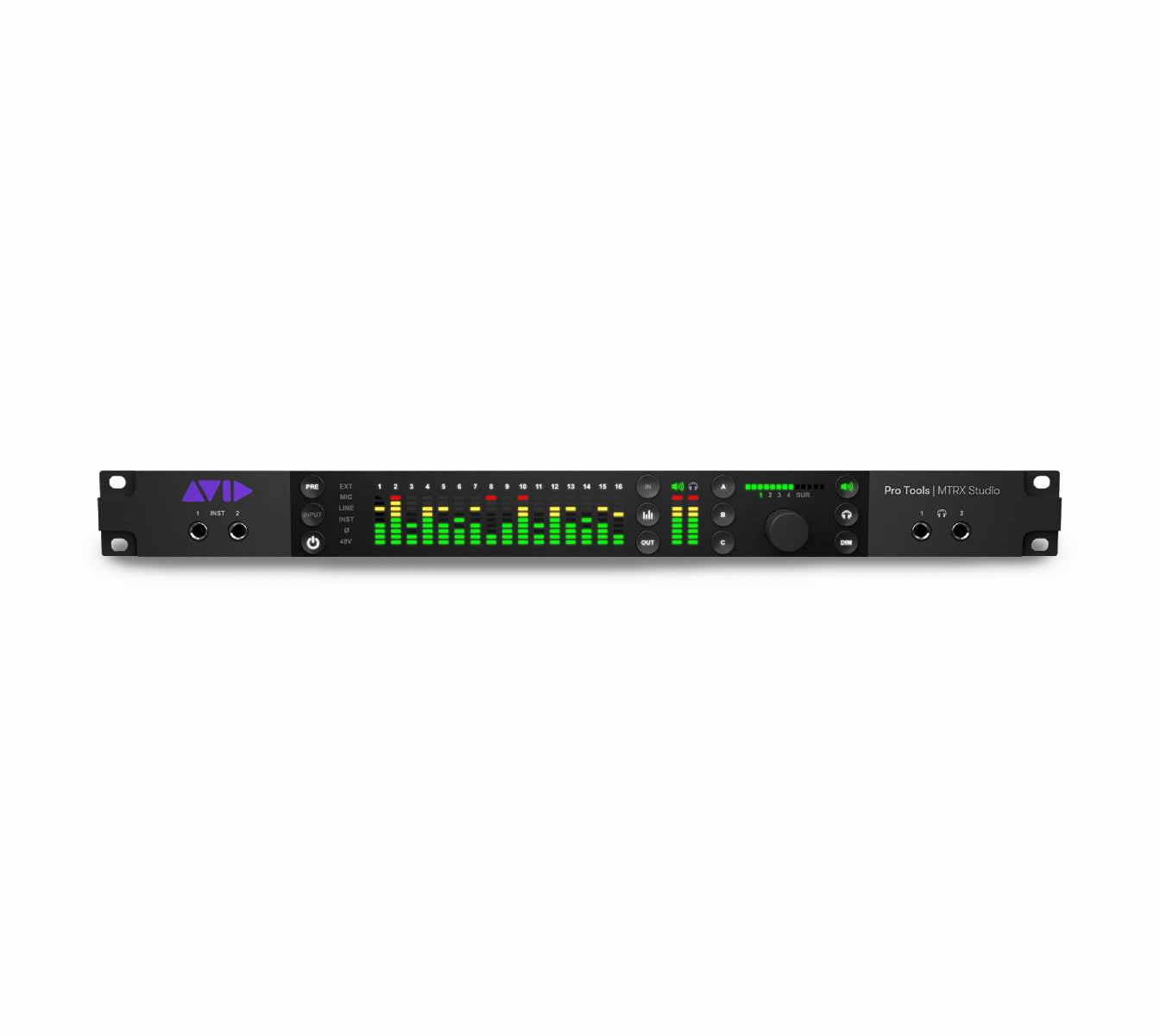

Your studio centerpiece
Bring creative efficiency to your studio with powerful I/O, monitoring, and routing capabilities in an all-in-one audio interface. Pro Tools | MTRX Studio simplifies your signal flow, providing connections to all your gear. Route any input to any output. Customize monitor profiles with integrated speaker tuning. Outfit any room in your facility for Dolby Atmos mixing. And get ultra-low latency monitoring when tracking and mixing with Pro Tools | HDX or HD Native.

Get premium sound, built in partnership with DAD
With Digital Audio Denmark’s precision audio converters and mic preamps, you can capture and hear every vocal, instrument, and sound performance in great detail. Plus, get ultra-low latency when tracking with Pro Tools | HDX or HD Native, enabling artists to perform at their best.
Take full monitor control
No need for a separate monitor controller. MTRX Studio covers this and your signal routing needs. Create monitor profiles and fold-downs to speed up your workflow. And toggle between multiple speaker sets directly from the included DADman software or your Avid control surface.
Optimize your monitoring environment
With speaker calibration built directly into the interface—the same SPQ speaker processing technology available as an option for Pro Tools | MTRX—you can tune your room for any session format. Easily transition between music and audio post production—from mono to immersive audio.


Features:

• Compact 1RU chassis
• Computer Connection: 2 Digilink ports
• Mic/Inst Inputs: 2 x 1/4", 2 x XLR
• Analog I/O: 16 x 16 (DB-25) + 2 x 1/4""
• Dante I/O: 64 channels
• ADAT I/O: 16 x 16
• Monitor Profiles
• Monitor Groups, Fold Downs, Group Formats
• Integrated Speaker Processing
• 256 filters on 16 channels
• Routing Matrix: 512 x 512
• Sample Rate: 44.1kHz–192kHz

Take full monitor control
No need for a separate monitor controller. MTRX Studio covers this and your signal routing needs. Create monitor profiles and fold-downs to speed up your workflow. And toggle between multiple speaker sets directly from the included DADman software or your Avid control surface.
Optimize your monitoring environment
With speaker calibration built directly into the interface—the same SPQ speaker processing technology available as an option for Pro Tools | MTRX—you can tune your room for any session format. Easily transition between music and audio post production—from mono to immersive audio.

Mix and monitor Dolby Atmos in any room
Have the I/O channels, speaker processing, and monitoring control you need to support 7.1.4 and larger setups for Dolby Atmos mixing. Quickly calibrate speakers and tune any size and shape room to ensure an accurate monitoring environment, so you can mix with confidence.

Route audio extensively
With 64 channels of Dante, plus the 512 x 512 matrix in DADman, you can route any MTRX Studio input to any output, expanding your workflow possibilities. Create easy cue mixes over Dante. Route between connectivity formats. Even send audio to multiple devices simultaneously.
Take remote control of the interface
MTRX Studio is EUCON-enabled and delivers tight integration with Pro Tools | Ultimate, enabling you to control all audio sources, monitoring, and routing directly from any Avid control surface. It eliminates manual tasks and physical patching, keeping you in your creative flow—and in your seat.

SYSTEM REQUIREMENTS
Pro Tools | HDX or Pro Tools | HD Native system running Pro Tools | Ultimate 2019.12 or later and DADman 5.4.1 or later.

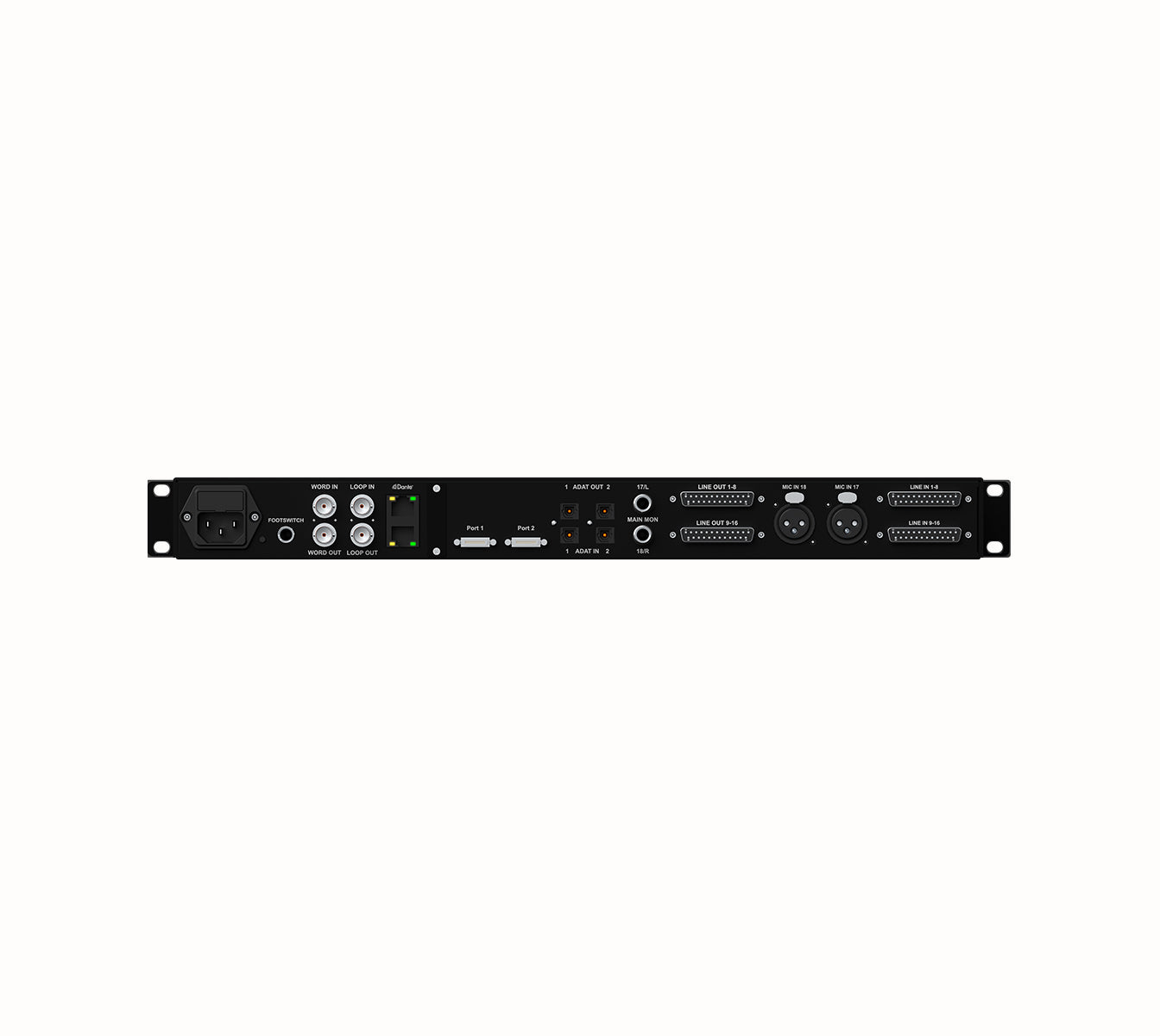

SPECIFICATIONS

• Type: Pro Tools HD/HDX Interface
• Computer Connectivity: Ethernet, DigiLink
• Form Factor: Rackmount
• Simultaneous I/O: 64 x 64 (Dante), 16 x 16 (analog, ADAT)
• A/D Resolution: 24-bit/192kHz
• Built In DSP/FX: SPQ Speaker Processing, Channel Delay Management
• Number of Preamps: 2
• Phantom Power: Yes
• Analog Inputs: 2 x 1/4" (Hi-Z), 2 x XLR (mic), 2 x DB-25 (line)
• Analog Outputs: 2 x DB-25 (line), 2 x 1/4" (monitor)
• Digital Inputs: Ethernet (Dante), Mini-DigiLink, 2 x Optical Toslink (ADAT)
• Digital Outputs: Ethernet (Dante), Mini-DigiLink, 2 x Optical Toslink (ADAT)
• Headphones: 2 x 1/4"
• Clock I/O: Word Clock In/Out, Loop Sync In/Out
• Data I/O: 2 x Ethernet, 2 x Mini-DigiLink
• Software: HD/HDX Compatible, EUCON support
• Power Supply: Standard IEC AC cable
• Rack Spaces: 1U
• Width: 19"

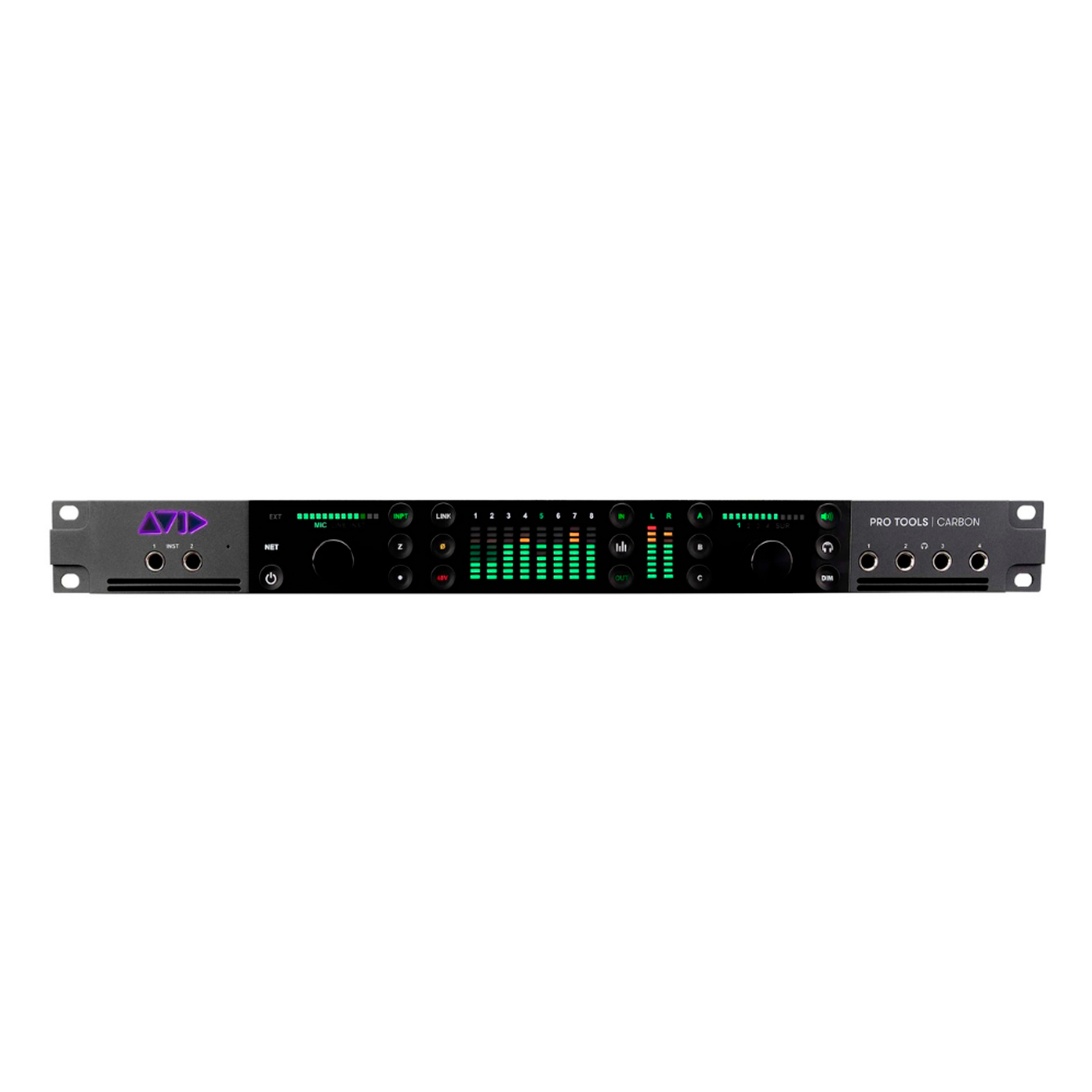

A NEW BREED OF AUDIO INTERFACE FOR MUSIC PRODUCTION

Built to capture brilliance. And ready for yours.

With superior sound quality and intelligent software integration, Pro Tools | Carbon removes barriers to creativity, so you can bring out the best in your performance and capture it beautifully.

PERFORMANCE

Power and simplicity that drive your creative spark.

With HDX DSP acceleration under the hood and deep Pro Tools integration, Carbon has the power to keep pace with your imagination. Create in the moment, free from technical hassles. And focus on the music you’re making—not what you’re making it with.

Epic performance eliminates latency.

Carbon is cut from the same cloth as our flagship Pro Tools systems used in the world’s most acclaimed studios. Its custom-designed FPGA and eight HDX DSPs achieve remarkable sub-1 ms recording latency and free up your computer to run big, plugin-heavy sessions smoothly.

Fast, intuitive, and fully integrated.

Move effortlessly between tracking and mixing—without messing with buffer settings. The magic is in the Hybrid Engine, which lets you toggle tracks in and out of DSP Mode at the touch of a button. Record naturally through real-time AAX DSP plugins, without distracting latency. Then mix with the same plugins in Native Mode, without taxing Carbon’s onboard DSP.

PRODUCTION

Turn your music into records.

From idea to final mix, Pro Tools is the heartbeat of your studio. And with Carbon turbocharging the experience, as well as a suite of hit-making AAX plugins at your fingertips, you can act on inspiration the instant it strikes.

Plug into an inspired sonic palette.

Shape your sound with a full range of AAX plugins—from warm, dimensional analog emulations, to cutting edge processors that define modern music making. In addition to the 116 plugins that come with Pro Tools, Carbon includes a premium collection to get you started from the biggest brands in the business.

Converters and preamps. Musical and transparent.

With four ADCs per channel and pristine 32-bit precision throughout its gain structure, Carbon captures clean, natural-sounding audio without coloration. And with Variable Z built in, you can optimize or alter the tone of any microphone or instrument by simply adjusting input impedance.

High-resolution clocking. Flawless sound.

Precision clocking is crucial for distortionless, artifact-free audio. That’s why we designed a double resolution implementation of the JetPLL™ jitter elimination technology to ensure the best sound quality for your music. It runs twice as fast as typical JetPLL clocks—and it’s twice as accurate.

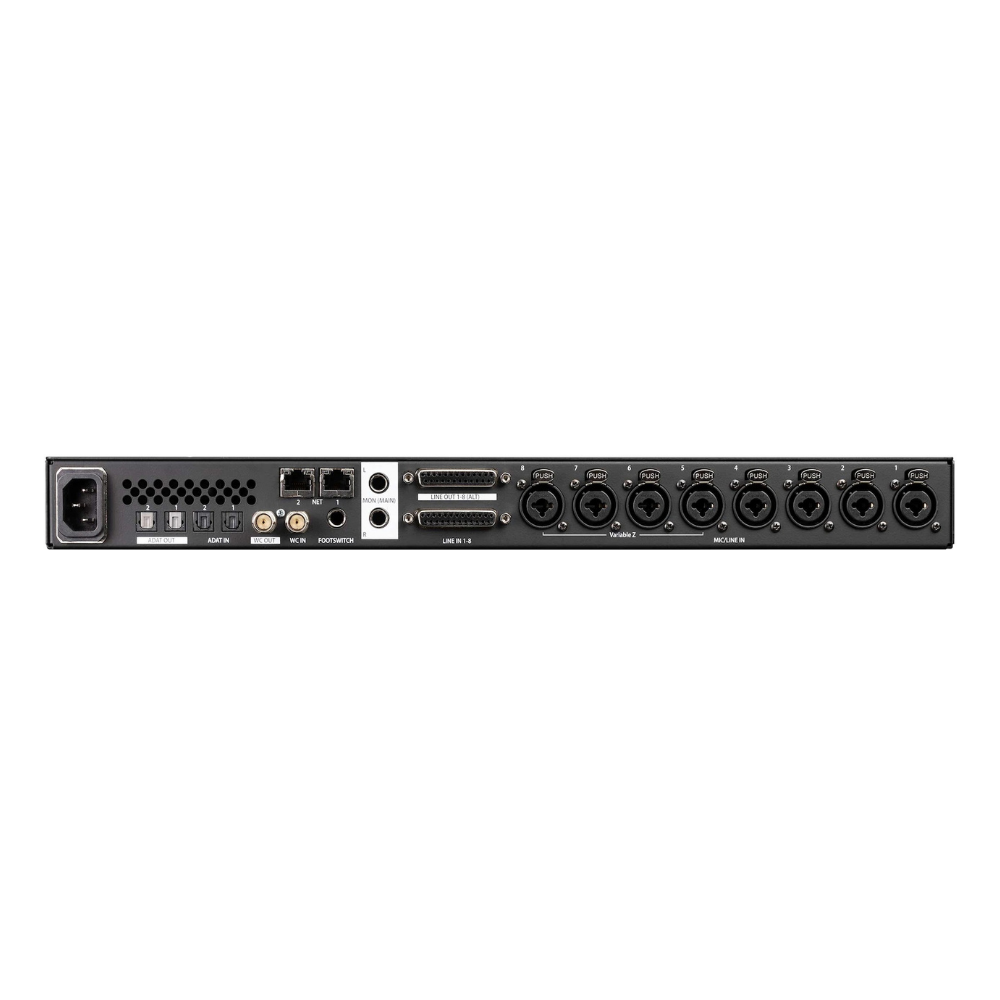

I/O

Connect the whole band.

Whether you’re a solo artist or part of a band, Carbon has your I/O needs covered. With 25 x 34 simultaneous I/O—including eight mic pres and four headphone outs—you can record your entire band. With plenty of creative possibilities for miking, cue mixing, and expansion to meet your needs.

SYSTEM REQUIREMENTS

Avid-qualified Ethernet or Thunderbolt-equipped Mac computer

INPUTS

Combo Mic/Line Inputs

8 balanced XLR/TRS with Variable Z (impedance) on inputs 5–8

DB25 Line Inputs

8 balanced via 25-pin D-sub

Instrument (Variable Z) Inputs

2 unbalanced ¼-inch TS

Digital Inputs

ADAT: 16 channels @ 44.1–48 kHz

ADAT: 8 channels @ 88.2–96 kHz

ADAT: 4 channels @ 176.4–192 kHz

A/D CONVERSION

Mic Preamps

Dynamic Range: 126 dB (A-weighted)

THD+N: -105 dB (0.00056%)

Frequency Response: 20 Hz–20 kHz, ±0.1 dB

EIN: -129 dB (A-weighted)

Line Inputs

Dynamic Range: 125 dB (A-weighted)

THD+N: -106 dB (0.0005%)

Frequency Response: 20 Hz–20 kHz, ±0.1 dB

Line Inputs (True Bypass)

Dynamic Range: 126 dB (A-weighted)

THD+N: -113 dB (0.00022%)

Frequency Response: 20 Hz–20 kHz, ±0.1 dB

Instrument Inputs

Dynamic Range: 125 dB (A-weighted)

THD+N: -103 dB (0.0007%)

Frequency Response: 20 Hz–20 kHz, ±0.1 dB

OUTPUTS

DB25 Line Outputs

8 balanced via 25-pin D-sub

Monitor Outputs

2 balanced ¼-inch TRS

Headphone Outputs

4 stereo ¼-inch TRS

Digital Outputs

ADAT: 16 channels @ 44.1–48 kHz

ADAT: 8 channels @ 88.2–96 kHz

ADAT: 4 channels @ 176.4–192 kHz

D/A CONVERSION

Line Outputs

Dynamic Range: 120 dB (A-weighted)

THD+N: -110 dB (0.0003%)

Frequency Response: 20 Hz–20 kHz, ±0.1 dB

Monitor Outputs

Dynamic Range: 120 dB (A-weighted)

THD+N: -110 dB (0.0003%)

Frequency Response: 20 Hz–20 kHz, ±0.1 dB

Headphone Outputs

Power: 100 mW into 300 ohm; 200 mW into 32 ohm

Dynamic Range: 116 dB (A-weighted)

THD+N (32 ohm): -87 dB (0.0045%)

THD+N (300 ohm): -100 dB (0.001%)

Frequency Response: 20 Hz–20 kHz, ±0.1 dB

DSP ACCELERATION

HDX DSP

8 HDX DSP processors

(2.8 GHz aggregated processing)

WHAT’S INCLUDED

Pro Tools | Carbon audio interface

Pro Tools software

1-year subscription with a Pro Tools perpetual parachute*

116 AAX plugins (over 70 AAX DSP plugins), including UVI Falcon, Celemony Melodyne 5 essential, the Avid Complete Plugin Bundle, and HEAT

3 free months of Antares Auto-Tune Unlimited, including Auto-Tune Hybrid

5.4 GB sound library

Standard support

Included premium plugins

Arturia Rev PLATE-140

Brainworx bx_console N

Brainworx bx_rockrack

Brainworx bx_masterdesk

Brainworx bx_Purple Audio MC77

Embody Immerse Virtual Studio

McDSP 6050 Ultimate Channel Strip HD

Native Instruments Vintage Organs

UVI Model D

Accessories

Power cable

Ethernet cable

Rackmount screws and desktop feet

Registration card

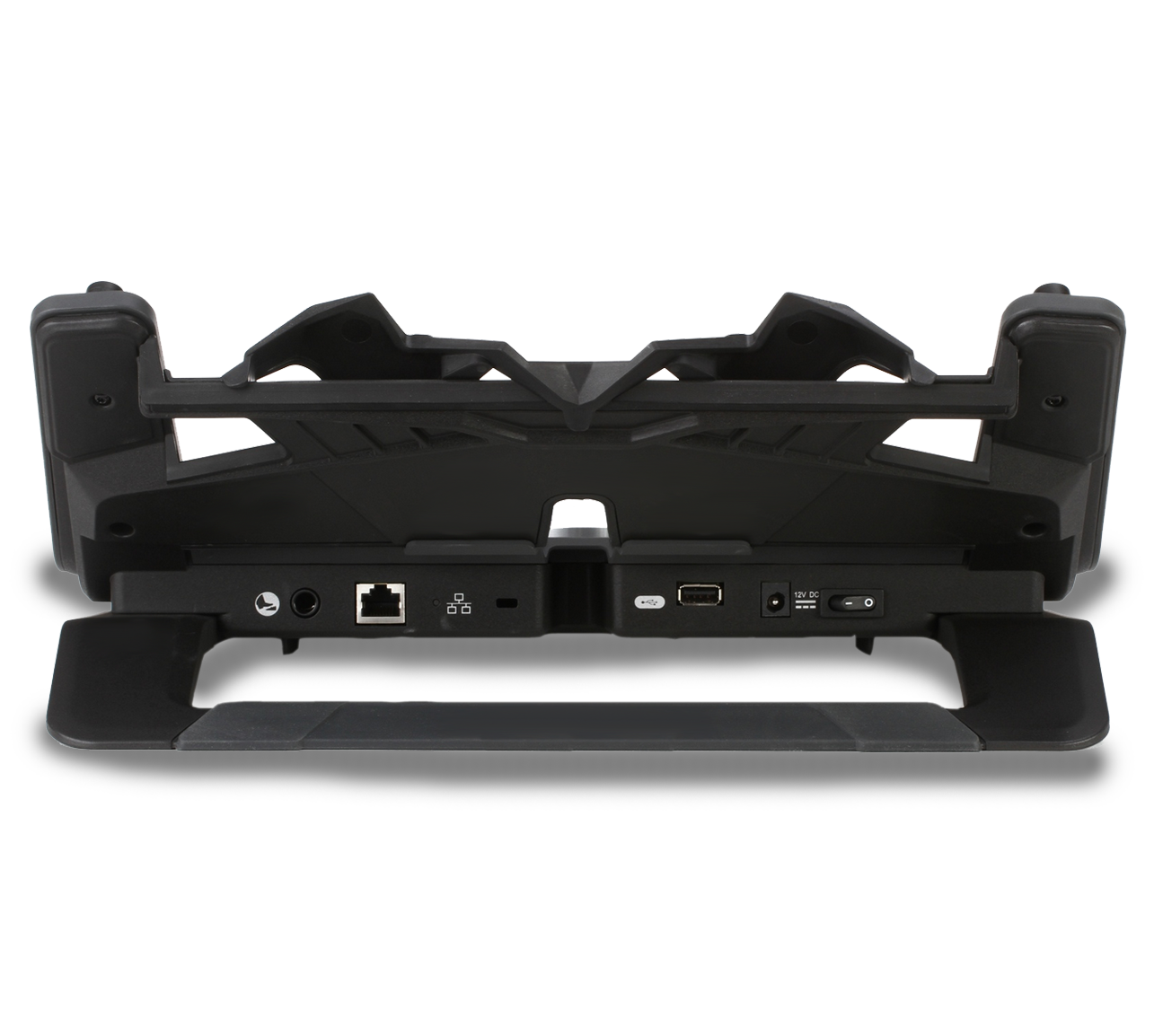

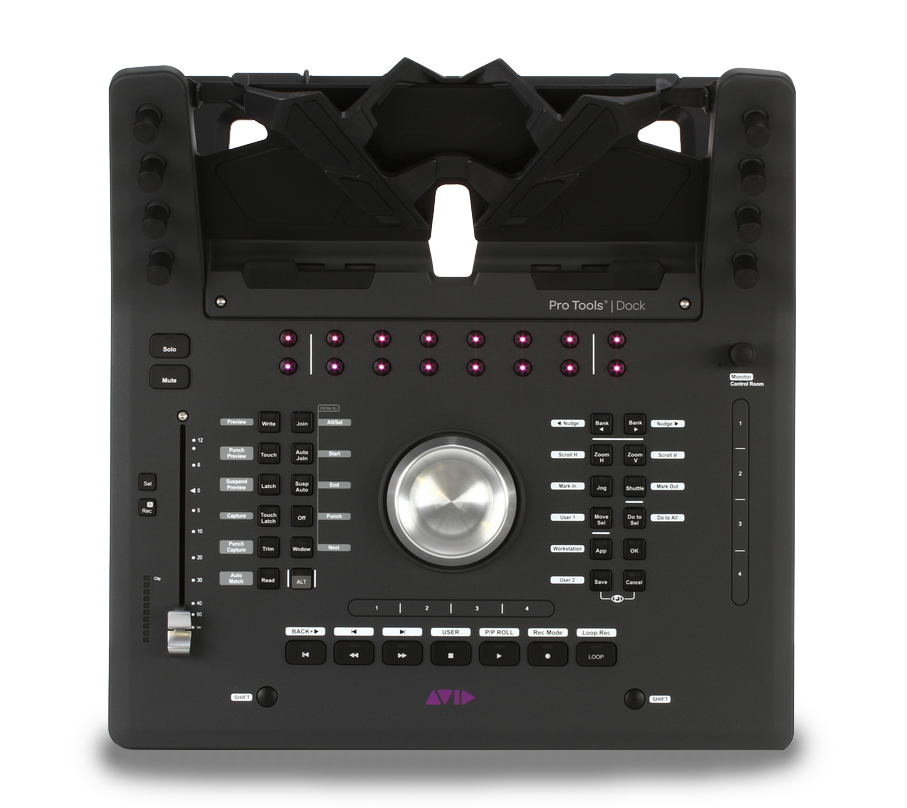

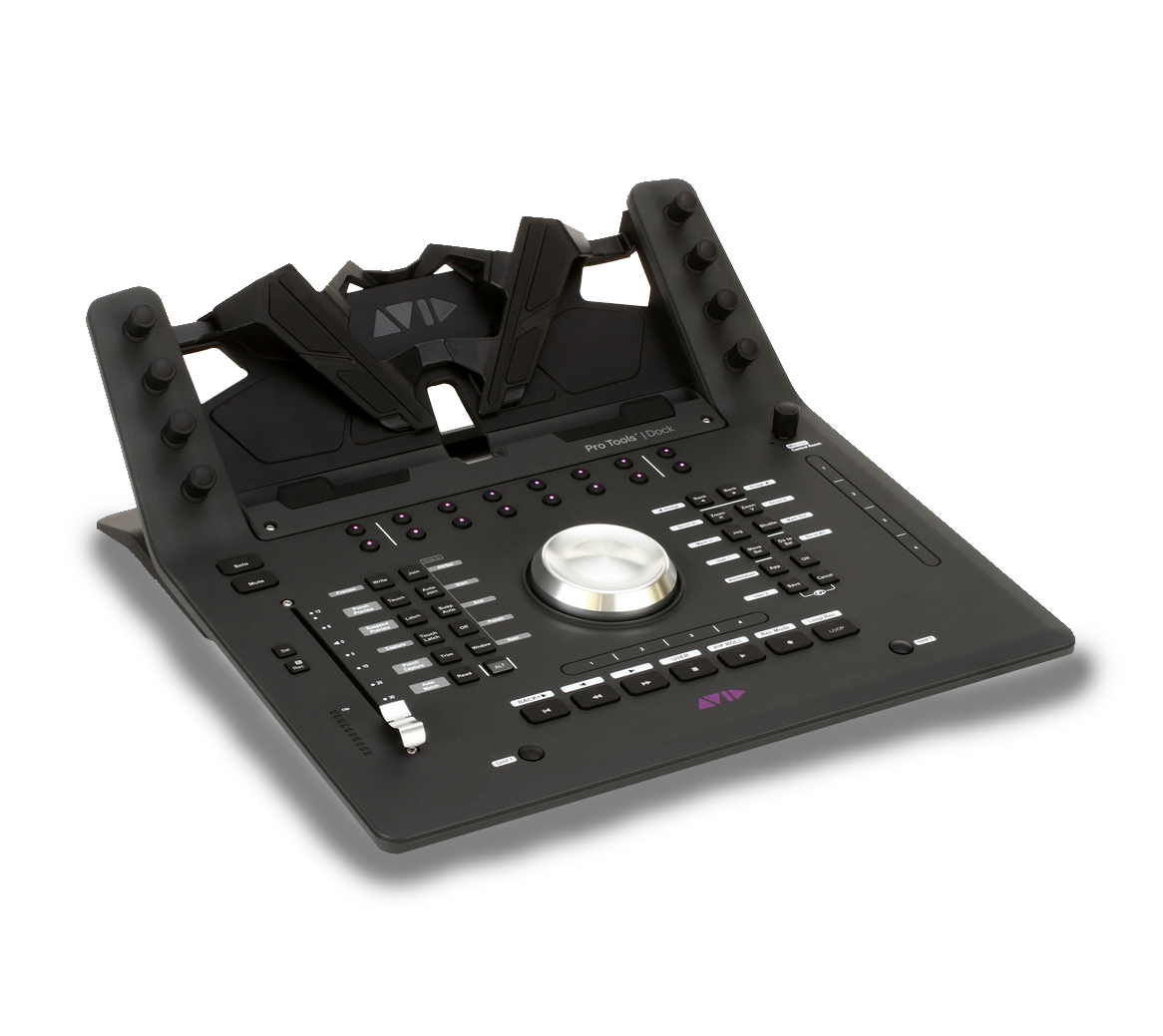

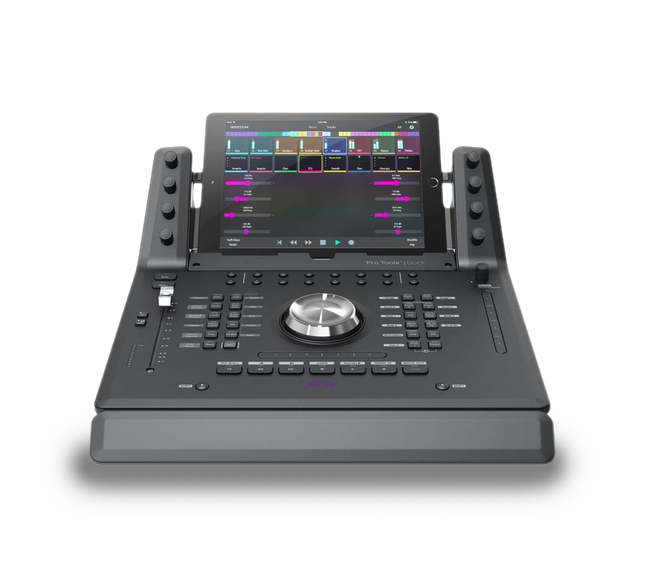

The Avid Pro Tools | Dock integrates with your iPad, extending the Pro Tools | Control iOS app's functionality with transport controls, a jog wheel, and automation controls. A channel fader, color-matched soft keys, and soft knobs round out the Pro Tools | Dock's functionality. You can use the Pro Tools | Dock as a standalone device or in conjunction with your S3 or Artist Mix, arming you with ergonomic, tactile control over your DAW.

Avid Pro Tools | Dock Features:

• Extends the functionality of the FREE Pro Tools | Control iOS app
• Provides a mix of a touchscreen and knobs, switches, and faders
• Includes transport controls and an aluminum jog wheel
• Dedicated automation controls, 16 soft keys, and 2 programmable touch strips
• Channel fader provides tactile control over your mix
• EUCON-mappable monitor control
• 8 soft knobs that work with the Pro Tools | Control iPad app much like an S6 master touch module
• S6-like channel view for editing inserts, sends, pans, and more (requires S3 control surface)
• Specification:
• Type: Pro Tools / Control iOS app controller
• Screen: Dock for iPad Air 2 attachment
• Faders: Single attention channel fader
• Number of Knobs: 8
• Knob Type: Touch-sensitive, push-top soft knobs
• Pads: 2 x programmable touch strips
• Number of Soft Keys: 16
• Transport Controls: Yes
• Control I/O: Eucon ethernet, compatible with Avid S3 and Artist Mix controllers
• Hardware Requirements - Mac: iPad Air 2
• OS Requirements - Mac: Pro Tools | Control iOS app

IMPORTANTE! A partir de la nueva revisión, 2018, Pro Tools ya NO requiere de ilok, para operar. El producto de esta página se ofrece en versión "digital", en el cual se entrega un código de registro por email y el software se descarga desde avid.com. No es un producto físico en caja.

Ya sea usted un legendario profesional de la industria o un usuario amateur, adorará trabajar con Pro Tools. La versión 12, levanta nuevamente el estándar de las editoras de audio, restableciéndose como el rey indiscutible de las DAW. Ahora más poderoso, Pro Tools 12 ha mejorado su funcionalidad de ruteo I/O, buses ilimitados, conteo de hasta 128 tracks de audio y 512 de instrumentos MIDI, monitoreo del "track input", y la nueva función de "Copiar al Envío", entre muchas otras. Para ingenieros móviles, apreciará los avances de Pro Tools | Control iOS app support. Sume avanzados monitores visuales de medición de nivel de alta resolución, VCA Masters, Disk Cache y Gain Reduction Metering, que son funciones solicitadas por nuestros usuarios para incrementar la eficiencia en proyectos de gran escala. Un nuevo paquete premium de plugins se ha sumado al ofrecimiento, con planes selectos de soporte. Para usuarios de S3, Pro Tools 12 suma la función "derrame VCA" (VCA spill).

Ya sea un usuario experimentado, músico o productor en camino a la grandeza, Pro Tools será su aliado #1.

• Grabe, edite y mezcle con increíble flexibilidad.
• Claridad sin precedentes con el sistema de 64-bits acompañado por un impresionante arsenal de plug-ins AAX.
• Obtenga compatibilidad universal con más de 100,000 usuarios del programa de edición más utilizado del mundo.
• El paquete incluye todas las herramientas necesarias, en la caja, para trabajar de inmediato.
• Pro Tools es el eye de las industrias de producción musical, broadcast y post-producción.
• Avid Cloud le permite colaborar, en tiempo real, con talento al rededor del planeta.

Información del Fabricante:

Create with an amazing collection of powerful 64-bit AAX plug-ins
The Space convolution reverb (a $499 value) and 16 brand-new stompbox effect plug-ins inspired by Eleven Rack are now included in all active Pro Tools Annual Upgrade and Support Plans as well as subscription licenses. Add grit, space, modulation, and overdrive to your tracks with this bundle of stompbox-type effects from the Pro Tools | Eleven Rack amp/cabinet hardware product. This new collection of 64-bit AAX Native, AAX DSP, and AAX AudioSuite plug-ins are modeled after the circuitry and design of many classic and popular analog guitar stompboxes and effects - from EQ and compressor to reverb, delay, modulation, and distortion effects. In addition to the 16 Eleven stompbox effects and Space, Pro Tools | HD customers also get all five Avid Pro Series plug-ins: Pro Compressor, Pro Expander, Pro Limiter, Pro Multiband Dynamics, and Pro Subharmonic. Also included is the Eleven amp/cabinet simulator plug-in, ReVibe II (a powerful room-modeling plug-in), and Reverb One.

Integrated mixing and editing power that goes way deeper than plug-ins
As wonderful as AAX plug-ins are, they only scratch the surface of what Pro Tools software has to offer. Much of its real production power is built into the environment itself. Flexible functions such as Avid's multitrack Beat Detective and Elastic Audio let you fix timing issues across your entire mix. Automatic delay compensation ensures that your mix remains intact, even when you pile on the plug-ins. What's more, AAX plug-ins allow you to take projects back and forth between your Pro Tools software system and Pro Tools HD systems, so collaborating with high-end professional studios is easy. Track compositing functions also let you quickly merge multiple takes into a single flawless performance. Full support for Artist Series and other EUCON-equipped control surfaces lets you take total command of Pro Tools software beyond the capabilities of HUI-based controllers. And thanks to Pro Tools software's faster-than-real-time offline bounce functions, mixing down stems and freeing up processor power is extremely simple.

Loaded with the quality tools you need for in-the-box music creation
As comprehensive as Pro Tools software is for recording and editing audio, it's also the weapon of choice for music composers and electronic musicians. Not only does Pro Tools software include a full lineup of great virtual instruments, but it also gives you the environment and tools you need to get the most out of them. If you're a traditional composer, you'll love how easy it is to import your scores or create new compositions in Pro Tools software's versatile score editor. And if you're into modern MIDI production, Pro Tools software's massive collection of MIDI tools will absolutely blow your mind!

Music production, broadcast, video post, and beyond
The power of Pro Tools software extends far beyond the realm of music production, making it a favorite for video post and broadcast professionals around the world. With software-spanning interchange options such as OMF/AAF/MXF interchange, Clip Gain metadata support, and a Unified Video Engine that can play most common HD video formats without the need for transcoding, integrating your Pro Tools software rig with Avid Media Composer is a snap.

Connect and collaborate with other musicians and audio pros
With Avid Cloud Collaboration, you can connect and collaborate with other musicians, producers, engineers, and mixers, giving you access to the right tools, workflows, and connections you need to make your work stand apart from the crowd. It doesn't matter where you and your collaborators are - it's like working together in the same studio! On top of that, the Avid Marketplace and Artist Community connect you with the largest network of media professionals to help you share, promote, and sell your work.

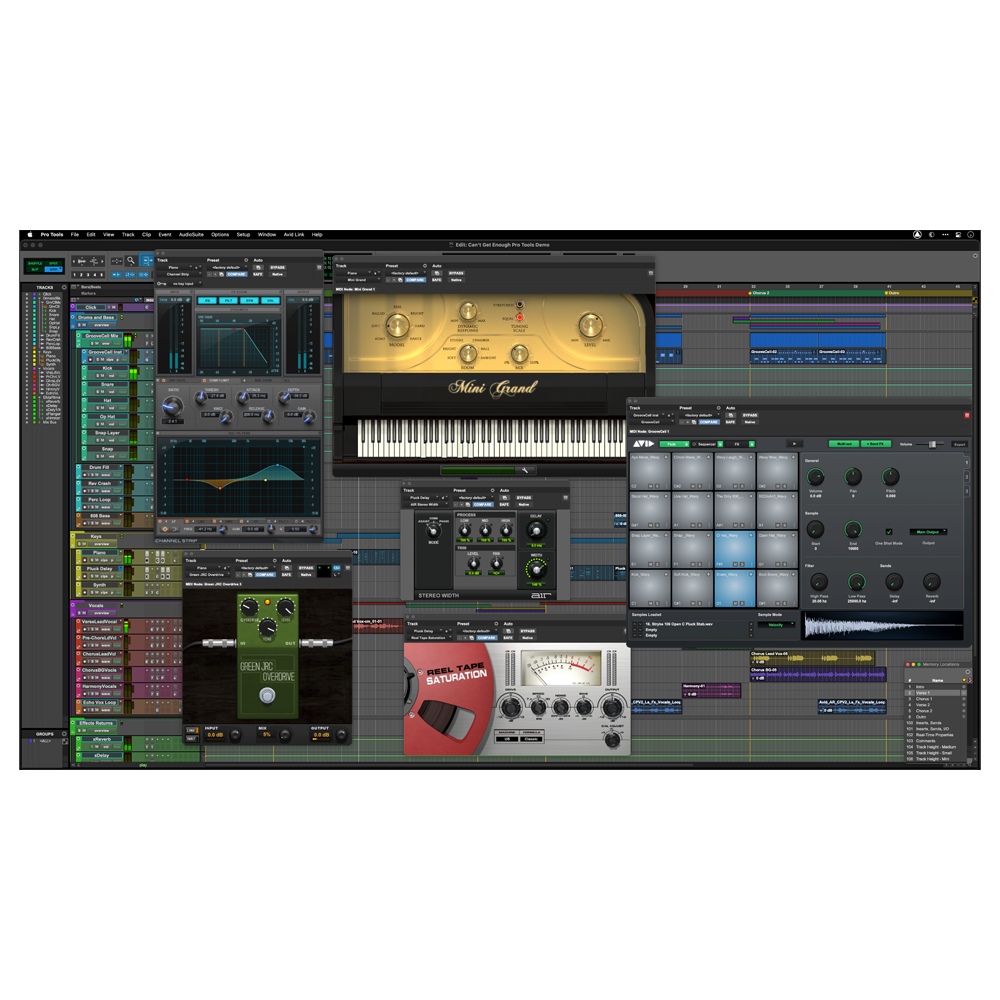

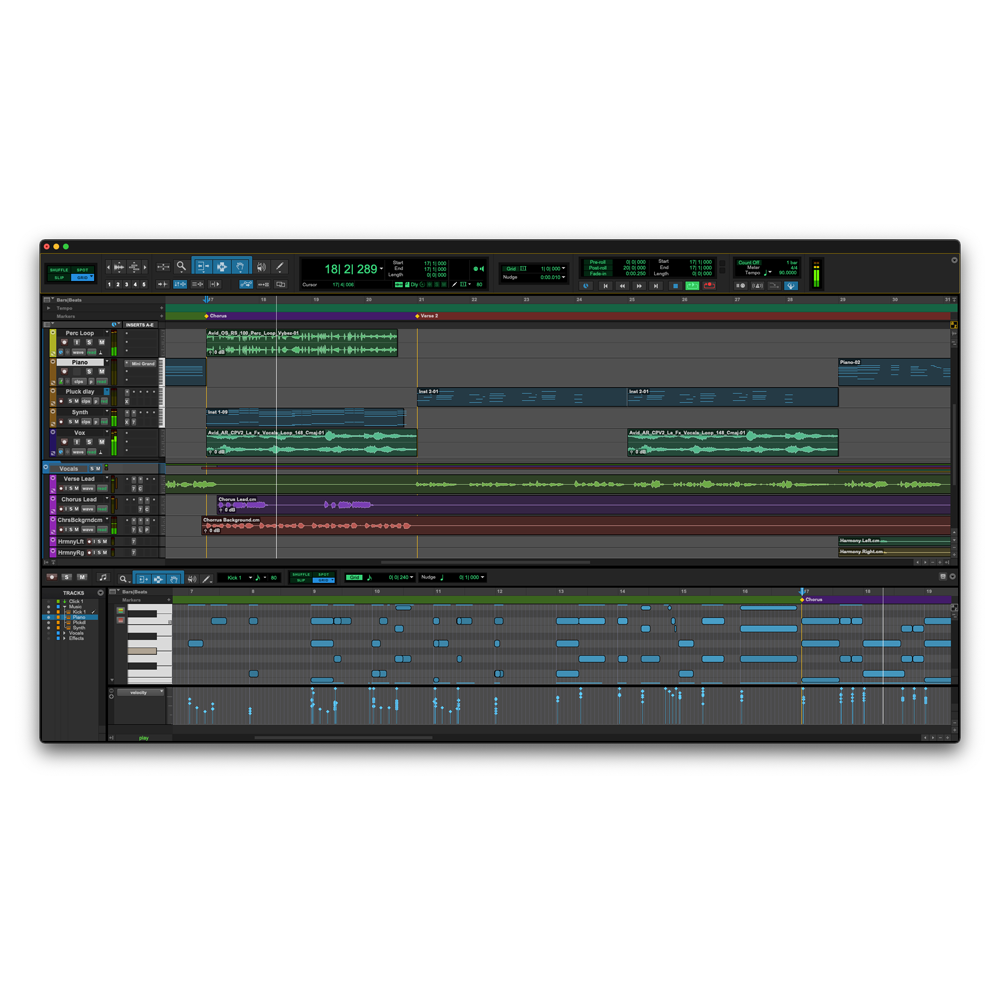

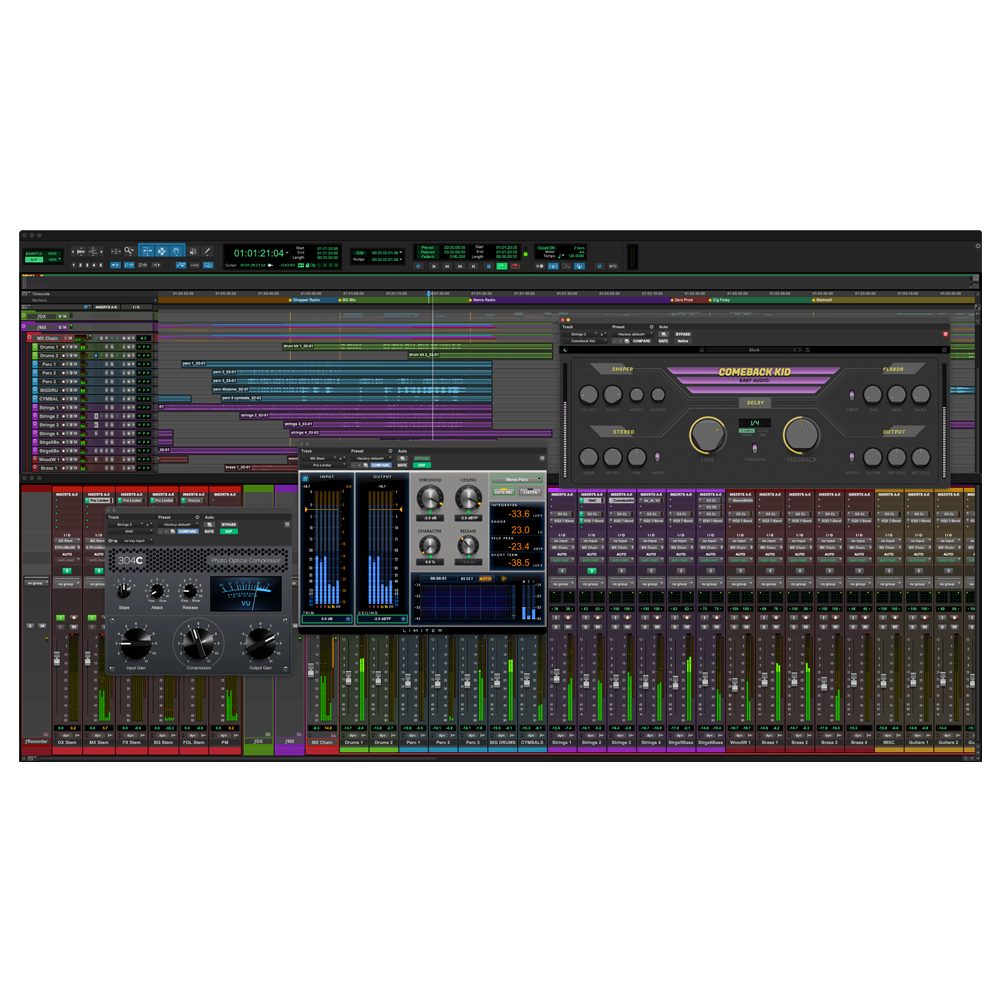

Avid Pro Tools Software Features:

• Industry-standard Digital Audio Workstation (DAW) software for Mac and PC
• 64-bit architecture unlocks serious processing power and massive session handling
• Powerful audio engine provides superior memory management
• Faster-than-real-time bounce to disk streamlines your workflow and frees up resources
• Unified media engine natively supports multiple HD video formats
• Smooth collaboration with Avid Media Composer and other media-production workflows
• Workspace Browser makes project navigation extremely fast and incredibly simple
• Simple keyboard commands let you quickly disable and enable sends and inserts
• Capture automation while recording audio
• Utilize up to 128 tracks at 44.1/48kHz and up to 32 channels of simultaneous I/O
• Take advantage of over 70 bundled 64-bit plug-in processors, effects, and virtual instruments
• Automatic delay compensation provides tight mixing with minimal phase issues
• Multitrack Beat Detective and Elastic Audio let you correct timing across all of your tracks
• Score Editor and MIDI Editor provide comprehensive composing capabilities
• Mix various audio file types and formats in a single session without format conversion
• Create flawless performances using simple track compositing functions
• Clip Gain provides dynamic volume flexibility and increases integration with Media Composer
• Mute and Solo visual indicators and Bus Interrogation provide a clear view of signal flow
• Full support for Artist Series and other EUCON-equipped control surfaces
• Low-latency monitoring with Core Audio and ASIO hardware delivers smoother tracking
• Read/record from flash drives, RAID systems, network-attached drives, and server storage
• Functions such as Export Selected Tracks as New Session make collaboration easy
• OMF/AAF/MXF interchange support plus included
• Export support for MP3 files, iTunes, and SoundCloud also included
• Full time code support with feet and frames rulers and 24-hour timeline support
• Avid Cloud Collaboration and the Avid Marketplace let you connect and collaborate
• Includes iLok

IMPORTANTE! A partir de la nueva revisión, 2018, Pro Tools ya NO requiere de ilok, para operar. El producto de esta página se ofrece en versión "digital", en el cual se entrega un código de registro por email y el software se descarga desde avid.com. No es un producto físico en caja.

Descripción del producto:

Ya sea usted un legendario profesional de la industria o un usuario amateur, adorará trabajar con Pro Tools. La versión 12, levanta nuevamente el estándar de las editoras de audio, restableciéndose como el rey indiscutible de las DAW. Ahora más poderoso, Pro Tools 12 ha mejorado su funcionalidad de ruteo I/O, buses ilimitados, conteo de hasta 128 tracks de audio y 512 de instrumentos MIDI, monitoreo del "track input", y la nueva función de "Copiar al Envío", entre muchas otras. Para ingenieros móviles, apreciará los avances de Pro Tools | Control iOS app support. Sume avanzados monitores visuales de medición de nivel de alta resolución, VCA Masters, Disk Cache y Gain Reduction Metering, que son funciones solicitadas por nuestros usuarios para incrementar la eficiencia en proyectos de gran escala. Un nuevo paquete premium de plugins se ha sumado al ofrecimiento, con planes selectos de soporte. Para usuarios de S3, Pro Tools 12 suma la función "derrame VCA" (VCA spill).

Ya sea un usuario experimentado, músico o productor en camino a la grandeza, Pro Tools será su aliado #1.

• Grabe, edite y mezcle con increíble flexibilidad.
• Claridad sin precedentes con el sistema de 64-bits acompañado por un impresionante arsenal de plug-ins AAX.
• Obtenga compatibilidad universal con más de 100,000 usuarios del programa de edición más utilizado del mundo.
• El paquete incluye todas las herramientas necesarias, en la caja, para trabajar de inmediato.
• Pro Tools es el eye de las industrias de producción musical, broadcast y post-producción.
• Avid Cloud le permite colaborar, en tiempo real, con talento al rededor del planeta.

Información del Fabricante:

Create with an amazing collection of powerful 64-bit AAX plug-ins
The Space convolution reverb (a $499 value) and 16 brand-new stompbox effect plug-ins inspired by Eleven Rack are now included in all active Pro Tools Annual Upgrade and Support Plans as well as subscription licenses. Add grit, space, modulation, and overdrive to your tracks with this bundle of stompbox-type effects from the Pro Tools | Eleven Rack amp/cabinet hardware product. This new collection of 64-bit AAX Native, AAX DSP, and AAX AudioSuite plug-ins are modeled after the circuitry and design of many classic and popular analog guitar stompboxes and effects - from EQ and compressor to reverb, delay, modulation, and distortion effects. In addition to the 16 Eleven stompbox effects and Space, Pro Tools | HD customers also get all five Avid Pro Series plug-ins: Pro Compressor, Pro Expander, Pro Limiter, Pro Multiband Dynamics, and Pro Subharmonic. Also included is the Eleven amp/cabinet simulator plug-in, ReVibe II (a powerful room-modeling plug-in), and Reverb One.

Integrated mixing and editing power that goes way deeper than plug-ins
As wonderful as AAX plug-ins are, they only scratch the surface of what Pro Tools software has to offer. Much of its real production power is built into the environment itself. Flexible functions such as Avid's multitrack Beat Detective and Elastic Audio let you fix timing issues across your entire mix. Automatic delay compensation ensures that your mix remains intact, even when you pile on the plug-ins. What's more, AAX plug-ins allow you to take projects back and forth between your Pro Tools software system and Pro Tools HD systems, so collaborating with high-end professional studios is easy. Track compositing functions also let you quickly merge multiple takes into a single flawless performance. Full support for Artist Series and other EUCON-equipped control surfaces lets you take total command of Pro Tools software beyond the capabilities of HUI-based controllers. And thanks to Pro Tools software's faster-than-real-time offline bounce functions, mixing down stems and freeing up processor power is extremely simple.

Loaded with the quality tools you need for in-the-box music creation
As comprehensive as Pro Tools software is for recording and editing audio, it's also the weapon of choice for music composers and electronic musicians. Not only does Pro Tools software include a full lineup of great virtual instruments, but it also gives you the environment and tools you need to get the most out of them. If you're a traditional composer, you'll love how easy it is to import your scores or create new compositions in Pro Tools software's versatile score editor. And if you're into modern MIDI production, Pro Tools software's massive collection of MIDI tools will absolutely blow your mind!

Music production, broadcast, video post, and beyond
The power of Pro Tools software extends far beyond the realm of music production, making it a favorite for video post and broadcast professionals around the world. With software-spanning interchange options such as OMF/AAF/MXF interchange, Clip Gain metadata support, and a Unified Video Engine that can play most common HD video formats without the need for transcoding, integrating your Pro Tools software rig with Avid Media Composer is a snap.

Connect and collaborate with other musicians and audio pros
With Avid Cloud Collaboration, you can connect and collaborate with other musicians, producers, engineers, and mixers, giving you access to the right tools, workflows, and connections you need to make your work stand apart from the crowd. It doesn't matter where you and your collaborators are - it's like working together in the same studio! On top of that, the Avid Marketplace and Artist Community connect you with the largest network of media professionals to help you share, promote, and sell your work.

Avid Pro Tools Software Features:

• Industry-standard Digital Audio Workstation (DAW) software for Mac and PC
• 64-bit architecture unlocks serious processing power and massive session handling
• Powerful audio engine provides superior memory management
• Faster-than-real-time bounce to disk streamlines your workflow and frees up resources
• Unified media engine natively supports multiple HD video formats
• Smooth collaboration with Avid Media Composer and other media-production workflows
• Workspace Browser makes project navigation extremely fast and incredibly simple
• Simple keyboard commands let you quickly disable and enable sends and inserts
• Capture automation while recording audio
• Utilize up to 128 tracks at 44.1/48kHz and up to 32 channels of simultaneous I/O
• Take advantage of over 70 bundled 64-bit plug-in processors, effects, and virtual instruments
• Automatic delay compensation provides tight mixing with minimal phase issues
• Multitrack Beat Detective and Elastic Audio let you correct timing across all of your tracks
• Score Editor and MIDI Editor provide comprehensive composing capabilities
• Mix various audio file types and formats in a single session without format conversion
• Create flawless performances using simple track compositing functions
• Clip Gain provides dynamic volume flexibility and increases integration with Media Composer
• Mute and Solo visual indicators and Bus Interrogation provide a clear view of signal flow
• Full support for Artist Series and other EUCON-equipped control surfaces
• Low-latency monitoring with Core Audio and ASIO hardware delivers smoother tracking
• Read/record from flash drives, RAID systems, network-attached drives, and server storage
• Functions such as Export Selected Tracks as New Session make collaboration easy
• OMF/AAF/MXF interchange support plus included
• Export support for MP3 files, iTunes, and SoundCloud also included
• Full time code support with feet and frames rulers and 24-hour timeline support
• Avid Cloud Collaboration and the Avid Marketplace let you connect and collaborate
• Includes iLok

IMPORTANTE! A partir de la nueva revisión, 2018, Pro Tools ya NO requiere de ilok, para operar. El producto de esta página se ofrece en versión "digital", en el cual se entrega un código de registro por email y el software se descarga desde avid.com. No es un producto físico en caja.

Descripción del producto:

Ya sea usted un legendario profesional de la industria o un usuario amateur, adorará trabajar con Pro Tools. La versión 12, levanta nuevamente el estándar de las editoras de audio, restableciéndose como el rey indiscutible de las DAW. Ahora más poderoso, Pro Tools 12 ha mejorado su funcionalidad de ruteo I/O, buses ilimitados, conteo de hasta 128 tracks de audio y 512 de instrumentos MIDI, monitoreo del "track input", y la nueva función de "Copiar al Envío", entre muchas otras. Para ingenieros móviles, apreciará los avances de Pro Tools | Control iOS app support. Sume avanzados monitores visuales de medición de nivel de alta resolución, VCA Masters, Disk Cache y Gain Reduction Metering, que son funciones solicitadas por nuestros usuarios para incrementar la eficiencia en proyectos de gran escala. Un nuevo paquete premium de plugins se ha sumado al ofrecimiento, con planes selectos de soporte. Para usuarios de S3, Pro Tools 12 suma la función "derrame VCA" (VCA spill).

Ya sea un usuario experimentado, músico o productor en camino a la grandeza, Pro Tools será su aliado #1.

• Grabe, edite y mezcle con increíble flexibilidad.
• Claridad sin precedentes con el sistema de 64-bits acompañado por un impresionante arsenal de plug-ins AAX.
• Obtenga compatibilidad universal con más de 100,000 usuarios del programa de edición más utilizado del mundo.
• El paquete incluye todas las herramientas necesarias, en la caja, para trabajar de inmediato.
• Pro Tools es el eye de las industrias de producción musical, broadcast y post-producción.
• Avid Cloud le permite colaborar, en tiempo real, con talento al rededor del planeta.

Información del Fabricante:

Create with an amazing collection of powerful 64-bit AAX plug-ins
The Space convolution reverb (a $499 value) and 16 brand-new stompbox effect plug-ins inspired by Eleven Rack are now included in all active Pro Tools Annual Upgrade and Support Plans as well as subscription licenses. Add grit, space, modulation, and overdrive to your tracks with this bundle of stompbox-type effects from the Pro Tools | Eleven Rack amp/cabinet hardware product. This new collection of 64-bit AAX Native, AAX DSP, and AAX AudioSuite plug-ins are modeled after the circuitry and design of many classic and popular analog guitar stompboxes and effects - from EQ and compressor to reverb, delay, modulation, and distortion effects. In addition to the 16 Eleven stompbox effects and Space, Pro Tools | HD customers also get all five Avid Pro Series plug-ins: Pro Compressor, Pro Expander, Pro Limiter, Pro Multiband Dynamics, and Pro Subharmonic. Also included is the Eleven amp/cabinet simulator plug-in, ReVibe II (a powerful room-modeling plug-in), and Reverb One.

Integrated mixing and editing power that goes way deeper than plug-ins
As wonderful as AAX plug-ins are, they only scratch the surface of what Pro Tools software has to offer. Much of its real production power is built into the environment itself. Flexible functions such as Avid's multitrack Beat Detective and Elastic Audio let you fix timing issues across your entire mix. Automatic delay compensation ensures that your mix remains intact, even when you pile on the plug-ins. What's more, AAX plug-ins allow you to take projects back and forth between your Pro Tools software system and Pro Tools HD systems, so collaborating with high-end professional studios is easy. Track compositing functions also let you quickly merge multiple takes into a single flawless performance. Full support for Artist Series and other EUCON-equipped control surfaces lets you take total command of Pro Tools software beyond the capabilities of HUI-based controllers. And thanks to Pro Tools software's faster-than-real-time offline bounce functions, mixing down stems and freeing up processor power is extremely simple.

Loaded with the quality tools you need for in-the-box music creation
As comprehensive as Pro Tools software is for recording and editing audio, it's also the weapon of choice for music composers and electronic musicians. Not only does Pro Tools software include a full lineup of great virtual instruments, but it also gives you the environment and tools you need to get the most out of them. If you're a traditional composer, you'll love how easy it is to import your scores or create new compositions in Pro Tools software's versatile score editor. And if you're into modern MIDI production, Pro Tools software's massive collection of MIDI tools will absolutely blow your mind!

Music production, broadcast, video post, and beyond
The power of Pro Tools software extends far beyond the realm of music production, making it a favorite for video post and broadcast professionals around the world. With software-spanning interchange options such as OMF/AAF/MXF interchange, Clip Gain metadata support, and a Unified Video Engine that can play most common HD video formats without the need for transcoding, integrating your Pro Tools software rig with Avid Media Composer is a snap.

Connect and collaborate with other musicians and audio pros
With Avid Cloud Collaboration, you can connect and collaborate with other musicians, producers, engineers, and mixers, giving you access to the right tools, workflows, and connections you need to make your work stand apart from the crowd. It doesn't matter where you and your collaborators are - it's like working together in the same studio! On top of that, the Avid Marketplace and Artist Community connect you with the largest network of media professionals to help you share, promote, and sell your work.

Avid Pro Tools Software Features:

• Industry-standard Digital Audio Workstation (DAW) software for Mac and PC
• 64-bit architecture unlocks serious processing power and massive session handling
• Powerful audio engine provides superior memory management
• Faster-than-real-time bounce to disk streamlines your workflow and frees up resources
• Unified media engine natively supports multiple HD video formats
• Smooth collaboration with Avid Media Composer and other media-production workflows
• Workspace Browser makes project navigation extremely fast and incredibly simple
• Simple keyboard commands let you quickly disable and enable sends and inserts
• Capture automation while recording audio
• Utilize up to 128 tracks at 44.1/48kHz and up to 32 channels of simultaneous I/O
• Take advantage of over 70 bundled 64-bit plug-in processors, effects, and virtual instruments
• Automatic delay compensation provides tight mixing with minimal phase issues
• Multitrack Beat Detective and Elastic Audio let you correct timing across all of your tracks
• Score Editor and MIDI Editor provide comprehensive composing capabilities
• Mix various audio file types and formats in a single session without format conversion
• Create flawless performances using simple track compositing functions
• Clip Gain provides dynamic volume flexibility and increases integration with Media Composer
• Mute and Solo visual indicators and Bus Interrogation provide a clear view of signal flow
• Full support for Artist Series and other EUCON-equipped control surfaces
• Low-latency monitoring with Core Audio and ASIO hardware delivers smoother tracking
• Read/record from flash drives, RAID systems, network-attached drives, and server storage
• Functions such as Export Selected Tracks as New Session make collaboration easy
• OMF/AAF/MXF interchange support plus included
• Export support for MP3 files, iTunes, and SoundCloud also included
• Full time code support with feet and frames rulers and 24-hour timeline support
• Avid Cloud Collaboration and the Avid Marketplace let you connect and collaborate
• Includes iLok

IMPORTANTE! A partir de la revisión 2018, Pro Tools ya NO requiere de il=Lok, para operar. El producto de esta página se ofrece en versión "digital", en el cual se entrega un código de registro por email y el software se descarga desde avid.com. No es un producto físico en caja.

NO HAY DEVOLUCIONES EN LICENCIAS DE SOFTWARE. VERIFIQUE CON CUIDADO QUE ESTA COMPRANDO LA VERSION CORRECTA PARA SU SISTEMA. Si tiene duda contáctenos.

Descripción del producto:

Ya sea usted un legendario profesional de la industria o un usuario amateur, adorará trabajar con Pro Tools. La versión 12, levanta nuevamente el estándar de las editoras de audio, restableciéndose como el rey indiscutible de las DAW. Ahora más poderoso, Pro Tools 12 ha mejorado su funcionalidad de ruteo I/O, buses ilimitados, conteo de hasta 128 tracks de audio y 512 de instrumentos MIDI, monitoreo del "track input", y la nueva función de "Copiar al Envío", entre muchas otras. Para ingenieros móviles, apreciará los avances de Pro Tools | Control iOS app support. Sume avanzados monitores visuales de medición de nivel de alta resolución, VCA Masters, Disk Cache y Gain Reduction Metering, que son funciones solicitadas por nuestros usuarios para incrementar la eficiencia en proyectos de gran escala. Un nuevo paquete premium de plugins se ha sumado al ofrecimiento, con planes selectos de soporte. Para usuarios de S3, Pro Tools 12 suma la función "derrame VCA" (VCA spill).

Ya sea un usuario experimentado, músico o productor en camino a la grandeza, Pro Tools será su aliado #1.

• Grabe, edite y mezcle con increíble flexibilidad.
• Claridad sin precedentes con el sistema de 64-bits acompañado por un impresionante arsenal de plug-ins AAX.
• Obtenga compatibilidad universal con más de 100,000 usuarios del programa de edición más utilizado del mundo.
• El paquete incluye todas las herramientas necesarias, en la caja, para trabajar de inmediato.
• Pro Tools es el eye de las industrias de producción musical, broadcast y post-producción.
• Avid Cloud le permite colaborar, en tiempo real, con talento al rededor del planeta.

Información del Fabricante:

Create with an amazing collection of powerful 64-bit AAX plug-ins
The Space convolution reverb (a $499 value) and 16 brand-new stompbox effect plug-ins inspired by Eleven Rack are now included in all active Pro Tools Annual Upgrade and Support Plans as well as subscription licenses. Add grit, space, modulation, and overdrive to your tracks with this bundle of stompbox-type effects from the Pro Tools | Eleven Rack amp/cabinet hardware product. This new collection of 64-bit AAX Native, AAX DSP, and AAX AudioSuite plug-ins are modeled after the circuitry and design of many classic and popular analog guitar stompboxes and effects - from EQ and compressor to reverb, delay, modulation, and distortion effects. In addition to the 16 Eleven stompbox effects and Space, Pro Tools | HD customers also get all five Avid Pro Series plug-ins: Pro Compressor, Pro Expander, Pro Limiter, Pro Multiband Dynamics, and Pro Subharmonic. Also included is the Eleven amp/cabinet simulator plug-in, ReVibe II (a powerful room-modeling plug-in), and Reverb One.

Integrated mixing and editing power that goes way deeper than plug-ins
As wonderful as AAX plug-ins are, they only scratch the surface of what Pro Tools software has to offer. Much of its real production power is built into the environment itself. Flexible functions such as Avid's multitrack Beat Detective and Elastic Audio let you fix timing issues across your entire mix. Automatic delay compensation ensures that your mix remains intact, even when you pile on the plug-ins. What's more, AAX plug-ins allow you to take projects back and forth between your Pro Tools software system and Pro Tools HD systems, so collaborating with high-end professional studios is easy. Track compositing functions also let you quickly merge multiple takes into a single flawless performance. Full support for Artist Series and other EUCON-equipped control surfaces lets you take total command of Pro Tools software beyond the capabilities of HUI-based controllers. And thanks to Pro Tools software's faster-than-real-time offline bounce functions, mixing down stems and freeing up processor power is extremely simple.

Loaded with the quality tools you need for in-the-box music creation
As comprehensive as Pro Tools software is for recording and editing audio, it's also the weapon of choice for music composers and electronic musicians. Not only does Pro Tools software include a full lineup of great virtual instruments, but it also gives you the environment and tools you need to get the most out of them. If you're a traditional composer, you'll love how easy it is to import your scores or create new compositions in Pro Tools software's versatile score editor. And if you're into modern MIDI production, Pro Tools software's massive collection of MIDI tools will absolutely blow your mind!

Music production, broadcast, video post, and beyond
The power of Pro Tools software extends far beyond the realm of music production, making it a favorite for video post and broadcast professionals around the world. With software-spanning interchange options such as OMF/AAF/MXF interchange, Clip Gain metadata support, and a Unified Video Engine that can play most common HD video formats without the need for transcoding, integrating your Pro Tools software rig with Avid Media Composer is a snap.

Connect and collaborate with other musicians and audio pros
With Avid Cloud Collaboration, you can connect and collaborate with other musicians, producers, engineers, and mixers, giving you access to the right tools, workflows, and connections you need to make your work stand apart from the crowd. It doesn't matter where you and your collaborators are - it's like working together in the same studio! On top of that, the Avid Marketplace and Artist Community connect you with the largest network of media professionals to help you share, promote, and sell your work.

Avid Pro Tools Software Features:

• Industry-standard Digital Audio Workstation (DAW) software for Mac and PC
• 64-bit architecture unlocks serious processing power and massive session handling
• Powerful audio engine provides superior memory management
• Faster-than-real-time bounce to disk streamlines your workflow and frees up resources
• Unified media engine natively supports multiple HD video formats
• Smooth collaboration with Avid Media Composer and other media-production workflows
• Workspace Browser makes project navigation extremely fast and incredibly simple
• Simple keyboard commands let you quickly disable and enable sends and inserts
• Capture automation while recording audio
• Utilize up to 128 tracks at 44.1/48kHz and up to 32 channels of simultaneous I/O
• Take advantage of over 70 bundled 64-bit plug-in processors, effects, and virtual instruments
• Automatic delay compensation provides tight mixing with minimal phase issues
• Multitrack Beat Detective and Elastic Audio let you correct timing across all of your tracks
• Score Editor and MIDI Editor provide comprehensive composing capabilities
• Mix various audio file types and formats in a single session without format conversion
• Create flawless performances using simple track compositing functions
• Clip Gain provides dynamic volume flexibility and increases integration with Media Composer
• Mute and Solo visual indicators and Bus Interrogation provide a clear view of signal flow
• Full support for Artist Series and other EUCON-equipped control surfaces
• Low-latency monitoring with Core Audio and ASIO hardware delivers smoother tracking
• Read/record from flash drives, RAID systems, network-attached drives, and server storage
• Functions such as Export Selected Tracks as New Session make collaboration easy
• OMF/AAF/MXF interchange support plus included
• Export support for MP3 files, iTunes, and SoundCloud also included
• Full time code support with feet and frames rulers and 24-hour timeline support
• Avid Cloud Collaboration and the Avid Marketplace let you connect and collaborate
• Includes iLok

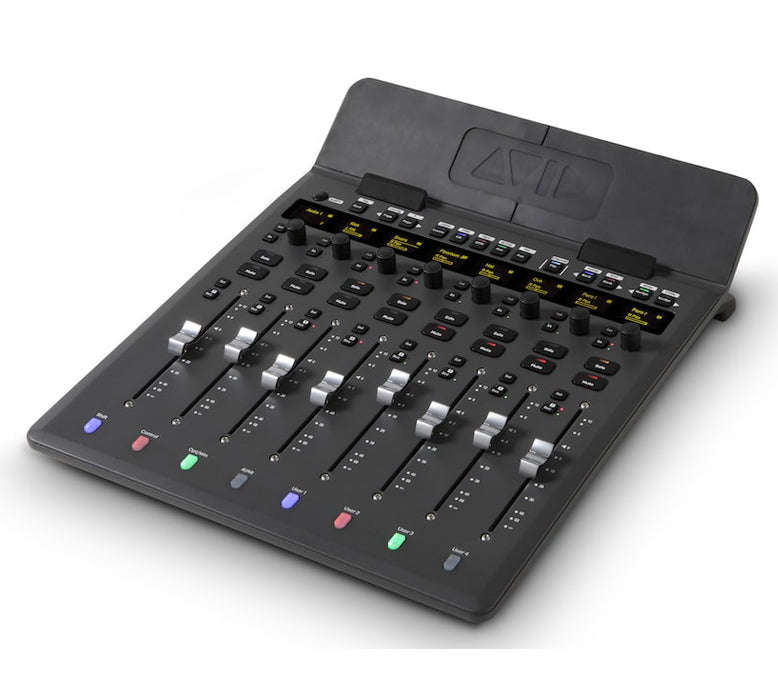

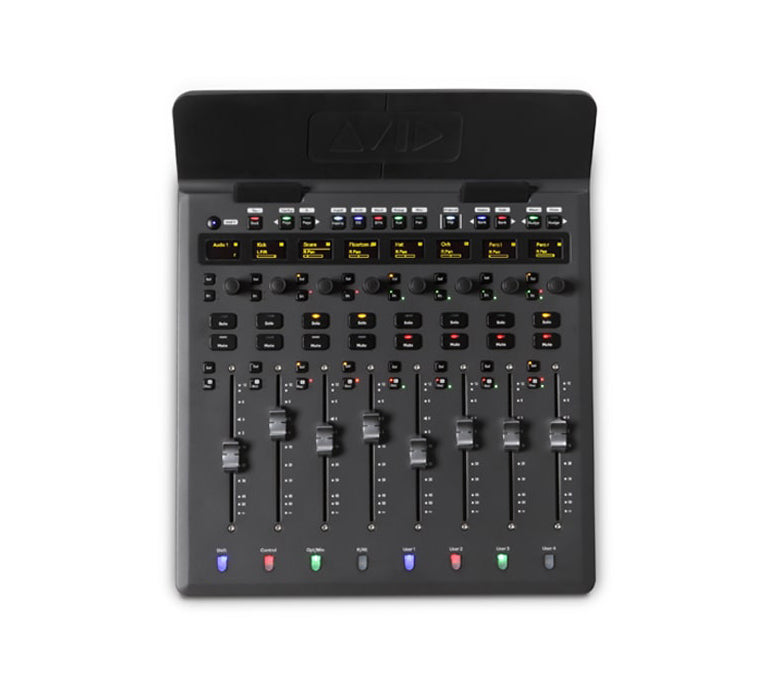

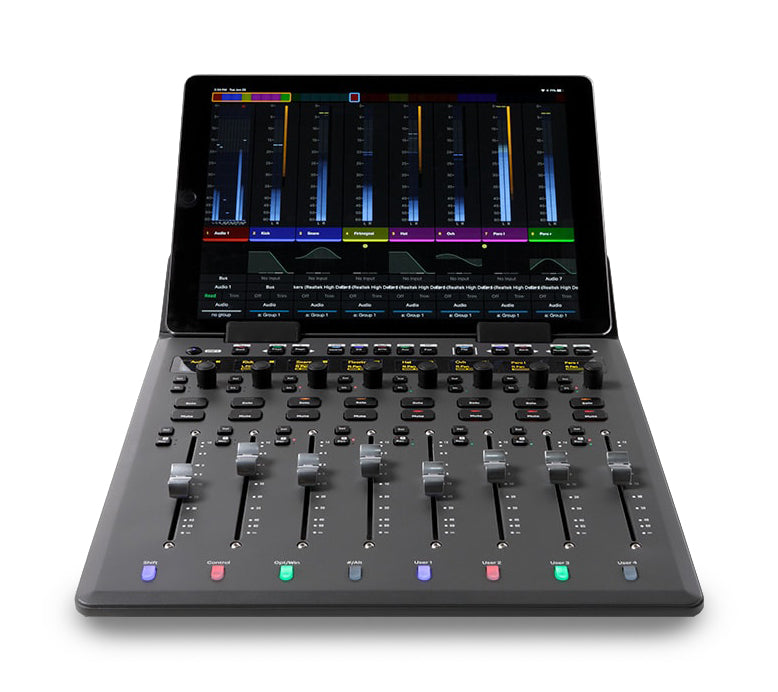

Mix big in any space
Get the unparalleled speed, rich visual feedback, and software integration of Avid’s high-end consoles in a slimline surface that’s an easy fit for any space or budget. Avid S1 gives you deep hands-on control of your favorite audio and video software. Together with the free Avid Control app on your iPad or Android tablet, it provides great ergonomic efficiency, easy touch workflows, and Avid S6-style metering and processing views, so you can mix more intuitively and turn around better sounding mixes fast.

Get massive power in a mini surface
While Avid S1 fits easily between your display and keyboard, it packs a lot of mixing power into its small surface. From motorized faders and knobs that respond to your touch, to fast-access touchscreen workflows and Soft Keys that enable you to perform complex tasks with a single press, S1 provides the speed and versatility to accelerate any music, audio post, or video project.

Get unmatched software integration
S1 is powered by EUCON, Avid’s high-speed Ethernet control protocol that delivers deep hardware/software integration, giving you full touch and tactile access to a host of Avid and third-party software functions and controls. You can even switch between multiple applications—and workstations—at the touch of a button, providing the most fluid editing and mixing experience

Gain extensive insight into your mix
hardware/software integration, giving you full touch and tactile access to a host of Avid and third-party software functions and controls. You can even switch between multiple applications—and workstations—at the touch of a button, providing the most fluid editing and mixing experience.
S1 not only features high-resolution OLED displays, it integrates with the free Avid Control app on your tablet, providing rich visual feedback to enhance your workflow. From track names, parameter values, and automation, to S6-style monitoring, metering, and channel processing views, you get the comprehensive feedback of a high-end console in a versatile surface for the budget-minded.

Scale the surface to your needs
your tablet, providing rich visual feedback to enhance your workflow. From track names, parameter values, and automation, to S6-style monitoring, metering, and channel processing views, you get the comprehensive feedback of a high-end console in a versatile surface for the budget-minded.
Need more faders? Connect multiple S1 units together to create an extended, fully integrated control surface that provides more tactile control to handle larger mixes. You can even seamlessly connect Avid Dock to S1 to have dedicated transport controls, a jog wheel, focus fader, and more at your fingertips.

Features

Accelerate your workflow
From muting and soloing tracks, editing plugins, and routing signals, to writing surround panning automation and triggering macros, S1 provides total hands-on access to your audio or video project, giving you greater speed and precision than mixing with a mouse and keyboard alone.

Navigate large sessions fast

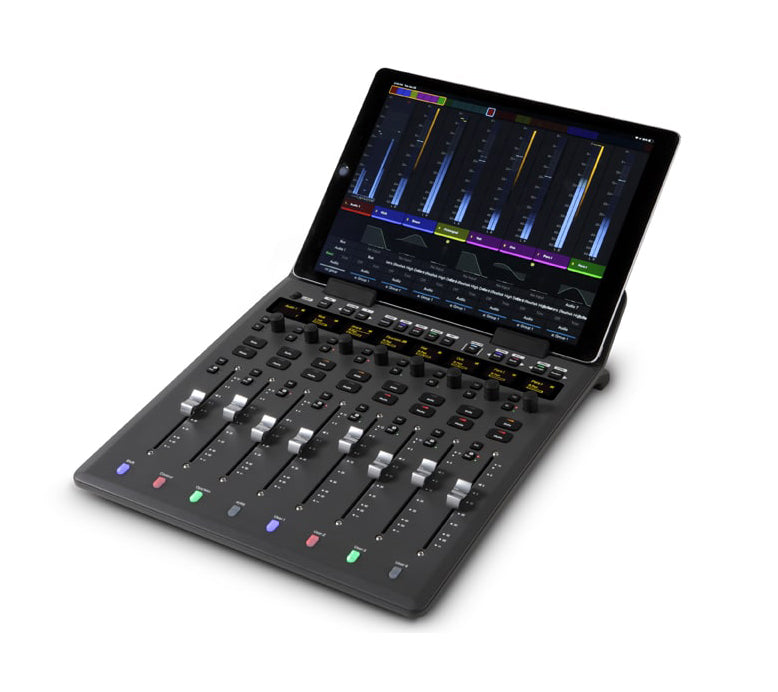

With Avid Control on your connected iPad or Android tablet, you can get to where you need to go instantly. Jump to a track by selecting it in Tracks View. Or swipe through multiple channels in Mix View, eliminating tedious software click-throughs.

Get pro-level hands-on control
From its motorized, touch-sensitive faders and touch-sensitive knobs, to support for VCA spill, monitor control, and custom layouts, S1 goes far beyond what you can do with a MIDI-based controller. Plus, its customizable Soft Keys speed up tedious tasks, enabling you to trigger functions with a simple tap.

View your mix in great detail
From track names, parameter values, and high-res S6-style metering (including gain reduction), to 7.1.2 surround panning, automation status, and channel processing graphs, S1 gives you great insight into your mix. You get the visual feedback you need to make better creative decisions.

Work with your favorite creative tools
S1 offers deep integration with Pro Tools and Media Composer, plus native support for a variety of third-party audio and video applications, including Logic Pro, Cubase, Premiere Pro, and more, to dramatically speed up editing and mixing tasks.

Get S6-style monitoring control
Easily control EUCON-enabled monitoring right from the surface. With the Monitoring View in Avid Control, you can quickly assign and manage source selections, cue mixes, talkback, listenback, speaker cuts, and more to speed up your workflow.

Specifications

SYSTEM REQUIREMENTS

• Avid-qualified Mac or Windows-based computer

HARDWARE SPECIFICATIONS

• Faders: Eight motorized, touch-sensitive, 100 mm long-throw faders
• Knobs: Eight push-top, touch-sensitive rotary encoders
• Additional controls: Assorted hardware buttons/keys for various functions and mode selections, including Mute, Solo, Record-enable, Bank, Nudge, and more
• Software interface: Supports the free Avid Control app running on iPad or Android tablet (tablet not included)
• Displays: Eight high-resolution OLED displays, plus multiple status LEDs and multicolor track buttons; channel metering, monitoring, processing, track status, automation modes, and other views provided by Avid Control on your tablet
•  Height (front, rear): 1.2 inches, 3.8 inches (29 mm, 97 mm)
•  Width: 12.3 inches (312 mm)
•  Depth: 14.9 inches (377 mm)
•  Scalability: Connect up to four S1 controllers together, plus Avid Dock, to create an extended, fully integrated surface

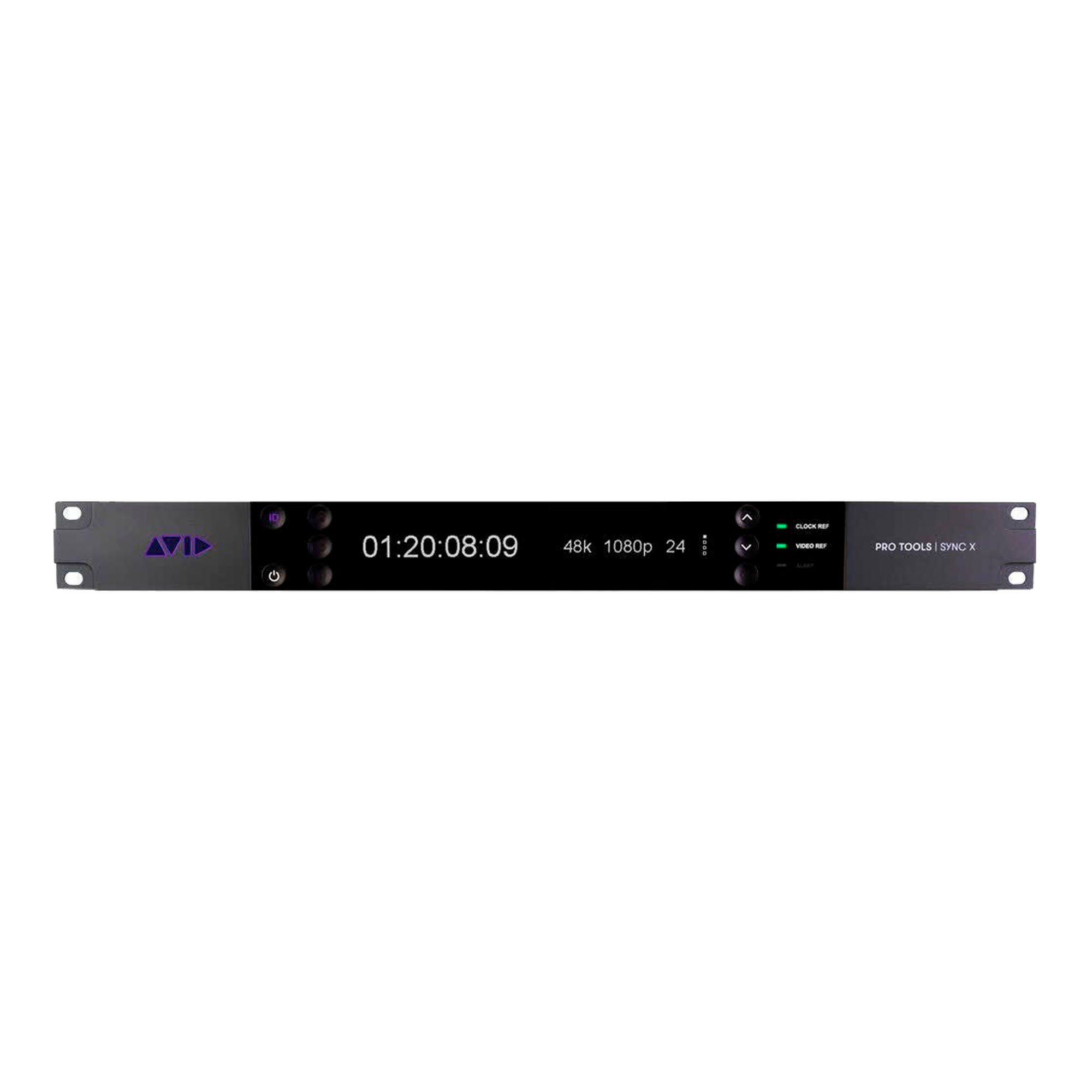

Mantenga su sistema Pro Tools y los dispositivos conectados sincronizados, sin importar la complejidad de su configuración. Avid Pro Tools | Sync X es la base de la posproducción de audio moderna, ofreciendo una sincronización fiable con baja fluctuación de fase y un bloqueo casi preciso con la muestra, con alineación de bordes de fotograma. Es un componente esencial para doblaje, ADR, Foley y otros flujos de trabajo de precisión, e imprescindible en cualquier sala de sus instalaciones que requiera sincronización de audio con imagen.

LA SINCRONIZACIÓN DEFINITIVA PARA POST

Al aprovechar la tecnología patentada de puerto DigiSerial para conectar Pro Tools | HDX o Pro Tools | HD Native, Sync X permite una sincronización precisa entre la posición de la muestra de audio y el borde del fotograma de vídeo. En entornos de mezcla con varios operadores, donde los diálogos, la música y los efectos de sonido se gestionan por sistemas independientes, todos los dispositivos de audio y vídeo se sincronizarán y reproducirán exactamente en el mismo punto deseado. Cada vez que pulses reproducir o grabar.

SINCRONIZA TODOS TUS DISPOSITIVOS

Compatible con todas las fuentes de reloj estándar de la industria (incluyendo Word Clock, Loop Sync y AES3), formatos de referencia posicional (incluyendo LTC, código de tiempo serie y bifase/tacómetro), formatos de referencia SD y HD, y velocidades de pull-up/pull-down para cine y vídeo, Sync X se integra fácilmente en cualquier estudio. Además, sus seis salidas Word Clock facilitan la sincronización con interfaces y dispositivos Pro Tools.

REDUCE COSTOS CON EL GENERADOR DE REFERENCIA DE VIDEO INTEGRADO

No necesita depender de la referencia de video de un dispositivo externo. Sync X incorpora un generador de referencia de video con cuatro salidas para distribuir señales a otros periféricos, lo que reduce la complejidad y los costos. Si ya cuenta con un generador de referencia de video externo, Sync X también puede recibir la referencia de video con detección automática de formato.

Optimice los flujos de trabajo de dos operadores

Sync X permite que varios sistemas Pro Tools conectados a Satellite se sincronicen en tándem para entornos de mezcla multioperador, donde los diálogos, la música y los efectos de sonido se gestionan por sistemas independientes. Esto elimina cualquier posible desviación para mantener una sincronización casi precisa con el borde del fotograma.

CONTROLA SYNC X Y OTROS DISPOSITIVOS DESDE PRO TOOLS

Desde la configuración del reloj de audio y las fuentes de referencia de vídeo hasta la selección de frecuencias de pull-down y el ajuste preciso de la velocidad de los dispositivos, todos los ajustes de Sync X se pueden controlar directamente en Pro Tools | Ultimate. También ofrece una conexión de 9 pines, lo que permite controlar otros dispositivos desde Pro Tools, como una consola de vídeo.

BLOQUEO DE FUENTES DE FORMA RÁPIDA E IMPECABLE

Gracias a la tecnología de reloj JetPLL con un jitter excepcionalmente bajo, Sync X se sincroniza con fuentes externas con mayor rapidez y precisión que su predecesor, Pro Tools | SYNC HD. Su oscilador maestro funciona a 100 MHz, una implementación de doble resolución que es el doble de rápida que los relojes JetPLL típicos. Y el doble de precisa.

OBTENGA FLEXIBILIDAD CON E/S DE 10 MHZ Y AES3ID

Al trabajar en escenarios de composición y otras situaciones de grabación exigentes donde un sonido impecable es fundamental, Sync X se sincroniza fácilmente con relojes maestros atómicos de alta gama a través de su entrada de reloj de 10 MHz. En entornos que requieren grandes tendidos de cable, como en grandes instalaciones de postproducción, puede enviar o recibir señales AES3 o AES3id a dispositivos compatibles, lo que le brinda mayor flexibilidad.

MANTENER LA FRESCURA CUANDO LA PRODUCCIÓN SE CALENTA

Las fluctuaciones de temperatura pueden afectar el tono de un dispositivo. Gracias a un oscilador con compensación de temperatura, Sync X siempre proporciona una sincronización fiable, incluso con variaciones de temperatura, manteniendo una precisión de frecuencia de ±1 parte por millón en su rango de temperatura nominal para mantener un tono perfecto. Además, puede conectarse a otros equipos sin temor a que el calor lo desvíe.

OBTENGA TRANQUILIDAD CON UN TIEMPO DE INACTIVIDAD MÍNIMO

Para quienes trabajan con plazos de entrega constantes, Avid ofrece un Plan de Soporte de Hardware Extendido que extiende la garantía de hardware de 1 año a 3 años. Disponible para comprar dentro de los primeros 90 días de registrarse en su Cuenta Avid®, también ofrece reemplazo de hardware avanzado sin tiempo de inactividad con envío al día siguiente, para que pueda seguir trabajando sin tener que esperar una reparación.

CARACTERÍSTICAS:

• Mantenga una sincronización precisa entre sus sistemas Pro Tools, interfaces de audio y dispositivos de reproducción de video, con un bloqueo casi preciso de la muestra y una alineación precisa de los bordes del cuadro.
• Conéctese con una amplia gama de dispositivos compatibles con todas las fuentes de reloj estándar de la industria, velocidades de subida/bajada, velocidades de código de tiempo y formatos HD/SD.
• Reduzca costos y complejidad con el generador de referencia de video integrado, eliminando la necesidad de un dispositivo externo
• Bloqueo a fuentes externas más rápido y con mayor precisión que SYNC HD con reloj JetPLL de fluctuación excepcionalmente baja
• Sincronice varios sistemas Pro Tools simultáneamente para admitir flujos de trabajo con dos operadores

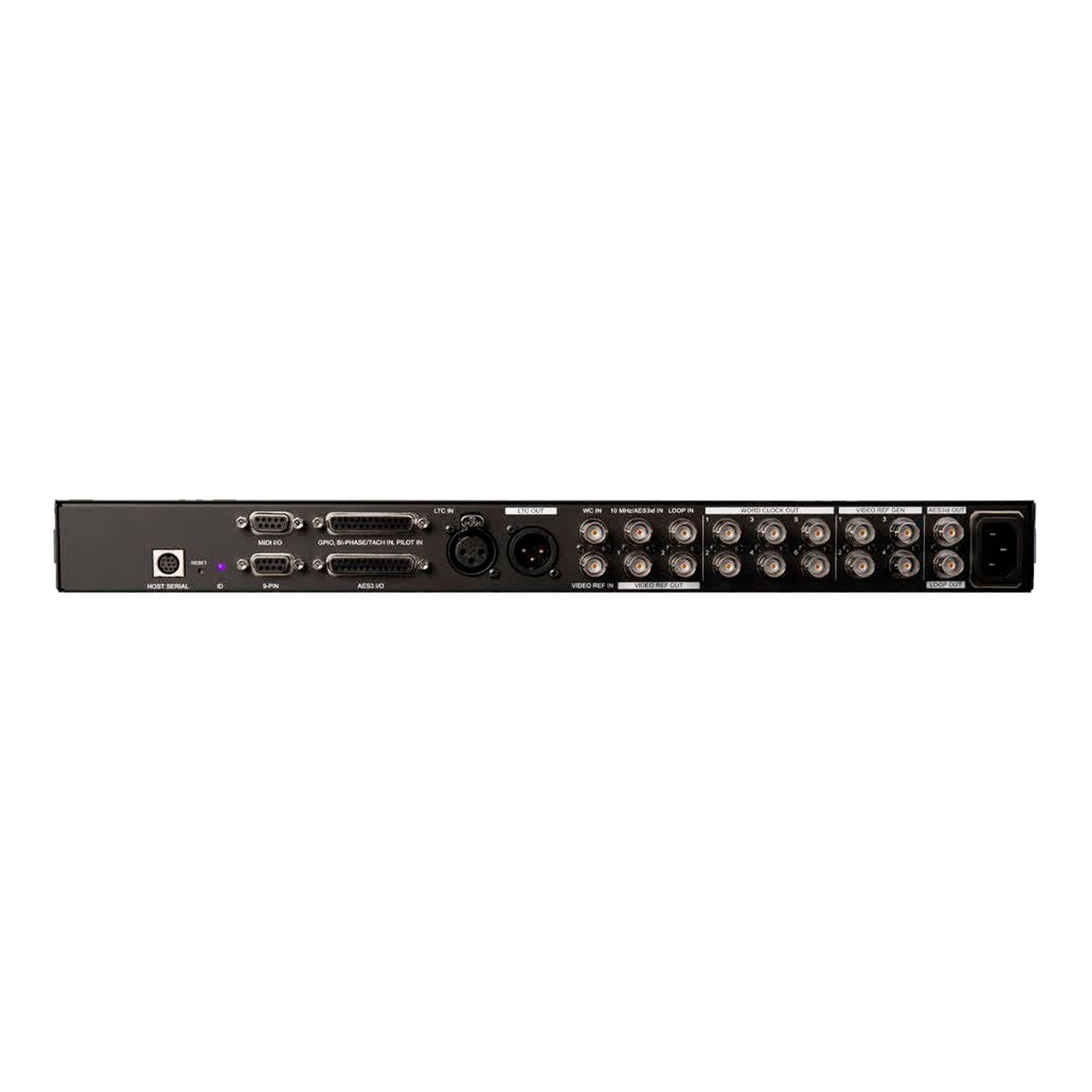

• Obtenga flexibilidad con Word Clock, LTC, 10 MHz, AES3, AES3id, Loop Sync, GPIO, Bi-Phase/Tach, Pilot, 9 pines y E/S MIDI
• Obtenga sincronización y reloj maestro altamente confiables y precisos para entornos de misión crítica
