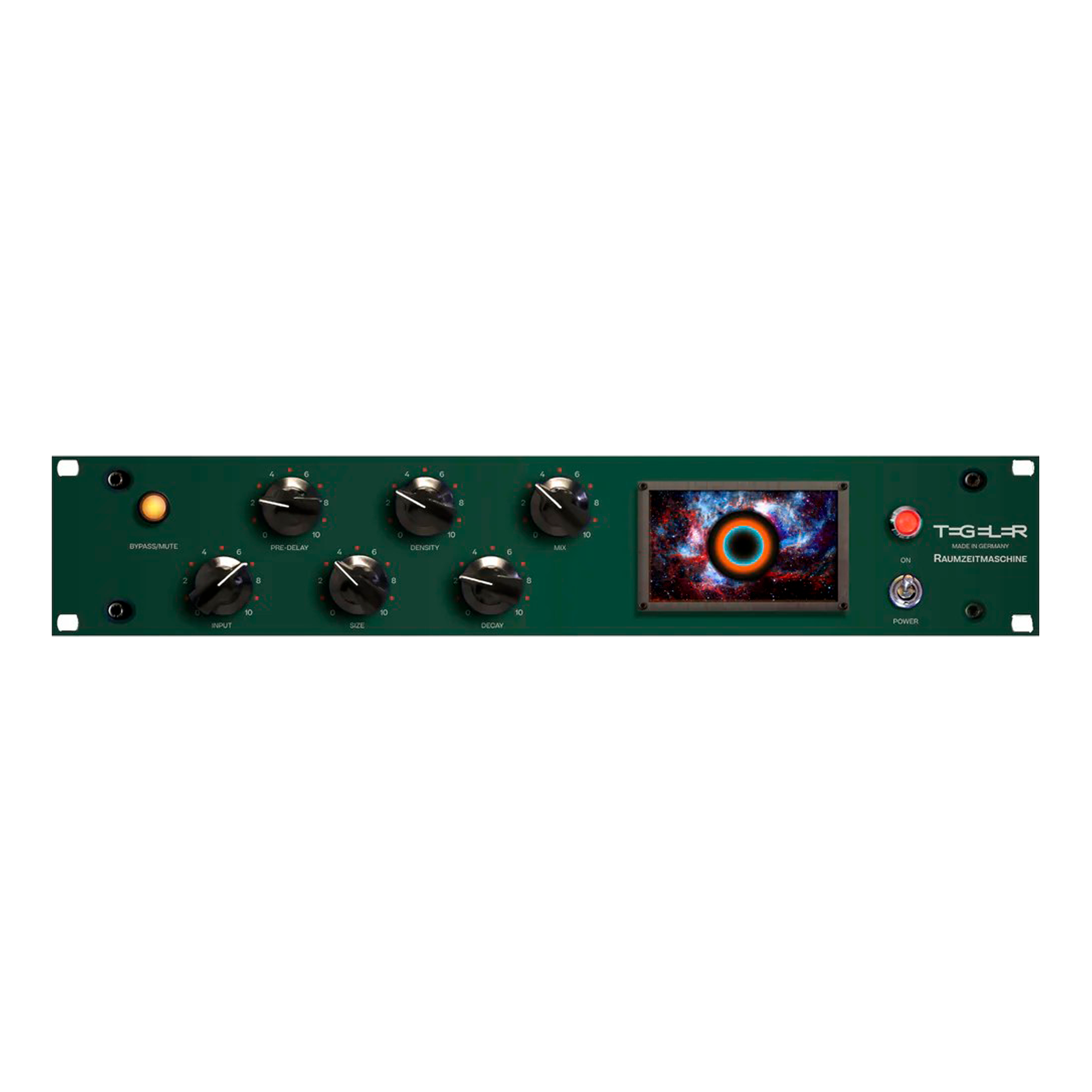

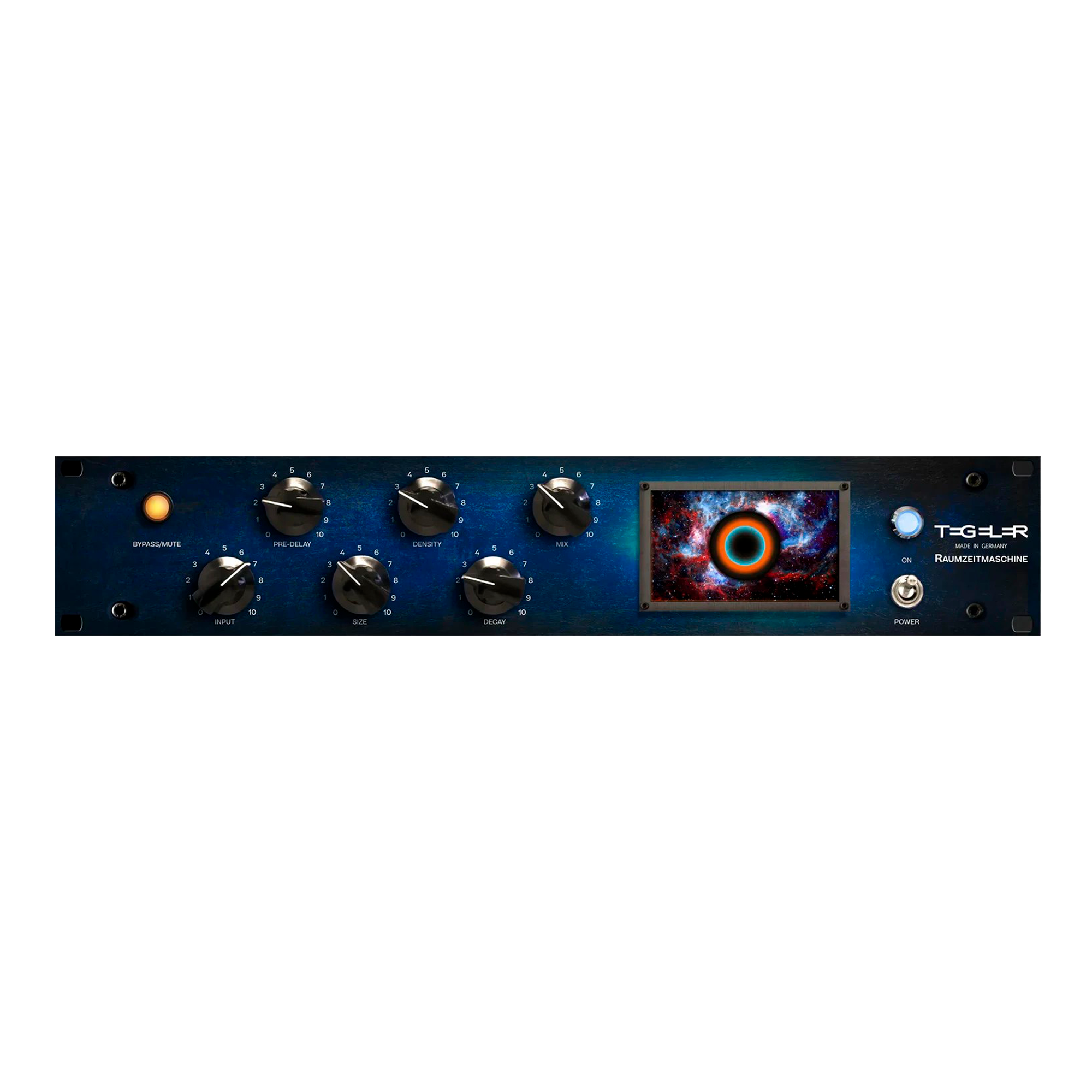

El Raumzeitmaschine de Tegeler Audio crea un sonido espacial muy natural, transparente y nítido, a la vez que posee una sonoridad propia y agradable. Esto se logra mediante la combinación única de componentes digitales y analógicos. Incluye, por supuesto, un procesador que calcula la reverberación, la cual se enriquece con el característico sonido analógico de nuestros dispositivos.

Concepto operativo único

La Raumzeitmaschine ofrece el acceso más directo al sonido adecuado con solo tres parámetros. En lugar de perder tiempo ajustando cientos de parámetros (el 90 % por parte de personas sin conocimientos de programación), ahora puedes adaptar el sonido a las necesidades de tu mezcla. Un enfoque de funcionamiento similar al de un instrumento musical real.

Preajustes en sencillo

Tegeler ha omitido la compleja gestión de preajustes directamente en el dispositivo. Si recuerdas programar el temporizador de una videograbadora, sabrás por qué. La Raumzeitmaschine está equipada con servomotores y, por lo tanto, se puede controlar de forma remota mediante el DAW. A la inversa, los cambios directos en el dispositivo también se reflejan inmediatamente en el plugin de Raumzeitmaschine. Utiliza la gestión de preajustes de tu DAW o el plugin de Raumzeitmaschine.

¡Es tan sencillo como eso!

Control remoto

Todos los controles de la Raumzeitmaschine están equipados con servomotores. Puedes controlarla directamente desde el panel frontal, mediante el servidor web interno o con el plugin DAW (AU, AAX, VST). Dado que la Raumzeitmaschine se conecta a tu ordenador mediante Ethernet, no hay limitaciones en la longitud del cable, como ocurre con USB. La conexión inalámbrica a través de tu router tampoco supone ningún problema.

Tubos

La Raumzeitmaschine cuenta con dos triodos dobles por canal, además de transformadores de entrada y salida. Por eso solo dispone de entradas y salidas analógicas, no digitales. Sin ellas, se perdería un componente sonoro fundamental. Si prefieres un sonido más potente, incluso puedes intentar anular la válvula de la etapa de entrada.

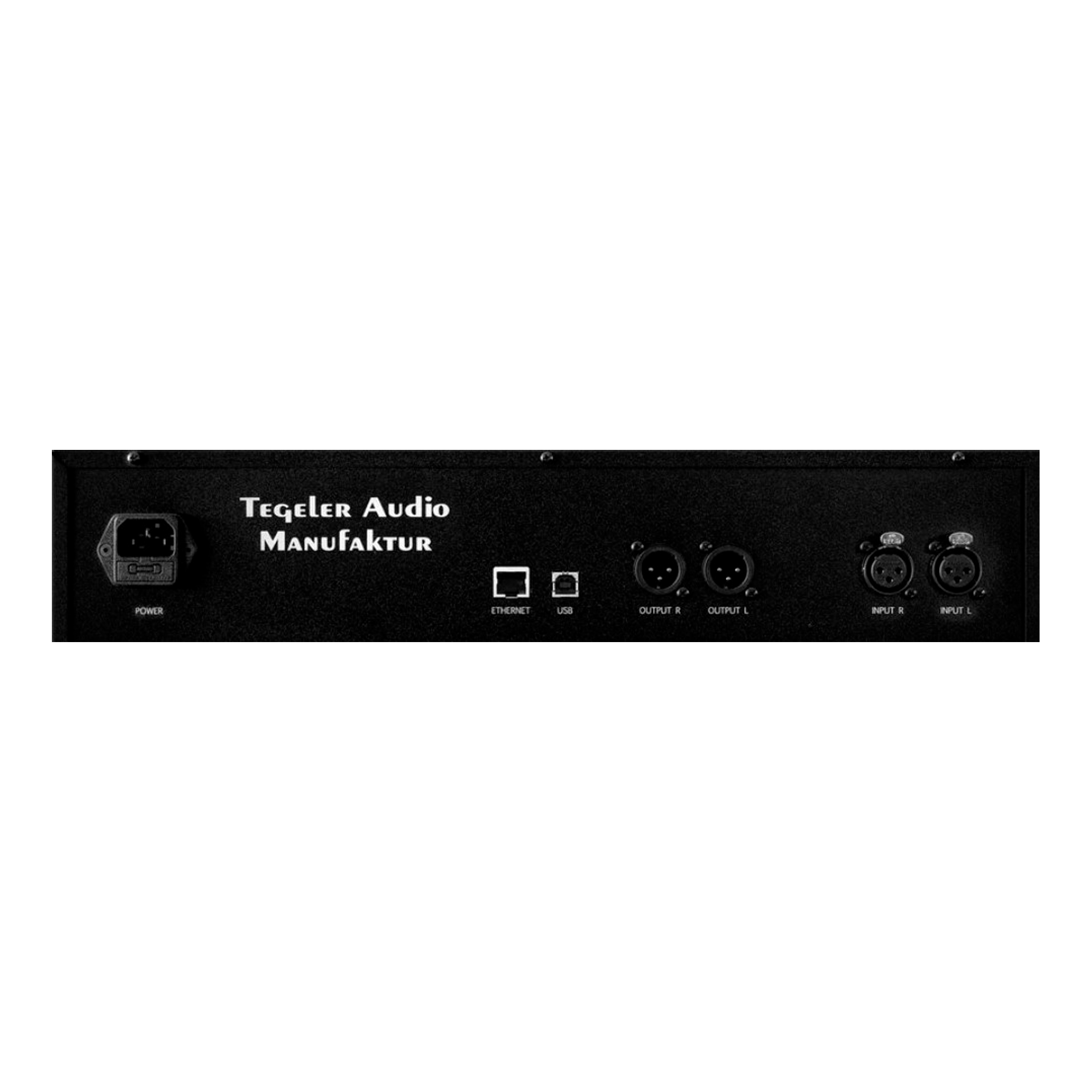

Características:

• Estéreo verdadero
• Entrada: XLR, balanceada por transformador
• Salida: XLR, balanceada por transformador
• Procesador de reverberación
• Pre-retardo, tamaño de sala, densidad y tiempo de decaimiento ajustables.
• Ethernet
• Controlable mediante la página web del dispositivo o mediante un plugin (VST, AU, AAX).
• Potenciómetros de servo
• Dinámico: >110 dB sin ponderación
• Relación atenuación/diafonía L/R >90 dB a 1 kHz
• Fuente de alimentación interna (25 W)
• Altura: 88,1 mm (2u), Ancho: 483 mm, Profundidad: 250 mm

EVENTIDE H9000R HARDWARE EFFECTS PROCESSOR

Network-ready, 16-DSP, multi-channel, rackmount audio effects processor with blank front panel

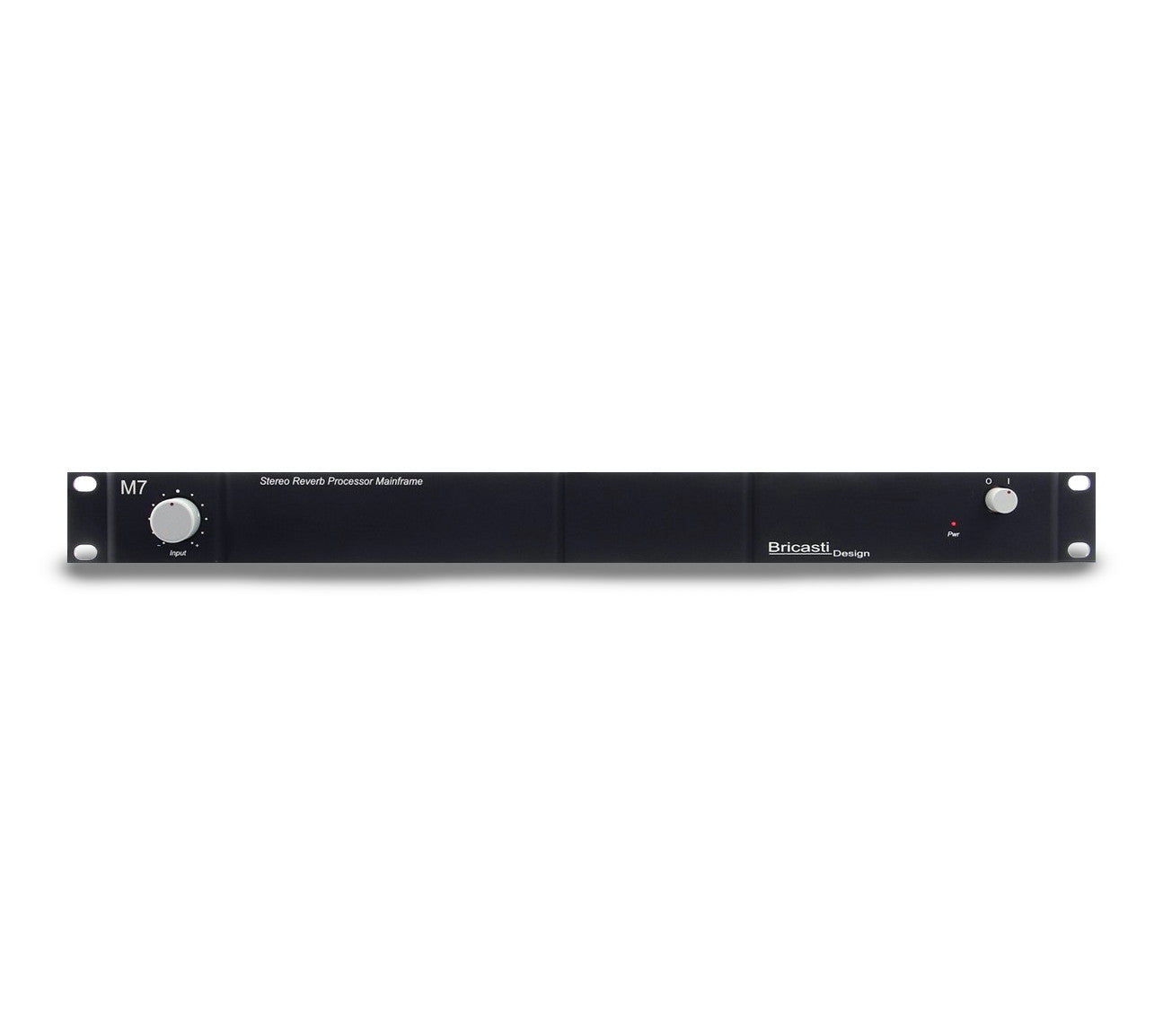

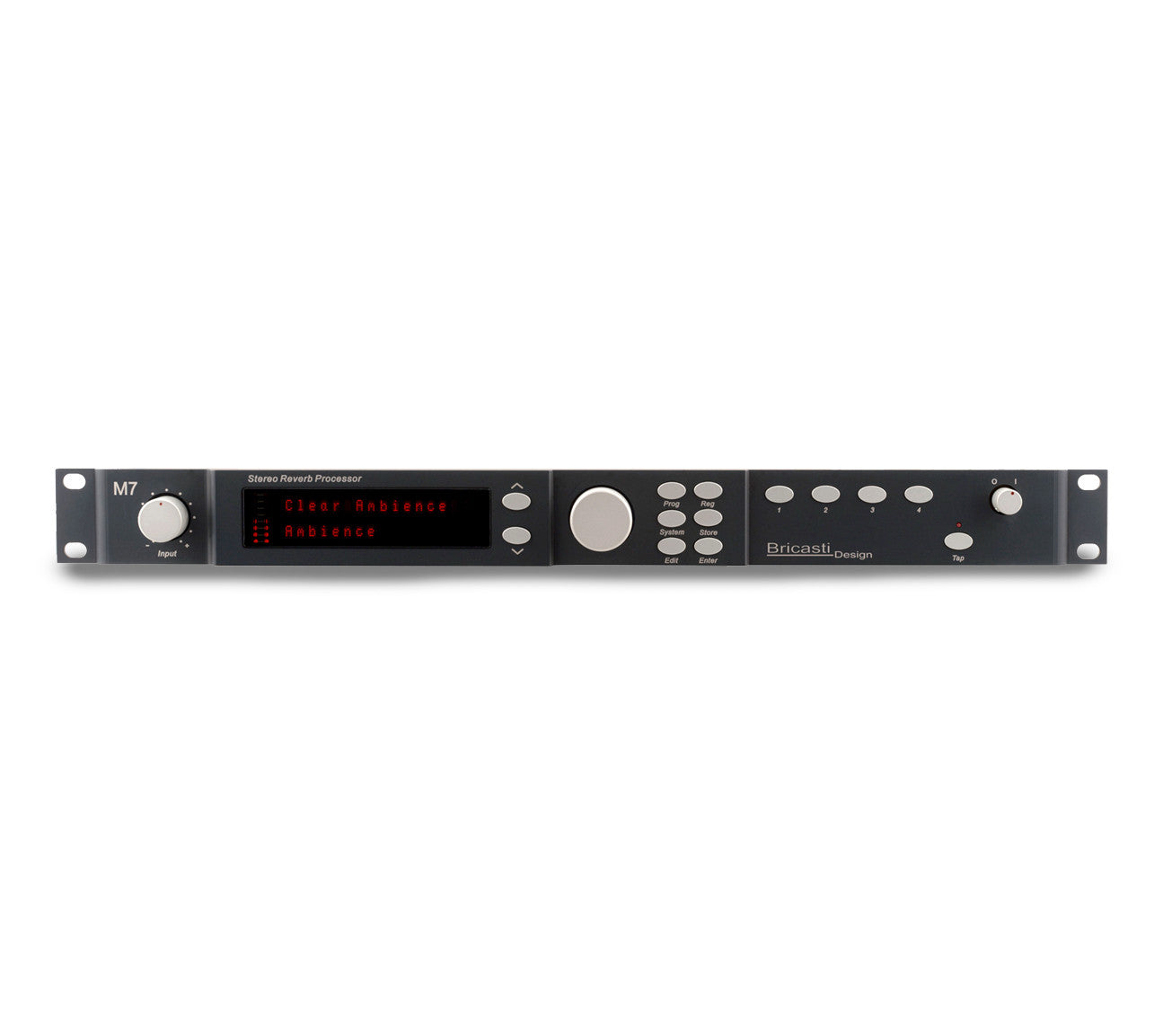

The Bricasti Design Model 7 provides the highest level of musicality and ease of control imaginable in a processor dedicated to the task of reverberation. A modern high resolution digital design, utilizing a stunning array of the latest DSP processors, provides a platform for the long overdue next step in reverb processing algorithms. A separate fully differential analog section and dedicated transformer based linear power supply provide the finest analog specifications of any product of it's kind. An exceptionally strong stainless steel chassis, and a tooled aluminum front panel, combine with a classic high visibility display and straight forward human interface, to complete an enduring design that is intended to fulfill its role, now and into the future. Each design element of the Model 7 is a carefully considered statement of our vision of what the evolution of reverberation processing in its most classic form can be. With a deep appreciation of the best designs which precede it, and a passion for moving the science of reverberation forward, the Model 7 provides a palette of sounds that encompass the familiar as well as new expressions in the art. Listen to the new reference in reverb processing; it will bring new life to your art, in a way unimagined by any process before it.

Programs and User Interface Features

• More than 200 Unique reverb presets
• Revolutionary new reverb algorithm True Stereo Reverb Process
• Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
• 12 Parametric Program Parameters
• 100 User Registers
• 4 Front panel "Favorites" for quick saves and compares

Hardware Design Features

• Dual Dedicated Power Supplies
• Custom design toroidal transformer linear supply for analog
• High performance switching supply for digital
• Separate Digital and Analog modules
• non corrosive Stainless Steel chassis and top cover
• Milled anodized aluminum front panel, knobs and button caps
• Positive feel 2 db stepped analog input level control
• MIDI I/O
• Hand Crafted in the USA

Digital Section Features and Performance

• AES 24 Bit Digital I/O
• AES single wire 192k supported
• Self-clocking to incoming sample rates 44.1k to 192k
• 6 State of the art dual core Analog Devices DSPs

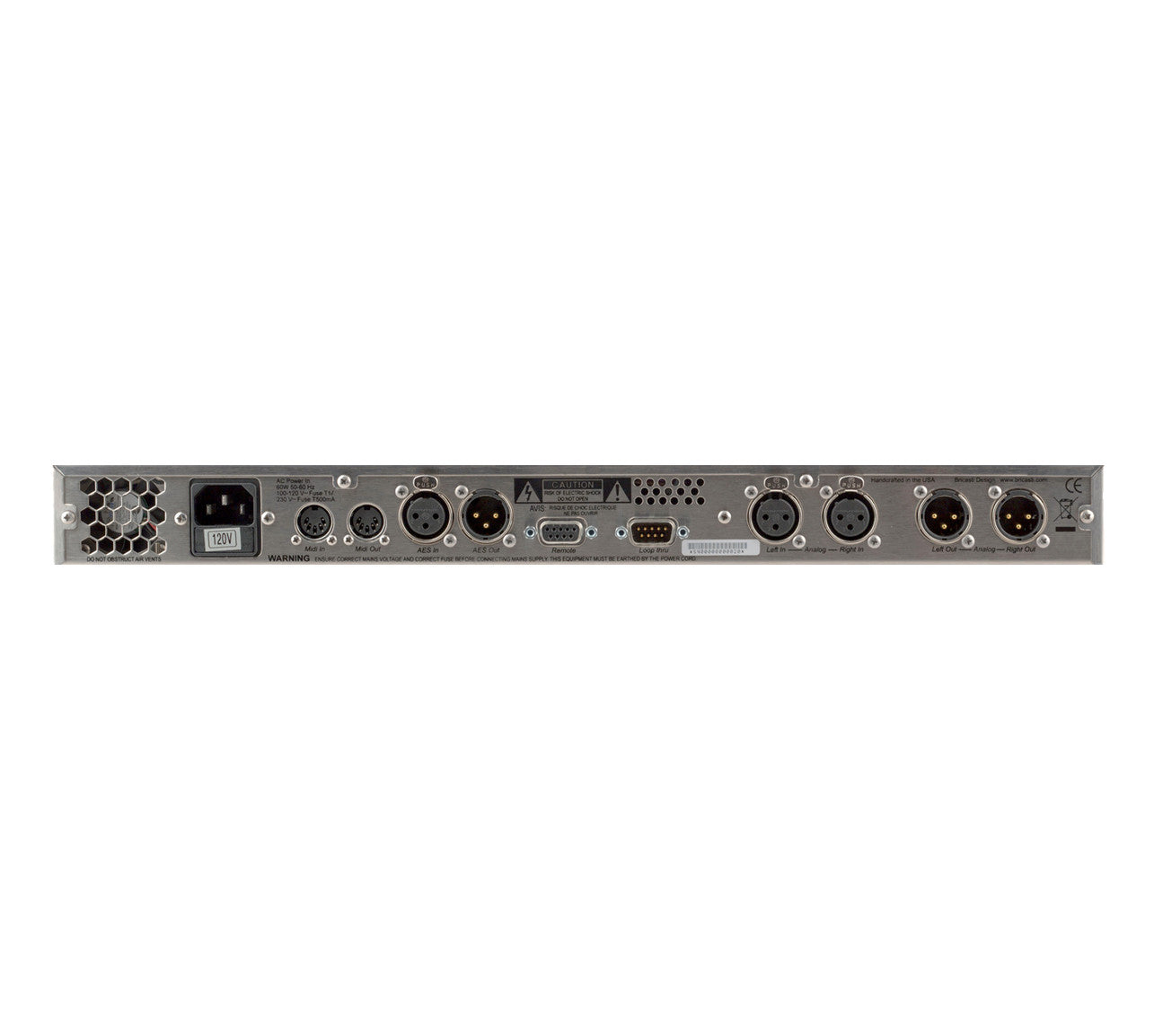

Analog Section Features and Performance

• < 20 Picoseconds Jitter
• Input level adjustable in 2 dB steps
• Balanced XLR analog I/O
• 24-bit conversion
• Dual D/A
• Fully-balanced, DC-coupled analog input and output circuits

• Analog Input A/D

• Analog Input A/D
• Dynamic Range >116 db, A-Weighted
• THD+N <.001 %
• Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB
• CMRR: > 100 dB @ <= 1 kHz
• Maximum Input Level: +24 dBu
• Minimum Input Level for 0 dBFS: +4 dBu

• Analog Output D/A

• Analog Output D/A
• Dynamic Range: > 116 dB, A-Weighted
• THD+N: < 0.001%
• Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB
• Maximum Output Level: +24 dBu

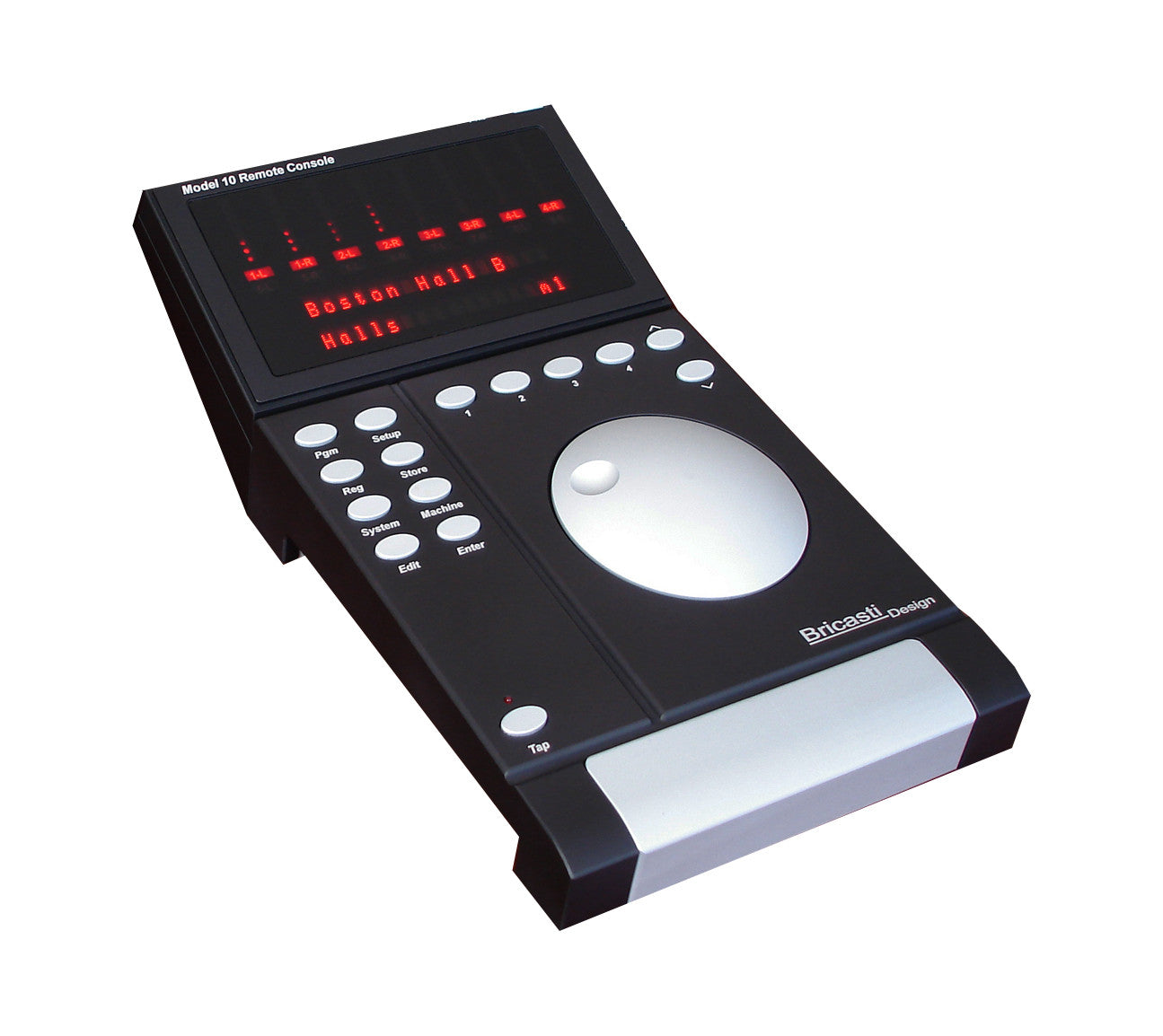

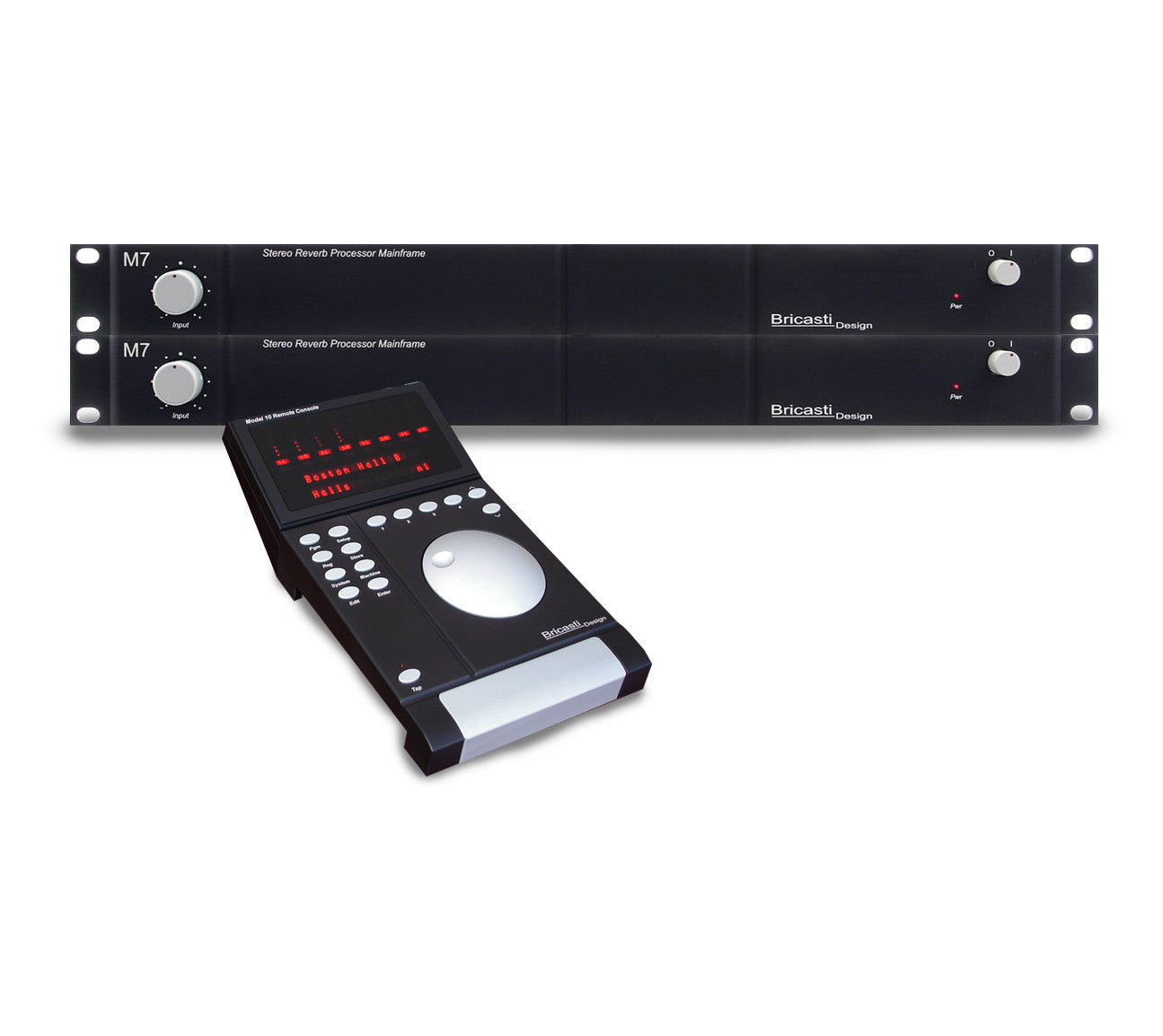

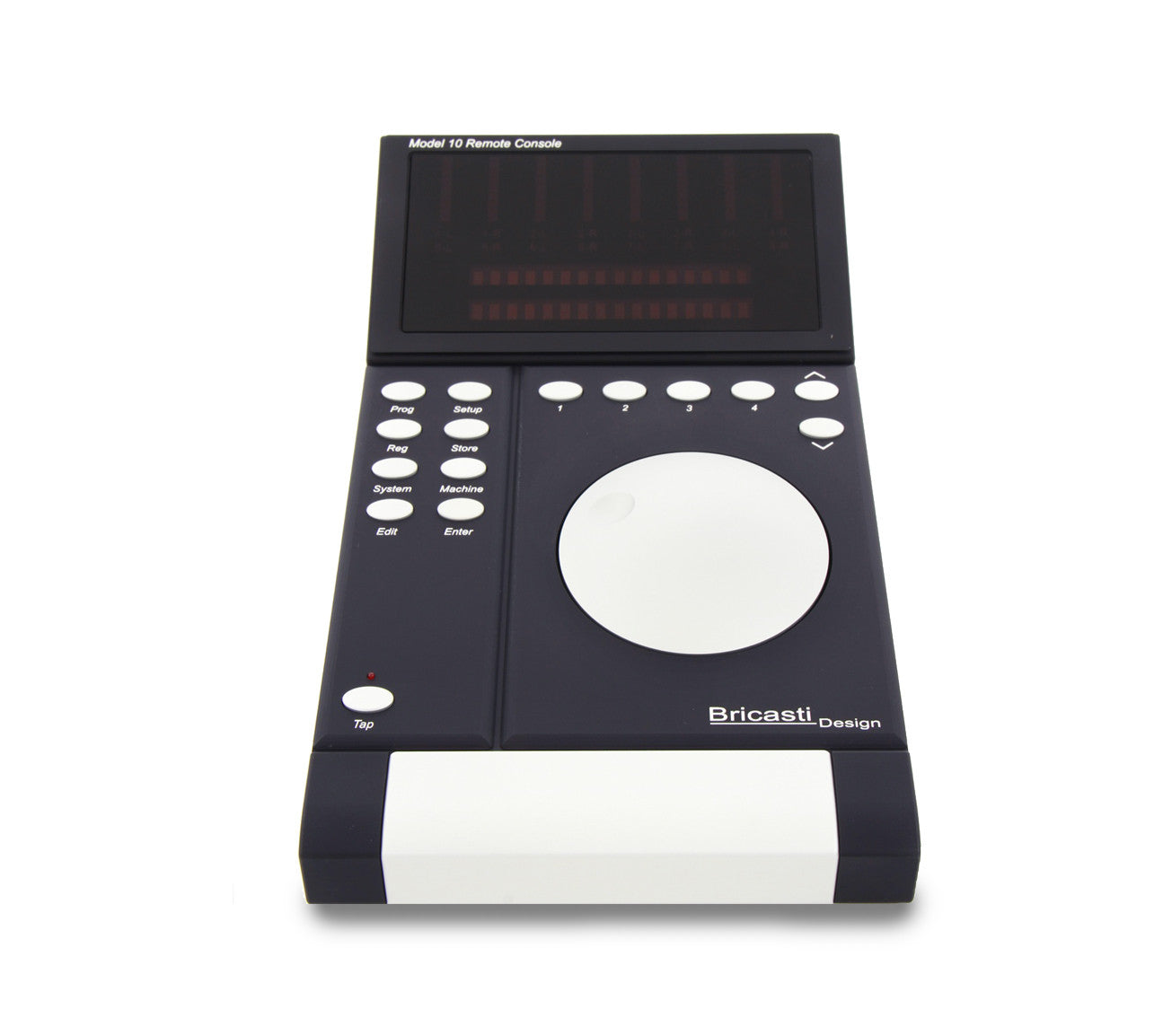

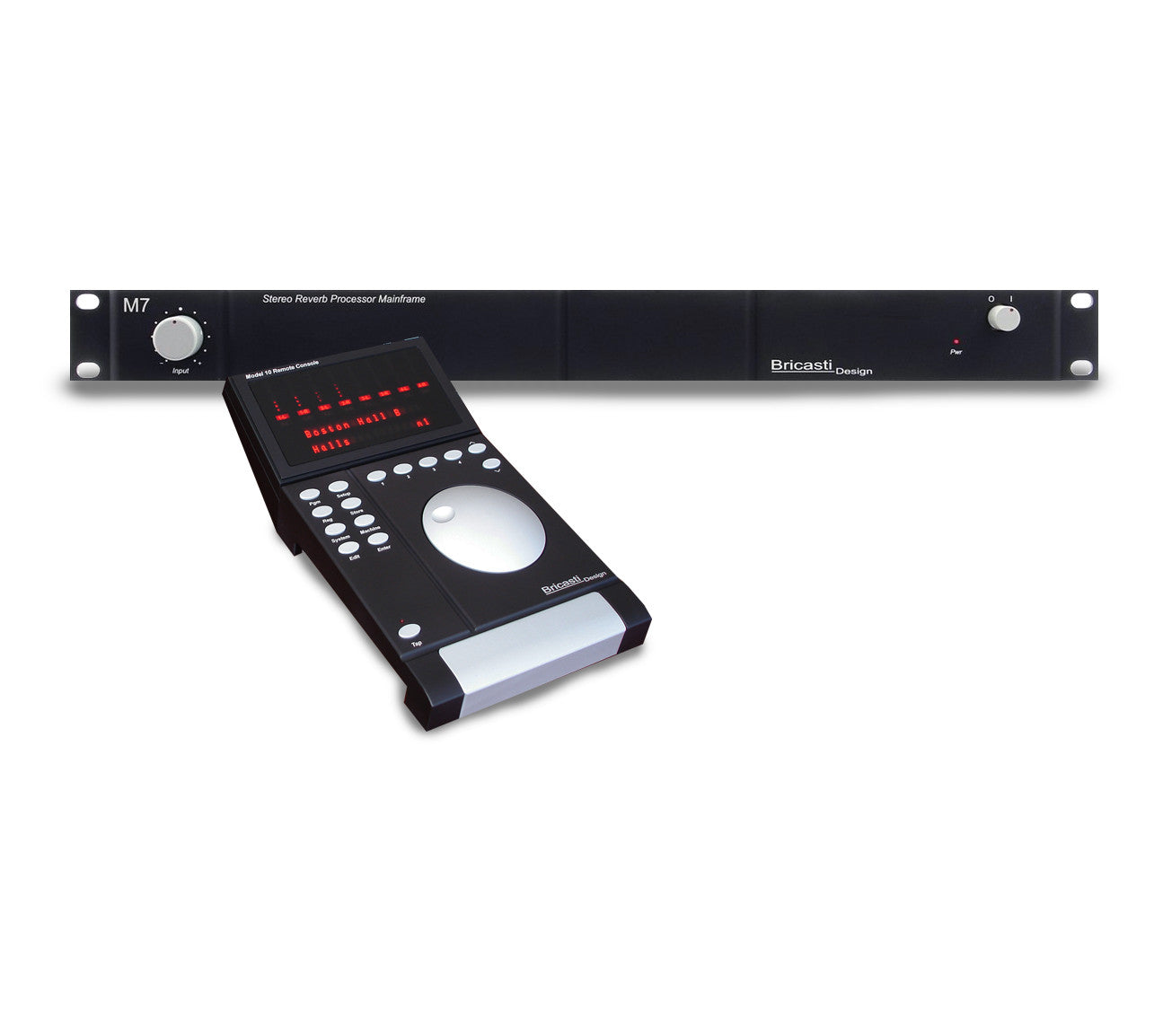

The Bricasti Design Model 10 remote console is a dedicated hardware remote controller for use with the M7 stereo reverb processor. Following the same design criteria as the M7, the M10 casing is manufactured and milled from solid anodized aluminum, for an enduring design and long life. The M10 is also designed to be simple to use, and easy to interface; utilizing a standard RS422 serial interface. In application, it can be very useful when using more than one M7 or when there is a need to be more in the sweet spot when making adjustments in a large mixing environment.

Features and Performance

• Custom milled solid aluminum casing and buttons, fine finished and anodized for an enduring design and classic look.

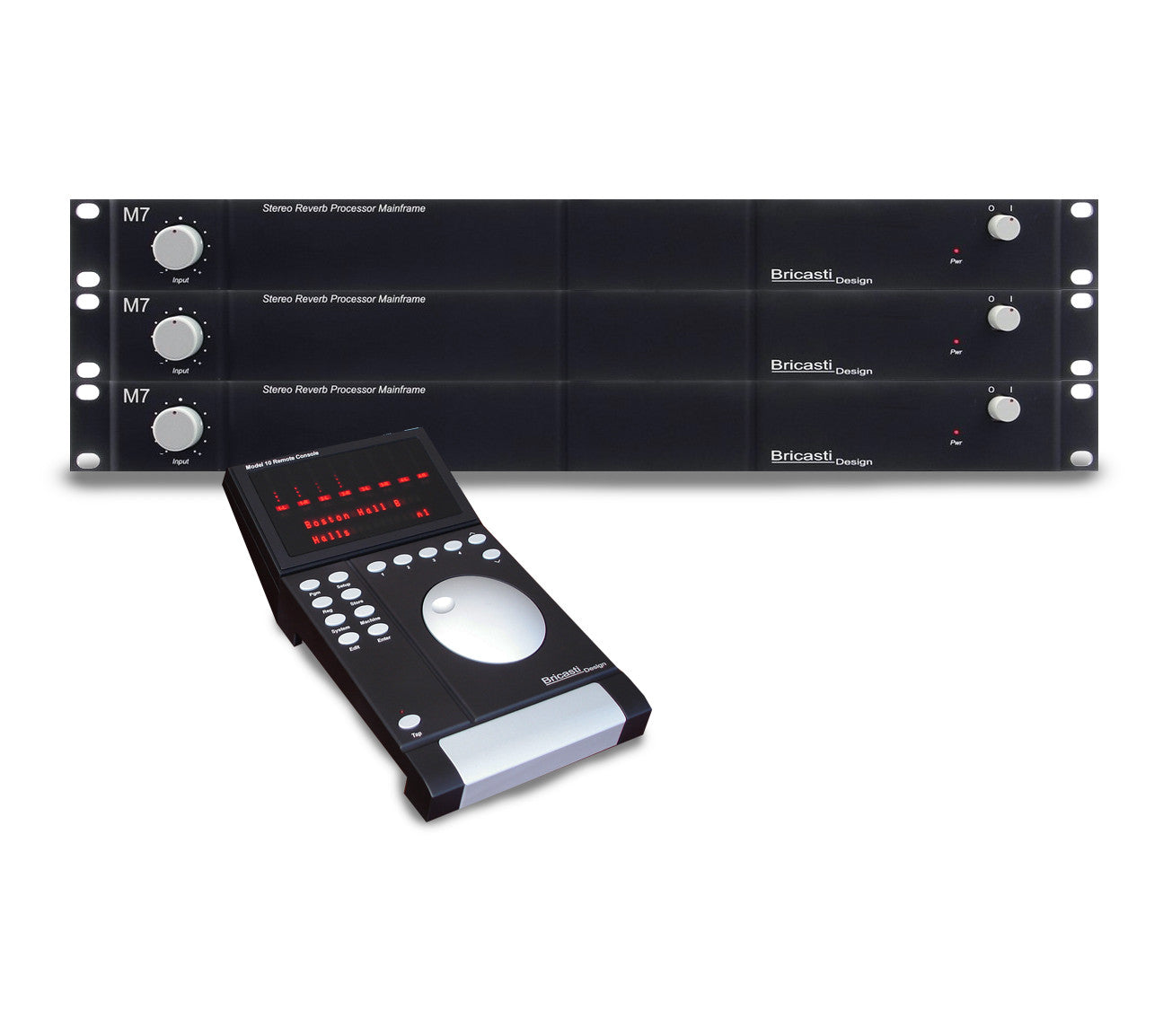

• Controls from 1-8 x M7s.
• Connects to the first M7 via R5422 9-pin serial cable, 10 meter cable provided, up to 30 meters that is 480L compatible, simple to install with no practical distance limits, or IP addresses to configure. Longer distances may require an additional power source for the M10.
• Simple serial "loop thru" for connecting more M7's. connect to the first and loop to the second, and third etc.
• DC Power is supplied from the M7 through the cable, no wall warts, or external supplies.
• 8 meters, for 4 stereo pairs, metering 4 machines at a time.
• Machine selection is a dedicated Machine key in the M10:
• Press the machine key to "toggle or step through" for 2 x M7 operation.
• Press the machine key and use the log wheel to step through the machines for control of more than than 2 x M7s.
• Press the machine key and use the 1-4 keys to directly access any machine, for control of more than 2 x M7s.
• Use the "up down keys" to change banks and for metering for control of more than 4 x M7s.
• Same clear easy to read display as used in the M7
• Same user interface as the M7, with the addition of Machine and Setup keys, so no need to learn something new.
• Simultaneous control of the M7 from both the M7s front panel and or the M10 with a lock out.
• Setup key for M10's local memory, configuration, and settings.
• Maximum Output Level: +24 dBu
