Bricasti M7M

$3,800 Dólares

Opciones | M7M

Cantidad

- +

Bricasti M7M

$3,800 Dólares

Opciones

M7M

  • Descripción del Producto

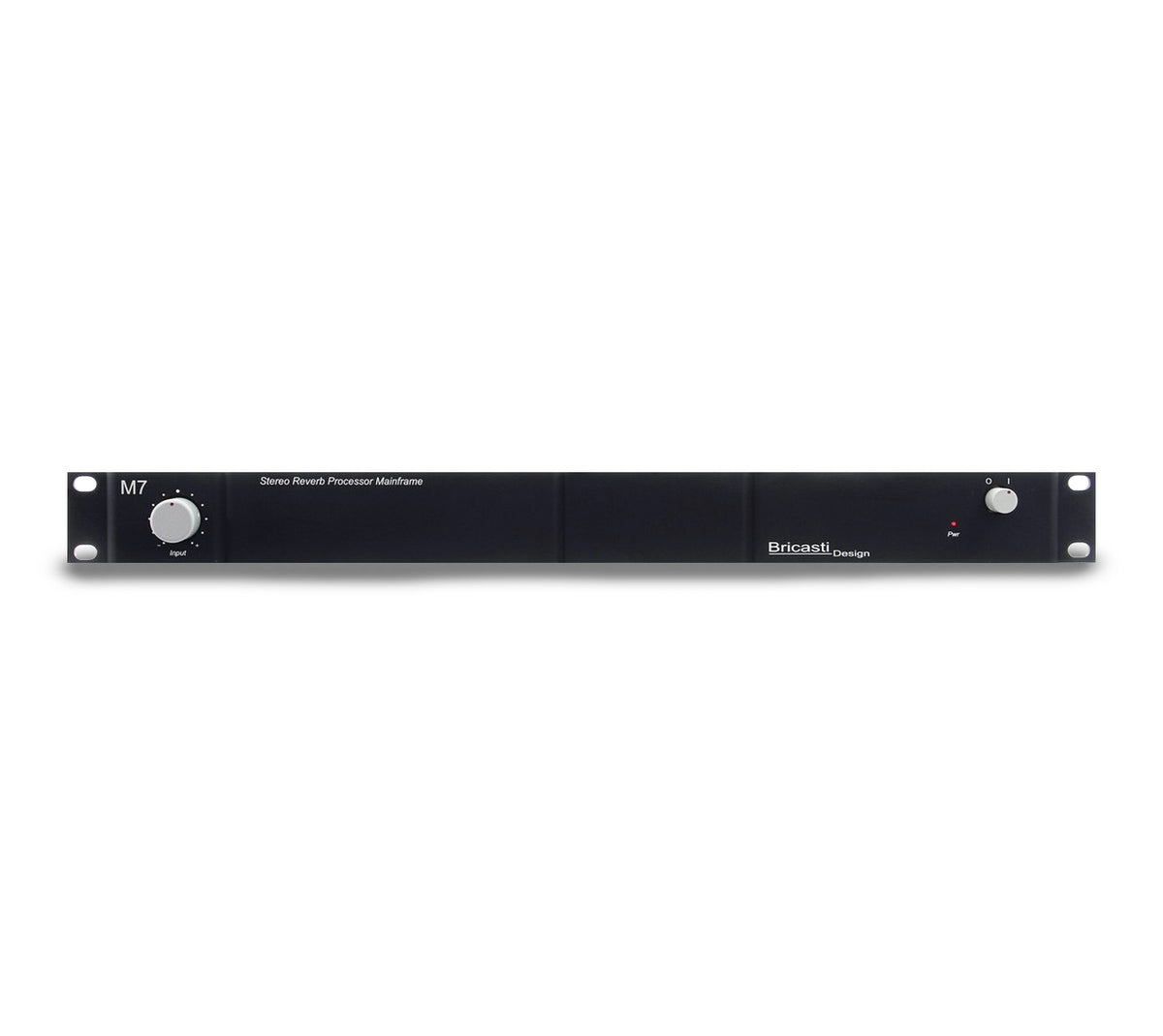

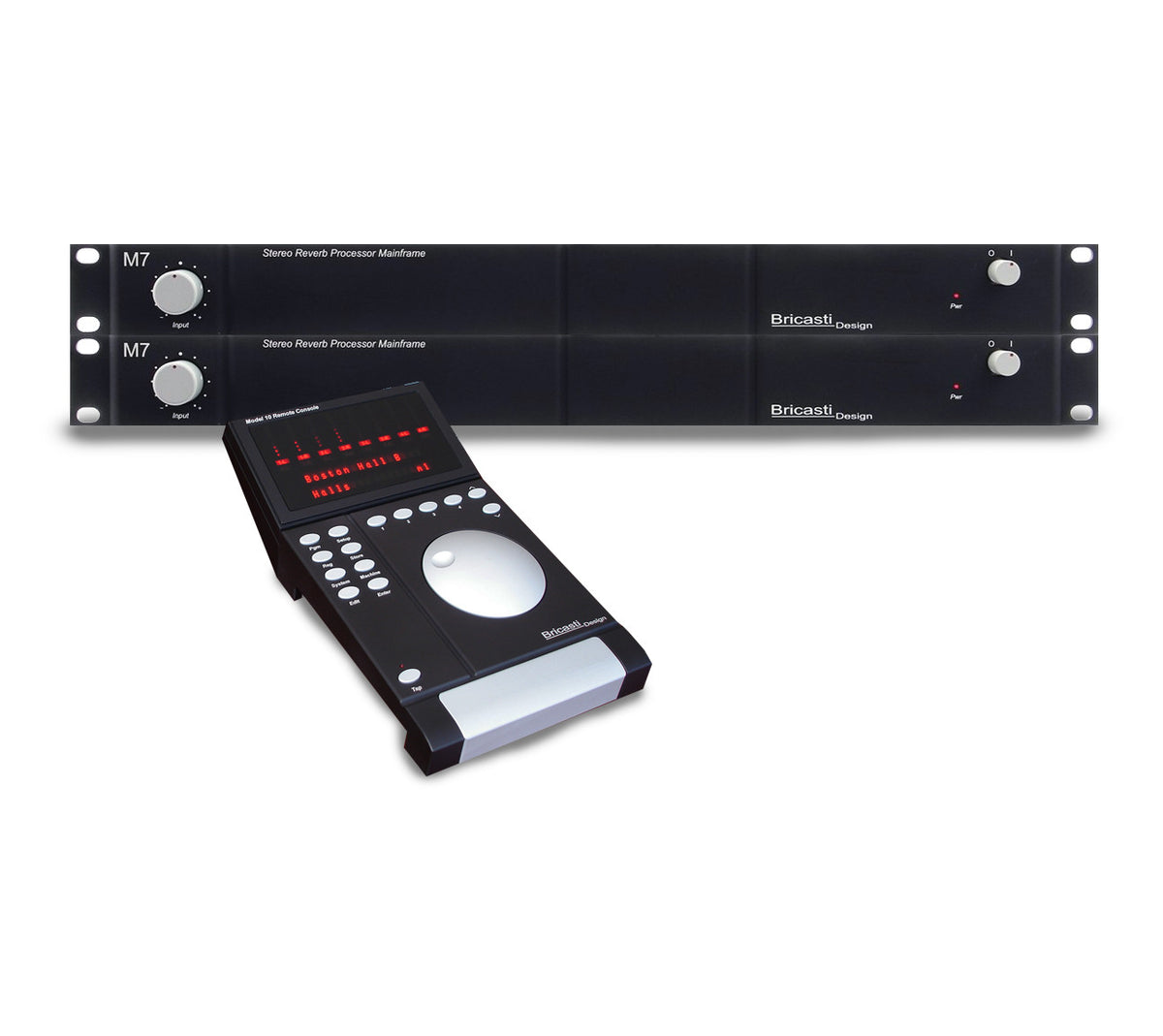

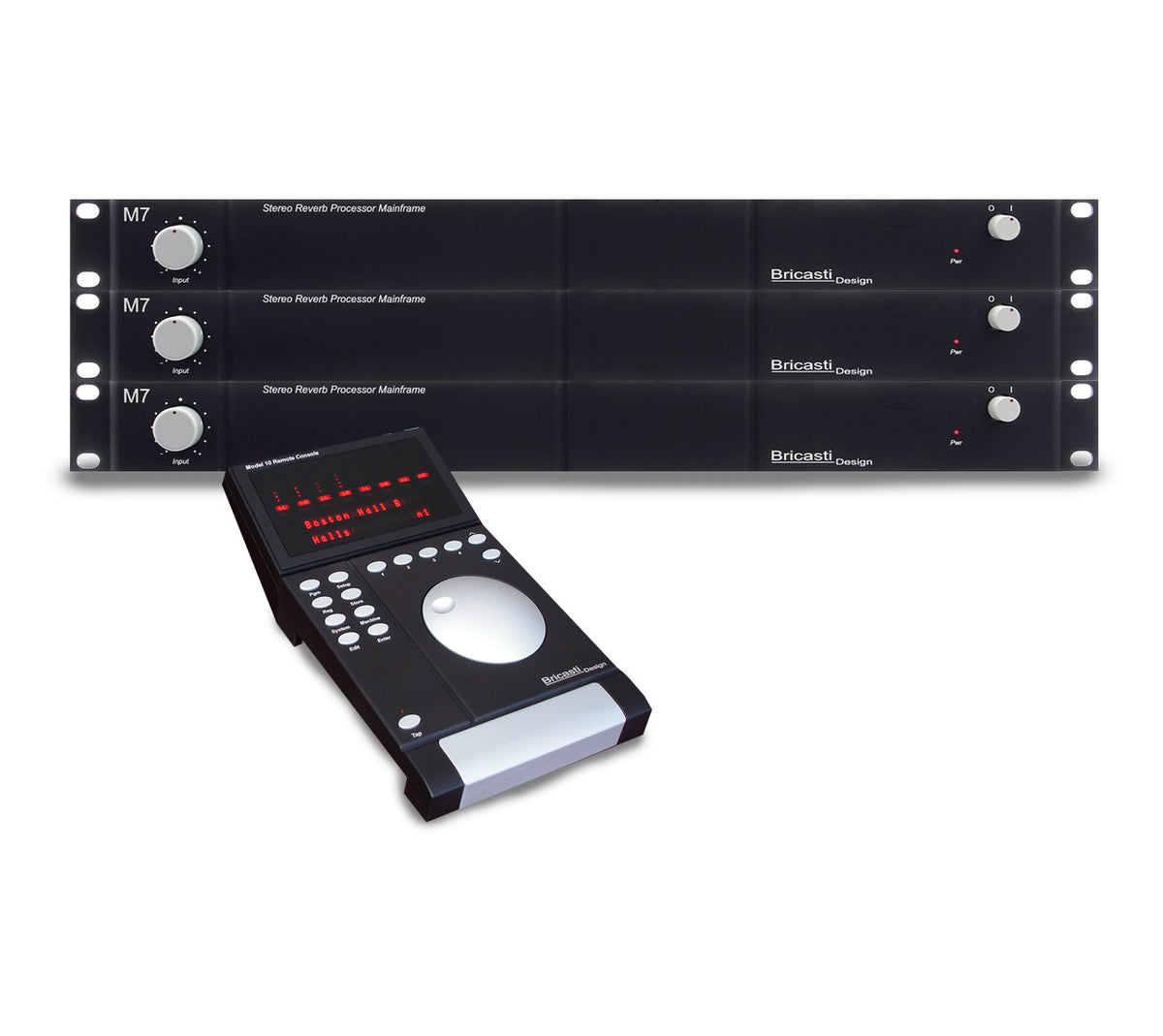

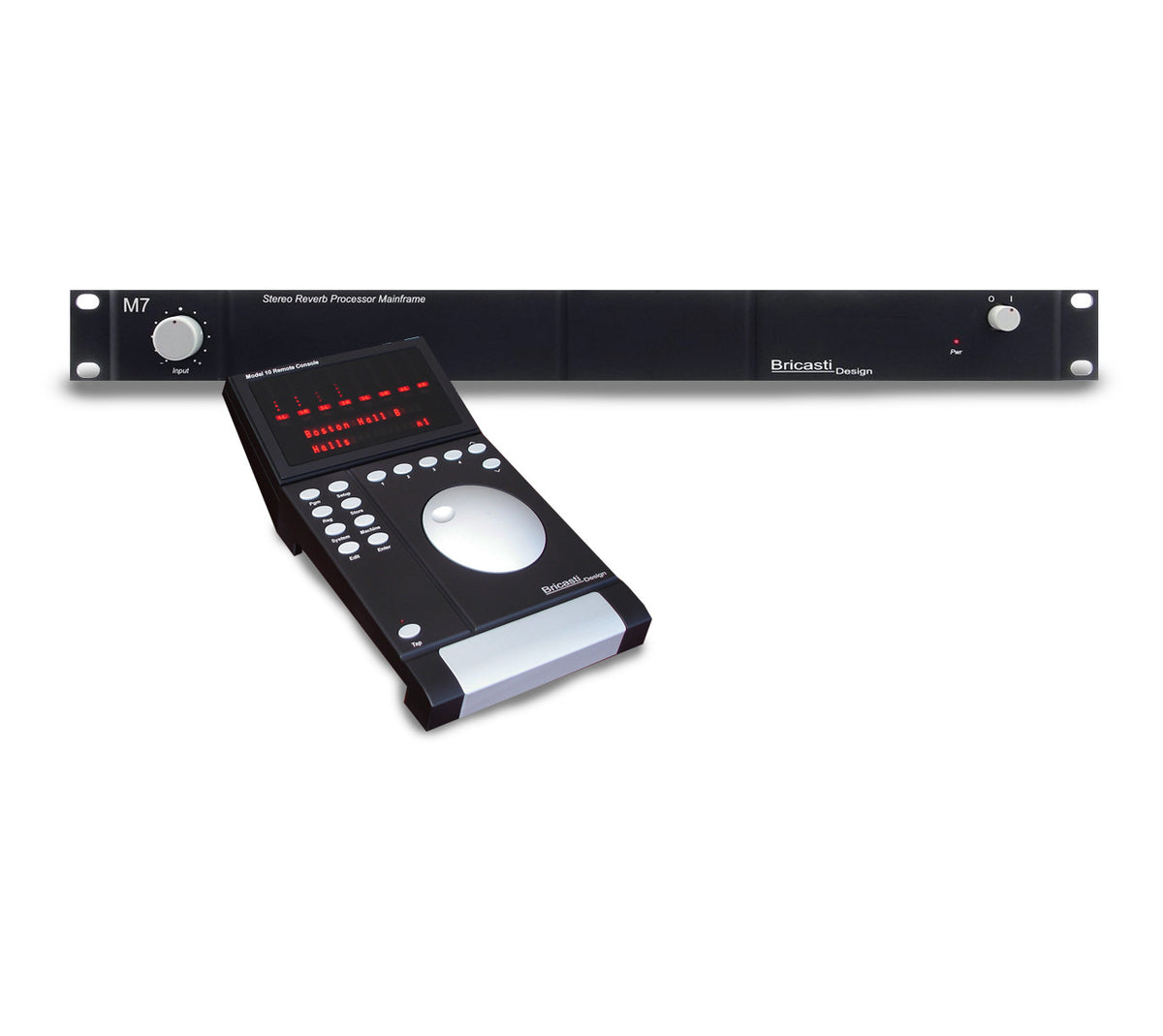

      The new Bricasti Design M7M Reverb Processor Mainframe is an exact duplicate of the M7 Stereo Reverb Processor with reduced front panel controls, and is intended to be used in conjunction with the M10 Remote Console. As it is necessary to have an M10 for control, the M7M is made available bundled together with the M10 in several different configurations, with one or more M7Ms, and is offered as a stand alone product for customers wishing to add more channels of Bricasti processing to their M10 based setup without duplicating unnecessary user interface controls. Pictured is our System 1, the M10 with one M7M that can be used as a stand alone product or added to your M7, adding more processing and remote capabilities to your studio.


      Model 7 Stereo Reverb Processor

      • More than 200 Unique reverb presents
      • Revolutionary new reverb algorithm True Stereo Reverb Process
      • Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
      • 12 Parametric Program Parameters
      • 100 User Registers
      • 4 Front panel "Favorites" for quick saves and compares

      Hardware Design Features

      • Dual Dedicated Power Supplies
      • Custom design toroidal transformer linear supply for analog
      • High performance switching supply for digital
      • Separate Digital and Analog modules
      • non corrosive Stainless Steel chassis and top cover
      • Milled anodized aluminum front panel, knobs and button caps
      • Positive feel 2 db stepped analog input level control
      • MIDI I/O
      • Hand Crafted in the USA

      Digital Section Features and Performance

      • AES 24 Bit Digital I/O
      • AES single wire 192k supported
      • Self-clocking to incoming sample rates 44.1k to 192k
      • 6 State of the art dual core Analog Devices DSPs


      Analog Section Features and Performance

      • < 20 Picoseconds Jitter
      • Input level adjustable in 2 dB steps
      • Balanced XLR analog I/O
      • 24-bit conversion
      • Dual D/A
      • Fully-balanced, DC-coupled analog input and output circuits
      • Analog Input A/D
      • Analog Input A/D
      • Dynamic Range >116 db, A-Weighted
      • THD+N <.001 %
      • Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB
      • CMRR: > 60 dB @ <= 1 kHz
      • Maximum Input Level: +24 dBu
      • Minimum Input Level for 0 dBFS: +4 dBu
      • Analog Output D/A
      • Analog Output D/A
      • Dynamic Range: > 116 dB, A-Weighted
      • THD+N: < 0.001%
      • Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB
      • Maximum Output Level: +24 dBu

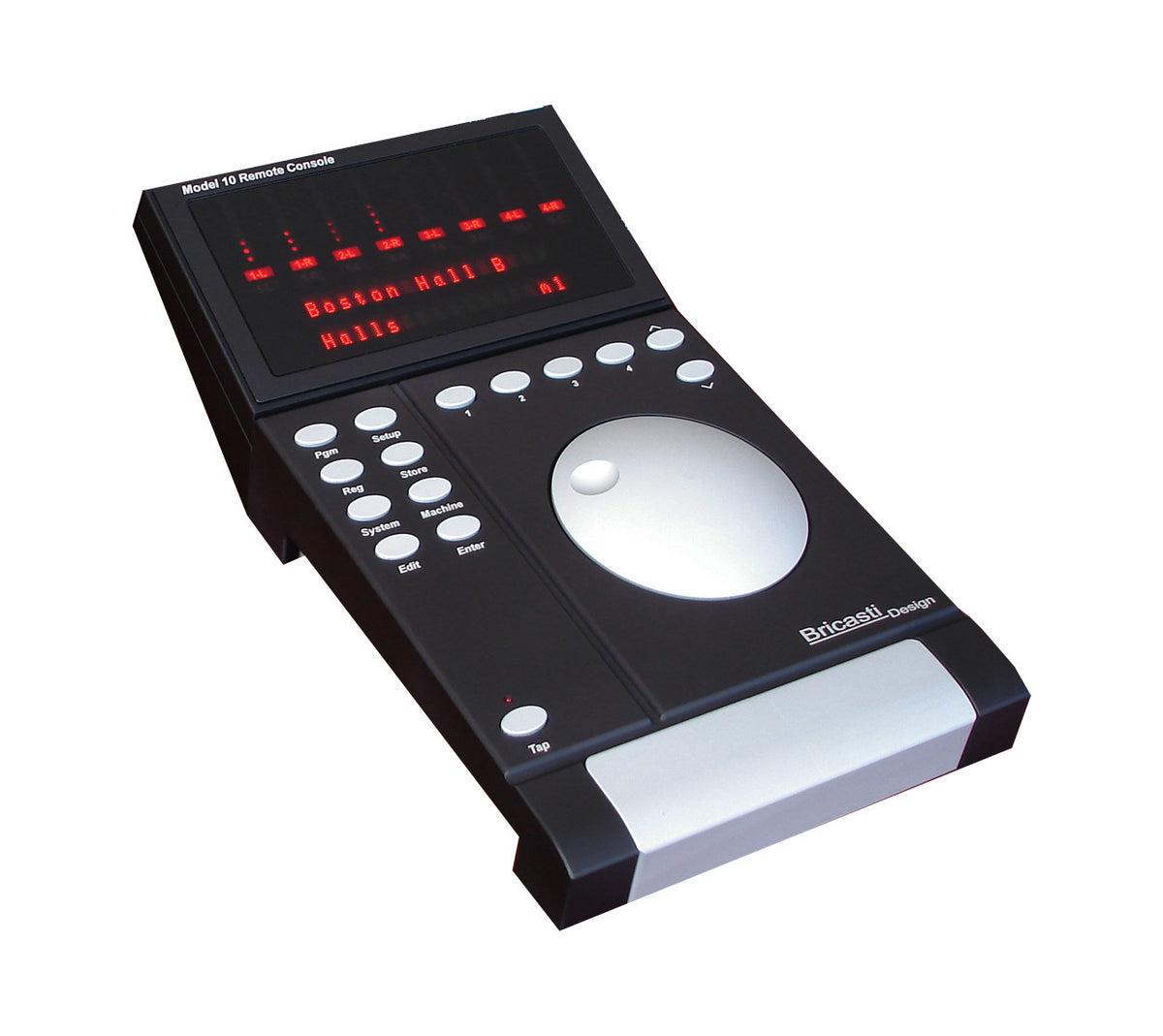

      Bricasti Design Model 10 Reverb Remote Console Features:

      • Custom-milled solid aluminum casing and buttons, fine finished and anodized for an enduring design and classic look
      • Controls up to eight Model 7 or Model 7-M units
      • Connects to the first M7 via RS422 9-pin serial cable, 10-meter cable provided, up to 30 meters that is 480L compatible and simple to install, with no practical distance limits
      • Simple serial 'loop thru' for connecting more M7s, connect to the first and loop to the second, and third, etc.
      • DC power is supplied from the M7 through the cable, no wall warts, or external supplies
      • Eight meters, for four stereo pairs, metering four machines at a time
      • Machine selection is by dedicated Machine key in the M10
      • Same clear easy to read displays as used in the M7
      • Same user interface as the M7, with the addition of Machine and Setup keys, so no need to learn something new
      • Simultaneous control of the M7 from both the M7s front panel and or the M10 with a lockout
      • Setup key for the M10's local memory, configurations, and settings
