El Focal Trio6 ST6 es un monitor profesional insignia fabricado en Francia en el taller de Focal. Diseñado para ofrecer transparencia, definición, dinámica y precisión en el escenario de sonido, el Trio6 cuenta con controladores rediseñados que han mejorado drásticamente respecto a diseños anteriores. Con innovaciones presentadas en los nuevos Solo6 y Twin6, el Trio6 representa un nuevo capítulo en la colección Focal Professional. Algunas de las características destacadas de este versátil altavoz incluyen controladores de altavoz innovadores, modo de doble enfoque, modo de espera automático desconectable, puerto laminar y gabinete reforzado, lo que ofrece un rendimiento intransigente.

El Trio6 ofrece una notable neutralidad en todo el espectro de sonido. Con controladores de altavoz sorprendentemente fluidos, un filtrado completamente analógico y un diseño cuidadosamente considerado, el Trio6 es ideal para una amplia gama de aplicaciones de escucha crítica. Equipado con un gran puerto laminar para limitar el ruido del puerto y un gabinete reforzado para mejorar la rigidez y amortiguación, el diseño del Trio6 reduce al mínimo la distorsión. El resultado es una resolución de reproducción mejorada, linealidad y precisión del sistema. Además, el Trio6 incluye un cruce variable de paso alto y un cruce de 160 Hz para reducir la coloración causada por las reflexiones de la consola.

El núcleo del Trio6 es su subwoofer de 8" completamente nuevo, su woofer de medios de 5" y su tweeter de berilio de 1.5". Equipado con conos de sandwich compuesto "W", el woofer de medios incorpora la tecnología TMD (Tuned Mass Damper) para reducir la distorsión en frecuencias medias críticas. El nuevo tweeter de domo invertido de berilio cuenta con una bocina optimizada y el diseño de carga acústica infinita (IAL) de Focal para controlar la resonancia. Estas innovaciones resultan en una neutralidad intransigente, medios precisos, graves impactantes y excelentes dinámicas.

El Trio6 incorpora el sistema Focus del SM9 con una actualización de la línea ST6: el modo de enfoque de rango completo. Esto significa que el Trio6 también puede actuar como un sistema de una o dos vías, brindando tres pares de monitores en uno solo. El modo de enfoque te permite verificar fácilmente cómo tu mezcla se adaptará a sistemas más pequeños sin comprometer el espacio o la posición para conjuntos de monitores adicionales. El sonido y la versatilidad del Trio6 lo convierten en una herramienta de trabajo profesional que ganará la confianza de ingenieros de audio, diseñadores de sonido, compositores, beatmakers y productores.

Algunas características adicionales incluyen

• Tweeter de berilio de domo invertido: muy baja direccionalidad, excelente linealidad y dinámica, bocina de tweeter optimizada: excelente control de dispersión
• Cono de sandwich compuesto "W": neutralidad de sonido, sin distorsión
• Modo de Doble Enfoque: tres monitores en uno: monitor de tres vías, monitor de dos vías (solo woofer de medios y tweeter) y monitor de una vía de rango completo (solo woofer de medios)
• Gran puerto laminar: sin ruidos ni distorsión del puerto, modo de espera automático desconectable
• Configuraciones: activable/desactivable, atenuación de LF, atenuación de HF, LMF @160 Hz.

Twin6 is 2.5-way monitor offering transparency, a level of definition, dynamics and soundstage precision that is unrivalled in this price range. Thanks to its Focus full-range mode, Twin6 is two monitors in one, where the woofers alone become full-range speaker drivers.

  Beryllium inverted dome tweeter with optimised baffle

6.5" (16.5cm) composite ‘W’-cone woofer

Key points

Focus full-range mode

Large laminar port

     • Beryllium inverted dome tweeter: very low directionality, excellent linearity and dynamics

• Optimised baffle tweeter: excellent dispersion control

• Composite sandwich ‘W’-cone: sound neutrality, no distortion

• Focus mode: two monitors in one; 2-way monitor and 1-way full-range monitor (woofer alone) • Large laminar port: no port noises or distortion

• Automatic disengageable stand-by mode

• Settings: activatable/deactivatable, LF shelving, HF shelving, LPF @ 160Hz

Specifications:

Type: 2.5-way monitor

Frequency response (@ -3dB): 45Hz - 40kHz

Low cut-off frequency (@ -6dB): 40Hz

Focus mode: 110Hz - 10kHz

Maximum S.P.L: (Average CEA2034 50–10kHz free field @ 1m): 112dB

Focus mode (Average CEA2034 100–10kHz free field @ 1m): 111.5dB

Input: Balanced XLR 10 kΩ

Bass amplifier stage: 2 x 70W RMS

Treble amplifier stage: 50W RMS

Nominal power supply: ~100-120 VAC/220-240 VAC 50/60Hz

User controls: Sensitivity, stand-by, Left/Right, HPF, LF Shelv, LMF EQ, HF Shelv

Fuses: ~100-120V, T3.15AL/250V ~220-240V, T1.6AL/250V

Bass: 2 x 6.5" (16.5cm) “W” cone

Treble: 1.5" (38mm) Beryllium

Shielding: no

Construction: 7/8" (22mm) MDF

Finish: Dark red natural veneering side panels, black body

Dimensions (HxWxD): 101/8x201/4x131/2" (25.8x51.4x34.4cm)

Weight: 48.5lbs (22kg)

Temperature range: During use: 5-35°C In storage: 0-50°C

Después de años de solicitudes, Auratone se enorgullece de anunciar el 5C Active Super Sound Cube. El mismo diseño atemporal con un altavoz fabricado en EE. UU., ahora con un amplificador integrado que utiliza una caja de las dimensiones del 5C pasivo.

El amplificador mono está diseñado y construido en Europa en colaboración con el famoso fabricante de hardware Bettermaker. Se ha realizado un cuidadoso proceso de I+D para mantener las características originales del 5C, utilizando el mismo diseño de amplificador del amplificador A2-30, ganador del premio NAMM Tec.

El 5C, que se hizo famoso en las décadas de 1970 y 1980 y se ha utilizado en innumerables estudios de grabación importantes en todo el mundo, sigue siendo el estándar indiscutible de referencia de la industria. Ahora, en el 50.º aniversario del 5C, el modelo activo ayudará a continuar su legado.

Features :

Active Monitors

Amplifier output power: 50 Watt into 8 Ohm (0.05% THD+N) Inputs: 1 x XLR + TRS combo

Dimensions: 6.5" w x 6.5" h x 6" d

Frequency Response: 80-15,000 Hz

Driver: 4.5" Full Range

Signal / noise ratio: > 100 dB

Overcurrent, overheating and short protection

On/Off switch + power LED

Made in USA

Subwoofer with 7.1 Bass Management

Made in France
All made in France, these three monitors provide wide and extremely precise stereo image and remarkable acoustic transparency.
Designed for nearfield monitoring
Designed to meet the needs of nearfield monitoring, Shape monitors combine an ingenuous design and numerous settings optimised for the acoustics of small listening rooms.
Maximised acoustic performances
The bass register is articulated and controlled. The lower mid-range and mid-range benefit from extreme neutrality, and without any masking effects, making equalisation of these essential registers much easier. Finally, the new tweeter is what’s at the source of the very high definition and it’s also very precise in the very high frequencies.

The Focal Shape 50

Is the versatile monitoring loudspeaker par excellence. This monitor can be used from 30 in away (80 cm), and it has very extended low end frequency response (50 Hz) considering its compact design. Thanks to this design and to the numerous settings, this monitor is ideal for rooms measuring less than 130 sq ft (12 sq m).

Features:

• Low directivity tweeter for a flexible listening position
• Designed without a port allowing it to be placed near a wall
• Numerous settings for optimal integration
• Accurate control, even in the very high end
• Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers
• Threads for ceiling and wall mounts (fastening accessories not supplied)

All made in France, these three monitors provide wide and extremely precise stereo image and remarkable acoustic transparency.
Designed for nearfield monitoring
Designed to meet the needs of nearfield monitoring, Shape monitors combine an ingenuous design and numerous settings optimised for the acoustics of small listening rooms.
Maximised acoustic performances
The bass register is articulated and controlled. The lower mid-range and mid-range benefit from extreme neutrality, and without any masking effects, making equalisation of these essential registers much easier. Finally, the new tweeter is what’s at the source of the very high definition and it’s also very precise in the very high frequencies.

The Focal Shape 65

Is the reference of the Shape line. Although it’s dedicated to nearfield monitoring, this monitor enables extraordinary monitoring quality, in the lowest to the highest frequencies. Simply a must, this monitor will express its full potential from a listening distance of three feet away (1 meter).

Features:

• Low directivity tweeter for a flexible listening position
• Designed without a port allowing it to be placed near a wall
• Numerous settings for optimal integration
• Accurate control, even in the very high end
• Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers
• Threads for ceiling and wall mounts (fastening accessories not supplied)

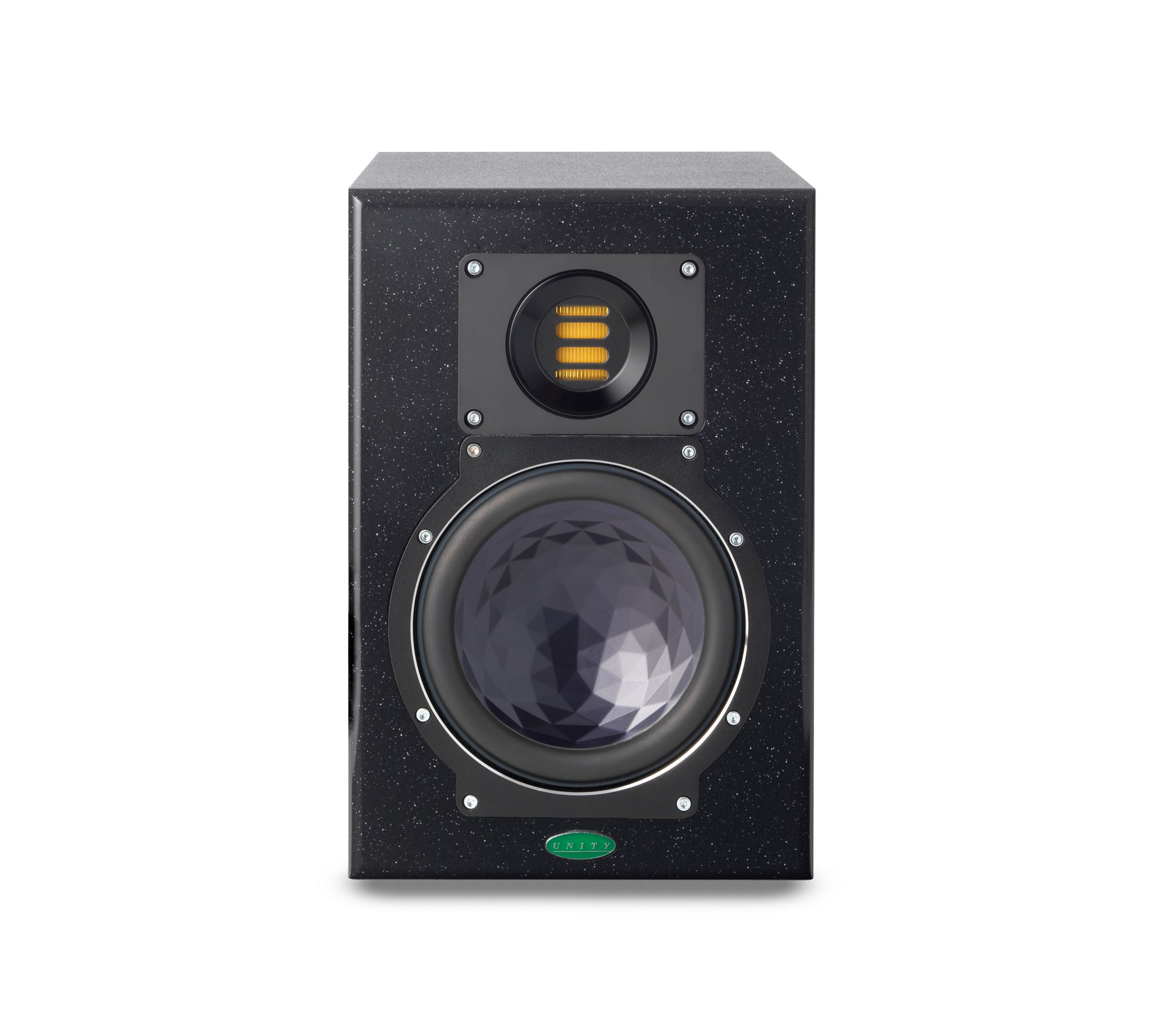

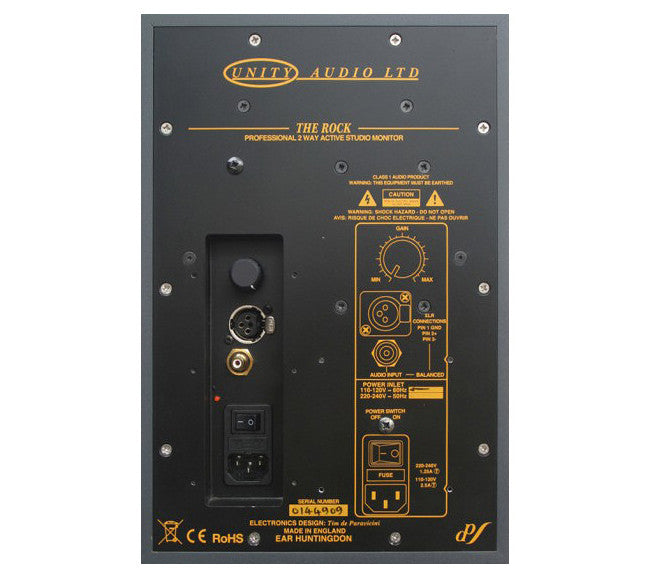

The Rock MKII is an incredibly accurate, critically acclaimed 2-way active mixing reference near-field monitor considered by many professionals to be the reference all others are measured by.

Designed for demanding audio professionals spanning a wide range of applications including tracking, mixing and critical mastering applications. The Rock is equally at home sat atop a large-format mixing console or in a high-end studio, a home studio or a mastering facility.
Amplification
The Rock is equipped with a 100 watt discrete bi-polar low feedback amplifier with custom wound transformers designed by the amp guru Tim de Paravicini of Esoteric Audio Research. Dedicated LF and HF sections result in a very fast, clean and astoundingly accurate audio reproduction.
Drivers
The Rock uses a 50KHz folded ribbon tweeter designed by ELAC. The 180mm woofer features a 0.2mm aluminum foil that is chemically bonded to a rigid pulp fiber cone. This seamless combination of drivers delivers a frequency response of 37Hz-38kHz +/- 3db, and incredible resolution and detail, and provides a microscopic view of any program material whilst remaining comfortable for long listening periods.
Sealed cabinet
Unlike many near-field monitors the cabinet is a sealed enclosure that doesn’t rely on a resonate port to deliver it’s low-end performance. The advantage of this design philosophy is more accurate bass with better time domain performance and a gradual 12dB per octave roll off as opposed to a 24dB roll off with ported designs. The cabinet is made from 12mm, 9-ply Baltic Birch plywood. A front to rear bracing system is also incorporated to stop cabinet flexing. To add density, mass and rigidity the front baffle is manufactured from 12mm Corian and bonded to the 12mm ply baffle.

THE GOLD STANDARD IN THE MIDFIELD RANGE

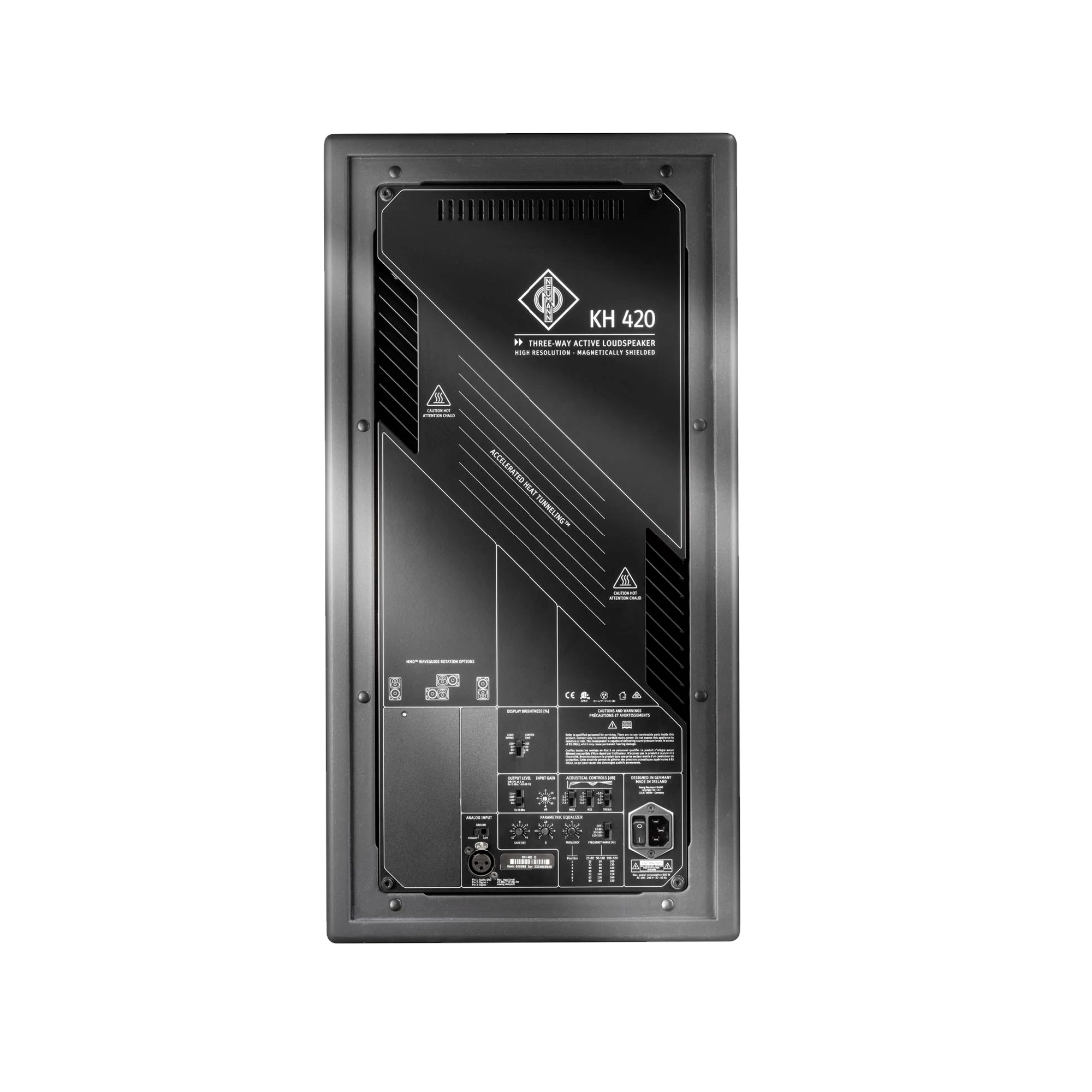

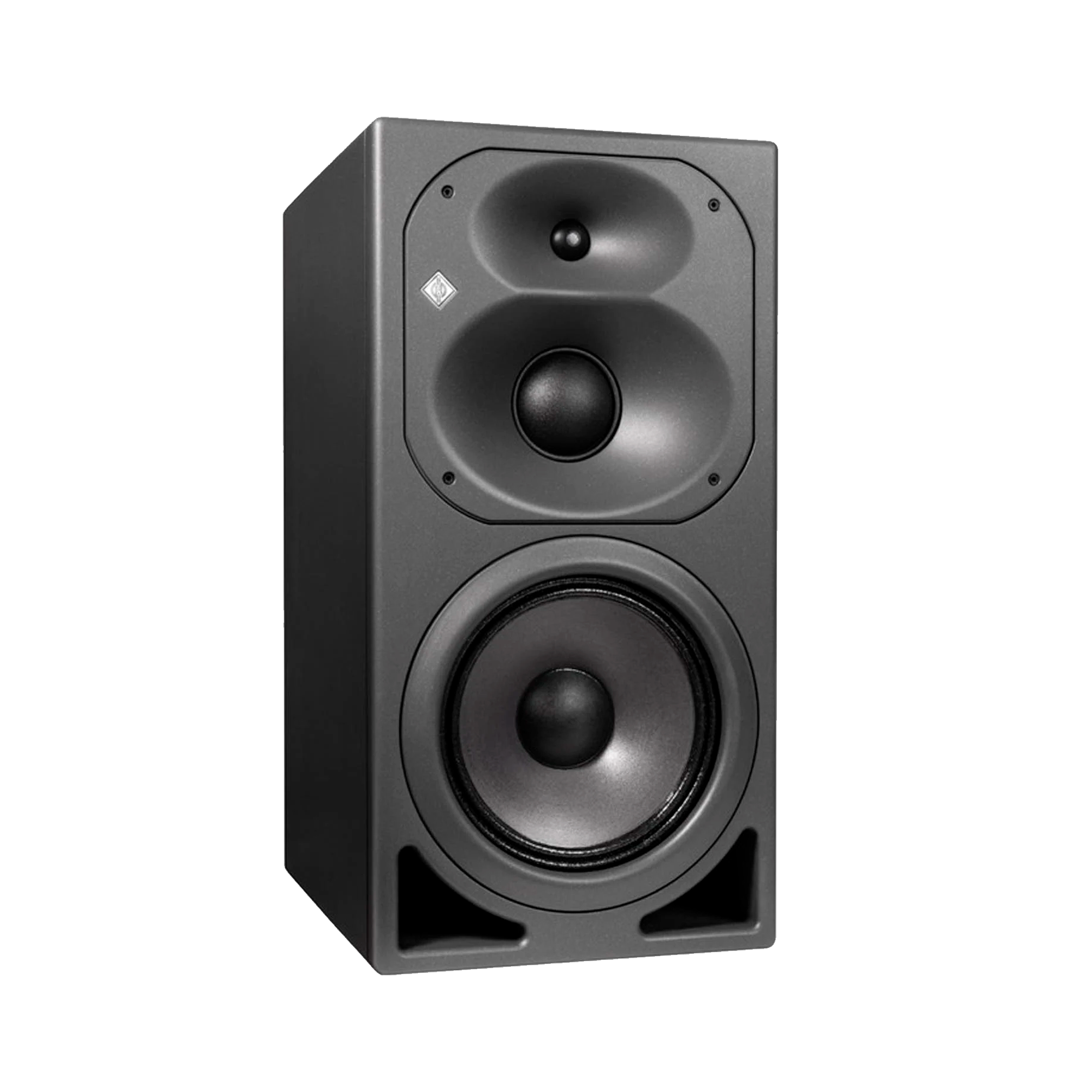

The KH 420 is designed for a working distance of 1.5 to 3 m (5’ to 9’). It handles this space effortlessly thanks to great power reserves and precisely concentrated dispersion. Even in diverse acoustical environments the KH 420 remains neutral and clear in every detail down to the subtlest nuances. No subtlety is lost; every sound element can be localized.

The KH 420 is a three-way tri-amplified monitor with thermally protected Class AB amplifiers (330 W and two times 140 W). Just like the drivers, its Mathematically Modeled Dispersion™ (MMD™) waveguide is engineered for optimum precision. Sound distributed in a horizontally precise manner ensures flexibility in the listening position; the narrower vertical dispersion reduces the negative effects of nearby reflections, for example from a desk or mixing console. The dispersion of the KH 420 is deliberately designed to be narrower, to guarantee reference sound at longer working distances.

BEST WORKING ENVIRONMENT: CLOSE TO PROFESSIONAL EARS

The KH 420 is designed for midfield applications and as main monitor in project, music, broadcast and post-production studios for recording, mixing and mastering. And in a multi-channel system, it can also be freely combined with all other Neumann studio monitors.

PORTS AND HIGH DYNAMICS: NO LONGER A CONTRADICTION

With its tri-channel amplifiers the KH 420 also realizes sound pressures of up to 122.4 dB. And it thereby retains high-resolution and neutral representation across the entire frequency response. This also includes an exceptional bass response down to 26 Hz. Despite using ports, there is no “overhang” or audible resonance in the low frequency range and the transient response is precisely controlled at all times.

The computer modeled chassis is constructed of LRIM™ materials which eliminates standing wave resonances and suppresses intermodulation distortion, especially in the midrange.

For demanding treble, our own specially developed, powerful alloy fabric dome ensures distortion-free reproduction. The fabric dome captures the midrange with utmost precision. Its ultralight material and the powerful neodymium magnet enable a significantly better transient response with considerably less distortion than comparable midrange drivers.

DIGITAL INPUT AND DELAY OPTION

The Digital Input Module DIM 1 expands the loudspeaker electronics by a digital XLR input, a digital BNC input and a digital BNC output (192 kHz/24 Bit) for flexible digital signal links. With the delay function (adjustment range 0 - 400 ms) of the DIM 1, the audio signal can be delayed to ensure audio-visual synchronization (lip sync). In addition, the high resolution of the delays (0.1 ms) allows equalization of the propagation delays. The delay can be added to both inputs (digital and analog). The KH 420 can be retrofitted with a DIM 1.

HUNDREDS OF GOOD REASONS FROM THE NEUMANN PHILOSOPHY

The KH 420 has also been developed true to the Neumann philosophy for monitor loudspeakers. Every component, every shape, every signal and every wave motion is a consequence of this philosophy. No form or component is there without reason. There are hundreds of tangible reasons built into the KH 420, which all stand for exceptionally pure and neutral sound. These include, for example, curvatures of the housing that reduce edge diffraction. Also included is the pistonic output of the bass driver which does not give rise to harmonic distortions, even with the highest sound peaks. Some of these reasons are obvious in the KH 420. Others Neumann prefers to keep to itself. But together, each can be heard – sound professionals in both large and small studios all around the world can testify to this. You can read more about the Neumann philosophy for studio monitors here.

(1) In-house simulated tweeter with alloy fabric dome and robust metal grille

• Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
• Low-distortion high frequency reproduction
• Grille protects against mechanical damage

(2) Rotatable elliptical Mathematically Modelled Dispersion™ (MMD™) waveguide

• Smoother off -axis response
• More forgiving of diverse acoustical environments

Wide horizontal dispersion

• Freedom of movement across the mixing console

Narrow vertical dispersion

• Reduces reflections off the mixing console

(3) Two-color + dimmable Neumann logo

• Displays operation status and activation of the extensive protection system
• Dimmable for low lighting level conditions or behind the screen applications

(4) In-house simulated, neodymium magnet, fabric dome, midrange driver with optimized low stray magnetic field

• Dedicated driver reproduces important midrange frequencies, which is especially important for speech and vocals
• Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
• Low-distortion midrange reproduction
• Light-weight dome has better transient response and less breakup modes than cone designs
• High power magnet reduces harmonic and intermodulation distortion

(5) In-house modelled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™), magnetic shielding and flow optimized die cast basket

• Damping of break up modes brings low distortion at high sound levels
• Linear pistonic motor gives a very low harmonic distortion even at high excursions
• Reduced air noise and improved rocking modes

(6) Large high-capacity flow-optimized bass reflex ports with pipe resonance damping

• Fast bass transient response
• Reduced bass compression at high output levels
• No coloration from organ pipe resonance
• Can be flush mounted

(7) Computer mechanically modeled three-way cabinet design using Low resonance Integral Molding™ (LRIM™) materials

• No standing wave resonances inside cabinet
• Reduced intermodulation distortion in midrange for a more transparent sound
• Reduced cabinet resonances

(8) 4-position bass, low-mid and treble acoustical controls

• More control in diverse acoustical environments
• Repeatable acoustical settings after moving loudspeakers

(9) Parametric equalizer

• More control in diverse acoustical environments
• Bypassable if not needed
• Three frequency ranges gives very fine control of equalization

(10) Wide range input gain and output level controls

• Easier interfacing with signal sources

(11) Display dimmer

• For low lighting level conditions or behind the screen applications

(12) XLR electronically balanced analogue input with ground lift

• Standard interfacing to professional equipment
• Reduced noise in electrically noisy environments and over-comes ground loops

(13) Universal dual (bass and mid/treble) switched-mode power supplies (100 … 240 V)

• One version works in any country and robust to poor quality mains supply
• Dual supply improves transient response

(14) Fully documented extensive mounting hardware range

• More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products
• Easy advanced planning for installations

(15) Electronics panel with generously dimensioned integrated Accelerated Heat Tunneling™ (AHT™) heat sink

• Improved heat dissipation leading to increased electronics reliability

Installation flexibility

• Remoteable electronics (REK 4) for ease of installation, less cabling, and convenience of use

(16) Powerful amplifiers with large headroom and overheat limiting

• Improved transient response
• Assured reliability and safety

Separate fast acting thermo limiters for woofer, midrange and tweeter to protect the voice coils and power amplifiers

• Woofer soft clip and excursion limiters
• Increases system reliability
• Allows extraction of the maximum performance from the system

MORE FEATURES

Production consistency due to individual hand alignment in final testing

• Any KH 420 is “pair matched” to any other KH 420

Optional robust metal grille

• Can be used, if required, to protect the drivers

El Subwoofer Pros Studio Sub2-18C es un subwoofer universal utilizado para la extensión de graves de cualquier monitor de estudio. Es sellado y autoalimentado, ofrece una extensión de graves hasta 16 Hz. Tiene un gabinete compacto que utiliza un controlador de subwoofer de 18" de alta excursión con un conjunto de controles fácil de usar. Tiene entradas sumadoras XLR izquierda/derecha incorporadas y un filtro de paso bajo en 4 frecuencias diferentes: 95 Hz, 80 Hz, 60 Hz y 40 Hz. Las diferentes frecuencias de paso bajo lo hacen adaptable a altavoces "principales" de varios tamaños.

El Studio Sub2-18C es diferente de otros subwoofers porque se especializa en frecuencias por debajo de 95 Hz, rango en el que los monitores de puente de medición generalmente no son buenos. El gabinete sellado con una respuesta lineal supera sonoramente a los subwoofers que utilizan puertos, líneas de transmisión, radiadores pasivos u otras tecnologías de "refuerzo". Estos métodos de refuerzo crean la impresión sonora de graves alrededor de 75-85 Hz, pero en realidad sufren una caída severa después del impulso. Estos métodos de refuerzo dificultan la correcta traducción entre el estudio y el mundo exterior.

El tamaño más grande del Studio Sub2-18C permite un aumento preciso de los S.P.L para espacios más grandes. El diseño del Studio Sub2-18C es ideal para aplicaciones donde se utilizan varios subwoofers para lograr una distribución uniforme de los graves en salas grandes al colocarlos en diferentes paredes. Este enfoque de varios subwoofers a S.P.L más bajos puede superar significativamente a un solo subwoofer de S.P.L más alto que genera menos pero modos o nulos de sala de mayor intensidad. El precio modesto, la compatibilidad universal y la naturaleza flexible del Studio Sub2-18C lo convierten en una forma ideal de comenzar con uno o dos y hacer crecer su sistema de subwoofers con el tiempo.

Especificaciones del Studio Sub2-18C:

• Caja: Contrachapado de abedul de 13 capas de 18 mm
• Acabado: Acabado negro Ro Tex™ True a base de agua respetuoso con el medio ambiente
• Rejilla: Rejilla de tela negra
• Componentes de baja frecuencia: Transductor de alta excursión EL-18R, cono de 18 pulgadas
• 2 entradas balanceadas de nivel de línea XLR hembra
• Impedancia de entrada: 10,000 ohmios
• Sensibilidad de CAL de entrada: @ 40 Hz, perilla de volumen a las 12 en punto = -6 dBu para salida completa; @ 40 Hz, sensibilidad de nivel de entrada de 1.2V (perilla ajustada a máxima potencia) = salida completa
• Potencia máxima continua del amplificador: 700W
• Filtro de corte superior: Integrador infrarrojo conmutable de 95 Hz, filtro en 80, 60, 40Hz
• Inclinación: 12 dB/octava -6 dB a 95 Hz
• Protección contra sobrecarga: Protección interna de filtro dinámico™
• Indicadores LED: Verde - Encendido, Ámbar - Se ha superado el umbral
• Requisitos de voltaje de red eléctrica: 115V o 230V conmutados automáticamente
• Respuesta en frecuencia: +/-3 dB de 8 Hz a 95, 80, 60, 40 Hz (dependiendo de la posición del interruptor)
• Límite de frecuencia baja: 8 Hz
• S.P.L máximo: 108 dB a 1 metro
• Dimensiones reales de Studio Sub2-18C: 22" x 21" x 18" (Al x An x Pr)
• Peso real de Studio Sub2-18C: 75 libras

El Subwoofer Pros Studio Sub2 12C es un subwoofer universal utilizado para la extensión de graves de cualquier monitor de estudio. Es sellado y autoalimentado, ofreciendo una extensión de graves hasta 16 Hz. Tiene un gabinete compacto que utiliza un driver de subwoofer de alta excursión de 12" con un conjunto de controles fáciles de usar. Tiene entradas XLR sumadas de izquierda/derecha incorporadas y un filtro de paso bajo en 4 frecuencias diferentes de 95 Hz, 80 Hz, 60 Hz y 40 Hz. Las diferentes frecuencias de paso bajo lo hacen adaptable a altavoces "principales" de varios tamaños.

El Studio Sub2-12C es diferente de otros subwoofers porque se especializa en la salida por debajo de los 95 Hz, el rango en el cual los monitores de puente de medición generalmente no son buenos. El gabinete sellado con una respuesta lineal supera sonoramente a los subwoofers que utilizan puertos, líneas de transmisión, radiadores pasivos u otras tecnologías de refuerzo. Estos métodos de refuerzo crean la impresión sonora de bajos alrededor de 75-85 Hz, pero en realidad sufren un severo corte después del refuerzo. Estos métodos de refuerzo dificultan la obtención de una adecuada traducción entre el estudio y el mundo exterior.

El tamaño compacto del Studio Sub2-12C permite colocarlo en soportes de altavoces, debajo de consolas o en lugares donde los subwoofers más grandes no caben. El Studio Sub2-12C es ideal para aplicaciones de múltiples subwoofers donde se utilizan 3 o 4 subwoofers para lograr un bajo distribuido de manera uniforme en habitaciones muy pequeñas al colocarlos en diferentes paredes. Este enfoque de múltiples subwoofers a S.P.L más bajo puede superar significativamente a un solo subwoofer de S.P.L más alto que genera menos pero con mayor intensidad de modos de sala o nulos. El precio modesto, la compatibilidad universal y la naturaleza flexible del Studio Sub2-12C lo convierten en una forma ideal de comenzar con uno o dos y hacer crecer tu sistema de subwoofer con el tiempo.

Especificaciones del Studio Sub2-12C:

• Caja: Madera contrachapada de abedul de 13 capas de 18 mm
• Acabado: Acabado ambiental True water born de Ro Tex™ en color negro
• Rejilla: Rejilla de tela negra
• Componentes de baja frecuencia: Transductor de alta excursión EL-12B, cono de 12"
• Conector de entrada: 2 XLR hembra balanceados a nivel de línea summing
• Impedancia de entrada: 10k ohms
• Sensibilidad de CAL de entrada: @ 40 Hz, perilla de volumen a las 12 en punto = -6 dBu para salida total; @ 40 Hz, sensibilidad de nivel de entrada de 1.2V (perilla ajustada a máximo) = salida total
• Potencia continua máxima del amplificador: 700W
• Filtro de corte superior: Integrador Infra conmutable a 95 Hz, con filtros en 80, 60 y 40 Hz
• Pendiente: 12 dB/octava -6 dB a 95 Hz
• Protección contra sobrecarga: Protección interna del filtro dinámico™
• Indicadores LED: Verde - Encendido, Ámbar - Exceso de umbral
• Requisitos de voltaje de red: Conmutación automática entre 115V o 230V
• Respuesta en frecuencia: +/-3 dB de 8 Hz a 95, 80, 60, 40 Hz (dependiendo de la posición del interruptor)
• Límite de baja frecuencia: 8 Hz
• Max S.P.L: 108 dB S.P.L @ 1 metro
• Dimensiones del Studio Sub2-12: 15.5" x 18" x 16" (Alto x Ancho x Profundo)
• Peso del Studio Sub2-12: 56 lbs

El SUBWOOFER PROS Studio Sub2-10C es un subwoofer "universal" utilizado para la extensión de graves de cualquier monitor de estudio. Es sellado, procesado por infrasonido y autoalimentado, ofreciendo una extensión de graves hasta los 8 Hz. Es un gabinete muy compacto con controles fáciles de usar. Utilizando un conductor de subwoofer de alta excursión de 10", el Studio Sub2-10C no es mucho más grande que muchos monitores de puente de medición. Tiene entradas de mezcla en XLR izquierda/derecha incorporadas y, además del integrador doble analógico de infrasonido, ofrece un filtro de paso bajo con cuatro ajustes diferentes de corte superior, lo que lo hace fácilmente adaptable a altavoces "principales" de varios tamaños.

El Studio Sub2-10C es diferente de otros subwoofers porque se especializa en producir salida por debajo de los 95 Hz, incluso por debajo del rango de audición humana. Este es un rango en el que los monitores de puente de medición generalmente no pueden desempeñarse bien. Incluso los "principales" grandes con una buena respuesta de frecuencia baja en general pueden beneficiarse al quitarles las cargas de los octavos más bajos y permitir que los graves bajos sean reproducidos por la tecnología de graves especializada y acústicamente superior de Infrasonido. Se pueden utilizar múltiples unidades para aumentar el nivel S.P.L disponible sin perder la calidad y el detalle de los graves bajos.

Nuestro gabinete sellado, con una respuesta lineal, supera en rendimiento sonoro a los subwoofers que utilizan puertos, líneas de transmisión, radiadores pasivos u otras tecnologías de "refuerzo". Estos métodos de refuerzo crean la impresión sonora de graves, pero en realidad sufren una caída severa después del refuerzo y un sonido desconectado y retrasado con respecto a los altavoces principales. Estos métodos de refuerzo dificultan la correcta traducción entre el estudio y el mundo exterior.

Especificaciones del Studio Sub2-10C:

• Caja: Contrachapado de abedul de 18 mm de 13 capas.
• Acabado: Acabado ambiental True Water Born Black Ro Tex™.
• Rejilla: Rejilla de tela negra.
• Componentes de baja frecuencia: Transductor de alta excursión EL-10B, cono de 12 pulgadas.
• Conector de entrada: 2 XLR hembra balanceadas de nivel de línea summing.
• Conector de salida: 1 XLR macho a través del cual se pueden enlazar sistemas adicionales en cadena.
• Impedancia de entrada: A 40 Hz, perilla de volumen a las 12 en punto = -6 dBu para máxima salida. A 40 Hz, sensibilidad de entrada de nivel de 1.2V (perilla configurada en máxima) = máxima salida.
• Potencia máxima continua del amplificador: 300W.
• Filtro de corte superior: Integrador de infrasonido conmutable de 95 Hz, filtro a 80, 60 y 40 Hz.
• Protección contra sobrecarga: Filtro dinámico interno de protección.
• Indicadores LED: Verde - Encendido, Ámbar - Umbral excedido.
• Requisitos de voltaje principal: 115V o 230V conmutados automáticamente.
• Respuesta en frecuencia: +/-3 dB de 8 Hz a 95, 80, 60, 40 Hz (dependiendo de la posición del interruptor).
• Límite de baja frecuencia: 8 Hz.
• S.P.L máximo: 93 dB S.P.L a 1 metro a 40 Hz.
• Dimensiones del Studio Sub2-10: 12.5" x 14" x 11.5" (Alto x Ancho x Profundo).
• Peso del Studio Sub2-10: 27 lbs (12.25 kg).

El Antelope Audio Atlas i8 es un monitor de estudio de alta gama que sinergiza la tecnología de reloj y la interfaz de Antelope Audio con una meticulosa ingeniería acústica para ofrecer una precisión de sonido sin igual en cualquier entorno de estudio. Con una configuración isobárica con dos woofers de 8 pulgadas, un driver coaxial de frecuencias medias y altas, y un amplificador personalizado de clase D de 400 W, el Atlas i8 ofrece una reproducción de audio precisa entre 35 Hz y 20 kHz con un S.P.L máximo de 117 dB. Un sistema de procesamiento digital personalizado con chips FPGA mejora el rendimiento, logrando una respuesta de frecuencia neutral y una fase lineal. El resultado es un sonido preciso y preciso, y una experiencia auditiva sin fatiga. El DSP también desbloquea una serie de funciones que mejoran la vida diaria en el estudio.

High-quality speaker cable with specially braided silver coated copper conductor, terminated with Chord banana connectors

Amphion Speaker Cables include a specially braided silver coated copper conductors and Chord Company band connectors. 26.25 ft (8 m) length.

High-quality speaker cable with specially braided silver coated copper conductor, terminated with Chord banana connectors

Amphion Speaker Cables include a specially braided silver coated copper conductors and Chord Company band connectors. 8.2 ft (2.5 m) length.

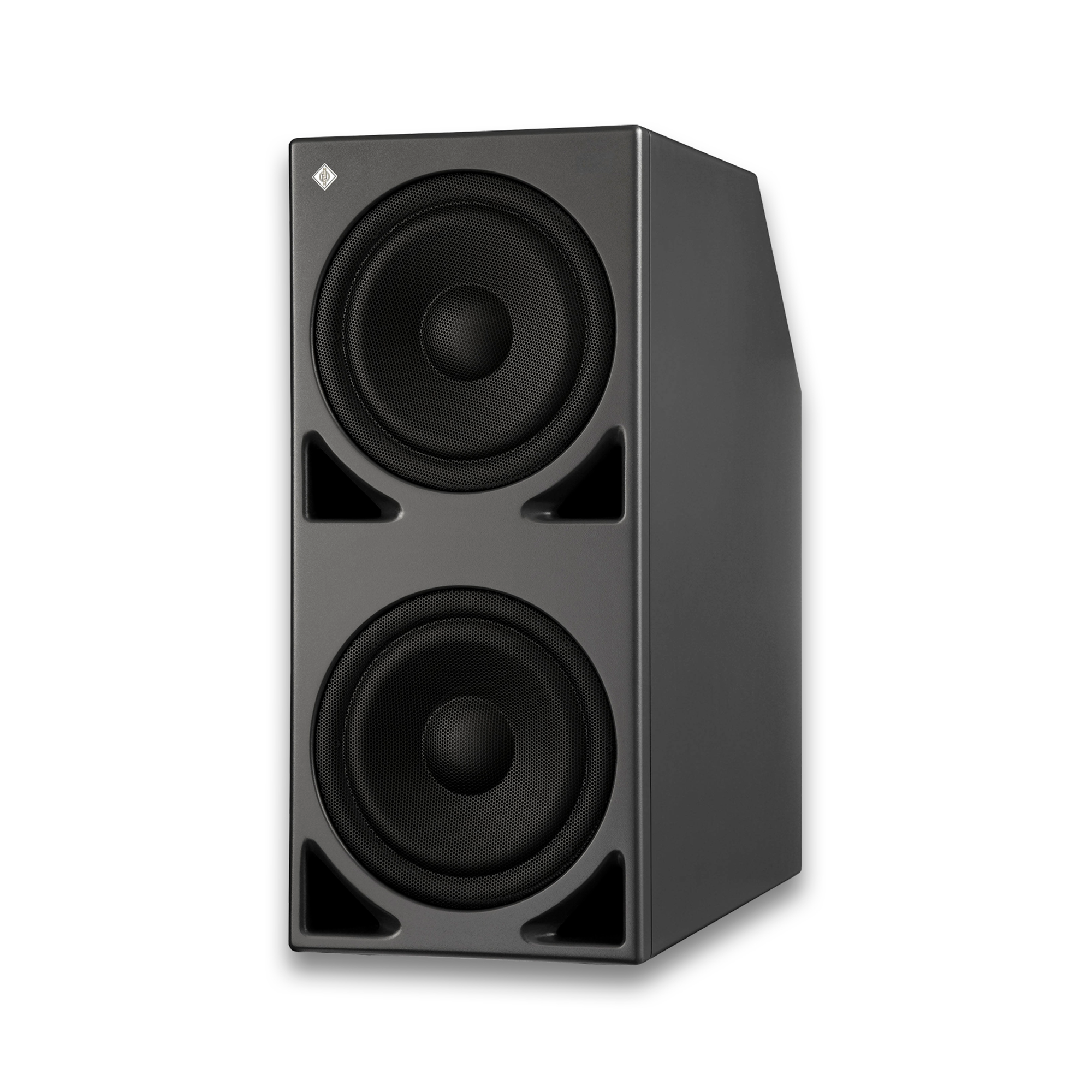

Subwoofer with 7.1 Bass Management

MORE POWER SAME PRECISION.

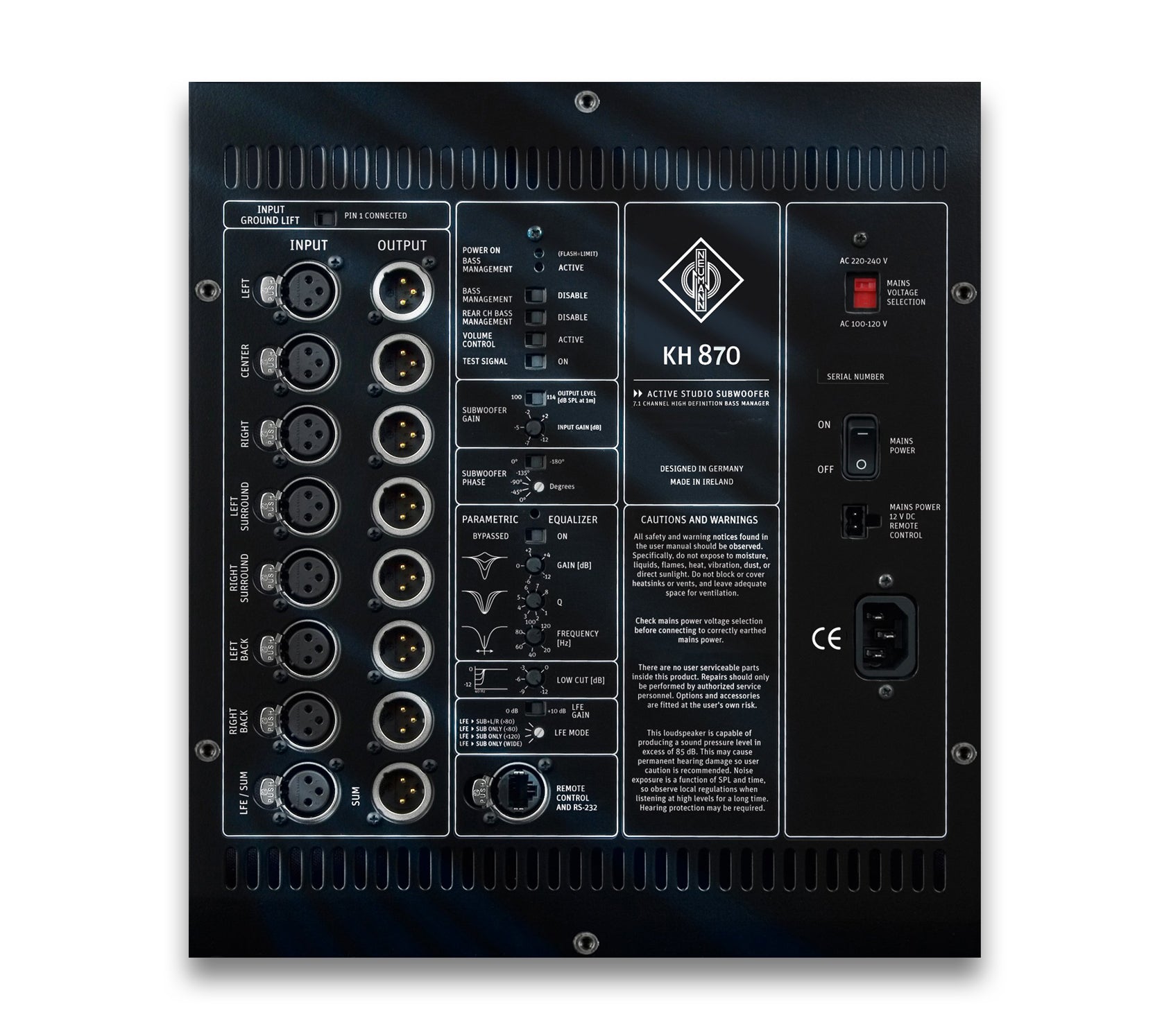

The KH 870 is an answer to the demands by offering a 7.1 High Definition Bass Manager™. The flexibility of this bypassable 7.1 bass manager means it is also compatible with all standard consumer formats from mono through to the latest 7.1 HD systems.

Eight channels of analog ensures flexible interconnectivity for modern studios. Four-mode LFE-channel processing guarantees compatibility across all formats and industries. Forth-order crossovers and flexible acoustical controls allow for seamless system integration. Built-in volume control and a hardware remote control allows for centralized system control independent of the source, and the electronics can be remote located to reduce cabling. From Mono to 3D, there are uses for the KH 870 in many different system configurations.

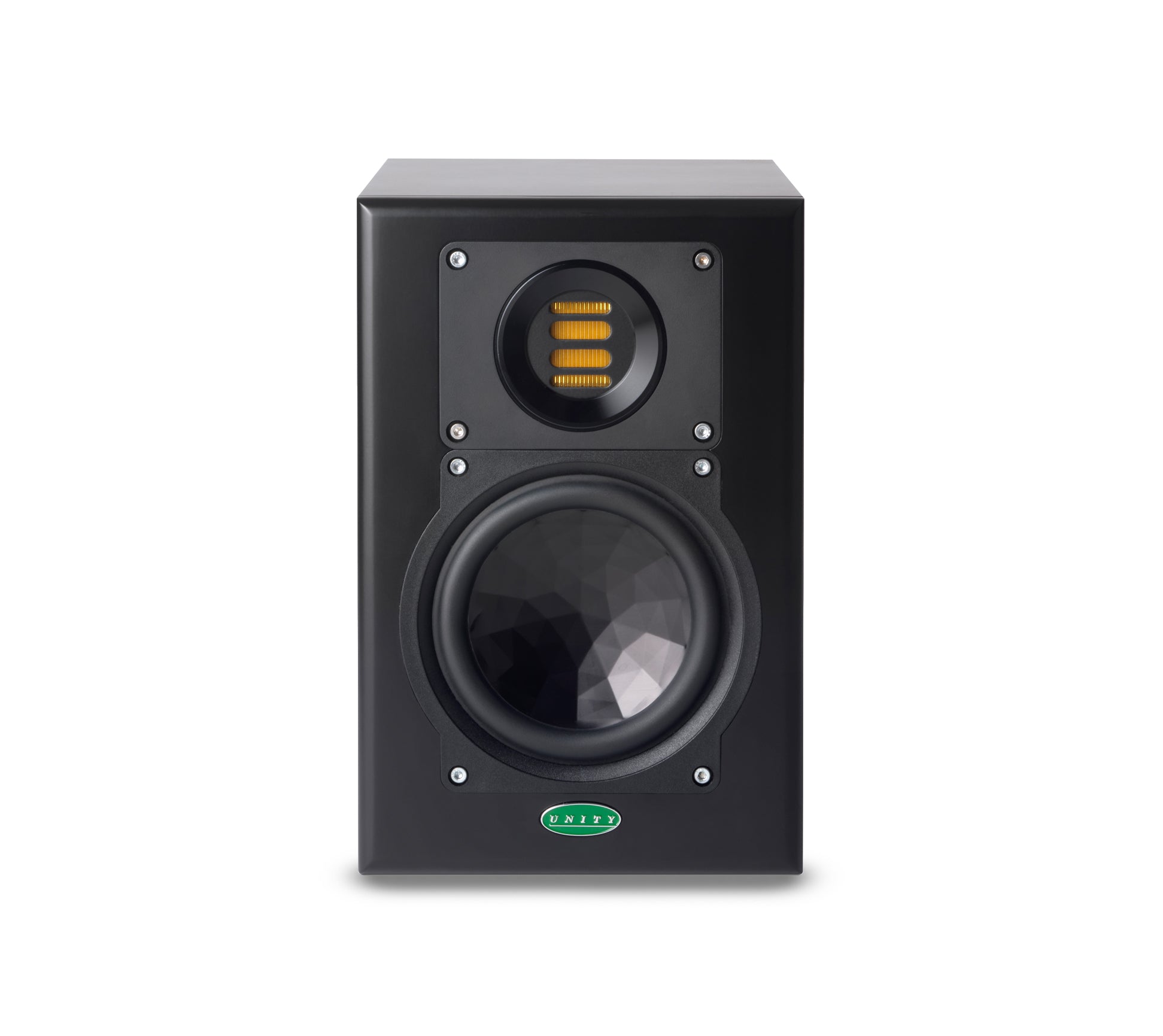

Unity Audio lanzó su nuevo monitor activo Mini-Rock de 2 vías en la feria NAMM 2018 de este año. Como su nombre lo indica, esta nueva incorporación representa el modelo más pequeño en la gama de monitores activos profesionales de la compañía hasta la fecha y mide 279 mm de alto, 184 mm de ancho y 256 mm de profundidad (10,98" de alto x 7,24" de ancho x 10,07" de profundidad).

Por supuesto, el gabinete tiene un diseño sellado como todos los modelos de la gama Unity Audio para reproducir con precisión las frecuencias bajas con una respuesta transitoria superior y sin anomalías de fase/sincronización asociadas con otros diseños. El Mini-Rock es también el primer monitor de la gama con la excepción del subwoofer Avalanche que utiliza un gabinete dividido de doble cámara con Aperiodic Vent. Esto ofrece todos los beneficios de un gabinete sellado, como ruido de puerto cero y una reproducción de graves precisa, rápida y precisa. También aumenta significativamente la respuesta de graves disponible en un diseño de gabinete más pequeño.

El gabinete Mini-Rock también tendrá puntos de montaje para yugos y soportes de terceros para el mercado de instalación.

El Mini-Rock comparte el mismo tweeter de cinta plegada de 50 kHz que se utiliza en el Rock más grande y en el Boulder de 3 vías *, pero se ha seleccionado un nuevo woofer de membrana de cristal que mide 150 mm (5-3/4"). Esta llamativa superficie de La membrana de cristal es más que una simple característica de diseño atractivo. La cúpula de aluminio inversa en forma de cristal se une a un cono de papel mediante un proceso de pegado especial para dar como resultado la construcción tipo sándwich deseada. El estampado de lámina de aluminio del cono de cristal refuerza la cúpula de aluminio. disminuyendo las resonancias y minimizando la coloración, al tiempo que mejora el manejo de potencia y la dinámica. El diseño de la bobina móvil del woofer da como resultado un rango ampliado de los respectivos controladores en casi una octava..

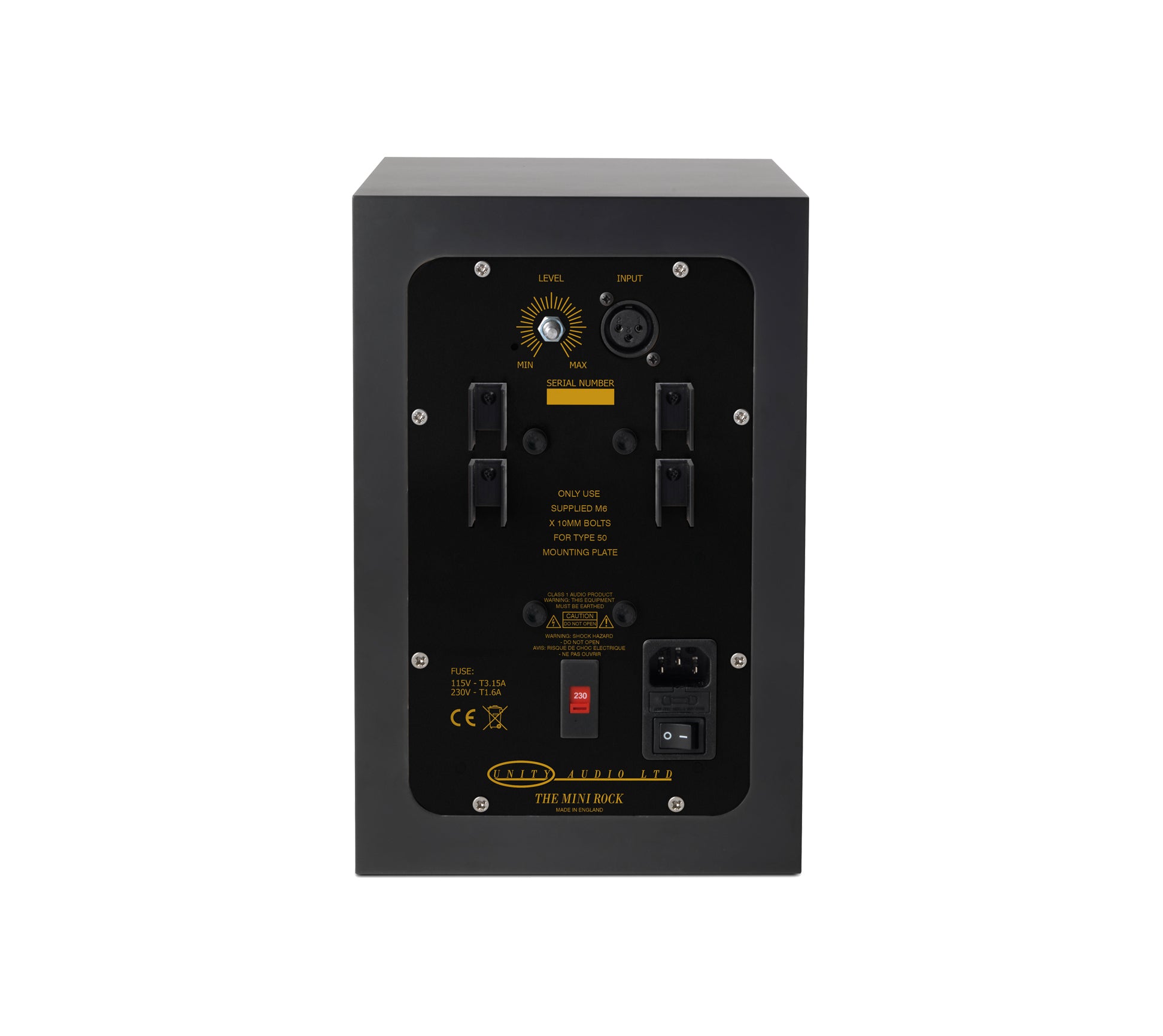

El Mini-Rock utiliza dos amplificadores Clase D de 180 Watts, uno por unidad de accionamiento, que también incluye protección de CC. Se ha diseñado una entrada/cruce personalizado que proporciona un control de volumen en el panel trasero. La fuente de alimentación Clase D proporciona un funcionamiento conmutable de 115 V-230 V.

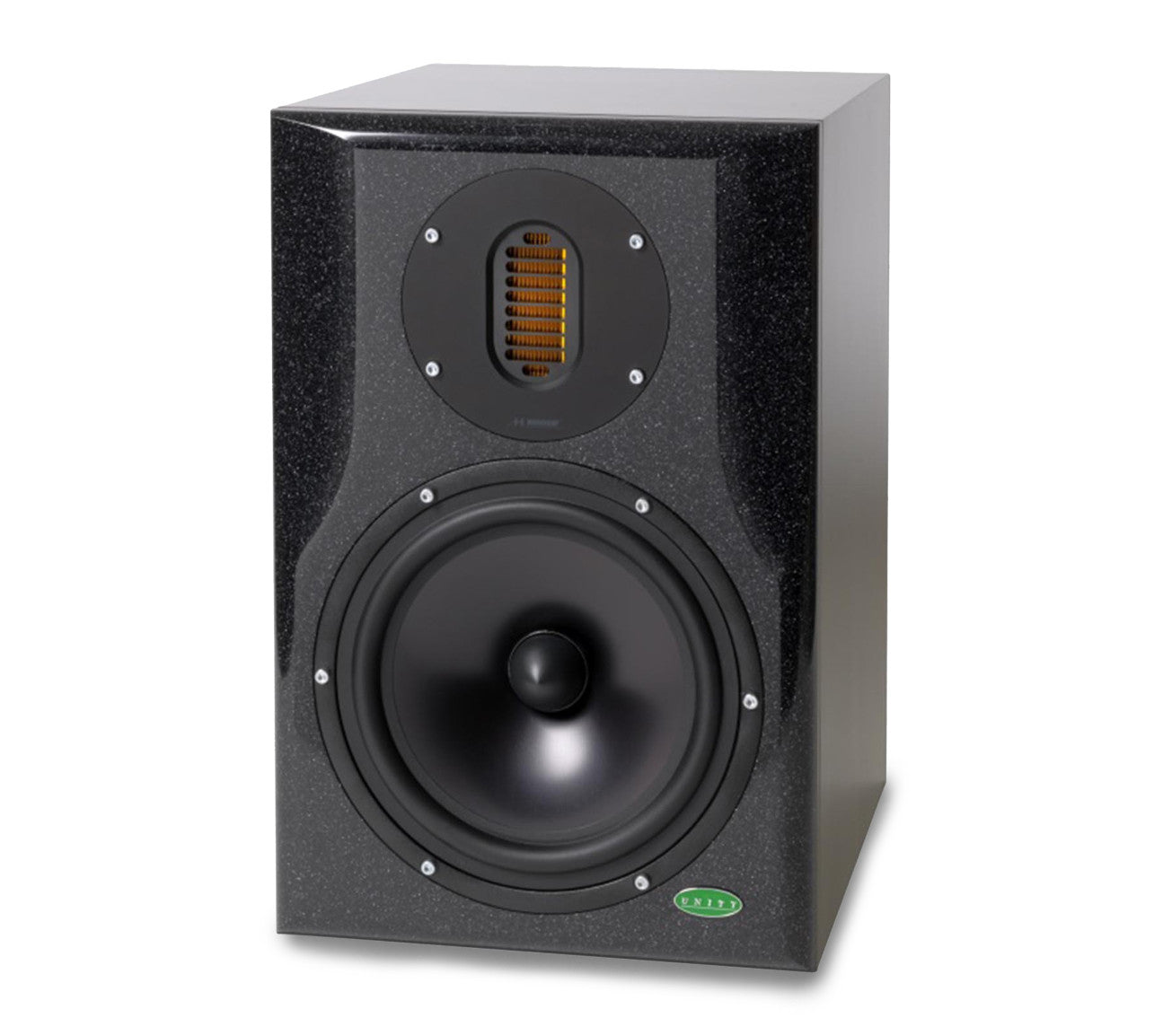

Quite possibly the ultimate expression of a 2-way design, The Super Rock starts out as a Rock MKII and turns every detail up to eleven! We’ve anaylised every single component and parameter of The Rock in microscopic detail and challenged our designers to improve it whilst keeping the same 2-way design and convenient form factor. What they achieved is quite simply a landmark product that goes deeper, hits harder and retrieves even greater levels of resolution. Although at its heart it’s a 2-way it certainly Rocks like a miniature Boulder.

Drivers
Starting with the drivers, we have increased the diameter of the bass driver up to 220mm, the same size as bigger brother, The Boulder. However our engineers didn’t just settle for using the exact same driver, they demanded a new specification specifically matched to The Super Rock’s smaller sealed cabinet. The 200mm SEAS custom aluminium woofer delivers amazing micro and macro-dynamics. The cone and the low loss rubber surround have been specifically designed to eliminate cone edge resonance and distortion typically associated with soft cones.

The same long, high temperature voice coil as The Boulder provides super low distortion and very high power handling capacity. The bass driver hands over seamlessly to an all-new Air Motion Transformer Tweeter from respected German manufacturer Mundorf. This has incredibly low distortion figures, excellent transient response and carefully considered dispersion characteristics that deliver seamless inter-driver coherence.

3-way active monitor

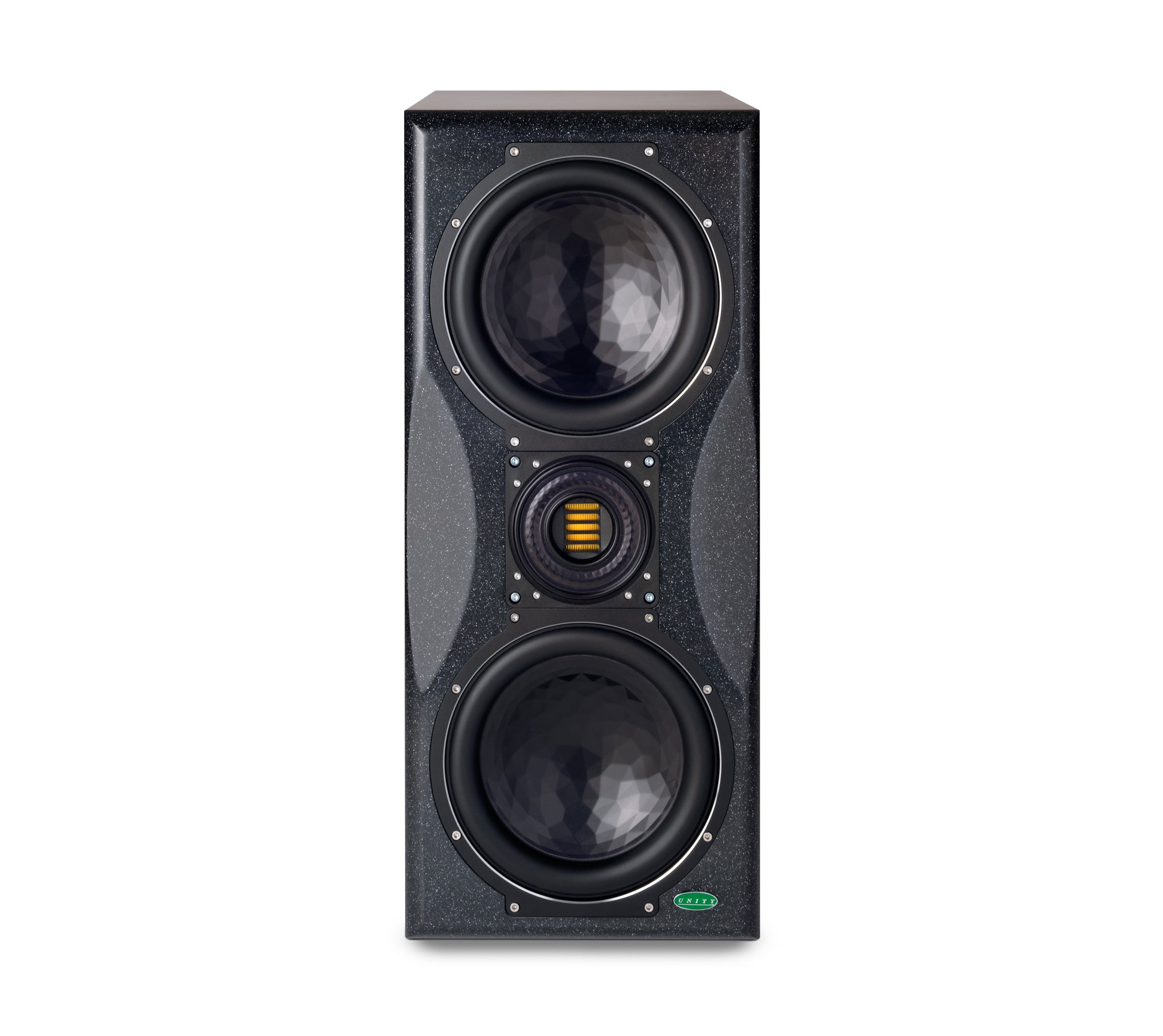

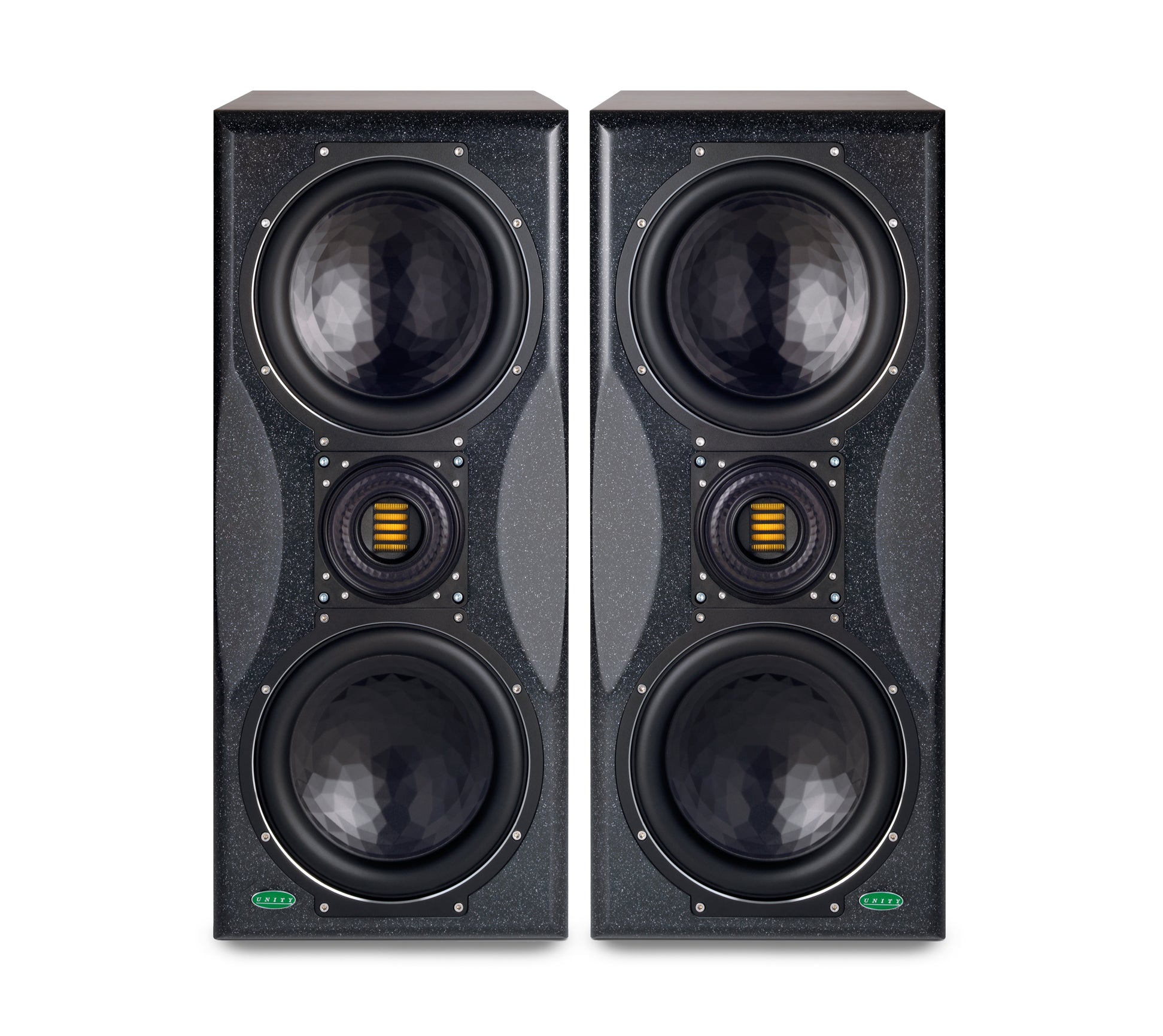

The new Boulder MK-III 3-way active monitor supersedes the MK-II model and continues to build on this revered monitor, further redefining expected levels of sonic performance and accuracy for this truly world-class monitoring system.

Like the critically acclaimed MK-I & MK-II, the new MK-III boast's a fast, accurate detailed sound and prodigious extended bass response, and delivers even greater levels of SPL to fit into any critical listening environment or scenario.

New MK-III Features

• 2 x New 8.5" / 220mm Crystal Membrane Woofers.
• 2 x New 300 watt Class D amplifiers inc dedicated PSU for woofers.

Crystal Membrane 8.5" / 220mm Woofers
The eye-catching surface of the precision built German Crystal Membrane is more than just an attractive design feature. The Crystal Membrane woofer construction uses Aluminum-Sandwich AS Technology. The crystal-shaped inverse aluminium dome is joined to the paper cone in a special gluing process to result in the desired sandwich construction. Resembling the surface of a large crystal, the aluminium-foil stamping stiffens the aluminium dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics.
The voice coil design of the bass drivers results in an expanded range of the respective drivers by nearly an octave. The wide, double-asymmetrical rubber surround of the 220m woofer can handle up to ±20 mm excursions for truly prodigious volume and lowest distortion, a unique engineering achievement for a driver of its size.

Amplification - Class D & Class A/B with two separate power supplies
Regarded as easily rivalling many larger and more costly monitoring systems, the new MK-III is now fitted with 2 x 300 watt Class D amplifiers with their own separate power supply specifically for the 2 x Crystal Membrane woofers. The Boulder MK-III still retains it's two original discrete custom Class A/B amplifiers with their own dedicated power supply for the Coaxial X-Jet mid-range / ribbon tweeter.

With the power delivery of the two large Class D amplifiers running the two 8.5" woofers alongside the custom Class A/B amplifier for the Coaxial X-Jet mid-tweeter, the Boulder delivers a life-like sense of scale and take any performance in their stride offering high SPL figures with incredible effortless dynamics and transients.

X-JET Coaxial Mid-Range & Folded Ribbon Tweeter Drive Unit
The unique and exclusive centrally mounted Coaxial unit which is hand built in Germany comprises of a 5" ring mid-range drive unit and a centrally mounted JET5 50 kHz folded ribbon tweeter. The combination provides a reduced stray magnetic field with higher efficiency, improved dynamics and smooth, even frequency dispersion.

This compact design assures true point source phase accurate delivery across it's entire frequency spectrum from 694 Hz to 50 kHz, eliminating phase rotation and frequency anomalies. The result is exceptional imaging and detail, significantly improved impulse and power control providing much improved dynamic range and an even frequency response and dispersion throughout the listening space. The X JET driver can be described as dynamic and detailed with depth and spaciousness over a broad listening area providing exceptional detail to beyond 50kHz.

JET 5 Folded Ribbon Tweeter
This concentrically located JET5 ribbon tweeter uses a unique folded ribbon technology providing a wide, smooth dispersion and a flat frequency response exceeding 50kHz.

The precision German built JET 5 tweeter, which is also used in the Mini-Rock and The Rock has been highly regarded for years due to its superior impulse control, smooth sound character and incredible detail.

Delivering true high-definition sound, the JET 5 tweeter enthrals with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.

The JET tweeter was developed to perfection on the basis of the famous Air Motion Transformer by loudspeaker pioneer Dr. Oskar Heil.

Its operating principle is based on a concertinaed-foil membrane, driven by a strong magnet system of neodymium rods. This motor drives the air considerably faster than the pistonic motion of a conventional driver, with gains in higher sensitivity and extraordinary dynamics. Due to many additional design changes, like an improved new neodymium magnet system, even higher efficiency, higher sound pressure levels and frequency response up to 50 kHz was achieved.

The core of the JET tweeter is the folded foil membrane. With a fold width of only 0.84 mm, a major requirement in the JET production is precision.

To guarantee repeated accuracy and unchanging quality even with high production capacity, gluing and handling are now executed by two SCARA robots. The folding and fixing of the membrane, however, are executed by hand, since for production steps requiring extreme precision, the manual dexterity of skilled technicians is irreplaceable. Due to continuous improvement, the JET 5 tweeter creates an effortless, airy and resonance-free image up to 50,000 Hz, and with its linear frequency response is ideally suited for the reproduction of DVD-A and SACD.

Sealed Cabinet Design

Accurate Bass Reproduction
Like all Unity Audio monitors, the cabinet is a sealed enclosure that doesn't rely on a traditional resonate port to deliver low bass frequencies. The advantage of this design philosophy is more accurate bass with better time domain performance and a gradual 12dB per octave roll off as opposed to a 24dB roll off with ported designs.

Superior Transient Response
This approach also guaranties super fast transient reproduction far quicker than conventional ported enclosures allowing the user to hear every detail of a sounds initial attack making decisions about compressor envelopes far easier to judge.

Accurate Frequency Response At Any Level
Another invaluable attribute of the sealed cabinet design is the ability to monitor at extremely low levels without compromising low frequency reproduction which is an issue with other types of cabinet designs. No longer does the user have to monitor at higher monitoring levels to judge the bass correctly. Working for long periods of time at low to moderate listening levels while maintaining a full and accurate picture is all possible with the Boulder MK-III.

Cabinet Construction
To accommodate the large 220mm woofers the sealed cabinet uses 18mm Baltic Birch plywood and a huge 30mm Corian front baffle with large radius edges to reduce reflection and cabinet resonances. This adds density, mass and rigidity providing a solid and resonant free mounting platform for all the drive units.

Applications
The Boulder MK-III is ideal for a number of critical applications be it stereo or multi-channel such as recording, mixing, mastering, composing.

Boulder 4 way Main Monitor Options
The Boulders can be expanded into a full 4 way main monitoring system with the dedicated B.A.B.E ( Boulder Active Bass Extender ), or partnered with one or two Avalanche Sub-woofer's to make a 2.1 or multi channel surround system.
