The second generation of Satori is a vastly improved version of the TEC Award-winning monitoring controller. Maintaining its legacy of digitally controlled true analog monitoring and summing, the Antelope Audio Satori Gen 2 brings further advancements, offering precise 0.25 dB stepped volume control, four audiophile-grade headphone amps with talkback, built-in analog summing with individual volume control for each channel, and extensive connectivity options. With enhanced intuitive control via an upgraded R4S remote, Satori Gen 2 ensures effortless switching and flawless signal integrity, making it the ultimate studio companion.

REDESIGNED AND IMPROVED

The Satori Gen 2 features a redesigned visual aesthetic, bringing a sleek and modern look that fits seamlessly into any studio setup. In addition to the updated design, Satori now comes with improved stepped volume control, with smaller 0.25 dB increments. This enhancement ensures even more precise control, providing exceptional accuracy in achieving the perfect volume balance without compromising sonic integrity. Additionally, multiple outputs can now work simultaneously.

MASTERING-GRADE TRANSPARENCY

Satori Gen 2 provides neutral signal path, effortlessly switching and routing between sources while maintaining the clarity of analog sound. With Antelope Audio’s expertise in designing pristine analog circuits and optimizing power supply technology, Satori 2 achieves mastering-grade transparency, making it perfect for both professional and project studios.

INNOVATIVE ATTENUATOR ARCHITECTURE

The Satori Gen 2 employs Antelope's innovative technology to further reduce popping or zippering artifacts when adjusting volume, enhancing your listening experience. The attenuator now offers 0.25 dB precision, allowing engineers to achieve exact stereo accuracy and balanced L/R channels even at lower listening levels. This fine-tuned attenuator signal path preserves audio signal integrity and ensures all the subtle nuances of the sound are fully realized.

FLEXIBLE AND INTUITIVE CONTROL

Satori Gen 2 includes an enhanced R4S remote control with color display for additional workflow improvements as well as refreshed software control panel. Users can switch inputs, adjust outputs, assign headphone monitoring, and engage talkback from anywhere in the studio.

ENHANCED ANALOG SUMMING

Satori Gen 2 retains the fully analog 4-channel summing mixer found in its predecessor, but with enabled volume controls for each individual input. The analog summing functionality allows engineers working in-the-box to experience a more natural blend of instruments and dynamics, akin to mixing on a classic analog console. Satori 2 maintains the punch, headroom, and natural sound that engineers love.

CRYSTAL-CLEAN HEADPHONE AMPLIFIERS AND TALKBACK

The four independent audiophile-grade headphone amplifiers offer band members the ability to monitor with independent volume control, ensuring everyone hears what they need. With various talkback options included, performers and engineers can communicate easily, using either built-in or external microphones.

EXTENDED CONNECTIVITY

With 8 stereo ins, 4 stereo outs there are is plenty of analog I/O to ensure that all the gear in the studio stays connected all the time. Additionally, there are two convenient TRS headphone outs on the front and two on the back of the device. TRS, XLR, and D-sub connectors ensure wide compatibility for the whole studio. An independent LFE output on a balanced TRS connector which can be used for a subwoofer, outputs the currently selected monitor signal. D-sub thru connection outputs all 4 stereo channels coming through stereo input channels 5-8. Satori Gen 2 offers full digital control over USB. Simply connect to a computer to access all settings via a software control app available for macOS and Windows.

FEATURES:

• Neutral analog sound with digital control
• Precise 0.25 dB stepped volume control
• 4 mastering-grade HP outs with talkback functionality
• Expanded analog summing mixer
• Flexible R4S remote control included
• User-friendly desktop app for Windows and macOS

SYSTEM REQUIREMENTS:

• Windows 10/11, USB: 1x USB 2.0 Port, 8GB RAM (minimum)
• macOS: OS X 10.15 to 14, USB: 1x USB 2.0/3.0 Port, 8GB RAM (minimum)

The Crane Song Avocet IIA is designed to solve the problems of accurate monitoring and volume control as required by workstation users, studios and mastering rooms alike. It is a stereo controller with three digital inputs, three analog inputs and a headphone system. It's comprised of a rack mounted unit and table top remote control. Avocet has many features including; dim, mute, phase, mono, and 16 bit truncation functions, plus a speaker select switch that sends line level balanced audio to one of three outputs. The six input sources have on the fly gain trim capability and all digital signals are up-sampled and jitter reduced to ensure highest accuracy during D/A conversion.
The internal headphone amplifier can be fed from the program source or an external input. Provisions for a talk back function are included.
Avocet IIA can operate in surround up to 7.1, with the appropriate number of audio boxes in the system.
Direct sub woofer outputs for each of the three output have been added. The output levels are now programmable in 0.25 db steps for speaker level matching.
Analog and digital inputs
The Avocet IIA provides both analog and digital inputs to allow you to connect straight from your DAW or mixing board. The analog inputs take the form of XLRs, and the digital inputs are AES/EBU and S/PDIF. The Avocet IIA will facilitate the connection of up to three pairs of speakers via XLR outputs, with a dedicated subwoofer output for each output pair. The included remote gives you the power to check your mix on different sets of speakers from where you're sitting.

Headphone and talkback circuit
The Avocet IIA doesn't just manage multiple pairs of monitors - it also provides headphone cue mix and talkback functionality. This can be extremely handy during the tracking process. The headphone cue mix can be different than the signal sent to the monitors, giving the engineer an accurate representation of what's happening in the room, while the artists have the headphone mix that they need to lay down their parts. The remote has an XLR input for the connection of a talkback mic, making communicating with the talent during tracking a snap.

Features:

• Stereo monitor controller with 3 digital inputs, 3 analog inputs, and 3 stereo output pairs
• Quantum DAC provides precise D/A conversion with less than 1ps jitter
• Dedicated subwoofer output for each stereo output pair for easy sub integration
• Analog and digital inputs
• Headphone and talkback circuit
• Level matching between sources
• XLR inputs and outputs
• AES/EBU and S/PDIF digital inputs
• Remote control
• Upsampled and jitter-reduced digital signals to ensure highest accuracy during D/A conversion

Dangerous has been building award-winning, standard-setting converters since 2002 when the Dangerous Monitor’s onboard digital-to-analog converter (DAC) swiftly became the industry reference. They’ve been asked over the years to build a stand alone DAC, and it's finally here in the CONVERT series. Eager to embrace the opportunity to develop a new and better DAC, we designed the CONVERT series converters from the ground up, utilizing cutting-edge digital technology coupled to a Chris Muth designed analog circuit that delivers their signature sound: open, articulate and powerful from top to bottom. Loaded with innovative and useful features accessed from an intuitive front panel, the Dangerous CONVERT-2 tops an elite class of dedicated stereo digital-to-analog converters in both sound and ease of use. The CONVERT-2 goes beyond transparency – you won't just hear everything, you’ll hear it beautifully.

It’s All About Implementation

While in theory most converters should be the same, among those who truly understand this hotly debated and endlessly researched area of audio technology, the mantra is implementation, implementation, implementation. How a converter’s components are selected, tweaked and assembled according to a specific design, and then tuned for superior performance within that plan is what sets a converter apart – for better or worse. The Dangerous CONVERT-2 has been developed by a team of experts with deep, up-to-the-minute knowledge of digital and analog converter technology.

Fine Tuning The Analog Side

A legend among mixing and mastering engineers for decades, Chris Muth has designed the analog gear used to mix and master an endless list of hit records and classic reissues. Chris’s powerful, articulate, hi-fi designs dominated the big studios in New York City since the 80s, and via Dangerous his designs have become essential components in the best modern DAW-based mixing and mastering studios. When Dangerous set out to develop a new dedicated stereo DAC, Chris brought his relentless design philosophy and world-renowned sound to the CONVERT’s analog technology. Not only did he develop the audiophile-grade analog audio path, Chris also meticulously fine tuned the low-pass reconstruction filters mandatory to implementing any DAC. These filters lie at the heart of how a converter will perform, and the CONVERT series has the jaws of top pros hitting the floor when they hear the big natural sound and the powerful, ultra-clear low-end.

Perfecting The Digital Side

Dangerous brought in digital guru Paul Messick to make sure the digital side of the CONVERT-2 would sing in perfect harmony with its finely tuned analog circuit. Paul rigorously refined the CONVERT’s JetPLL ultra-low jitter clocking technology until it surpassed the JET’s stated specs, resulting in the virtual elimination of jitter throughout the audio band and beyond. Gone are the sonic headaches and end-of-day fatigue brought on by long-term exposure to jittery digital audio systems. The CONVERT-2’s superbly implemented digital technology delivers such a natural, open and non-irritating sound that you’ll forget you’re even listening to converted 0s and 1s.

Detailed Information & Delightful Inspiration

Reaching beyond transparency and accuracy, the sound of the CONVERT-2 is so open and 3-dimensional that many are saying that these are the most beautiful, natural sounding converters they’ve ever heard. Whether your focus is tracking, mixing or mastering, when you choose a dedicated stereo DAC, you’re choosing the unit you’ll trust to make all your sonic judgments, from choosing a mic to deciding how much limiting to use in mastering. You need your DAC to be honest, but you also need it to sound beautiful. With the CONVERT you get the uncanny combination of detailed information and delightful inspiration.

Features

• Dedicated Volume Control With Hard-Bypass
• Instant Input Calibration
• Automatic Sample Rate Detection
• On The Fly Input Switching
• Five digital inputs: USB, AES/SPDIF-1, AES/SPDIF-2, ADAT and Optical SPDIF (TOSLINK)
• USB Uplink
• Custom Metering
• Use The CONVERT As Your Master Clock
• Monitor ST Connectivity

Specifications

Note: Dangerous Music, Inc. publishes actual measured specifications, not theoretical numbers derived from data sheets published by chip manufacturers.

• Signal to Noise Ratio A-weighted, 20Hz to 20KHz: < 114dB
• Signal to Noise Ratio unweighted, 20Hz to 20KHz: < 113dB
• Dynamic Range A-weighted, 20Hz to 20KHz: < 114dB
• Dynamic Range unweighted, 20Hz to 20KHz: < 113dB
• THD+N:
  • THD+N, 1kHz, unweighted, 20Hz to 20kHz, +4dBu out: < 94.5dB (0.00188%)
  • THD+N, 1kHz, unweighted, 20Hz to 20kHz, +22dBu out: < 106.5dB (0.00048%)
• Frequency Response @ 96KHz sample rate:
  • DC to 20KHz: +0, -0.25dB
  • DC to 30KHz: +0, -0.5dB
  • DC to 40KHz: +0, -1.0dB
• Jitter: 16ps (100Hz to 40KHz), 18ps (100Hz to 1MHz)
• Crosstalk rejection: > 114dBu @ 1kHz
• Replacement Fuses: USA 2 amp slo-blow for 120V Europe 1 amp slo-blow for 240V

Whether you’re tracking, mixing or mastering, the Dangerous CONVERT-8 will deliver powerful low-end, articulate mids and transcendent highs to every channel in your analog rig. Patched into one of our award-winning analog summing units like the 2-BUS+ or the D-BOX – or to your favorite analog console – the CONVERT-8 will empower you to create the spacious, three-dimensional soundscapes that only real analog summing can deliver. Compatible with all of today’s digital signals (including the ubiquitous ADAT format) the CONVERT-8 is ready to take on any mixing or monitoring job from standard stereo and 2.1 to 5.1 and the increasingly popular 7.1 surround format. Recognizing the needs of those who don’t need more analog inputs, the CONVERT-8 brings today’s very best digital-to-analog conversion within reach of any studio.

It’s All About Implementation

While in theory most converters should be the same, among those who truly understand this hotly debated and endlessly researched area of audio technology, the mantra is implementation, implementation, implementation. How a converter’s components are selected, tweaked and assembled according to a specific design, and then tuned for superior performance within that plan is what sets a converter apart – for better or worse. The Dangerous CONVERT-2 has been developed by a team of experts with deep, up-to-the-minute knowledge of digital and analog converter technology.

Fine Tuning The Analog Side

A legend among mixing and mastering engineers for decades, Chris Muth has designed the analog gear used to mix and master an endless list of hit records and classic reissues. Chris’s powerful, articulate, hi-fi designs dominated the big studios in New York City since the 80s, and via Dangerous his designs have become essential components in the best modern DAW-based mixing and mastering studios. When Dangerous set out to develop a new dedicated stereo DAC, Chris brought his relentless design philosophy and world-renowned sound to the CONVERT’s analog technology. Not only did he develop the audiophile-grade analog audio path, Chris also meticulously fine tuned the low-pass reconstruction filters mandatory to implementing any DAC. These filters lie at the heart of how a converter will perform, and the CONVERT series has the jaws of top pros hitting the floor when they hear the big natural sound and the powerful, ultra-clear low-end.

Perfecting The Digital Side

Dangerous brought in digital guru Paul Messick to make sure the digital side of the CONVERT-2 would sing in perfect harmony with its finely tuned analog circuit. Paul rigorously refined the CONVERT’s JetPLL ultra-low jitter clocking technology until it surpassed the JET’s stated specs, resulting in the virtual elimination of jitter throughout the audio band and beyond. Gone are the sonic headaches and end-of-day fatigue brought on by long-term exposure to jittery digital audio systems. The CONVERT-2’s superbly implemented digital technology delivers such a natural, open and non-irritating sound that you’ll forget you’re even listening to converted 0s and 1s.

Detailed Information & Delightful Inspiration

Reaching beyond transparency and accuracy, the sound of the CONVERT-2 is so open and 3-dimensional that many are saying that these are the most beautiful, natural sounding converters they’ve ever heard. Whether your focus is tracking, mixing or mastering, when you choose a dedicated stereo DAC, you’re choosing the unit you’ll trust to make all your sonic judgments, from choosing a mic to deciding how much limiting to use in mastering. You need your DAC to be honest, but you also need it to sound beautiful. With the CONVERT you get the uncanny combination of detailed information and delightful inspiration.

Features

• Instant Input Calibration
• Automatic Sample Rate Detection
• On The Fly Input Switching
• Essential 8-Channel Metering
• Monitor ST Connectivity

Specifications

Note: Dangerous Music, Inc. publishes actual measured specifications, not theoretical numbers derived from data sheets published by chip manufacturers.

• Signal to Noise Ratio A-weighted, 20Hz to 20KHz: < 114dB
• Signal to Noise Ratio unweighted, 20Hz to 20KHz: < 113dB
• Dynamic Range A-weighted, 20Hz to 20KHz: < 114dB
• Dynamic Range unweighted, 20Hz to 20KHz: < 113dB
• THD+N:
  • THD+N, 1kHz, unweighted, 20Hz to 20kHz, +4dBu out: < 94.5dB (0.00188%)
  • THD+N, 1kHz, unweighted, 20Hz to 20kHz, +22dBu out: < 106.5dB (0.00048%)
• Frequency Response @ 96KHz sample rate:
  • DC to 20KHz: +0, -0.25dB
  • DC to 30KHz: +0, -0.5dB
  • DC to 40KHz: +0, -1.0dB
• Jitter: 16ps (100Hz to 40KHz), 18ps (100Hz to 1MHz)
• Crosstalk rejection: > 114dBu @ 1kHz
• Replacement Fuses: USA 2 amp slo-blow for 120V Europe 1 amp slo-blow for 240V

To survive in this modern day audio jungle, the contemporary studio must be lithe and agile; a facility that can adapt to any workflow: effortlessly. Tracking, mixing and mastering services oftentimes must be performed under one roof, utilizing every particle of outboard gear available.

The Dangerous LIAISON realizes this dream by providing unprecedented access to your outboard equipment. Connect up to six of your favorite two channel units to the LIAISON (more if you daisy chain, leverage a patch bay or add a Dangerous Master). Instantly audition any device or combination, change the order, dial in some parallel processing and then store these customized signal paths as presets to use again, on demand, anytime. True hard-wire bypass relays remove the gear entirely from the signal path; this includes outboard that lacks an integrated bypass or true hard-wire bypass. Mastering grade components switch instantly and silently, providing true A/B comparisons without coloration or latency. Pre and post-processing monitor outputs make it simple to audition between the original source and the treated product.

The A and B buss paths aren’t just for comparing signal paths. They can be strung together in series. For example, if your favorite EQ (the BAX of course) is connected at 1 and a limiter is connected at 5, selecting 5 from Buss A and 1 from Buss B reverses their order.

Parallel Processing allows the original and effected signals to be blended independently. For example: crush the drums with heavy compression for tight, explosive impact, while mixing in the original to retain transients and dynamics.

Features

• 6 Stereo Insert Loops, Assignable to 2 Stereo Busses
• Flexible and Potent Parallel Processing Loop
• Route, Switch, Matrix, Flip & Audition Instantly
• Recall any Tracking, Mixing or Mastering Configuration
• Seamlessly Integrates with Dangerous Master

Application Examples

• Tracking: craft recall-able patches for cutting
  • Pop vocals, hip hop, voice overs...
  • Kick drums that click, resonate or “thwomp!”
  • Bass lines that are rich, liquid, punchy or fat
  • Parallel processing with a compressor, Dolby A or...
• Mixing: use it for
  • All the tracking tricks above
  • And all the mastering examples below
• Mastering: audition the possibilities
  • EQ before compression? Or compression before EQ?
  • Compression ratio at 1:1.5 with a low threshold followed by limiting at 1:20 with a high threshold?

The Dangerous Music Monitor SR gives your Monitor S.T system full 5.1 surround ability! As former world-class studio owners and makers of custom mastering equipment, Dangerous Music has always built no-compromise, problem-solving gear. Recreating a console's master section, the Dangerous Monitor S.T is a stereo remote-controllable input source and speaker switcher, cue/talkback system, and headphone amplifier all in a 1U package. Expanding the possibilities of your setup, now you can upgrade your Monitor S.T to full 5.1 surround on every input with the Monitor S.R module add-on.

Dangerous Music Dangerous Monitor SR Features:

• Gives Monitor ST system full 5.1 surround capability on all inputs
• Can switch between surround setups
• Only works with Monitor ST

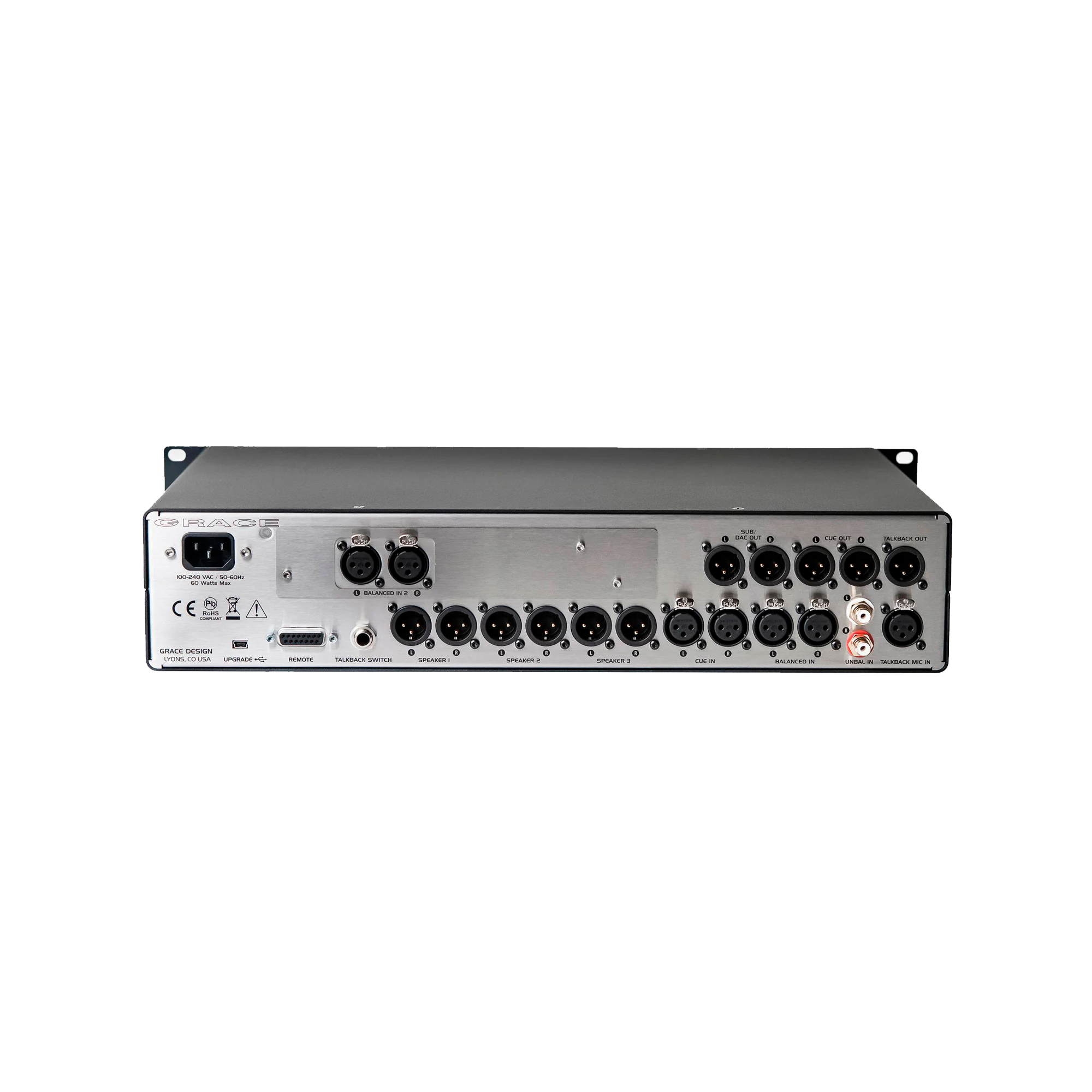

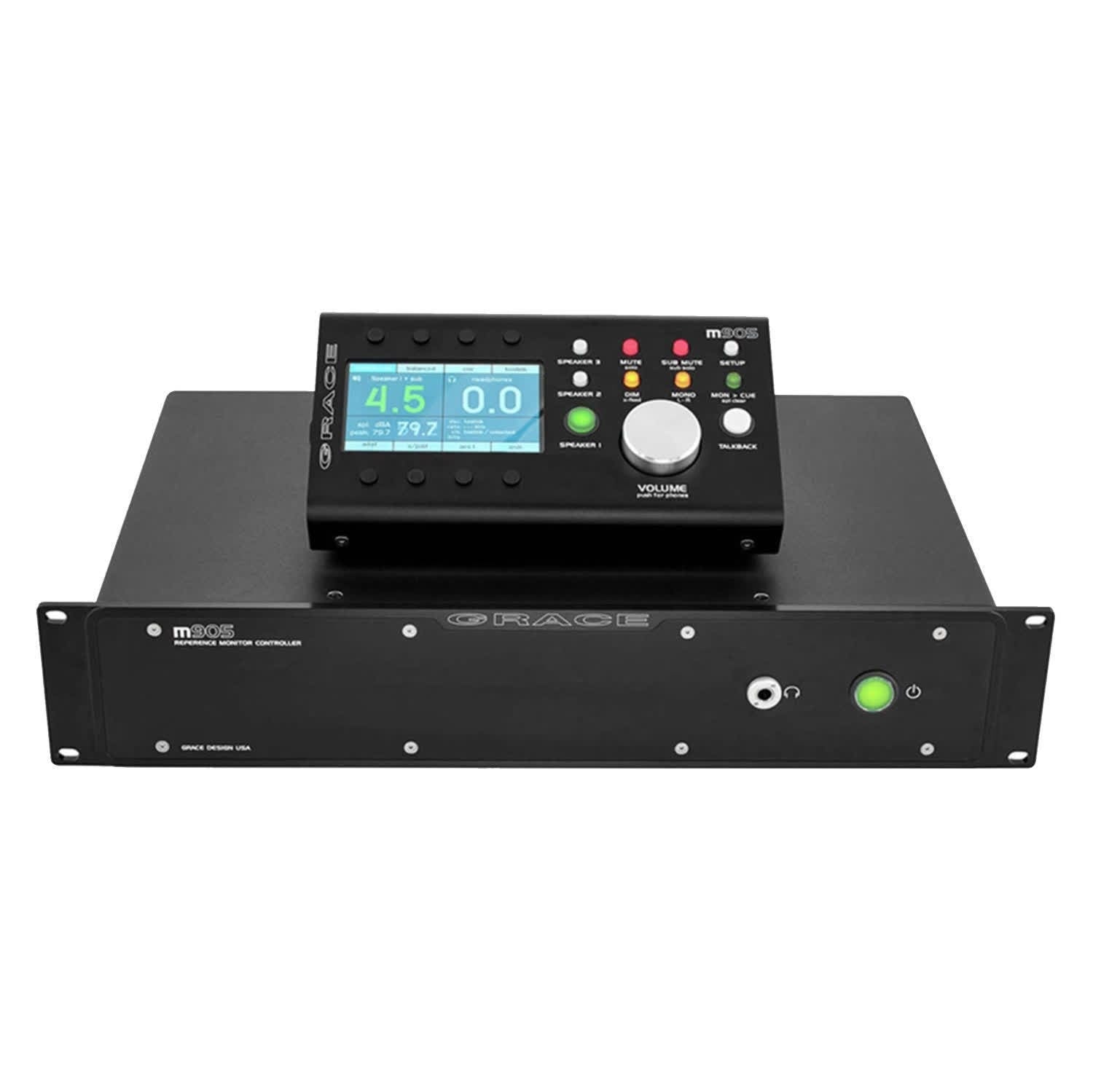

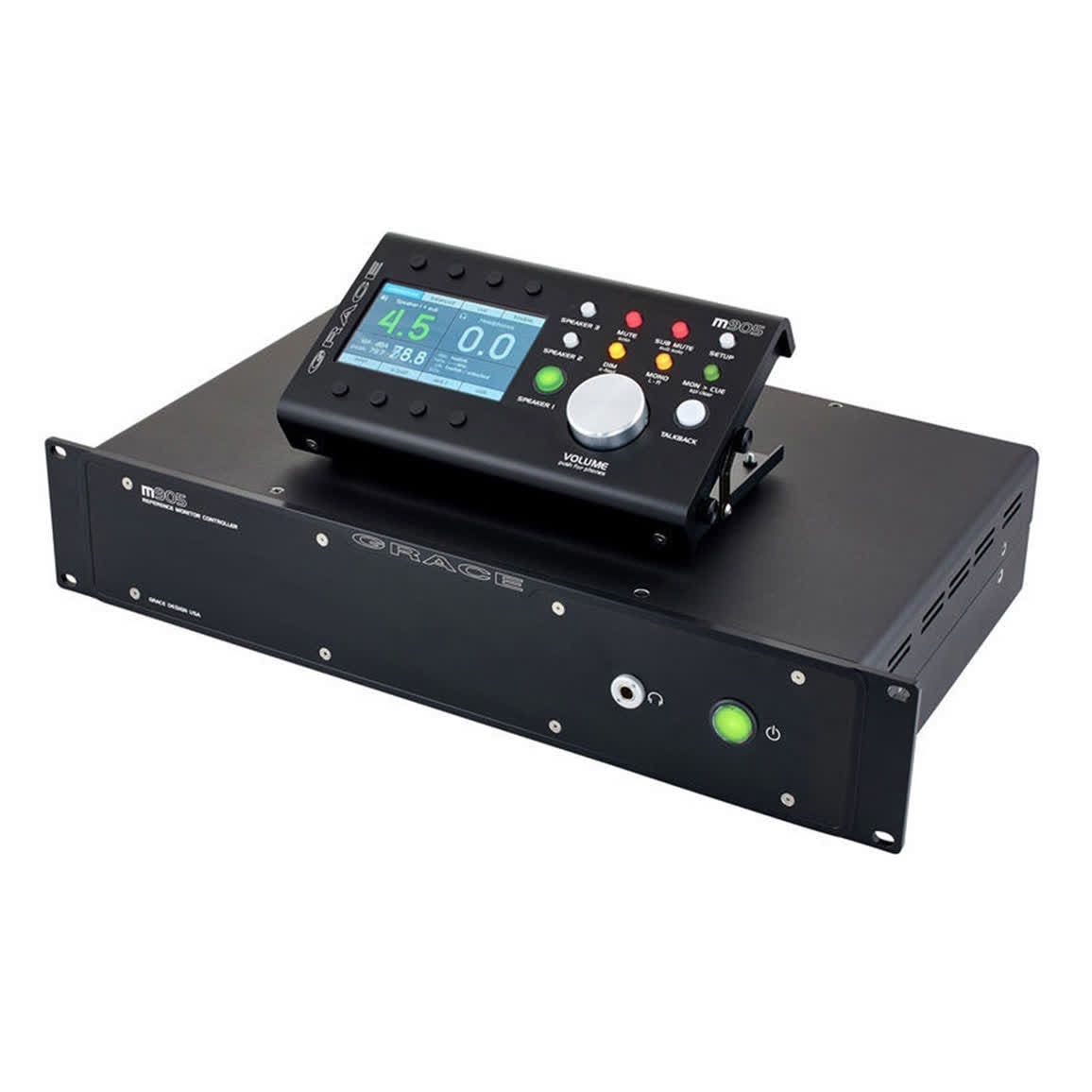

El Grace Design M905 Analog es un controlador de monitores de nivel profesional diseñado para una integración perfecta con convertidores de audio digital e interfaces de audio. Al igual que el m905 estándar, la versión analógica consta de una unidad base para montaje en rack y una unidad de control remoto (RCU) de sobremesa que ofrece control manual del volumen, selección de altavoces, silencio, atenuación, intercomunicador y otras funciones. La Unidad de Control Analógico (ACU) cuenta con entradas y salidas analógicas completas, incluyendo tres salidas de altavoces estéreo y un circuito amplificador de auriculares de referencia para una monitorización nítida. Si ya dispone de convertidores de alta calidad pero necesita un controlador de monitores de primera categoría para completar su sistema, el Grace Design m905 Analog es la mejor opción.

ENTRADAS Y SALIDAS ANALÓGICAS COMPLETAS

El m905 Analog ofrece todas las entradas y salidas analógicas que necesita para conectarse con sus DAC externos. Las entradas analógicas incluyen dos pares de conectores XLR balanceados, además de un par adicional de entradas RCA no balanceadas para equipos clásicos como preamplificadores de fono y pletinas de cinta. Las salidas analógicas incluyen tres pares de salidas de línea balanceadas para sus monitores principales y de referencia, además de dos salidas de subwoofer asignables que pueden funcionar en modo mono o estéreo. Un conector para auriculares de 6,35 mm en el panel frontal le brinda fácil acceso al amplificador de auriculares de referencia para que pueda comprobar sus mezclas y masterizaciones con total fidelidad

UNIDAD DE CONTROL REMOTO VERSÁTIL

La unidad de control remoto (RCU) de sobremesa incluida pone todas las funciones esenciales de monitorización al alcance de la mano. Los controles físicos incluyen un control de volumen con incrementos de 0,5 dB e interruptores iluminados para seleccionar las entradas de audio y las salidas de altavoz, así como controles de silencio, atenuación, suma mono y comunicación bidireccional. Una gran pantalla a color proporciona toda la información necesaria de un vistazo y permite configurar los ajustes sobre la marcha. El cable remoto de 7,6 metros incluido permite colocar la RCU cómodamente al alcance de la mano en cualquier sala de control, y los usuarios pueden optar por un cable remoto de alta calidad para habilitar la monitorización con auriculares directamente desde la RCU.

CIRCUITO DE AMPLIFICADOR DE AURICULARES DE REFERENCIA

En el panel frontal, encontrarás una salida de auriculares estéreo con el respaldo de los circuitos de audio de referencia de Grace Design, lo que garantiza que tus auriculares reciban la misma calidad de reproducción de audio impecable que tus monitores. (Nota: si bien la toma de auriculares del panel frontal está siempre activa, se requiere un cable adicional opcional para activar la toma de auriculares de la RCU). En cuanto a la crucial prueba de sonido con auriculares, la Grace Design m905 ofrece resultados consistentes para que puedas mezclar y masterizar con total confianza.

CALIDAD DE DISEÑO PREMIO GRACE

Fabricado con los mismos estándares de calidad que caracterizan a todos los productos Grace Design, el m905 Analog garantiza transparencia sonora, control de volumen preciso y fiabilidad a largo plazo. Su configuración exclusivamente analógica preserva la integridad de la señal sin conversión digital, permitiéndole utilizar su DAC preferido. Cada componente, desde la robusta carcasa hasta el circuito de alimentación, refleja el compromiso de Grace Design con la excelencia en audio profesional. Para estudios que buscan precisión analógica y control táctil, el Grace Design m905 Analog es la solución definitiva para el control de monitores.

CARACTERÍSTICAS DEL CONTROLADOR DE MONITOR GRACE DESIGN M905:

• Sistema de control de monitor analógico con mando a distancia de escritorio y unidad central de montaje en rack de 2U
• Diseñado para una integración perfecta con DAC externos.
• Dos pares estéreo de entradas XLR balanceadas
• Un par estéreo de entradas RCA no balanceadas
• Tres salidas de altavoces estéreo
• Múltiples salidas de subwoofer mono
• Salida de auriculares de referencia en el panel frontal
• Cable opcional para habilitar la salida de auriculares en el mando a distancia.
• Micrófono de intercomunicación integrado
• Interruptores dedicados para mono, atenuación y silencio
• Control de nivel por pasos de 0,5 dB
• Monitorización SPL en tiempo real mediante unidad de control remoto
• Ampliable a versión digital con actualización de usuario
• Construcción duradera para uso prolongado en estudio

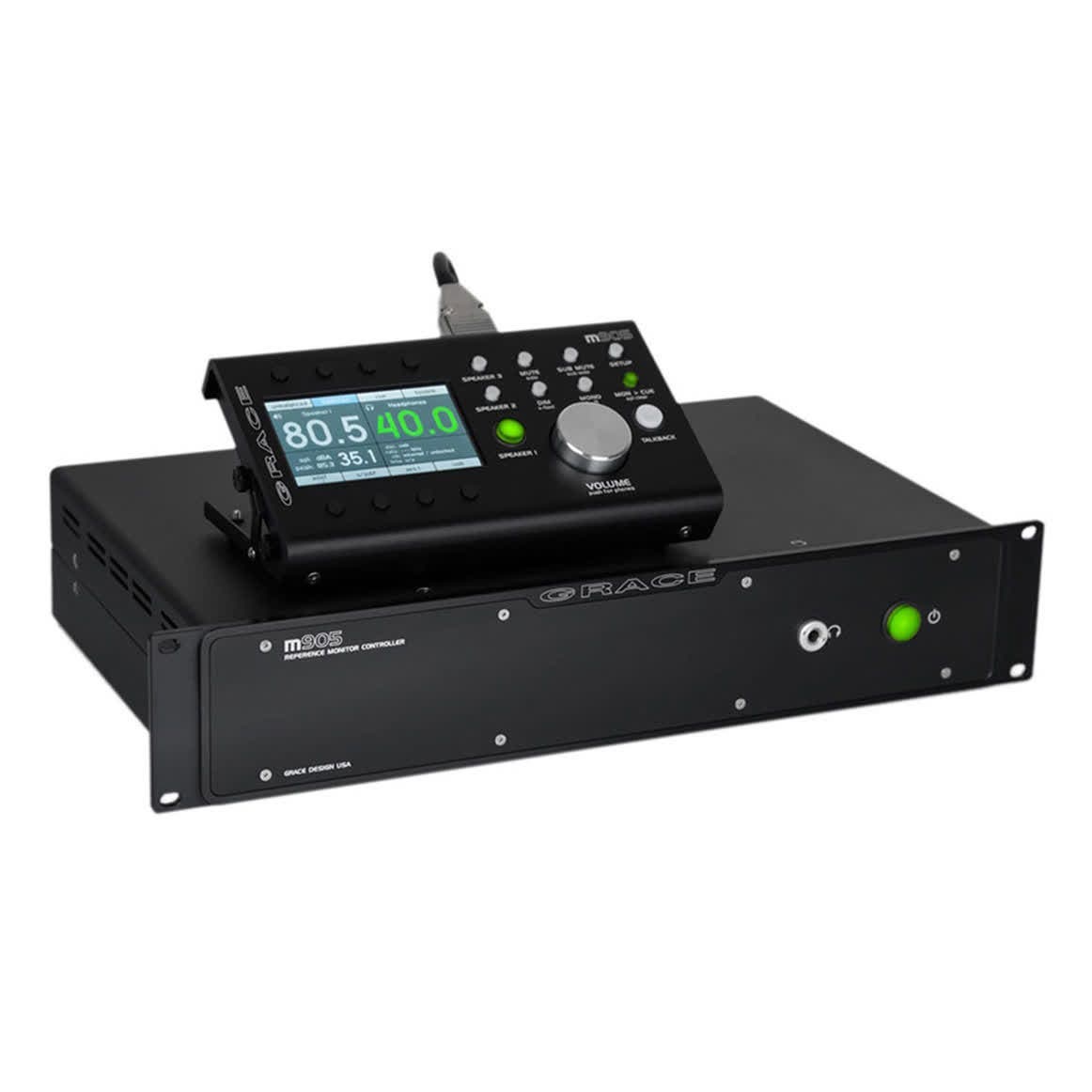

El Grace Design m905 establece un nuevo estándar en calidad de reproducción de audio. Su rendimiento DAC está a la altura de los mejores equipos de masterización especializados. El PLL s-Lock rediseñado garantiza una regeneración de reloj con fluctuaciones mínimas. Una interfaz USB asíncrona de clase 2 permite que el m905 actúe como reloj maestro del bus de audio USB del ordenador, eliminando eficazmente las fluctuaciones inducidas por la interfaz en la reproducción de audio del ordenador. Por último, su meticuloso circuito analógico ofrece resultados excepcionales en rango dinámico, distorsión y ruido, garantizando una reproducción nítida, detallada y musical de cualquier fuente de entrada.

Todos los circuitos principales de audio y alimentación se alojan en un chasis de montaje en rack de 2U, mientras que el control del sistema se gestiona mediante un elegante y ergonómico mando a distancia. Este nuevo mando combina hardware dedicado con una pantalla LCD gráfica a color. Todas las funciones de monitorización principales se controlan mediante interruptores físicos y un codificador rotatorio, mientras que la información del sistema se muestra en la pantalla LCD gráfica y mediante interruptores iluminados. Este diseño híbrido ofrece la robustez y funcionalidad del hardware tradicional con la potencia y funcionalidad adicionales de una interfaz gráfica de usuario.

Ahora es compatible con DSD 128x (5,6448 MHz) mediante DoP v1.1 (DSD sobre tramas PCM). El audio DSD puede provenir de las entradas digitales AES3, S/PDIF o USB. Aunque todavía es un formato de reproducción minoritario, DSD se ha mantenido vigente a lo largo de los años, y cada vez hay más contenido disponible para descargar. Además, su reproducción es compatible con varios reproductores. El sonido DSD es sorprendentemente natural, especialmente gracias a la integración con el resto de los circuitos de reproducción del m905. Por lo tanto, si busca este tipo de fidelidad, el m905 es una excelente opción para disfrutarla.

La interfaz gráfica de usuario (GUI) está diseñada para que cualquier ingeniero, incluso sin experiencia con el m905, pueda usar el sistema de inmediato y con confianza. Con una mínima inversión de tiempo, podrá acceder y controlar fácilmente las funciones avanzadas. Entre las características adicionales se incluyen: la asignación de nombres a las entradas y salidas de altavoz, la calibración de los niveles de entrada y salida, el ajuste de niveles preestablecidos y mucho más. Los menús de configuración solo ofrecen un nivel de navegación, por lo que la pantalla principal está siempre a un solo botón de distancia. Además, al regresar a cualquier menú de configuración previamente visitado, se recuerda su estado de edición anterior, lo que minimiza la navegación y la edición redundantes.

El m905 permite transferir hasta 10 canales de audio digital (8 canales ADAT y dos AES3, o S/PDIF o TOSLINK) a través de USB a un ordenador, lo que le permite funcionar como una interfaz de audio USB independiente. Esta es una función avanzada, ya que presenta problemas de sincronización que deben tenerse en cuenta, pero funciona correctamente y está documentada en el manual del usuario.

Con un rendimiento sonoro impresionante y un diseño atemporal, el m905 representa un auténtico avance en la búsqueda de la producción de audio de alta calidad. Intuitivo, fiable y elegante, es la pieza central perfecta para tu estudio: el punto de encuentro ideal para tus oídos, ojos y manos.

Características:

• Entradas analógicas: no balanceadas (estándar o entrada de fono RIAA opcional), balanceadas (segundo par balanceado disponible en el m905 Analog), CUE, micrófono de intercomunicación
• Entradas digitales – 2x AES3 (un solo cable o doble cable), 1 S/PDIF, 1 TOSLINK, ADAT (seleccionable en 4 pares o 2 pares en S/MUX), USB, DSD128 (5,6448 MHz)
• Circuitos de audio diseñados para una reproducción musical y totalmente transparente
• La reproducción USB asíncrona de clase 2 admite hasta 24 bits/192 kHz.
• Circuitos DAC de alta calidad con filtrado de desénfasis configurable
• Bucle de enganche de fase de doble etapa S-lock para regeneración de reloj con fluctuación ultrabaja
• Control remoto híbrido con interruptores físicos, codificador de nivel grande y pantalla LCD gráfica.
• La pantalla LCD muestra la entrada, el nivel, la salida, el SPL y el estado del DAC, además de un menú de calibración completo.
• La unidad de control remoto (RCU) incluye un micrófono integrado para comunicación bidireccional y un medidor de presión sonora (SPL) incorporado.
• Las funciones del medidor SPL incluyen nivel, pico, modos rápido y lento, ponderación A y C.
• Control de nivel de precisión en pasos de 0,5 dB para altavoces y auriculares
• Circuito amplificador de auriculares de referencia, con salidas tanto en la RCU como en la ACU.
• Interruptores dedicados para mono, atenuación, silencio y silencio de subgraves
• Salidas de bucle digital que se pueden configurar para transmitir señales digitales entrantes o como salida de altavoz digital al monitorizar fuentes PCM digitales.
• El modo mono se puede configurar para que sume los canales izquierdo y derecho, solo el izquierdo en ambos canales o solo el derecho en ambos canales. También están disponibles los modos solo izquierdo, solo derecho, solo izquierdo, solo derecho y solo de subgraves.
• Dispone de 3 salidas para altavoces estéreo, con dos salidas mono para subwoofer asignables (o una única salida estéreo para subwoofer).
• Salida SUB/DAC/METER multimodo
• Modo SUB out para salidas de subwoofer estéreo o múltiples salidas de subwoofer mono
• Modo de salida DAC para una salida DAC fija alimentada por la entrada digital seleccionada.
• Salida de medidor en modo alimentado por señal de entrada seleccionada (digital o analógica), configurable con un nivel fijo o para seguir el nivel del monitor.
• Base basculante RCU desmontable

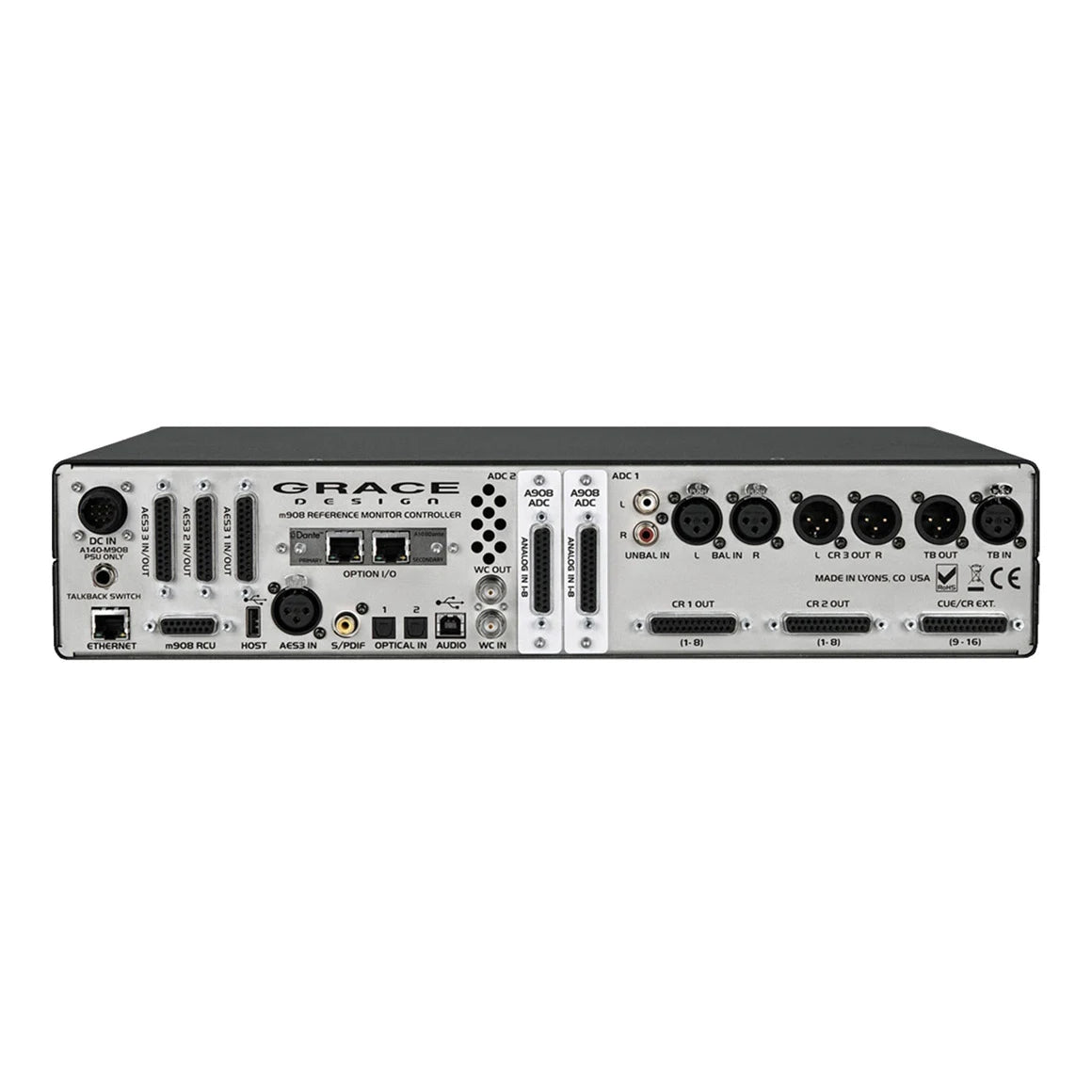

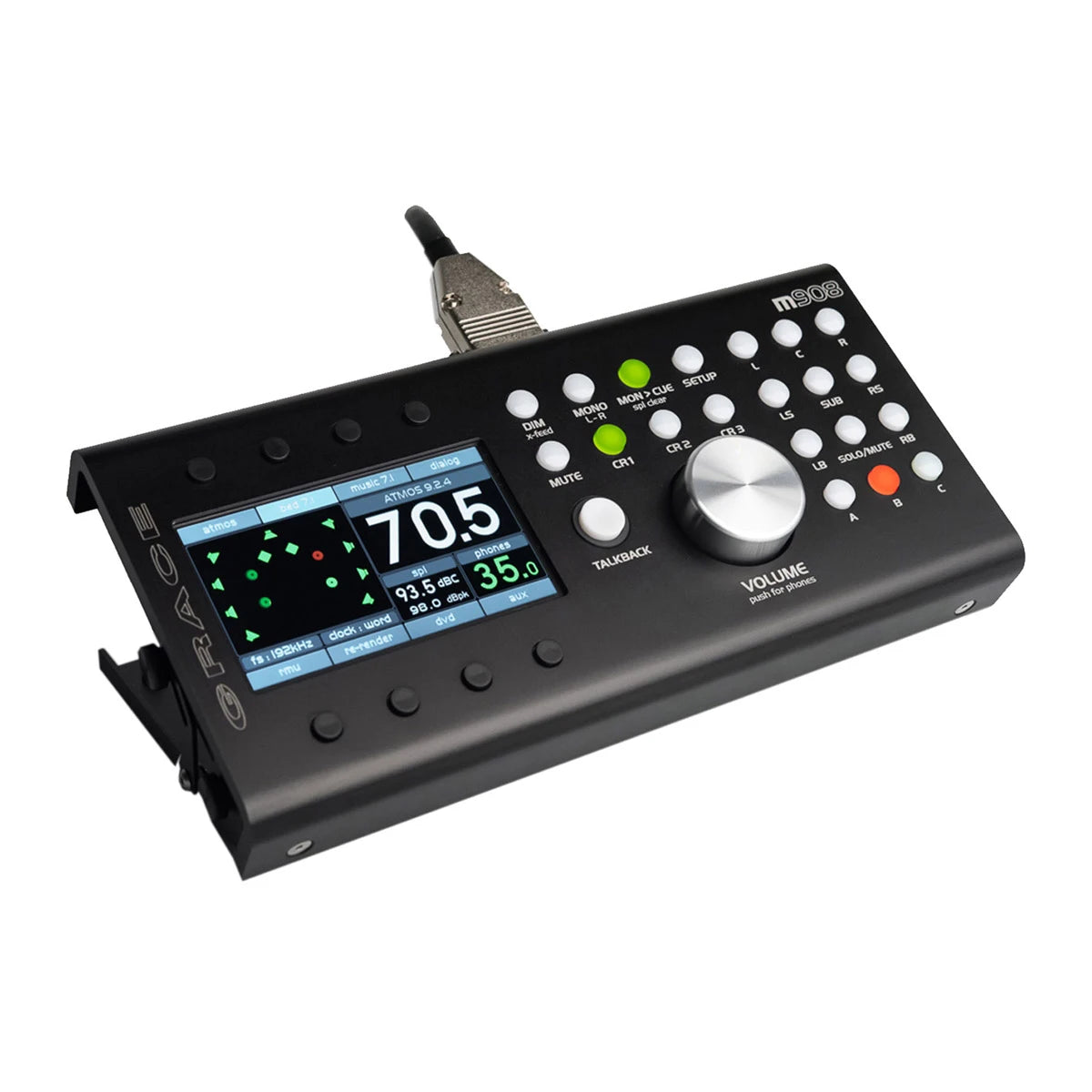

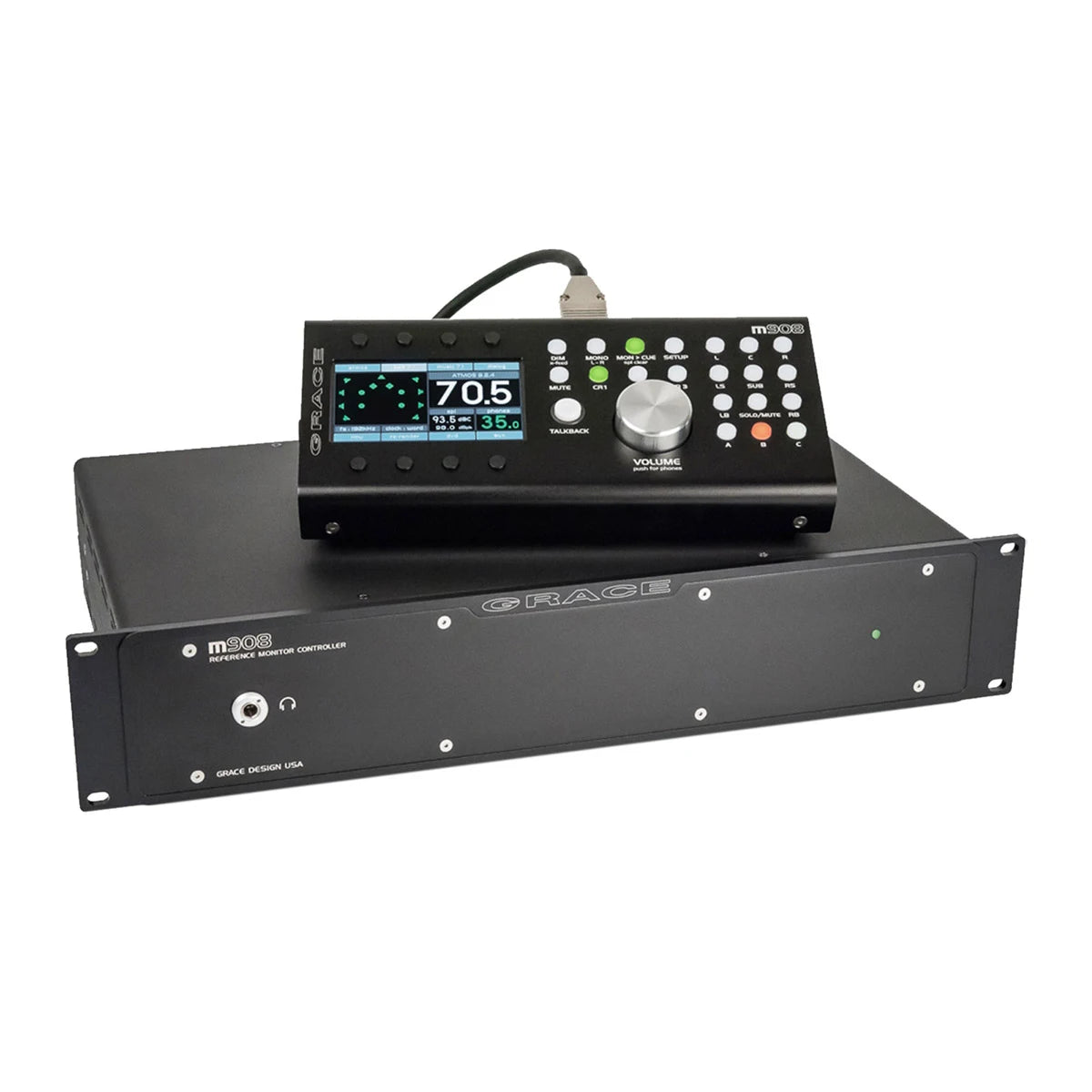

El controlador de monitor Grace Design m908 es un controlador de monitor multicanal capaz de manejar todo, desde dispositivos de reproducción mono hasta escenarios de sonido envolvente 22.2 completos. Equipado con conversores AD y DA de última generación, tecnología PLL s-Lock de última generación y potentes procesadores DSP, el M908 ofrece un sonido sorprendente con una latencia imperceptible.

POTENTES PROCESADORES DSP

Diseñado para profesionales del audio que trabajan con sonido envolvente y formatos inmersivos, el controlador de monitor Grace Design m908 ofrece conversión, sincronización y monitoreo de primera línea. El m908 utiliza un potente procesamiento DSP para lograr un control de volumen de alta resolución, administración avanzada de graves, retardo de canal fácilmente calibrado y una funcionalidad de mezcla integral.

FORMATOS ENVOLVENTES INMERSIVOS

Monitorea hasta 24 canales de audio para disfrutar de formatos de sonido envolvente como ATMOS, DTS:X y Auro 3D. Capaz de gestionar sistemas de reproducción desde radio AM hasta los cines Dolby de última generación, el m908 lo tiene todo cubierto con compatibilidad con sistemas de reproducción desde mono hasta sonido envolvente 22.2.

E/S EXPANSIVA

El Grace Design m908 cuenta con entradas para hasta 16 canales a través de ADAT o hasta 24 canales a través de USB. Se incluyen entradas estéreo AES3, S/PDIF y TOSLINK adicionales para mayor flexibilidad. Utilice el m908 para monitorear sistemas masivos con 16 salidas analógicas y soporte para hasta 24 canales de E/S AES3.

Perfecto para trabajar con sesiones largas a largas distancias, el m908 admite módulos Dante o DigiLink opcionales con hasta 24 entradas y salidas adicionales. El m908 también admite módulos ADC opcionales con 8 o 16 entradas adicionales.

PIEZA CENTRAL DEL ESTUDIO

Con una unidad de control de audio 2U discreta con una fuente de alimentación lineal redundante dual externa 1U, ½ rack y un controlador de monitor de escritorio LCD/LED ergonómico, el m908 se ve tan bien como suena. Equipado con un medidor de SPL incorporado y una fuente de ruido rosa, nunca más tendrá que adivinar sus niveles. El amplificador de auriculares de calidad de referencia incorporado y el sistema de comunicación flexible hacen que el control remoto m908 sea más que un simple controlador de monitor: es la nueva pieza central de su estudio.

Características:

• Última generación de convertidores AD y DA, PLL s-Lock de cuarta generación para una fluctuación extremadamente baja
• Potente procesador DSP para control de volumen de alta resolución, gestión de graves, retardo de canal y mezcla descendente
• Hasta 24 canales para formatos envolventes inmersivos como ATMOS, DTS:X y Auro 3D
• Administrar sistemas de reproducción desde mono hasta 22.2
• Capacidad total de gestión de graves
• Calibración de nivel de canal y retardo
• Control integral de downmix
• Salida analógica de 16 canales / E/S AES3 de 24 canales
• Entrada ADAT de 16 canales / Entrada USB de 24 canales
• Entrada estéreo AES3, S/PDIF y TOSLINK
• Módulo Dante o DigiLink opcional para E/S de 24 canales
• Módulo ADC opcional para entradas analógicas de 8 o 16 canales
• Unidad de control remoto potente y ergonómica para acceder a todos los controles del sistema.
• Medidor de SPL incorporado y fuente de ruido rosa
• Fuente de alimentación externa redundante dual
• Amplificador de auriculares de calidad de referencia con alimentación cruzada
• Sistema de comunicación flexible con micrófono incorporado en el control remoto y entrada de micrófono para micrófonos de comunicación externos
• Hasta 3 salidas CUE estéreo además de monitoreo de auriculares estéreo

La superposición digital OLED Hear Back mejora su mezclador Hear Back PRO con pantallas gráficas de alto contraste. Esta placa frontal ultradelgada incluye una ventana de estado de dos colores con matriz de puntos de 128 x 64 que admite hasta cuatro filas de 12 caracteres para mostrar el nombre, la dirección y el estado del mezclador. Y para cada uno de los canales de su mezclador, obtiene una pantalla gráfica de matriz de puntos de 96 x 16 para mostrar hasta nueve caracteres alfanuméricos, caracteres especiales y símbolos personalizados: es una excelente alternativa de vanguardia a una tira de garabatos de la vieja escuela.

• Mejora tu mezclador Hear Back PRO con pantallas gráficas de alto contraste
• La ventana de estado de matriz de puntos de dos colores de 128 x 64 admite hasta 4 filas de 12 caracteres para mostrar el nombre, la dirección y el estado del mezclador.
• Las pantallas gráficas de matriz de puntos de 96 x 16 por canal muestran hasta 9 caracteres alfa, numéricos, caracteres especiales y símbolos personalizados.
• Se conecta sin esfuerzo a la ranura de expansión ubicada en el costado de su mezclador.
• Programas fácilmente usando la aplicación Hear Back PRO iOS, o a través de un editor de archivos de texto en tu Mac o PC

DESKTOP PASSIVE MONITORING SYSTEM

Heritage Audio’s Baby RAM is the ultimate passive-monitoring system, delivering the most transparent signal with the best stereo imaging of any other passive designs available!

Classic console design meets a passive signal path.

Introducing the Baby RAM: a boutique, passive-circuit monitor controller inspired by classic European console designs. Baby RAM is the ultimate controller for total transparency — a zero-compromise signal path, paired with a simplified control set keeps both your monitors and your ears where you need them.

Baby RAM features a 4 gang, 24 step rotary switch for volume as opposed to cheaper stereo potentiometers, which means the precision of your stereo signal is perfect on every position! Baby RAM also has no insertion loss, meaning that there’s no extra coloration or signal loss at any settings.

Complex design with simplified workflow.

Baby RAM might pack a zero-compromise circuit design, but it couldn’t be any easier to use: 2 stereo -pair inputs and outputs — both balanced and ground free (unbalanced compatible) on gold plated TRS jacks, and Mute, Dim, Mono, and Volume monitoring controls make Baby RAM a breeze to work with. And with it’s passive design, it also means you have no concerns with bad power supplies, as no supply is needed!

Baby RAM is built with the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners — all at the Heritage headquarters in Spain.

THIS IS WHERE BABY RAM WILL TAKE YOU

• Classic European console design, inspired by the best master-console-sections
• No insertion loss, for the most transparent passive-design that’s available
• Perfect stereo imaging, thanks to a 24-step rotary switch for a sub-tenth of a dB precision on every single attenuation position
• Fully passive, meaning no power supply is needed
• Two stereo-pair inputs and outputs, all balanced and ground free (unbalanced compatible) on gold plated TRS Jacks
• MUTE, DIM and MONO controls

SPECIFICATIONS:

• UNLIMITED HEADROOM: Being a passive device, it is only limited by the preceding and following devices´s headroom.
• BALANCED AND FLOATING INPUTS AND OUTPUTS: Inputs and Outputs on gold plated TRS JACKs, unbalanced compatible.
• 24 STEP PASSIVE ATTENUATOR: In 3 dB steps for sub tenth dB precision in betwqeen left and right.
• MUTE less than 100dBu.
• NO ADDED DISTORTION OR NOISE.
• INSERTION LOSS: Less than 0.2dB.

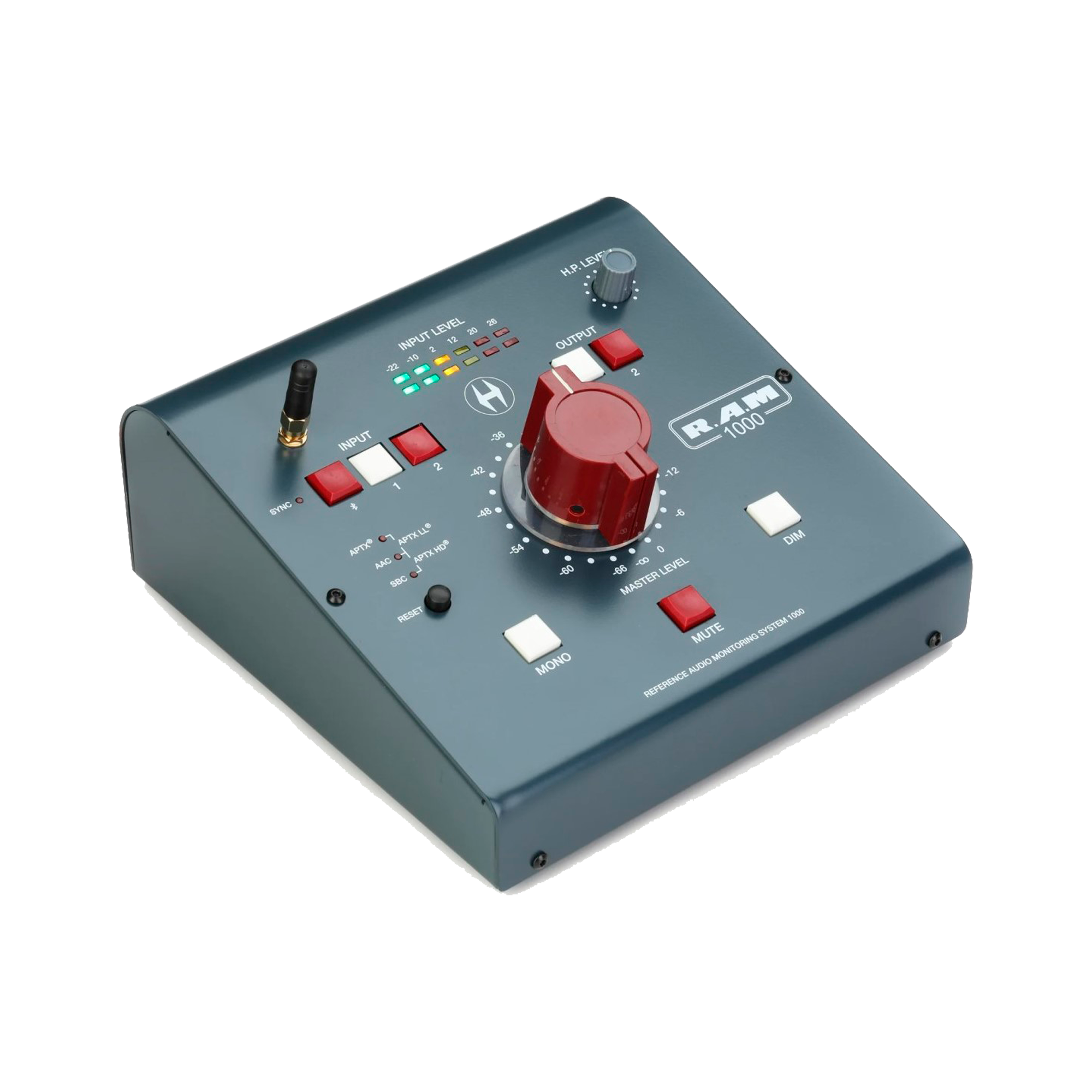

After two years of intensive research and development, we are pleased to introduce our new range of Monitoring control solutions. RAM System Series, including 3 new products that will satisfy the needs of any studio size.

We’ve combined our state-of-the-art analog circuitry for a superior transparency and ultra-low noise distortion with modern features like Bluetooth connection, to deliver audiophile-quality sound and feature sets tailored for project studios, commercial recording facilities, and post-production houses who deliver in 5.1 surround. The top-of-the-line RAM System 5000 is designed for studios that require extensive, mastering-grade stereo and 5.1 monitoring functionality.

The three units are fitted with 64-step, gold-plated relay ladder attenuation for master level control — a feature usually found only on high-end large-format consoles. Our Bluetooth connectivity provides convenient wireless input for mobile devices. And with its classic RAF-gray cosmetics and prominent red Marconi knob, your RAM system will add a touch of class to your control room.

The RAM System 2000 features generous I/O, with three pairs of +4dBu balanced analog inputs and three stereo outputs, an independent pre-fader MIX OUT, independent stereo CUE I/O, a S/PDIF coax input, and pro-audio-quality Bluetooth input for easy mobile device integration. The 2000’s two audiophile-grade diamond-buffer-based headphone amplifiers are capable of driving any headphones without noise or coloration. For easy recall of common settings, two user-assignable preset levels are provided. For communicating with talent, there’s a built-in Talkback with console-style management. Lastly, Heritage Audio equipped the RAM System 2000 with an independent Subwoofer output that lets you effortlessly share your sub between different speaker pairs.

SPECIFICATIONS

• Desktop-format monitor controller with classic looks
• Designed for the studio that needs enhanced, mastering-grade stereo monitoring capabilities
• All functions on high-quality illuminated engraved buttons
• 64-step relay ladder attenuation for master level control in 1dB steps
• 3 pairs of +4dBu balanced analog inputs (input 3 is configurable for -10dBu unbalanced signals)
• Independent stereo CUE I/O for cue-mix distribution to artists
• S/PDIF coax input with Burr-Brown 24-bit/96kHz D/A conversion
• Pro-audio-quality Bluetooth input for easy mobile device integration
• 3 stereo outputs
• Independent MIX output (pre-fader; follows Input)
• Independent Subwoofer output facilitates sub sharing between different speaker pairs
• DIM function; MUTE/SOLO for individual speakers
• 2 user-assignable preset levels for easy recall of common settings
• Built-in Talkback with console-style management, including Talkback to Cue, Talkback to Mix, and Talkback to All
• 2 high-level, ultra-high-current, audiophile-grade diamond-buffer-based headphone amplifiers, capable of driving any hi- or lo-Z headphones without coloration or noise
• Headphone source selectable between mix and cue signals
• State-of-the-art analog circuitry for superior transparency and ultra-low noise and distortion
• All gold-plated relay-based switching for every function, including inputs and outputs

After two years of intensive research and development, we are pleased to introduce our new range of Monitoring control solutions. RAM Systems Series, including 3 new products that will satisfy the needs of any studio size.

We’ve combined our state-of-the-art analog circuitry for a superior transparency and ultra-low noise distortion with modern features like Bluetooth connection, to deliver audiophile-quality sound and feature sets tailored for project studios, commercial recording facilities, and post-production houses who deliver in 5.1 surround. The top-of-the-line RAM System 5000 is designed for studios that require extensive, mastering-grade stereo and 5.1 monitoring functionality.

The three units are fitted with 64-step, gold-plated relay ladder attenuation for master level control — a feature usually found only on high-end large-format consoles. Our Bluetooth connectivity provides convenient wireless input for mobile devices. And with its classic RAF-gray cosmetics and prominent red Marconi knob, your RAM system will add a touch of class to your control room.

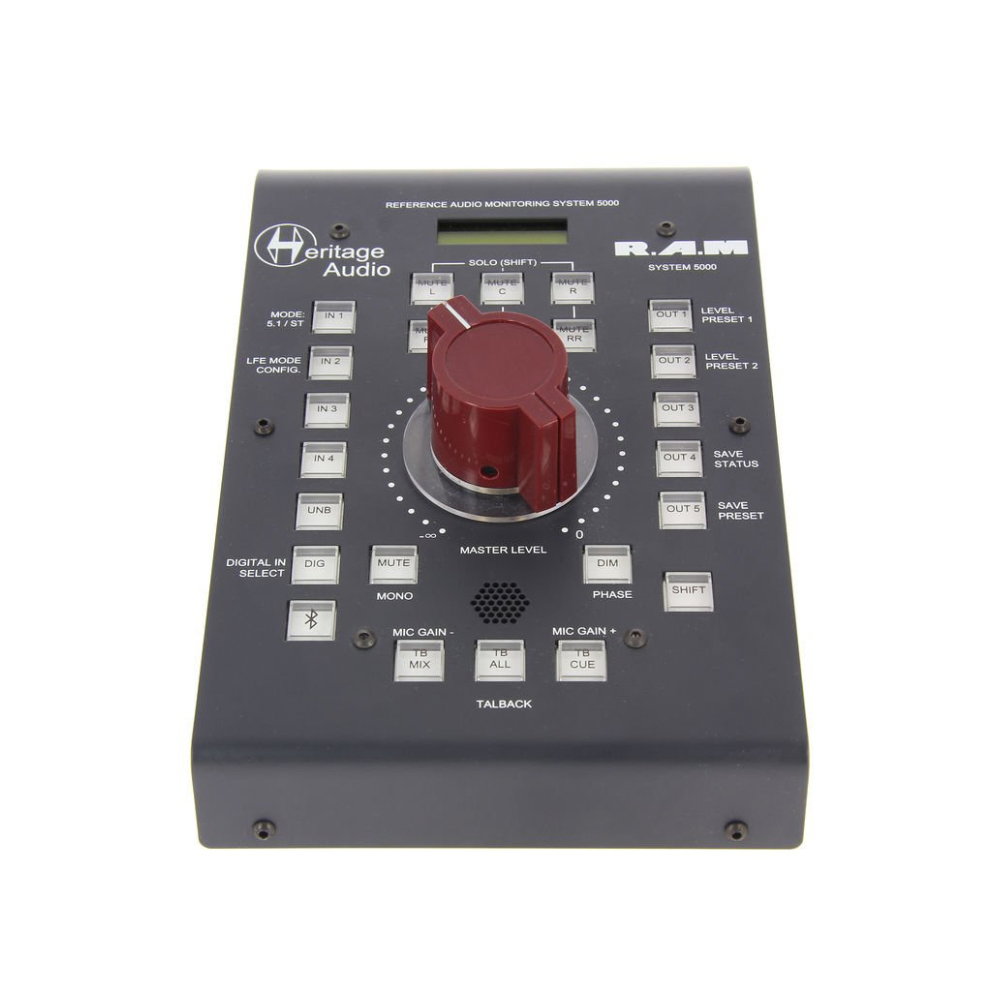

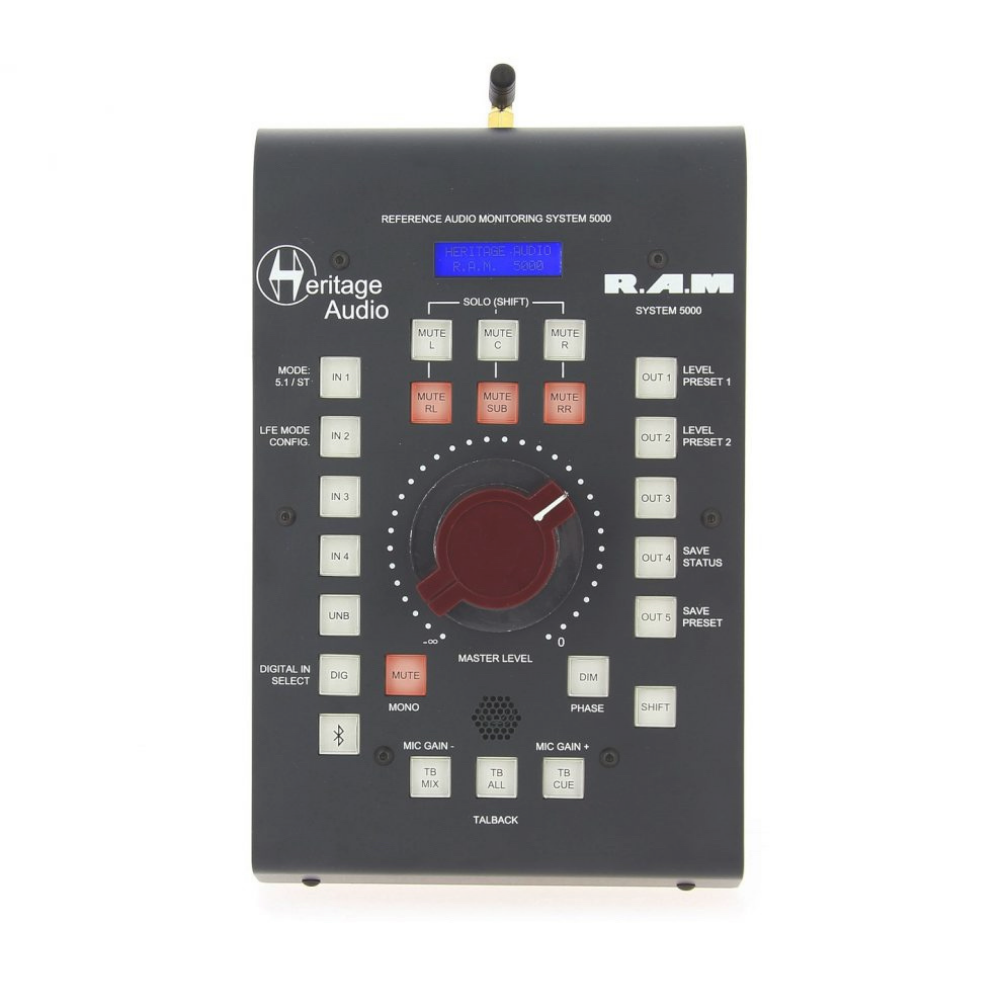

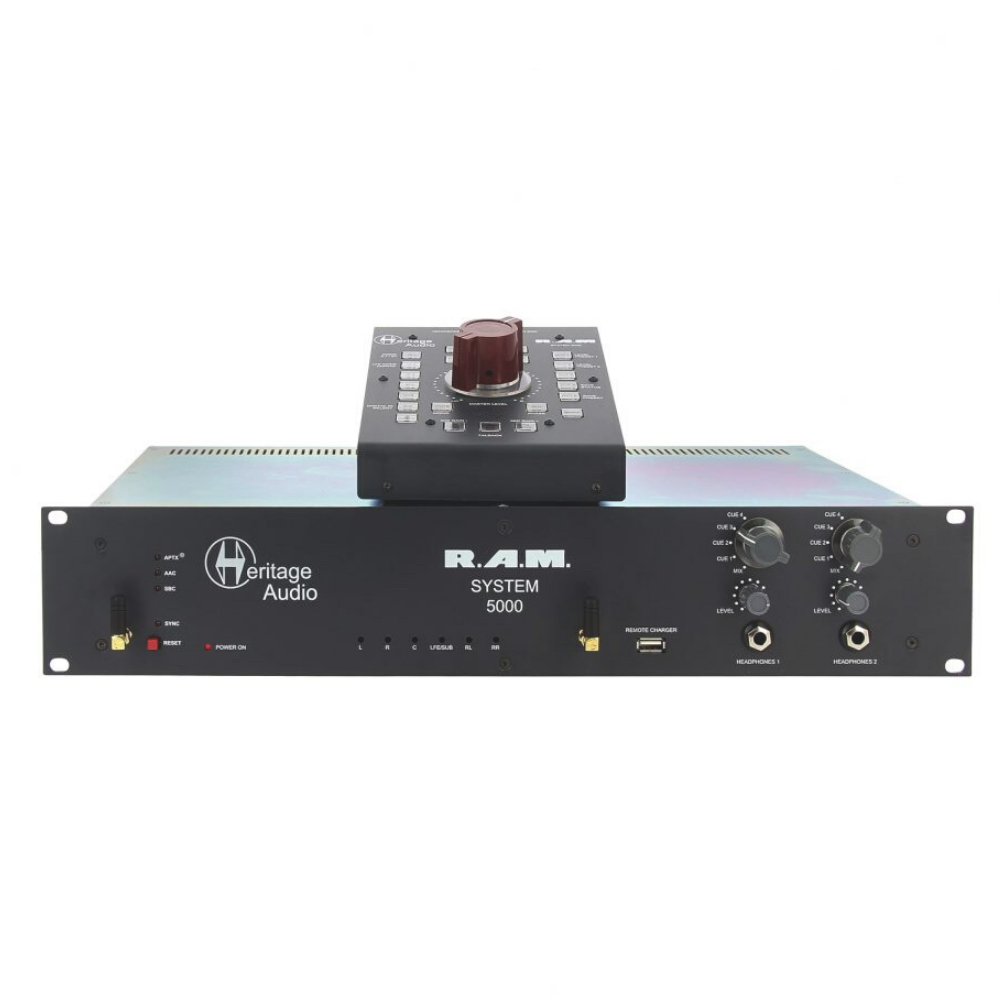

The System 5000 consists of a desktop-format, wireless remote monitor controller and a 19″ rackmount unit designed for maximum flexibility. Configurable for 5.1 or stereo, the System 5000 gives you generous I/O for easy integration into your monitoring setup.

For the modern hybrid studio, it provides all the functionality of a large-format console center section, including speaker switching, DIM, MUTE, and SOLO functionality, subwoofer management, headphone amplification, cue-mix distribution, wireless talkback, digital inputs with premium Wolfson D/A conversion, and even Bluetooth for easy mobile device integration. Whether you’re mixing hit records or sound for picture, the Heritage Audio RAM System 5000 will take your monitoring accuracy and versatility to a whole new level.

SPECIFICATIONS

• All functions on high-quality illuminated engraved buttons
• Configurable for 5.1 or stereo
• 4 pairs of balanced +4dBu analog inputs in Stereo mode
• 1 x 5.1 input plus an additional stereo +4dBu analog input
• 1 pair of unbalanced analog inputs on RCA connectors
• Wolfson WM8741 24-bit/192kHz DAC selectable between AES/EBU, S/PDIF, and Toslink
• Pro-audio-quality Bluetooth input for easy mobile device integration
• 4 pairs of CUE inputs on D-sub connectors for cue-mix distribution to artists
• 1 x 5.1 output plus 2 additional stereo outputs in 5.1 mode
• 5 pairs of stereo outputs in stereo mode
• Independent MIX output (pre-fader; follows Input)
• Independent Subwoofer output facilitates sub sharing between different speaker sets, including 5.1
• 2 user-assignable preset levels for easy recall of common settings
• MUTE, DIM, MONO and PHASE REVERSE functions
• MUTE/SOLO functions for individual speakers
• 2 high-level, ultra-high-current, audiophile-grade diamond-buffer-based headphone amplifiers, capable of driving any hi- or lo-Z headphones without coloration or noise
• Headphone source selectable between mix and cue signals
• Wireless Talkback with console-style management, including Talkback to Cue, Talkback to Mix, and Talkback to All
• Remote includes long-life battery, rechargeable via USB cable
• Main unit includes charging dock

¿Quién necesita un control de nivel analógico?
En pocas palabras: la mayoría de los usuarios de estaciones de trabajo de audio digital (DAW). La mayoría de los convertidores D/A y tarjetas de sonido no ofrecen ningún control de nivel analógico, lo que implica la necesidad de variar los niveles de señal en las salidas del convertidor. El resultado es una tasa de bits reducida en la señal de monitorización, lo que puede provocar una pérdida proporcional de calidad de audio. Otro campo de aplicación muy interesante es la construcción de una cadena de reproducción estéreo directa con calidad de audiófilo, donde el SPL Volume 2 se sitúa entre el reproductor y el amplificador de potencia y los altavoces o simplemente el sistema de altavoces activos. En tales casos, el reproductor debe ofrecer salidas analógicas. Esto permite un mínimo esfuerzo financiero y electrónico a través de la ruta de reproducción más directa posible.

Razones adicionales para emplear el Volume2
Etapas de balanceo de alta calidad con un rechazo de modo común extremadamente bueno (minimiza interferencias y perturbaciones en las rutas de señal)

El interruptor de silencio permite tiempos de reacción muy rápidos en casos en los que se deben proteger los altavoces o los oídos (por ejemplo, en caso de fallos de la computadora)

Los usuarios de suma analógica sin instalaciones de monitoreo pueden mejorar sus sistemas de manera rentable

Características especiales
El Volume2 está construido solo con circuitos y rendimiento analógicos, y sus piezas de alta calidad en un diseño de circuito sofisticado son requisitos previos para una calidad de audio superior:

• Potenciómetro de volumen de alta gama e interruptor de silencio iluminado de ALPS; el potenciómetro controla las señales directamente (sin circuitos VCA o DAC)
• Entradas y salidas XLR balanceadas
• Una fuente de alimentación de alta calidad con transformador toroidal
• Las enormes perillas de aluminio de 45 mm de diámetro garantizan un manejo uniforme y refinado.
• La carcasa de formato compacto y elegante (215 x 80 mm o 8,5 x 3,1 pulgadas) permite una colocación flexible en el escritorio cerca o debajo de un monitor de computadora o, en general, ahorra espacio en la colocación.
