The Bricasti Design Model 10 remote console is a dedicated hardware remote controller for use with the M7 stereo reverb processor. Following the same design criteria as the M7, the M10 casing is manufactured and milled from solid anodized aluminum, for an enduring design and long life. The M10 is also designed to be simple to use, and easy to interface; utilizing a standard RS422 serial interface. In application, it can be very useful when using more than one M7 or when there is a need to be more in the sweet spot when making adjustments in a large mixing environment.

Features and Performance

• Custom milled solid aluminum casing and buttons, fine finished and anodized for an enduring design and classic look.
• Controls from 1-8 x M7s.
• Connects to the first M7 via R5422 9-pin serial cable, 10 meter cable provided, up to 30 meters that is 480L compatible, simple to install with no practical distance limits, or IP addresses to configure. Longer distances may require an additional power source for the M10.
• Simple serial "loop thru" for connecting more M7's. connect to the first and loop to the second, and third etc.
• DC Power is supplied from the M7 through the cable, no wall warts, or external supplies.
• 8 meters, for 4 stereo pairs, metering 4 machines at a time.
• Machine selection is a dedicated Machine key in the M10:
• Press the machine key to "toggle or step through" for 2 x M7 operation.
• Press the machine key and use the log wheel to step through the machines for control of more than than 2 x M7s.
• Press the machine key and use the 1-4 keys to directly access any machine, for control of more than 2 x M7s.
• Use the "up down keys" to change banks and for metering for control of more than 4 x M7s.
• Same clear easy to read display as used in the M7
• Same user interface as the M7, with the addition of Machine and Setup keys, so no need to learn something new.
• Simultaneous control of the M7 from both the M7s front panel and or the M10 with a lock out.
• Setup key for M10's local memory, configuration, and settings.
• Maximum Output Level: +24 dBu

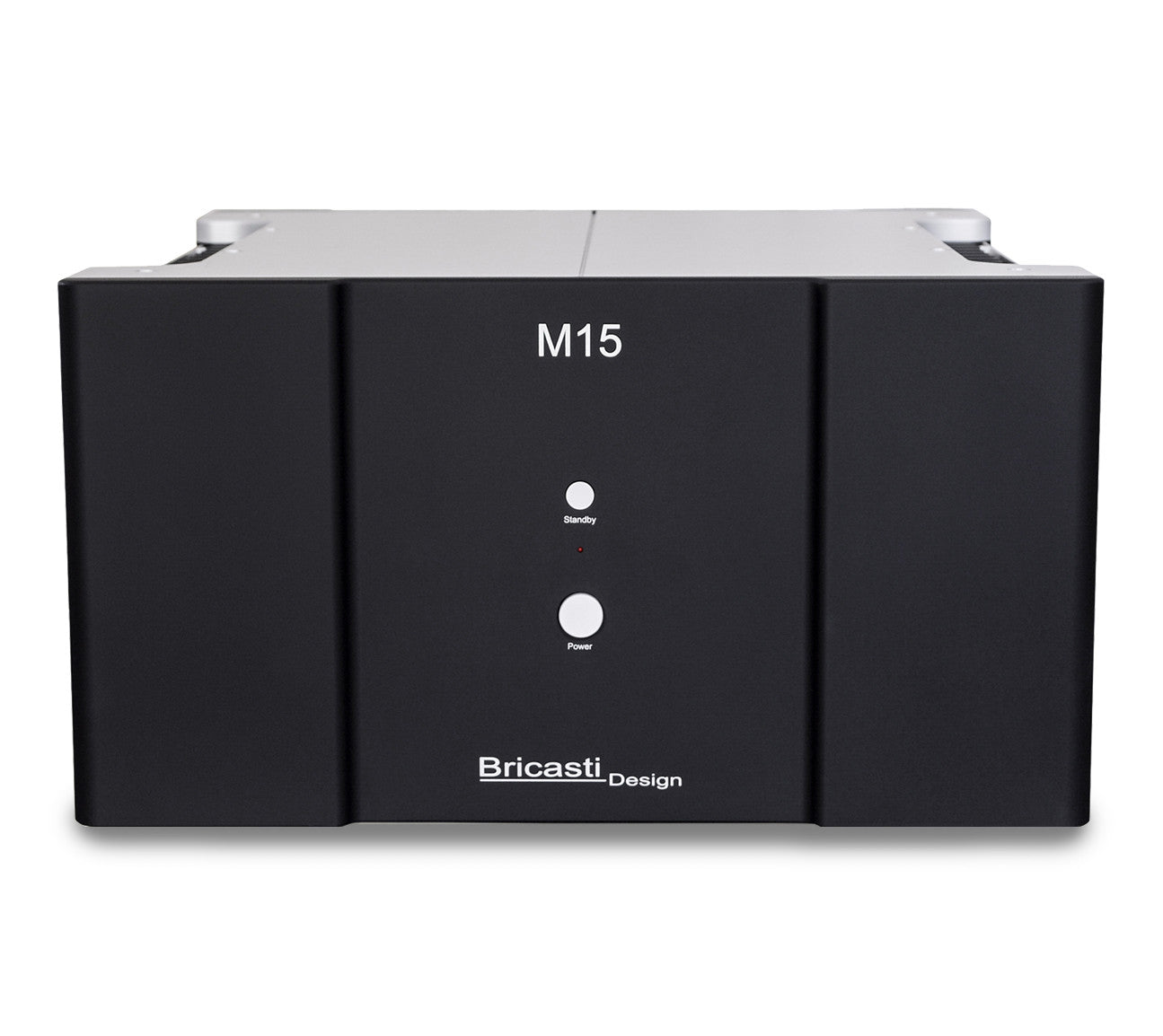

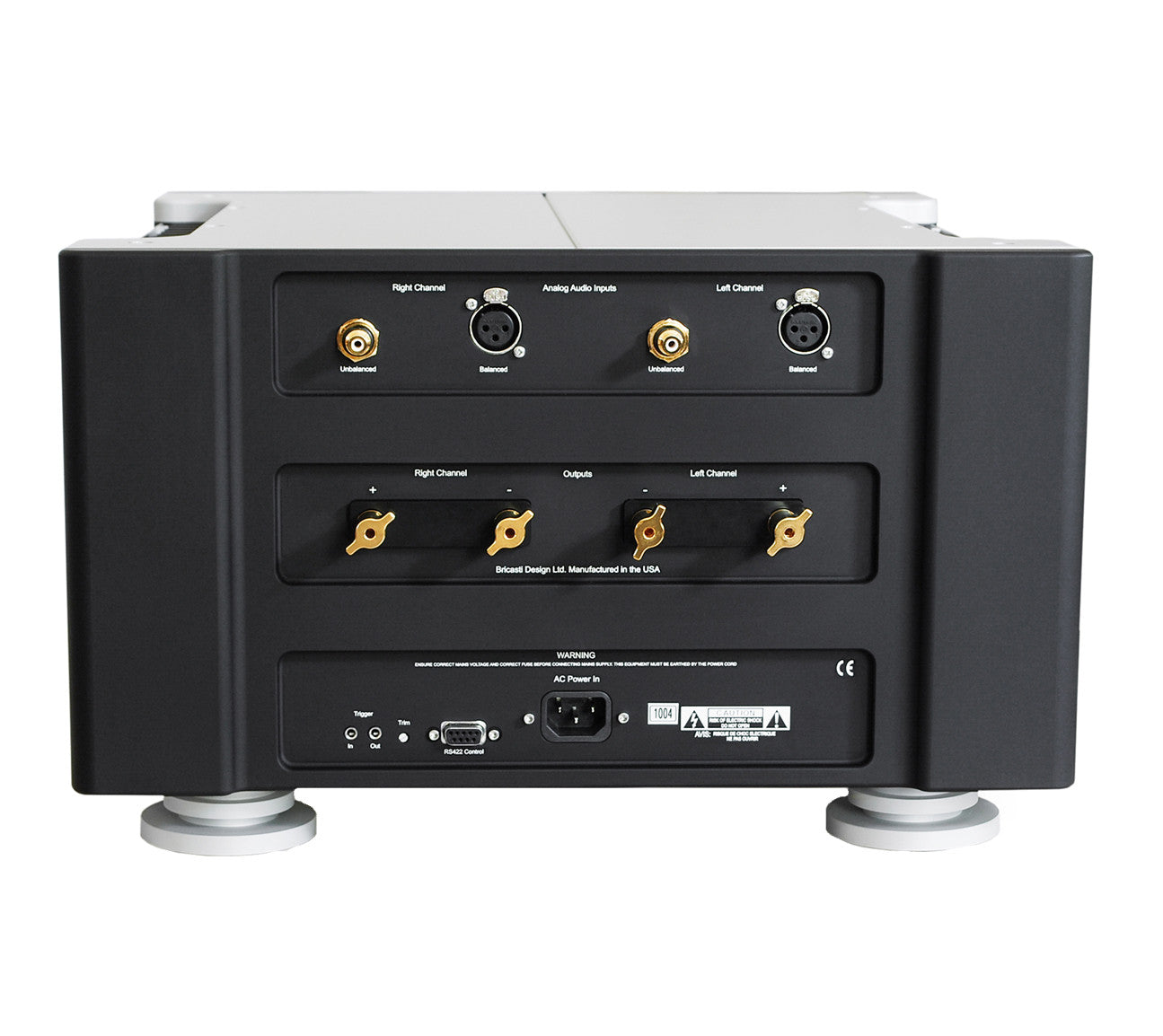

The Bricasti M15 stereo amplifier is the beating heart of any system and in particular, a Bricasti Design system. Like its bigger mono-block brother the M28, the M15 delivers heaps of power at critical stages, forging a sonic path of least resistance all the way from source to the speaker. This can be heard and felt and is in part thanks to its fully differential / balanced architecture.M7M
The Sphere L22™

Precise control
The power amplifier is a very critical part of the audio chain. It has to take the incoming signal and amplify it and most importantly, deal with the load of the loudspeaker and control its back EMF with precision. The sound of the M15 is intended to be transparent and revealing with low distortion, and fully dynamic with no sense of limits and compression in the reproduction, on any loudspeaker.

Balanced power
The M15 stereo power amplifier is a true reference design in analog power amplification, an uncompromising design offering extremely low distortion with moderate power and a unique truly balanced topology rarely seen in the industry. When combined with our M1 DAC or M12 Source Controller driving the M15 one can achieve a fully differential signal path, from the converter to the loudspeaker.

Modern application
The intention of the M15 is to integrate seamlessly into your existing system while allowing for a more compact form factor. A unique features like trim control lets you properly gain stage the M15, critical with todays digital sources driving the amplifier directly. You also enjoy the same sonic benefits of the M28 monoblock with the stillpoints isolation designed directly into the feet.

Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.

Specifications:

• Total Harmonic Distortion: THD+N less than 0.005% 20hz-20kHz at full rated power into 8 and 4 ohms.
• Power: 125W into 8 ohms, 250W into 4 ohms, 500W into 2 ohms.
• Frequency response: 10hz-150kHz, within 0.5db.
• Signal to Noise: greater than 85db at full rated power.
• Power Topology: Fully Differential.
• Balanced Input: XLR connector 200k ohm impedance.
• Unbalanced Input: RCA connector 100k ohm impedance.
• Weight: 90 lbs.
• Shipping Weight: 110 lbs.
• Finish: Anodized Aluminum.
• Mains Voltage set at factory: 100, 120, 220, 230, 240 VAC, 50 Hz - 60 Hz.
• Trigger In: TRS connector for 5V external trigger.
• Input Trim: 0db, -6db, -12db,-18db of attenuation.
• Power consumption: 60W standby, 2W idle.
• Warranty parts and labor: 5 yrs limited.

Still Waters Run Deep.

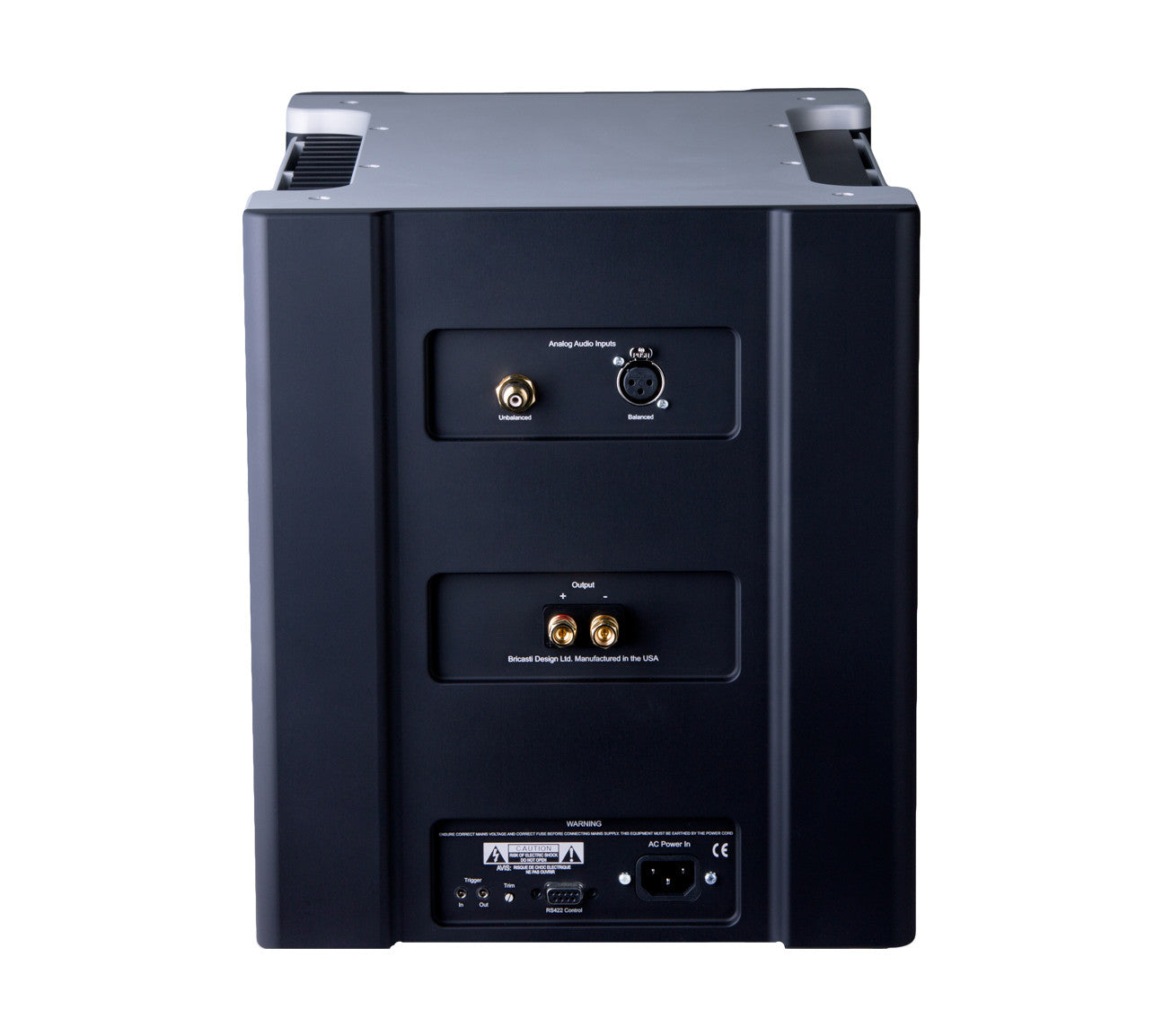

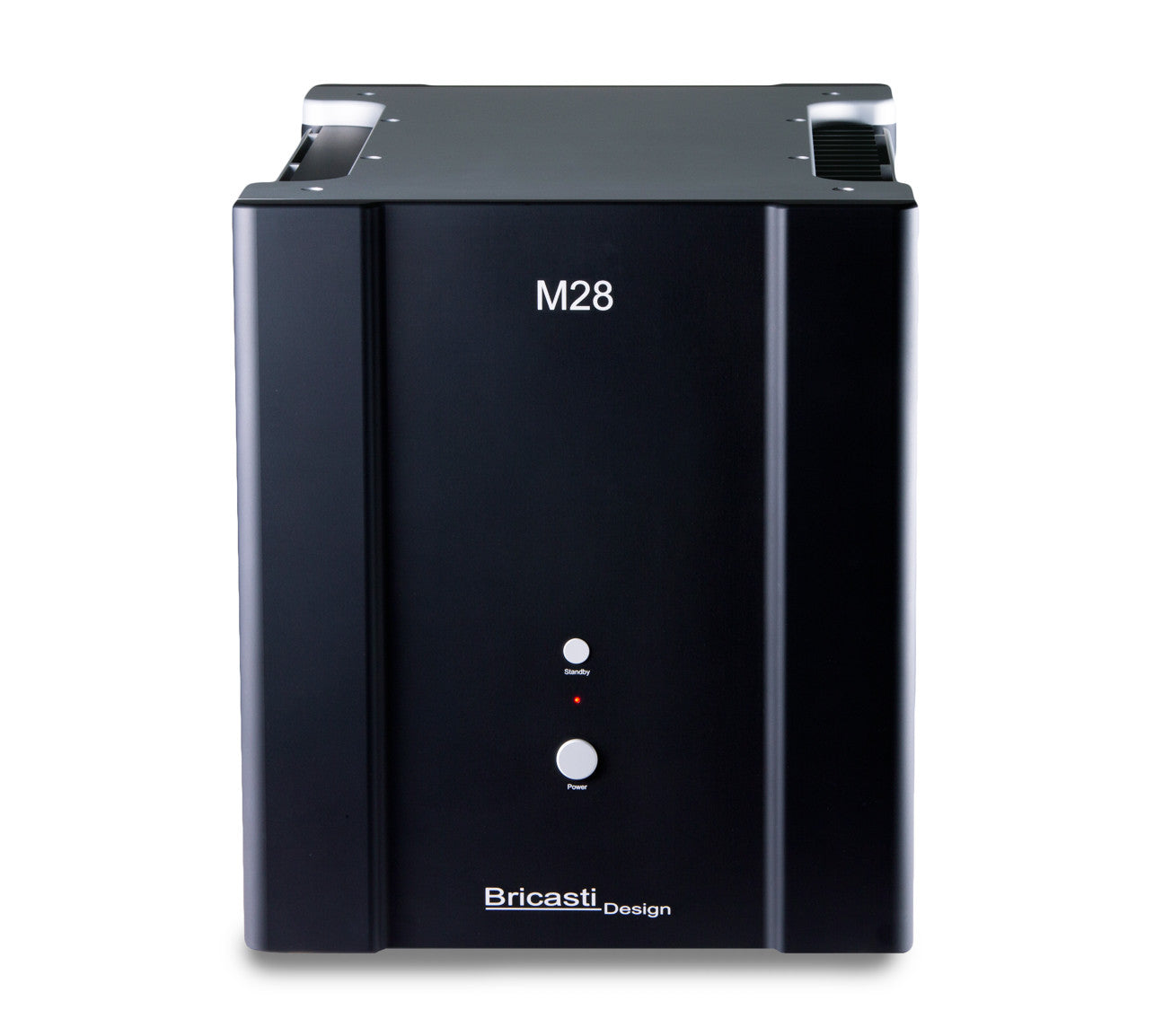

The Bricasti M28 monoblock amplifier is an exceptionally pure and precisely controlled reservoir of current. The expression of craft wrought in this deep pool effortlessly provides the massive current required to grab onto and control any speaker through the most demanding of musical passages. The sought after listening experience that is so elusive is immediately evident. The M28 is conservatively rated at 200 watts into an 8 ohm load. Ruler flat response and vanishing distortion, of course. Fast, articulate, distortion free low frequency performance, even at the speaker's resonant peak, perhaps unanticipated.

Gain, Set, Match.
A balanced differential structure minimizes the stress across each of the M28 amplifier's internal elements. Pairing the M28 with the balanced structure of the Bricasti M1 digital to analog converter forms a balanced differential signal flow from source to speaker. This unique pairing forms an optimized engineered system that announces a natural yet rarely heard sonic ease. For added flexibility the M28 offers 18 dB of stepped attenuated gain adjustment to enable proper level matching with any audio source or listening space. An RS232 link conveys status information for monitoring a number of system functions.

Beautifully Built.
A harmony of concept and function, the M28 amplifier exhibits the precision and beauty of a thoroughly engineered system. The milled aluminum chassis is carved to exacting tolerances. Each electronic element mates to a purpose built location within the chassis. Thoughtful use of mass and passive ventilation assure the uniform distribution of heat and a cool touch under any load. Performance criteria is assured through both electronic and thermal design as well as an extensive analysis of each completed system.

Specifications:

• Total Harmonic Distortion: THD+N less than 0.005% 20hz-20kHz at full rated power into 8, 4 and 2 ohms.
• Power: 200W into 8 ohms, 400W into 4 ohms, 400W into 2 ohms.
• Frequency response: 10hz-150kHz, within 0.5db.
• Signal to Noise: greater than 85db at full rated.
• Power Topology: Fully Differential, bi polar.
• Balanced Input: XLR connector 200k ohm impedance.
• Unbalanced Input: RCA connector 100k ohm impedance.
• Weight: 85 lbs.
• Shipping Weight: 100 lbs.
• Finish: Anodized Aluminum.
• Mains Voltage set at factory: 100, 120, 220, 230, 240 VAC, 50 Hz - 60 Hz.
• Trigger In: TRS connector for 5V external trigger.
• Input Trim: 0db, -6db, -12db,-18db of attenuation.
• Power consumption: 60W standby, 2W idle.

The Bricasti Design Model 7 provides the highest level of musicality and ease of control imaginable in a processor dedicated to the task of reverberation. A modern high resolution digital design, utilizing a stunning array of the latest DSP processors, provides a platform for the long overdue next step in reverb processing algorithms. A separate fully differential analog section and dedicated transformer based linear power supply provide the finest analog specifications of any product of it's kind. An exceptionally strong stainless steel chassis, and a tooled aluminum front panel, combine with a classic high visibility display and straight forward human interface, to complete an enduring design that is intended to fulfill its role, now and into the future. Each design element of the Model 7 is a carefully considered statement of our vision of what the evolution of reverberation processing in its most classic form can be. With a deep appreciation of the best designs which precede it, and a passion for moving the science of reverberation forward, the Model 7 provides a palette of sounds that encompass the familiar as well as new expressions in the art. Listen to the new reference in reverb processing; it will bring new life to your art, in a way unimagined by any process before it.

Programs and User Interface Features

• More than 200 Unique reverb presets
• Revolutionary new reverb algorithm True Stereo Reverb Process
• Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
• 12 Parametric Program Parameters
• 100 User Registers
• 4 Front panel "Favorites" for quick saves and compares

Hardware Design Features

• Dual Dedicated Power Supplies
• Custom design toroidal transformer linear supply for analog
• High performance switching supply for digital
• Separate Digital and Analog modules
• non corrosive Stainless Steel chassis and top cover
• Milled anodized aluminum front panel, knobs and button caps
• Positive feel 2 db stepped analog input level control
• MIDI I/O
• Hand Crafted in the USA

Digital Section Features and Performance

• AES 24 Bit Digital I/O
• AES single wire 192k supported
• Self-clocking to incoming sample rates 44.1k to 192k
• 6 State of the art dual core Analog Devices DSPs

Analog Section Features and Performance

• < 20 Picoseconds Jitter
• Input level adjustable in 2 dB steps
• Balanced XLR analog I/O
• 24-bit conversion
• Dual D/A
• Fully-balanced, DC-coupled analog input and output circuits

• Analog Input A/D

• Analog Input A/D
• Dynamic Range >116 db, A-Weighted
• THD+N <.001 %
• Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB
• CMRR: > 100 dB @ <= 1 kHz
• Maximum Input Level: +24 dBu
• Minimum Input Level for 0 dBFS: +4 dBu

• Analog Output D/A

• Analog Output D/A
• Dynamic Range: > 116 dB, A-Weighted
• THD+N: < 0.001%
• Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB
• Maximum Output Level: +24 dBu
