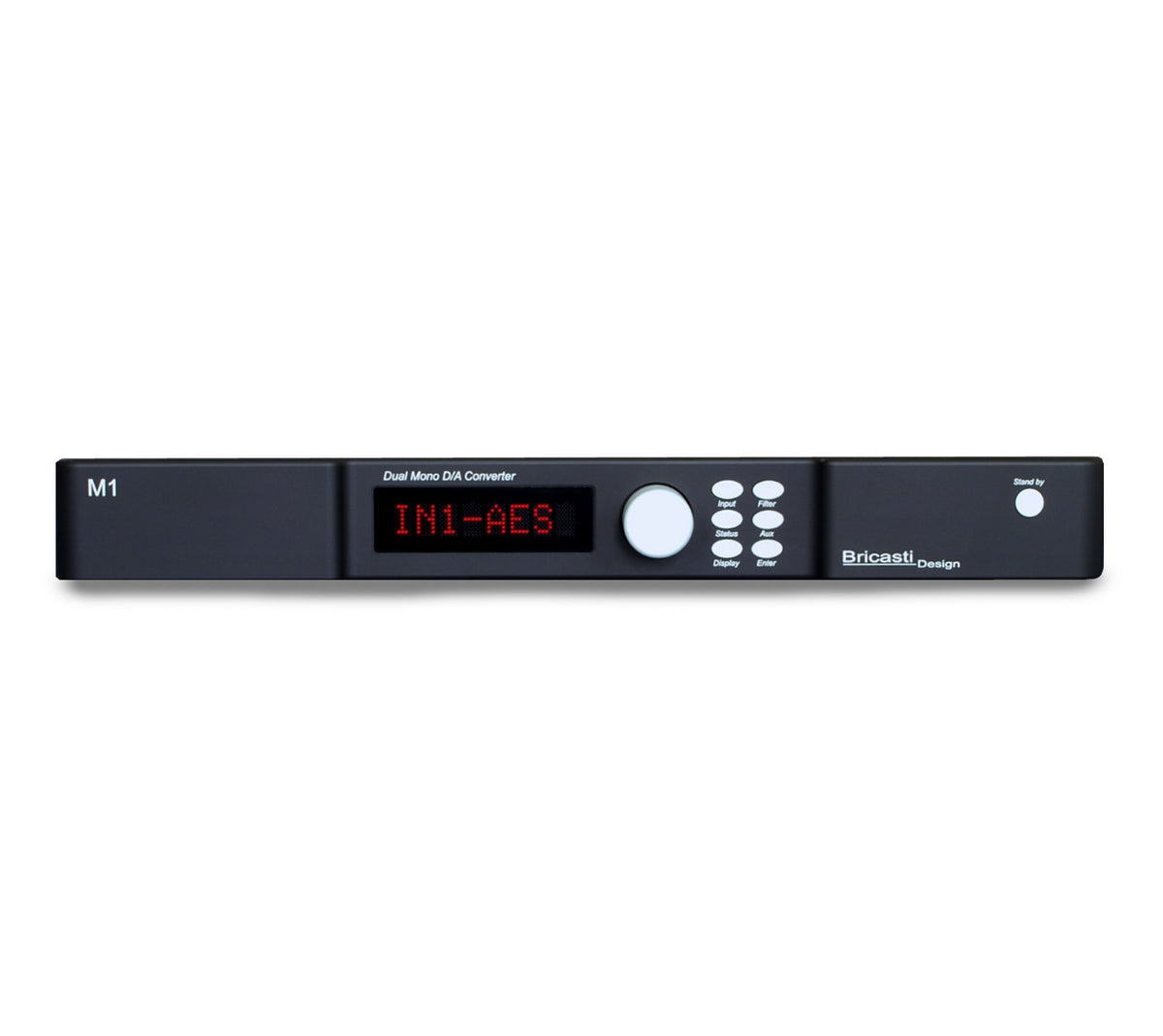

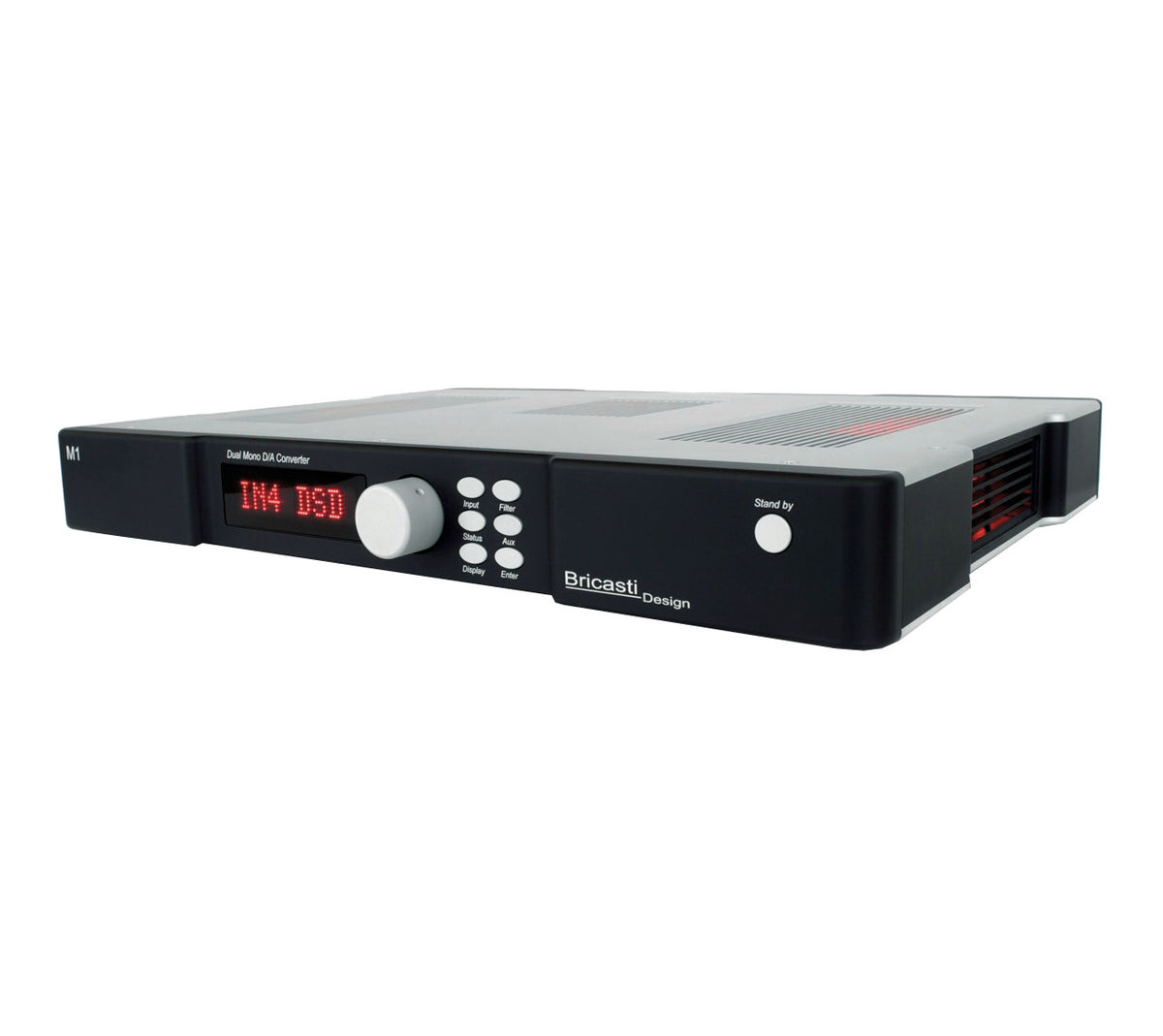

Bricasti MC1 Dual Mono Master DAC

$8,595 Dólares

Options

Producto Original

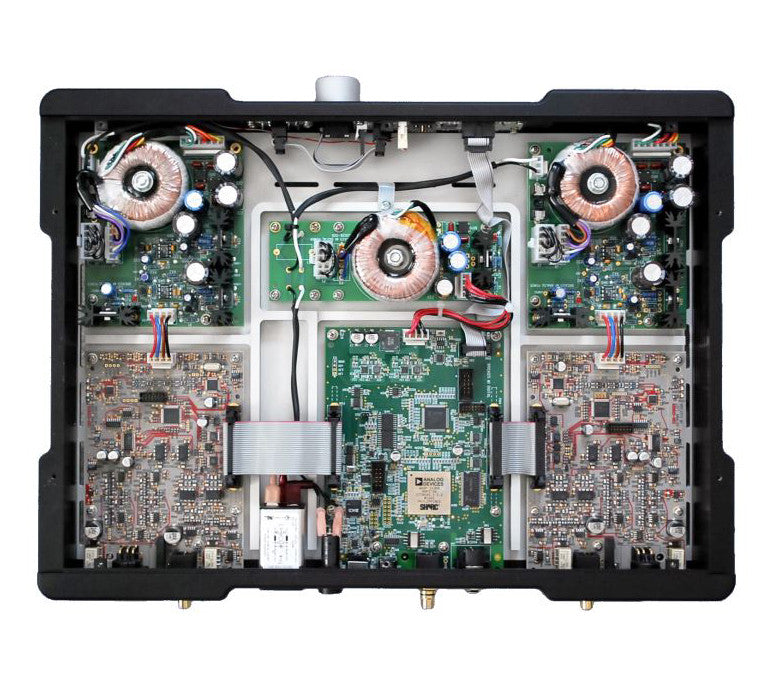

The M1 digital to analog converter is a dual mono design; there are two completely isolated channels, each with its own dedicated linear power supply, D/A converter, DDS clocking, and analog circuitry. This design ensures that analog crosstalk is virtually nonexistent, that the necessary power requirements for each channel are well met and isolated from each other and the digital processing is isolated, having its own power supply. With our twin DAC design, the dynamic range for each channel is optimized by using the stereo ADI 1955 D/A converter in a mono configuration. The M1 also includes Bricasti's own proprietary filter technology, further opening new territory with what is achievable in a modern D/A reference.

Network Player Option
First incorporated for the M12 Dual Mono Source Controller, The Bricasti network interface and media renderer option allows any M1 to be seen as a DNLA device on an audio network and server as an audio device to play or stream to through a wired connection on your network. Now you can run wired data longer distances without loss in quality so your network server can go anywhere you choose.

Product Highlights

DSD, DSD64 and DSD128 playback.
Features the latest generation asynchronous USB interface.
Dedicated dual mono design.
Highly acclaimed, proprietary filter technology.
Extremely low jitter @ 6 picoseconds.
Supports sample rates of up to 352.8kHz and 24 bits.
Minimum and linear phase filters

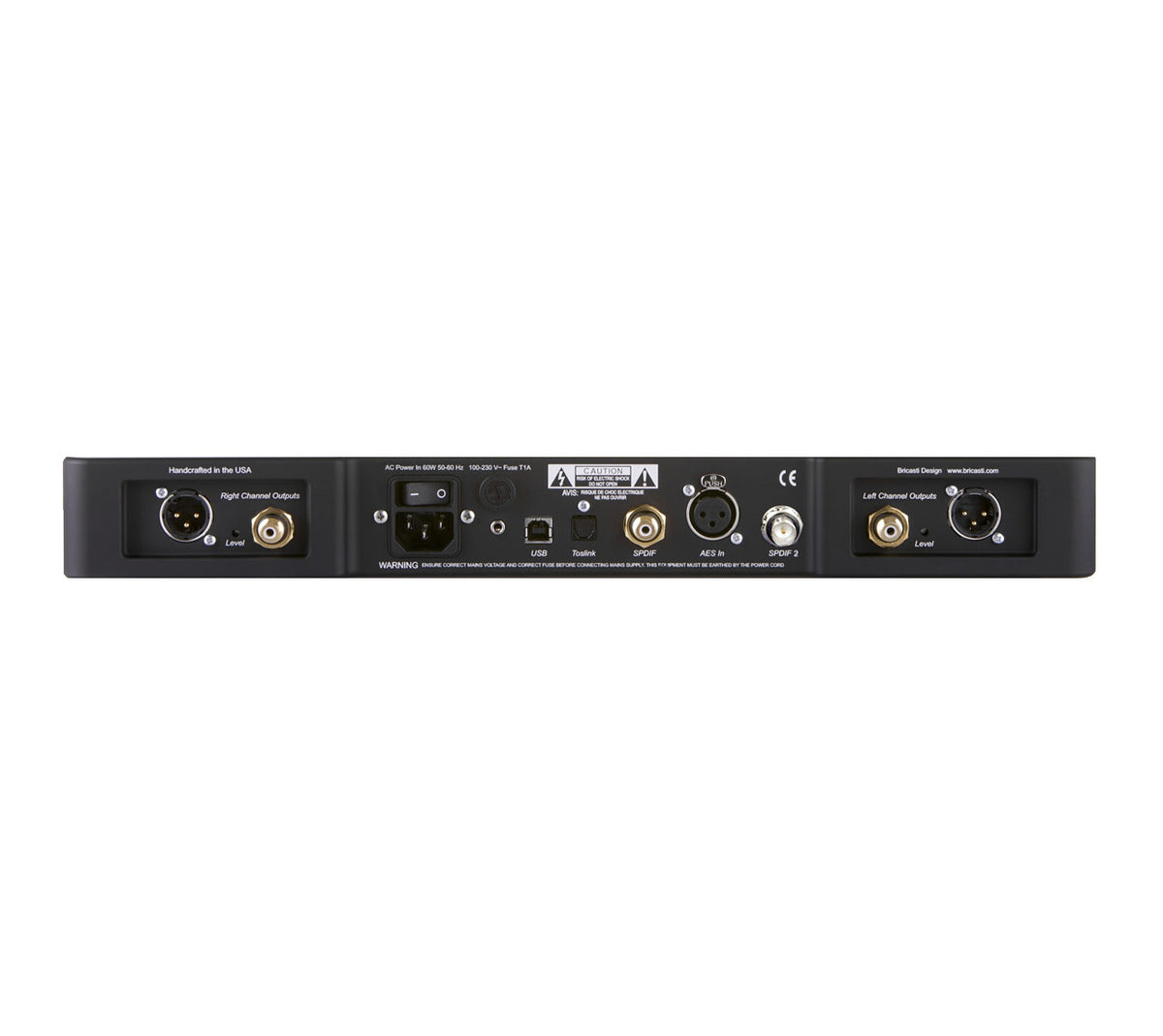

Digital Inputs

Connectors:

USB: USB-2

XLR: AES/EBU 24 bit Single Wire

RCA: SPDIF

Toslink: Fiber Optic

Sample Rates:

USB: 44.1 kHz - 384 kHz, DSD 64x, DSD 128x

AES, SPDIF: 44.1 kHz - 192kHz

Toslink: 44.1 kHz - 96 kHz

Frequency Response Dig I/O:

DC to 24 kHz @ 48 kHz

DC to 96 kHz @ 192 kHz

Balanced Analog Outputs

Connectors: XLR balanced (pin 2 hot)

Impedance: 40 ohm

Max output level:+22 dbm

Min output level:+8 dbm

D/A Conversion:24 bit delta sigma 8x oversampling

Frequency Response @44.1k:10 hz- 20 kHz +0dB, -.2 dB

Dynamic Range:>120dB A-Weighted

THD+N @ 1k: .0006% @ 0dbfs / .0004% @-30dbfs

Unbalanced Analog Outputs

Connectors:RCA

Impedance:40 ohm

Output level: +8 dbm (2V RMS)

D/A Conversion: 24 bit delta sigma 8x oversampling

Frequency Response @ 44.1k: 10 hz- 20 kHz -.2 dB

Dynamic Range: >120dB A-Weighted

THD+N @ 1k: .0006% @ 0dbfs / .0004% @-30dbfs
