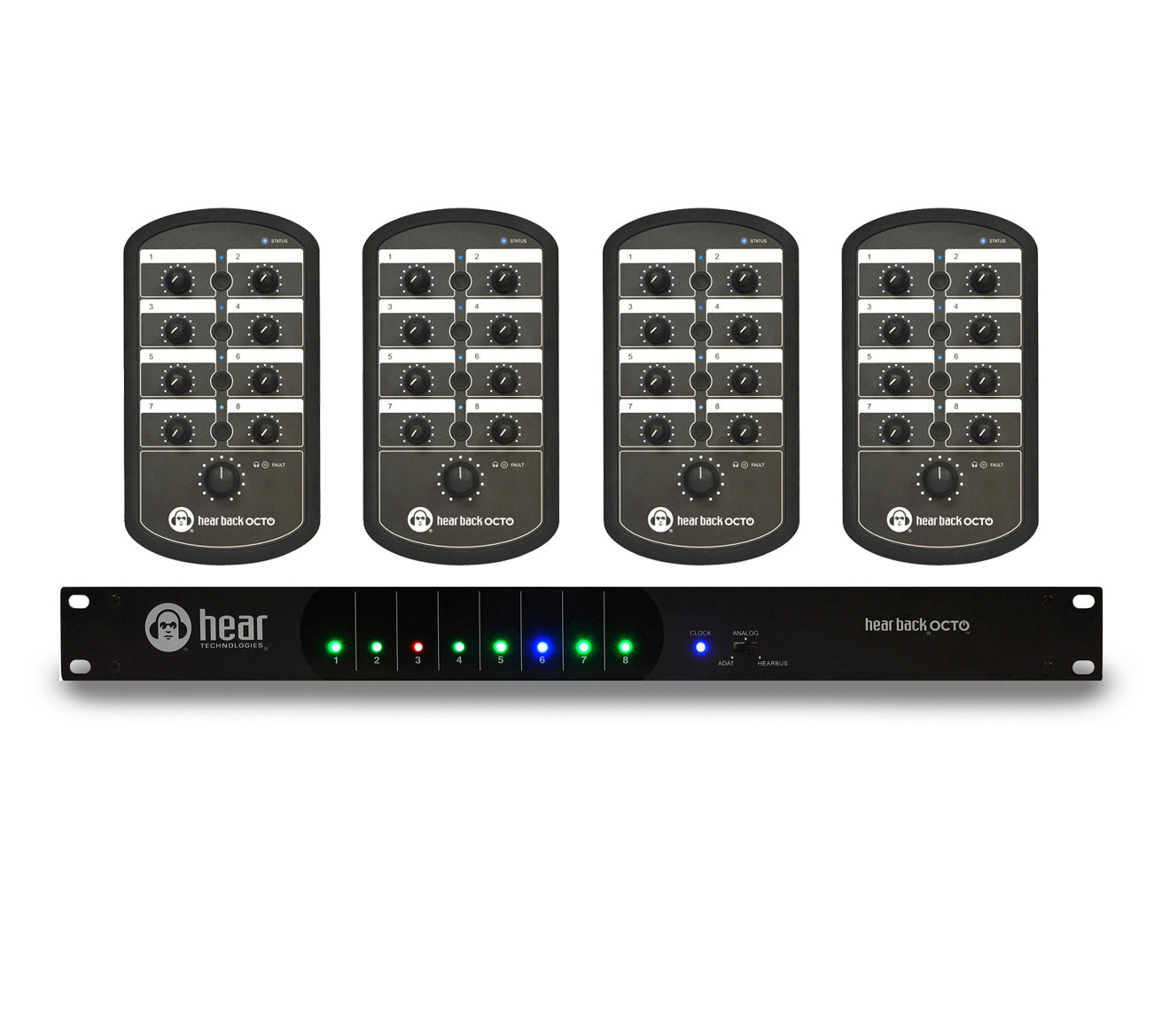

The next evolution of the Hear Back 8-channel personal monitoring system has arrived – introducing Hear Back OCTO.
With improved audio quality, system performance, and overall ease of use, it revolutionizes monitor mixing on stage or in the studio. Imagine getting your mix exactly the way you want it. With the Hear Back OCTO, you save time and get the sound just right, the first time. This affordable system is perfect for headphones, wired and wireless in-ear monitors, and/or conventional floor monitors.
System Standouts

• Virtually unlimited system size
• Affordable solution
• Excellent audio fidelity
• Very long digital cables possible without loss of audio quality
• Audio inputs ADAT, analog, and the HearBus are switch selectable from the front panel
• Local control of up to 10 channels of audio (eight inputs plus a stereo AUX input). Master Volume controls the level of headphones, line outs, and AUX input.
• Headphone amplifier fault indicator: In case of overheating or a short, the red LED illuminates to alert the user of a problem
• Bus Status Indicator: Confirms proper connection to the Hub
• Link Indicators: Whenever two pairs of mono inputs are linked for stereo operation, the link LED is illuminated
• Standard CAT5e power and signal connection - a cost effective, simple, unobtrusive way to connect eight channels of audio. The cable is held in place with a built-in cable strain relief.
• Balanced line-outs, mono/stereo

Stereo AUX In

• Mixer has a built-in mic stand mount for attaching to a standard mic stand or clipping onto a stand extension bar or clip
• High power - low distortion headphone amplifiers

System Features
Hear Back OCTO Mixer Features

• The Hear Back Mixer is equipped to mount to any standard mic or desk stand using the built-in 5/8" threaded socket located on the back of the mixer.
• Local control up to 10 channels of audio
• Master volume
• Built-in standard mic stand mount
• 24-bit D/A converters
• Bus status indicator
• Headphone amplifier fault indicator
• Mono/stereo link indicators
• Balanced line outs, mono/stereo
• Stereo AUX in:

• Expand numbers of mixers
• Drum module/metronome input

Mixer Aux Input
Line Input Configuration / Impedance: Stereo, unbalanced, 10 Kohms typical
Line Input Level: +4 dBu optimal, +22 dBu max

Mixer Headphone Power (Per Channel)

Mixer Line Output
Freq Response:
20 Hz to 20 KHz, +/-0.16 dB
THD+N:

• 0.004% typical at 1 kHz, +18 dBu
• 0.008% typical, 20 Hz - 20 kHz, +4 dBu

IMD: 0.02% typical at +4 dBu, 60 Hz / 7 kHz
Crosstalk: Less than -85 dB @ 1 kHz
Latency: Less than 1.5 mSec

System Noise Performance
Noise, A-Weighted: -94 dBu @ analog, -97 dBu optical
Dynamic Range: 122 dB typical

System I/O

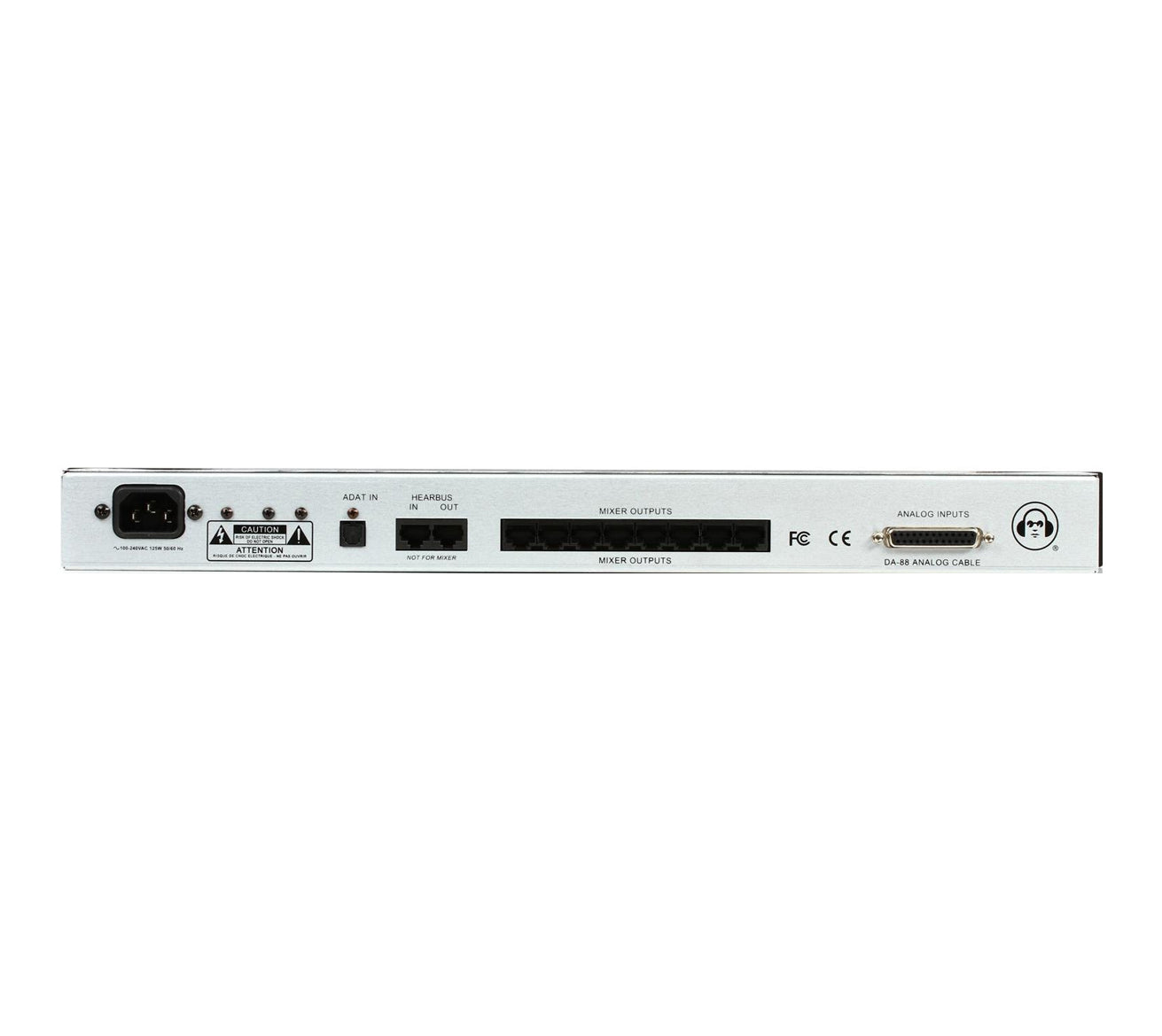

Hub Line In, Analog: 8 Balanced inputs on DB-25 female (DA-88 pinout)
Hub Max Input Level, Analog: +18 dBu
Hub Light Pipe In: Industry standard fiber optic connector, shuttered
Hub HearBus In, Out: 2x 8-pin RJ45 jack
Mixer Headphone Out: 1x TRS 1/8" and 1x 1/4" unbalanced stereo
Mixer Line Out: 2x TRS 1/4" balanced (left/mono or stereo)
Mixer Max Output Level, Analog: +28 dBu (mixed output)
Mixer Aux Input: TRS 1/8" unbalanced stereo

Physical, Mixer
Size:
5.1" H x 9.3” W x 2.519" D (12.95 cm H x 23.62 cm W x 6.40 cm D)
Unit Weight:
15.8 oz. (0.45 kg)
Mounting:
Standard mic stand (5/8" 27 threads per inch) or desk mounted
Physical, Hub
Size:
1.75" H x 19.0" W x 5.0" D (4.45 cm H x 48.26 cm W x 12.7 cm D)
Unit Weight:
3.9375 lb. (1.79 kg)
Mounting:
Standard rack mount, 1 RU

Power
Hub Power Requirements:
~100-240VAC 125W 50/60Hz
Note: 0 dBu = 0.775 Vrms. Specifications and features subject to change without notice.

The next evolution of the Hear Back 8-channel personal monitoring system has arrived – introducing Hear Back OCTO.
With improved audio quality, system performance, and overall ease of use, it revolutionizes monitor mixing on stage or in the studio. Imagine getting your mix exactly the way you want it. With the Hear Back OCTO, you save time and get the sound just right, the first time. This affordable system is perfect for headphones, wired and wireless in-ear monitors, and/or conventional floor monitors.
System Standouts

• Virtually unlimited system size
• Affordable solution
• Excellent audio fidelity
• Very long digital cables possible without loss of audio quality
• Audio inputs ADAT, analog, and the HearBus are switch selectable from the front panel
• Local control of up to 10 channels of audio (eight inputs plus a stereo AUX input). Master Volume controls the level of headphones, line outs, and AUX input.
• Headphone amplifier fault indicator: In case of overheating or a short, the red LED illuminates to alert the user of a problem
• Bus Status Indicator: Confirms proper connection to the Hub
• Link Indicators: Whenever two pairs of mono inputs are linked for stereo operation, the link LED is illuminated
• Standard CAT5e power and signal connection - a cost effective, simple, unobtrusive way to connect eight channels of audio. The cable is held in place with a built-in cable strain relief.
• Balanced line-outs, mono/stereo

Stereo AUX In

• Mixer has a built-in mic stand mount for attaching to a standard mic stand or clipping onto a stand extension bar or clip
• High power - low distortion headphone amplifiers

System Features
Hear Back OCTO Mixer Features

• The Hear Back Mixer is equipped to mount to any standard mic or desk stand using the built-in 5/8" threaded socket located on the back of the mixer.
• Local control up to 10 channels of audio
• Master volume
• Built-in standard mic stand mount
• 24-bit D/A converters
• Bus status indicator
• Headphone amplifier fault indicator
• Mono/stereo link indicators
• Balanced line outs, mono/stereo
• Stereo AUX in:

• Expand numbers of mixers
• Drum module/metronome input

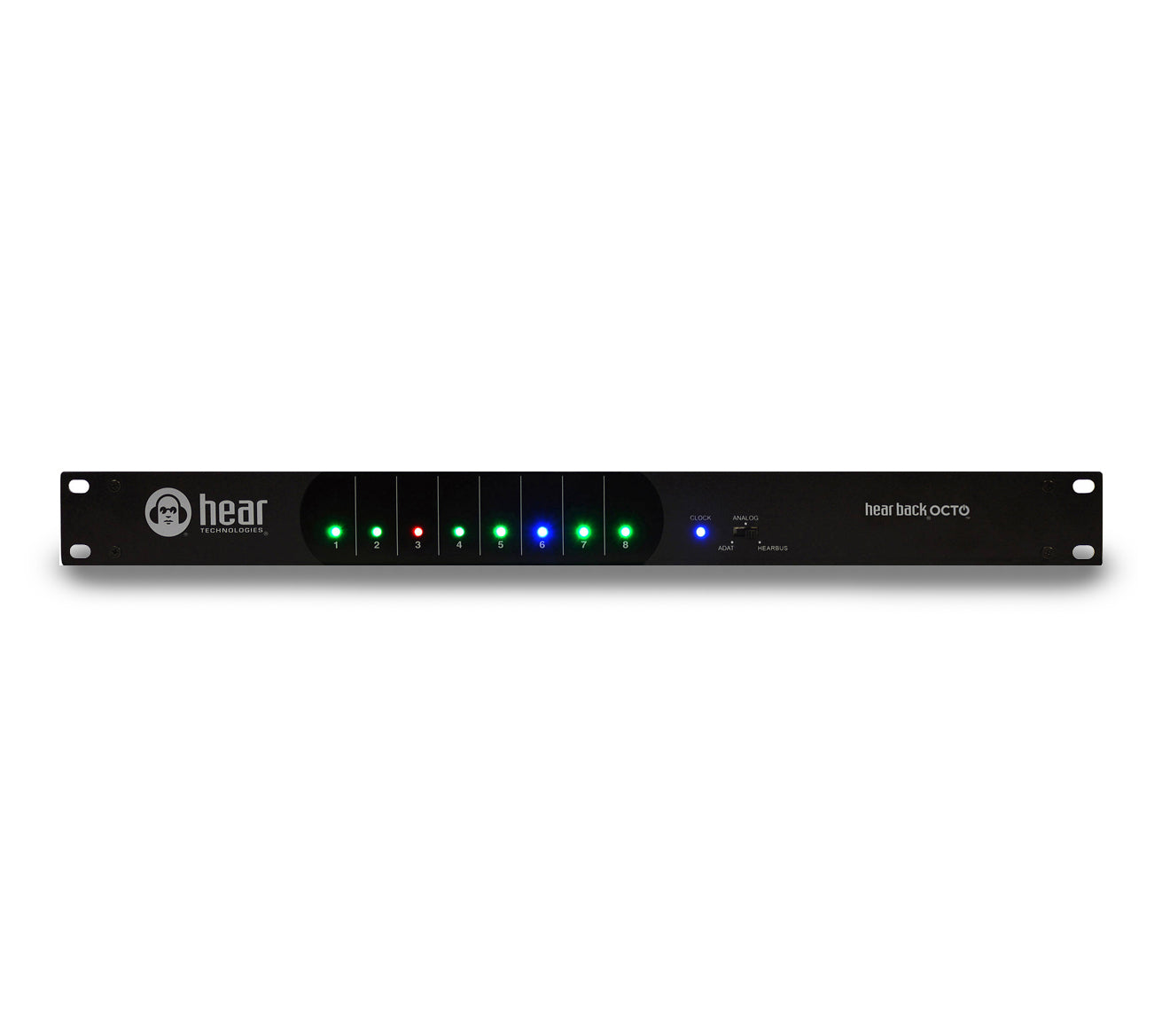

Hear Back OCTO Hub Features
A single Hub supplies signal and power to a maximum of eight Mixers. To expand your system, the Hubs can be daisy-chained using the HearBus In/Out for virtually unlimited system size. The Hub accepts analog input signals from an audio mixer such as auxiliaries, matrix outs, sub outs, monitor outs, and/or direct outputs. The ADAT input can come from digital audio workstations, digital recorders, or digital mixers.

• Three switch selectable input sources:

• ADAT® Optical
• Analog
• HearBus

• 24-bit A/D converters
• 44.1KHz and 48KHz sample rates
• Multi-color, four-level metering
• Daisy-chain for expanded systems
• Internal universal input power supply
• 1 RU chassis

Mixer Aux Input
Line Input Configuration / Impedance: Stereo, unbalanced, 10 Kohms typical
Line Input Level: +4 dBu optimal, +22 dBu max

Mixer Headphone Power (Per Channel)

Mixer Line Output
Freq Response:
20 Hz to 20 KHz, +/-0.16 dB
THD+N:

• 0.004% typical at 1 kHz, +18 dBu
• 0.008% typical, 20 Hz - 20 kHz, +4 dBu

IMD: 0.02% typical at +4 dBu, 60 Hz / 7 kHz
Crosstalk: Less than -85 dB @ 1 kHz
Latency: Less than 1.5 mSec

System Noise Performance
Noise, A-Weighted: -94 dBu @ analog, -97 dBu optical
Dynamic Range: 122 dB typical

System I/O
Hub Line In, Analog: 8 Balanced inputs on DB-25 female (DA-88 pinout)
Hub Max Input Level, Analog: +18 dBu
Hub Light Pipe In: Industry standard fiber optic connector, shuttered
Hub HearBus In, Out: 2x 8-pin RJ45 jack
Mixer Headphone Out: 1x TRS 1/8" and 1x 1/4" unbalanced stereo
Mixer Line Out: 2x TRS 1/4" balanced (left/mono or stereo)
Mixer Max Output Level, Analog: +28 dBu (mixed output)
Mixer Aux Input: TRS 1/8" unbalanced stereo

Physical, Mixer
Size:
5.1" H x 9.3” W x 2.519" D (12.95 cm H x 23.62 cm W x 6.40 cm D)
Unit Weight:
15.8 oz. (0.45 kg)
Mounting:
Standard mic stand (5/8" 27 threads per inch) or desk mounted
Physical, Hub
Size:
1.75" H x 19.0" W x 5.0" D (4.45 cm H x 48.26 cm W x 12.7 cm D)
Unit Weight:
3.9375 lb. (1.79 kg)
Mounting:
Standard rack mount, 1 RU

Power
Hub Power Requirements:
~100-240VAC 125W 50/60Hz
Note: 0 dBu = 0.775 Vrms. Specifications and features subject to change without notice.

The next evolution of the Hear Back 8-channel personal monitoring system has arrived – introducing Hear Back OCTO.
With improved audio quality, system performance, and overall ease of use, it revolutionizes monitor mixing on stage or in the studio. Imagine getting your mix exactly the way you want it. With the Hear Back OCTO, you save time and get the sound just right, the first time. This affordable system is perfect for headphones, wired and wireless in-ear monitors, and/or conventional floor monitors.
System Standouts

• Virtually unlimited system size
• Affordable solution
• Excellent audio fidelity
• Very long digital cables possible without loss of audio quality
• Audio inputs ADAT, analog, and the HearBus are switch selectable from the front panel
• Local control of up to 10 channels of audio (eight inputs plus a stereo AUX input). Master Volume controls the level of headphones, line outs, and AUX input.
• Headphone amplifier fault indicator: In case of overheating or a short, the red LED illuminates to alert the user of a problem
• Bus Status Indicator: Confirms proper connection to the Hub
• Link Indicators: Whenever two pairs of mono inputs are linked for stereo operation, the link LED is illuminated
• Standard CAT5e power and signal connection - a cost effective, simple, unobtrusive way to connect eight channels of audio. The cable is held in place with a built-in cable strain relief.
• Balanced line-outs, mono/stereo

Stereo AUX In

• Mixer has a built-in mic stand mount for attaching to a standard mic stand or clipping onto a stand extension bar or clip
• High power - low distortion headphone amplifiers

System Features
Hear Back OCTO Mixer Features

• The Hear Back Mixer is equipped to mount to any standard mic or desk stand using the built-in 5/8" threaded socket located on the back of the mixer.
• Local control up to 10 channels of audio
• Master volume
• Built-in standard mic stand mount
• 24-bit D/A converters
• Bus status indicator
• Headphone amplifier fault indicator
• Mono/stereo link indicators
• Balanced line outs, mono/stereo
• Stereo AUX in:

• Expand numbers of mixers
• Drum module/metronome input

Hear Back OCTO Hub Features
A single Hub supplies signal and power to a maximum of eight Mixers. To expand your system, the Hubs can be daisy-chained using the HearBus In/Out for virtually unlimited system size. The Hub accepts analog input signals from an audio mixer such as auxiliaries, matrix outs, sub outs, monitor outs, and/or direct outputs. The ADAT input can come from digital audio workstations, digital recorders, or digital mixers.

• Three switch selectable input sources:

• ADAT® Optical
• Analog
• HearBus

• 24-bit A/D converters
• 44.1KHz and 48KHz sample rates
• Multi-color, four-level metering
• Daisy-chain for expanded systems
• Internal universal input power supply
• 1 RU chassis

Mixer Aux Input
Line Input Configuration / Impedance: Stereo, unbalanced, 10 Kohms typical
Line Input Level: +4 dBu optimal, +22 dBu max

Mixer Headphone Power (Per Channel)

Mixer Line Output
Freq Response:
20 Hz to 20 KHz, +/-0.16 dB
THD+N:

• 0.004% typical at 1 kHz, +18 dBu
• 0.008% typical, 20 Hz - 20 kHz, +4 dBu

IMD: 0.02% typical at +4 dBu, 60 Hz / 7 kHz
Crosstalk: Less than -85 dB @ 1 kHz
Latency: Less than 1.5 mSec

System Noise Performance
Noise, A-Weighted: -94 dBu @ analog, -97 dBu optical
Dynamic Range: 122 dB typical

System I/O
Hub Line In, Analog: 8 Balanced inputs on DB-25 female (DA-88 pinout)
Hub Max Input Level, Analog: +18 dBu
Hub Light Pipe In: Industry standard fiber optic connector, shuttered
Hub HearBus In, Out: 2x 8-pin RJ45 jack
Mixer Headphone Out: 1x TRS 1/8" and 1x 1/4" unbalanced stereo
Mixer Line Out: 2x TRS 1/4" balanced (left/mono or stereo)
Mixer Max Output Level, Analog: +28 dBu (mixed output)
Mixer Aux Input: TRS 1/8" unbalanced stereo

Physical, Mixer
Size:
5.1" H x 9.3” W x 2.519" D (12.95 cm H x 23.62 cm W x 6.40 cm D)
Unit Weight:
15.8 oz. (0.45 kg)
Mounting:
Standard mic stand (5/8" 27 threads per inch) or desk mounted
Physical, Hub
Size:
1.75" H x 19.0" W x 5.0" D (4.45 cm H x 48.26 cm W x 12.7 cm D)
Unit Weight:
3.9375 lb. (1.79 kg)
Mounting:
Standard rack mount, 1 RU

Power
Hub Power Requirements:
~100-240VAC 125W 50/60Hz
Note: 0 dBu = 0.775 Vrms. Specifications and features subject to change without notice.

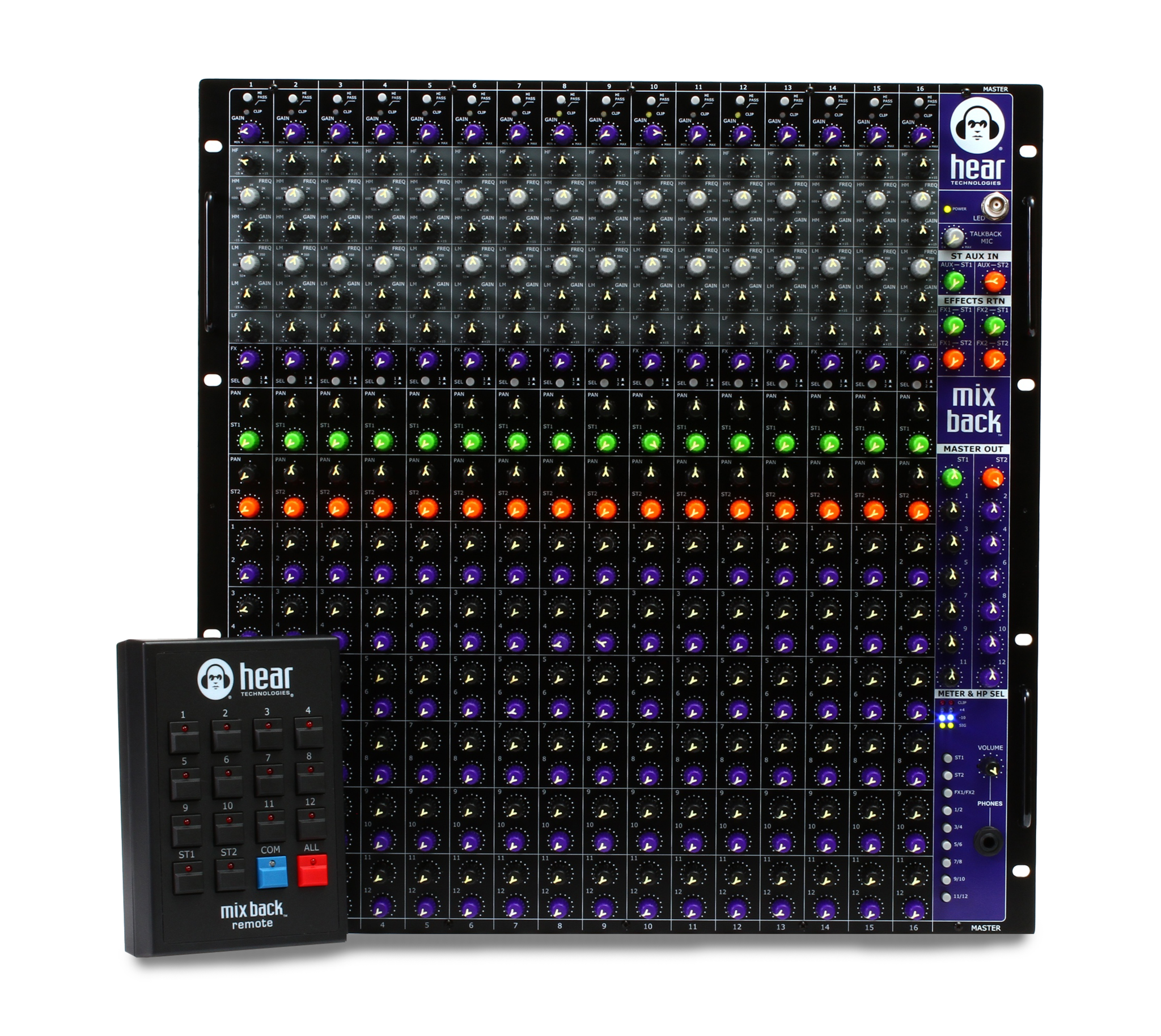

The Hear Technologies Mix Back is an affordable 16-in monitor mixer with 12 mono and two stereo outputs for live or studio cue use. The 11-rackspace unit can be cascaded for more inputs. An optional talkback remote instantly connects the engineer with any (or all) of the musicians.

• 16-input mixer with analog and digital outputs
• High-quality mic/line inputs with inserts, highpass filter and 4-band EQ
• Master section with effects returns, aux return with level control, and talkback mc preamp

It's easy to configure the perfect monitor mix setup with the Hear Technologies Mix Back. Assign any of the 16 inputs to one of 12 mono outputs and two stereo mix outputs to route signal to individual monitor stations. In addition, the Mix Back includes two ADAT optical outputs for digital connections, plus two HearBus outs for connection to other Hear Technologies gear.

The Mix Back's input section features 16 high-quality mic/line inputs (with passive splitters). Each input features a channel insert, a signal/clip LED, a 100Hz highpass filter, and an independent gain control. In addition, the Mix Back input channels each have 4-band EQ with separate controls for sweep and boost/cut on the mid bands.

The Mix Back master section offers two stereo and 12 mono TRS outputs with switch-selectable meter/headphone monitoring. Two stereo TRS balanced effect returns are augmented by switch-assignable FX1/FX2 returns to the 12 mono masters. A stereo aux return with level controls can be routed to both stereo busses - great for a FOH mix or the studio "two mix." The Mix Back's talkback mic preamp is assignable to stereo masters 1 & 2, mono outputs 1-12, and the balanced Intercom output. A 16-button talkback remote connects using standard Cat 5e cable. In addition, the Mix Back provides 16 channels of ADAT and HearBus output.

• 16 x 12 x 2 X 2 monitor mixer
• Two stereo outputs, 12 mono outputs
• Two ADAT optical outs and two HearBus outputs
• 16 high-quality mic/line inputs with passive split
• Channel inserts
• Signal/clip LED indicator
• 100Hz highpass filter
• 4-band EQ with separate controls for sweep and cut/boost on mid bands
• Two stereo level and pan controls (ST1 & ST2)
• Switch-selectable effects 1-2 sends
• Two stereo TRS balanced effect returns
• Switch-assignable FX1/FX23 returns to the 12 mono masters
• Stereo Aux return with level controls to both stereo busses
• Bus inputs permit stacking multiple mixers
• Talkback mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balanced Intercom output
• 16-button talkback remote connects using standard Cat 5e cable
• 16 channels of ADAT and HearBus output

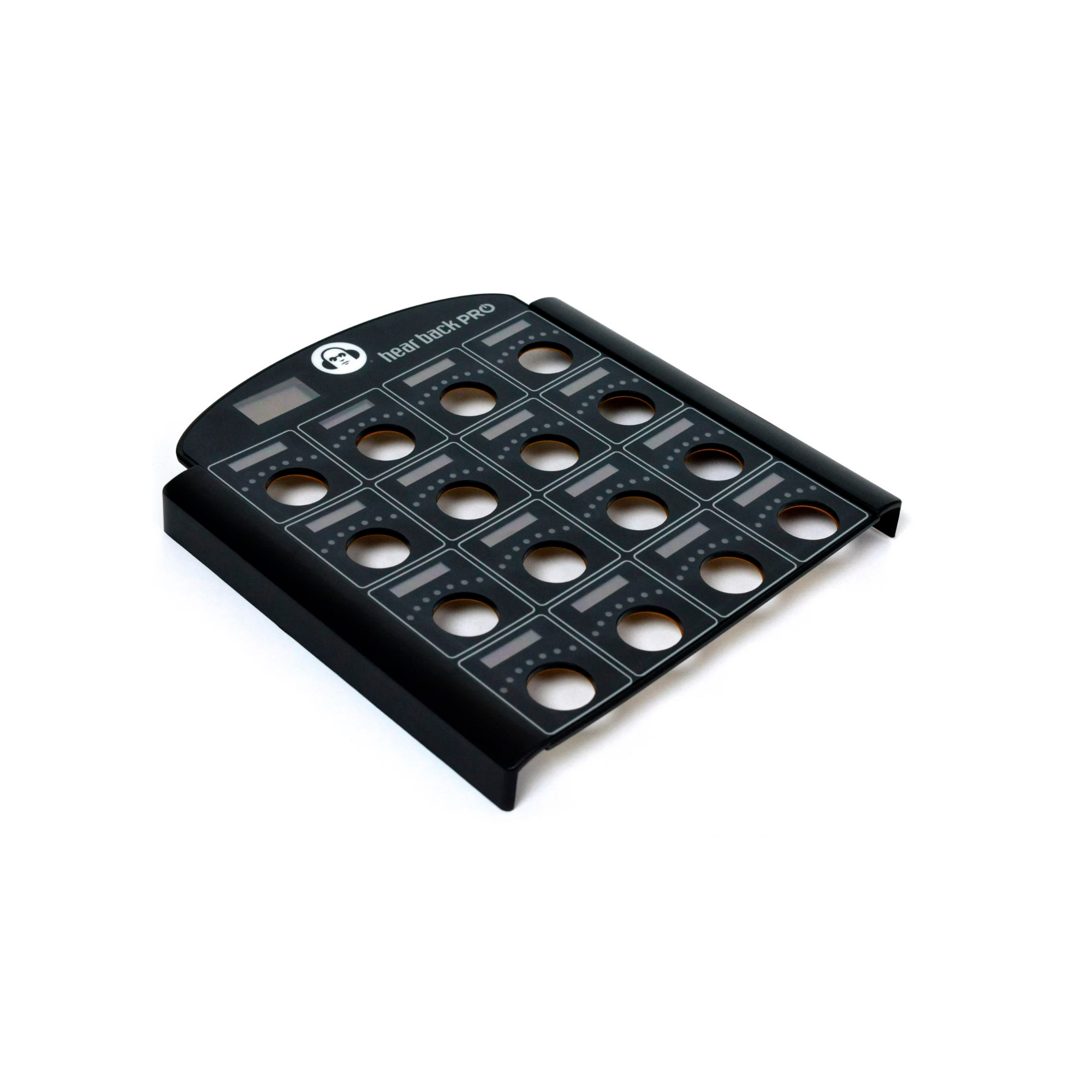

La superposición digital OLED Hear Back mejora su mezclador Hear Back PRO con pantallas gráficas de alto contraste. Esta placa frontal ultradelgada incluye una ventana de estado de dos colores con matriz de puntos de 128 x 64 que admite hasta cuatro filas de 12 caracteres para mostrar el nombre, la dirección y el estado del mezclador. Y para cada uno de los canales de su mezclador, obtiene una pantalla gráfica de matriz de puntos de 96 x 16 para mostrar hasta nueve caracteres alfanuméricos, caracteres especiales y símbolos personalizados: es una excelente alternativa de vanguardia a una tira de garabatos de la vieja escuela.

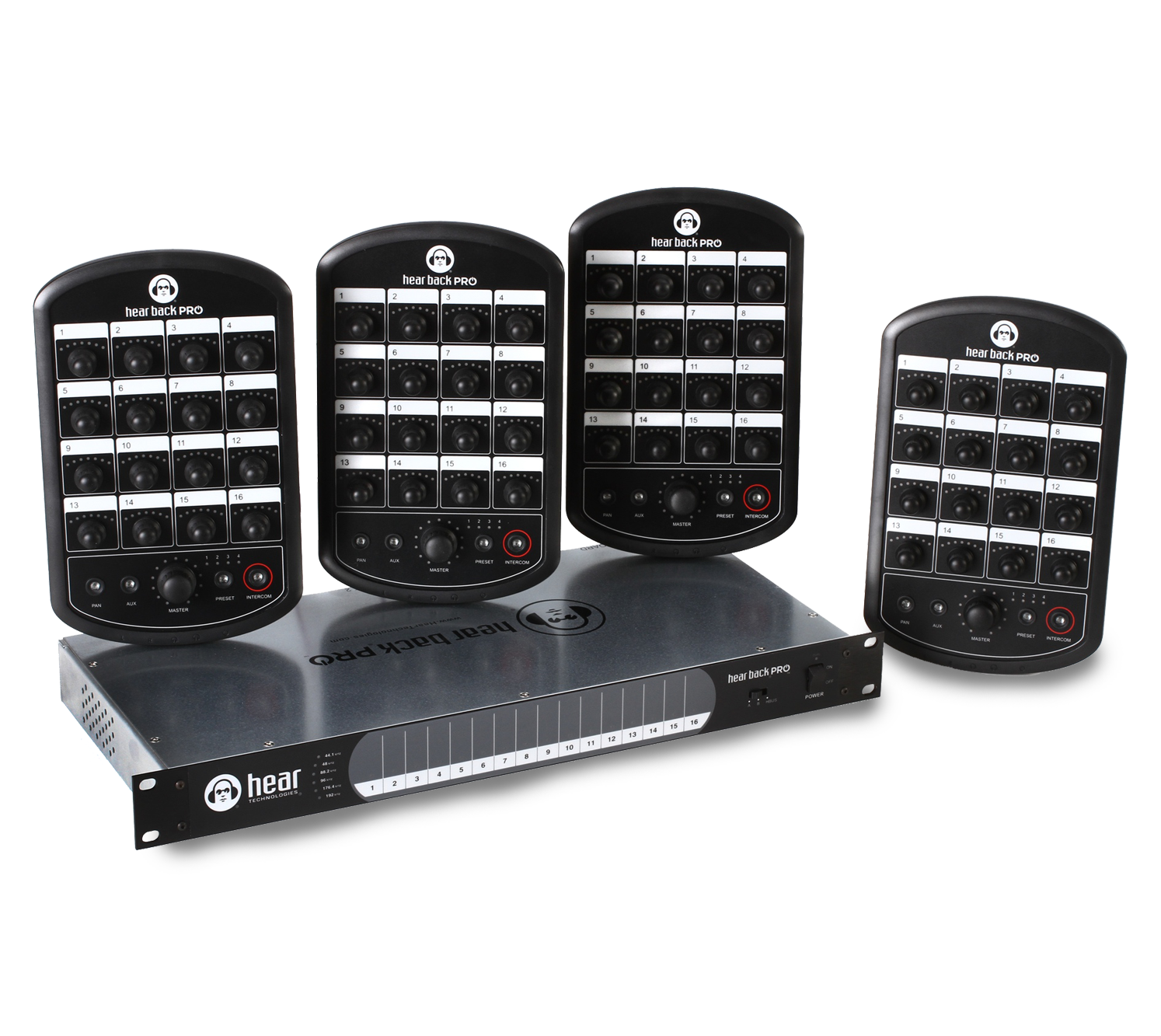

• Mejora tu mezclador Hear Back PRO con pantallas gráficas de alto contraste
