ATC Loudspeakers

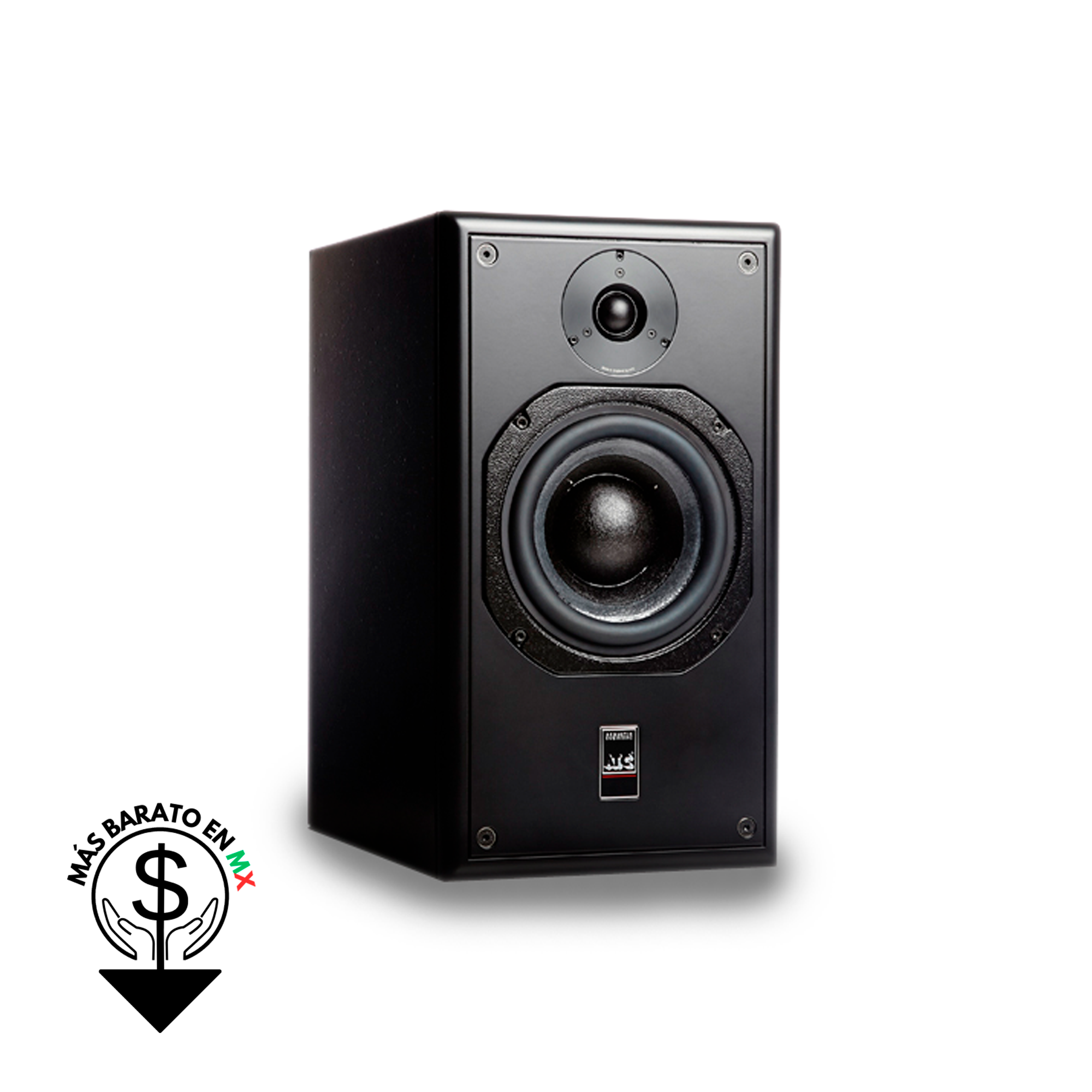

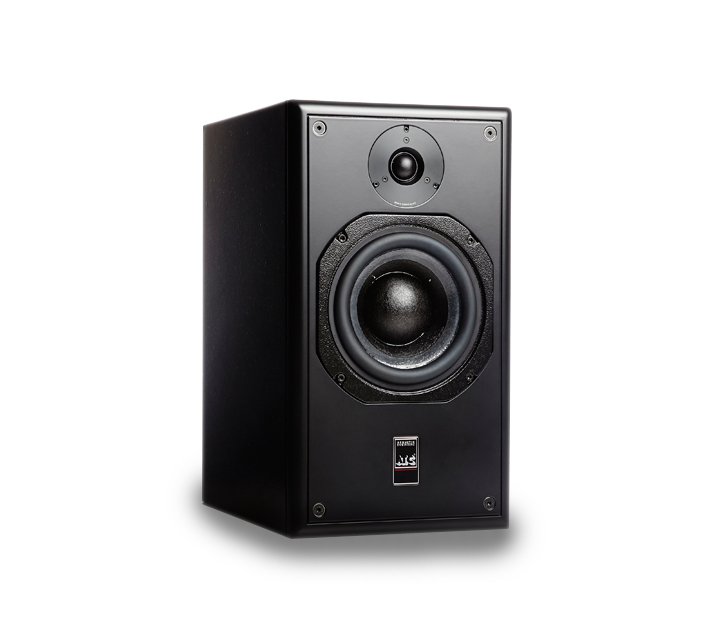

ATC SCM20ASL mk2 (Activas) - Par
The ATC Loudspeakers SCM20ASL Pro MK2 is ideally suited for critical near-field listening applications in all control rooms, LCR surround monitoring in small-to-medium control rooms and surround channels in medium-to-large control rooms.
- Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
- Proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter
- Discrete MOSFET class A/B bi-amp pack. LF 200W & HF 50W
Specifications:
- Drivers: LF 6.5”/150mm Super Linear, HF 1”/25mm Dual-Suspension ‘S-Spec’ Tweeter
- Amplitude linearity : 80Hz – 20kHz (+/-2dB)
- Cut-off frequencies : 55Hz – 25kHz (-6dB freestanding)
- Dispersion : +/-80° coherent horizontal, +/-10° coherent vertical
- Maximum continuous : S.P.L 108dB (per pair @ 1m)
- Audio input : Rear panel mounted female XLR (pin 2 +ve)
- Input sensitivity : 1V/2V RMS or +2.2/+8.2dBu via switch (ref. bass full output)
- Input sensitivity trim : 0dB to -6dB (via rear panel pot)
- Total input sensitivity range : 1V/+2.2dBu to 4V/+14.2dBu
- Input impedance : 10kΩ per leg
- Amplifier output power : Bass 200W continuous, HF 50W continuous (1%THD)
- Crossover frequency : 2.1kHz
- Crossover filters : 2nd order/ 12dB/oct critically damped with phase compensation
- Low frequency shelf cut/boost : 80Hz, -2dB to +3dB in 1dB steps (via rear panel rotary switch)
- Overload protection : Active FET momentary gain reduction (inc. front panel mounted ‘limit’ LED)
- Amplifier thermal trip circuit
- Cabinet Dimensions (HxWxD) : 450x250x392mm (17.7″x8.8″x15.4″)
- Weight : 28kg/61.6lbs (per cabinet)
ATC Loudspeakers
ATC SCM20ASL mk2 (Activas) - Par
Fecha estimada de entrega Noviembre 16 and Noviembre 18. * Cuando aparece en bodega ó última pieza.
Garantía del Precio Más Bajo
Descuento por Compras Mayores
Facturaciones
Meses Sin Intereses con PayPal
Consultoría Experta Gratuita
Producto Original
The ATC Loudspeakers SCM20ASL Pro MK2 is ideally suited for critical near-field listening applications in all control rooms, LCR surround monitoring in small-to-medium control rooms and surround channels in medium-to-large control rooms.
- Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
- Proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter
- Discrete MOSFET class A/B bi-amp pack. LF 200W & HF 50W
Specifications:
- Drivers: LF 6.5”/150mm Super Linear, HF 1”/25mm Dual-Suspension ‘S-Spec’ Tweeter
- Amplitude linearity : 80Hz – 20kHz (+/-2dB)
- Cut-off frequencies : 55Hz – 25kHz (-6dB freestanding)
- Dispersion : +/-80° coherent horizontal, +/-10° coherent vertical
- Maximum continuous : S.P.L 108dB (per pair @ 1m)
- Audio input : Rear panel mounted female XLR (pin 2 +ve)
- Input sensitivity : 1V/2V RMS or +2.2/+8.2dBu via switch (ref. bass full output)
- Input sensitivity trim : 0dB to -6dB (via rear panel pot)
- Total input sensitivity range : 1V/+2.2dBu to 4V/+14.2dBu
- Input impedance : 10kΩ per leg
- Amplifier output power : Bass 200W continuous, HF 50W continuous (1%THD)
- Crossover frequency : 2.1kHz
- Crossover filters : 2nd order/ 12dB/oct critically damped with phase compensation
- Low frequency shelf cut/boost : 80Hz, -2dB to +3dB in 1dB steps (via rear panel rotary switch)
- Overload protection : Active FET momentary gain reduction (inc. front panel mounted ‘limit’ LED)
- Amplifier thermal trip circuit
- Cabinet Dimensions (HxWxD) : 450x250x392mm (17.7″x8.8″x15.4″)
- Weight : 28kg/61.6lbs (per cabinet)
