ATC Loudspeakers

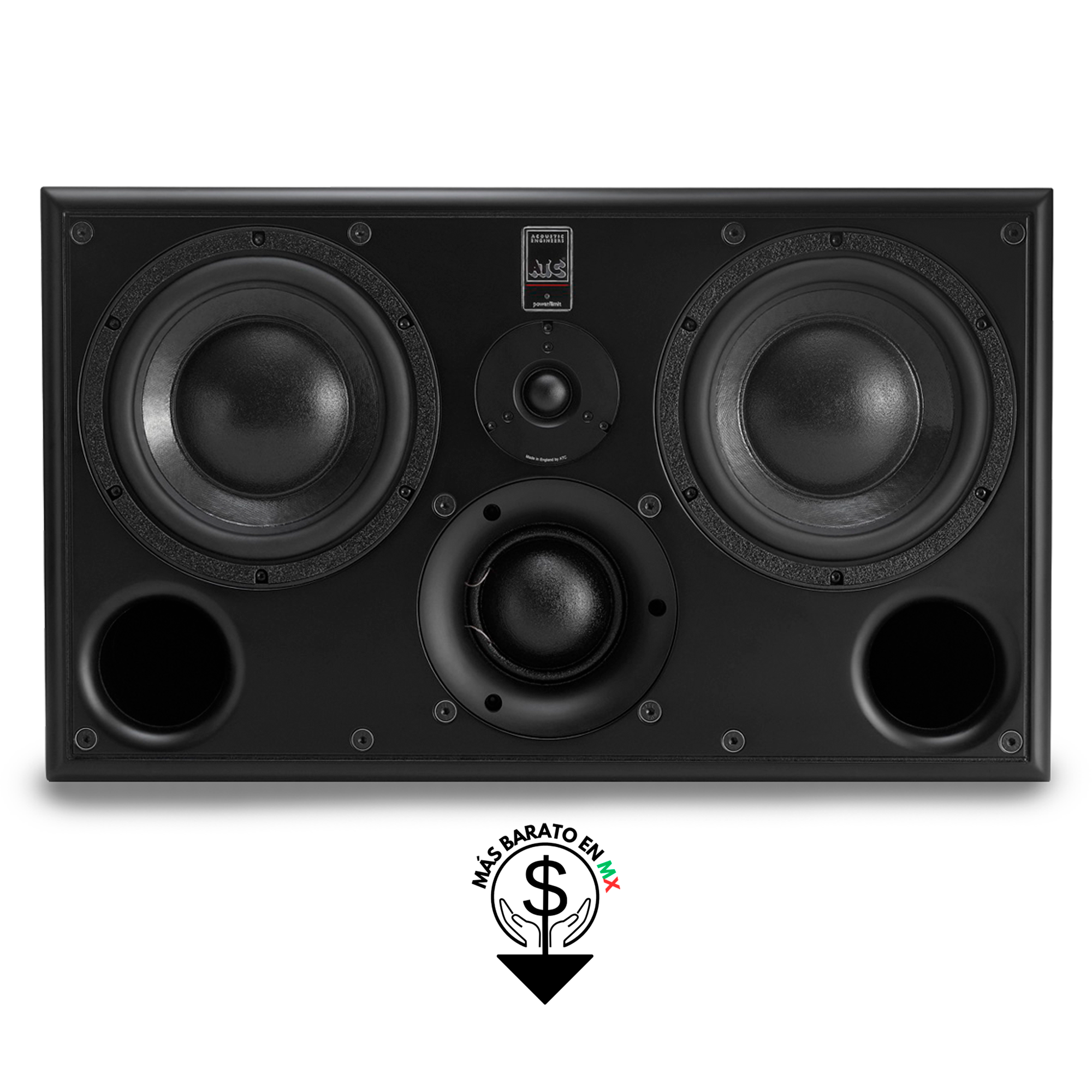

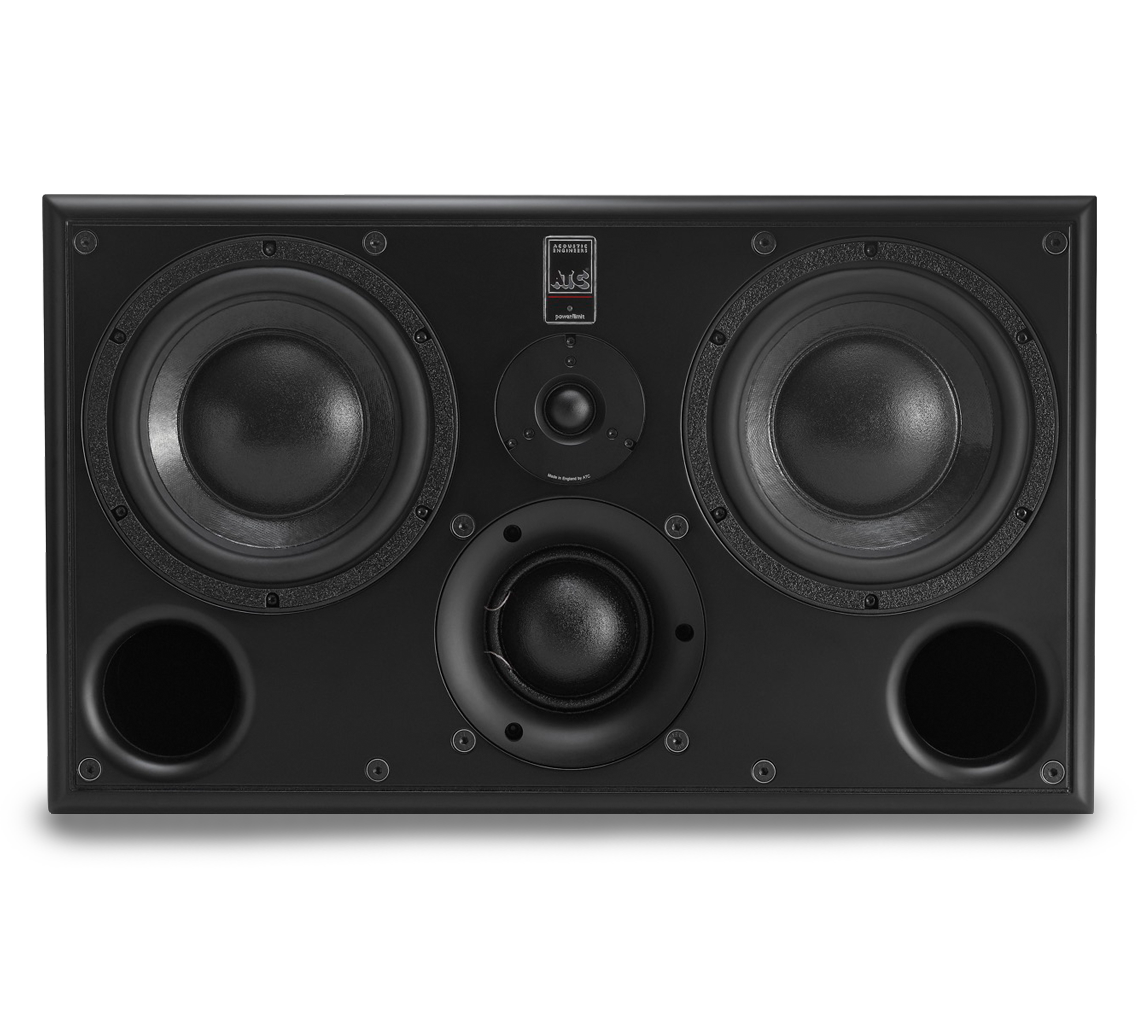

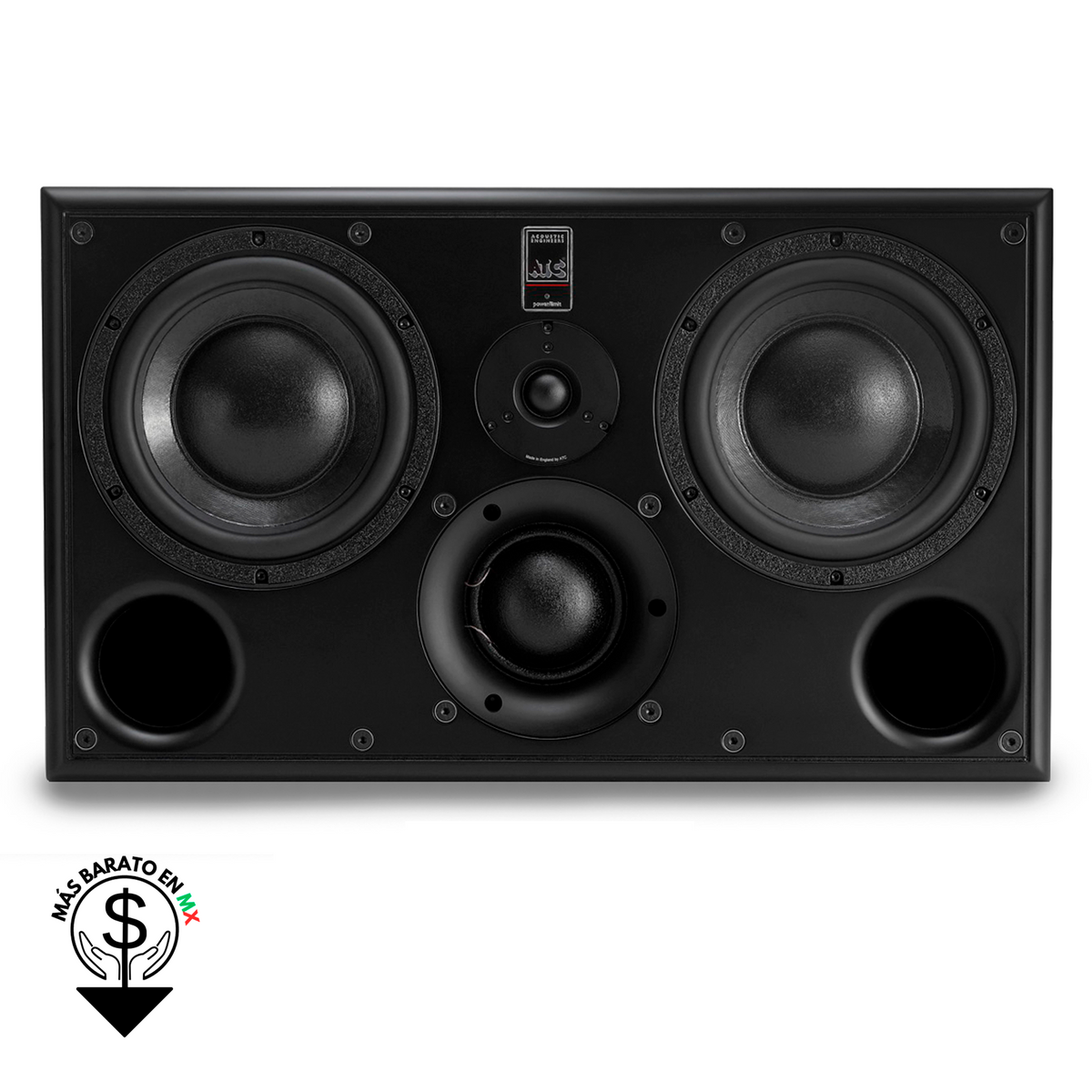

ATC SCM45A PRO - Par
Features
- Mid-size very high performance active 3-way studio monitor
- Ideally suited to:
- critical near-field listening applications in all control rooms
- LCR surround monitoring in medium control rooms
- surround channels in medium-to-large contol rooms - ATC hand built 6.5˝/164mm carbon-paper cone bass driver.
- ATC 25mm/1” Dual Suspension Super Tweeter
- Discrete MOSFET class A/B bi-amp pack with 150W/60W/25W
continuous power output
Specifications
- Drivers: HF 1″/25mm soft dome, Mid 3″/75mm Soft Dome, LF 6.5″/164mm short-coil carbon paper cone
- Amplitude Linearity (±2dB): 70Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing): 42Hz-25kHz
- Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
- Max. Continuous S.P.L (1 metre): 112dB

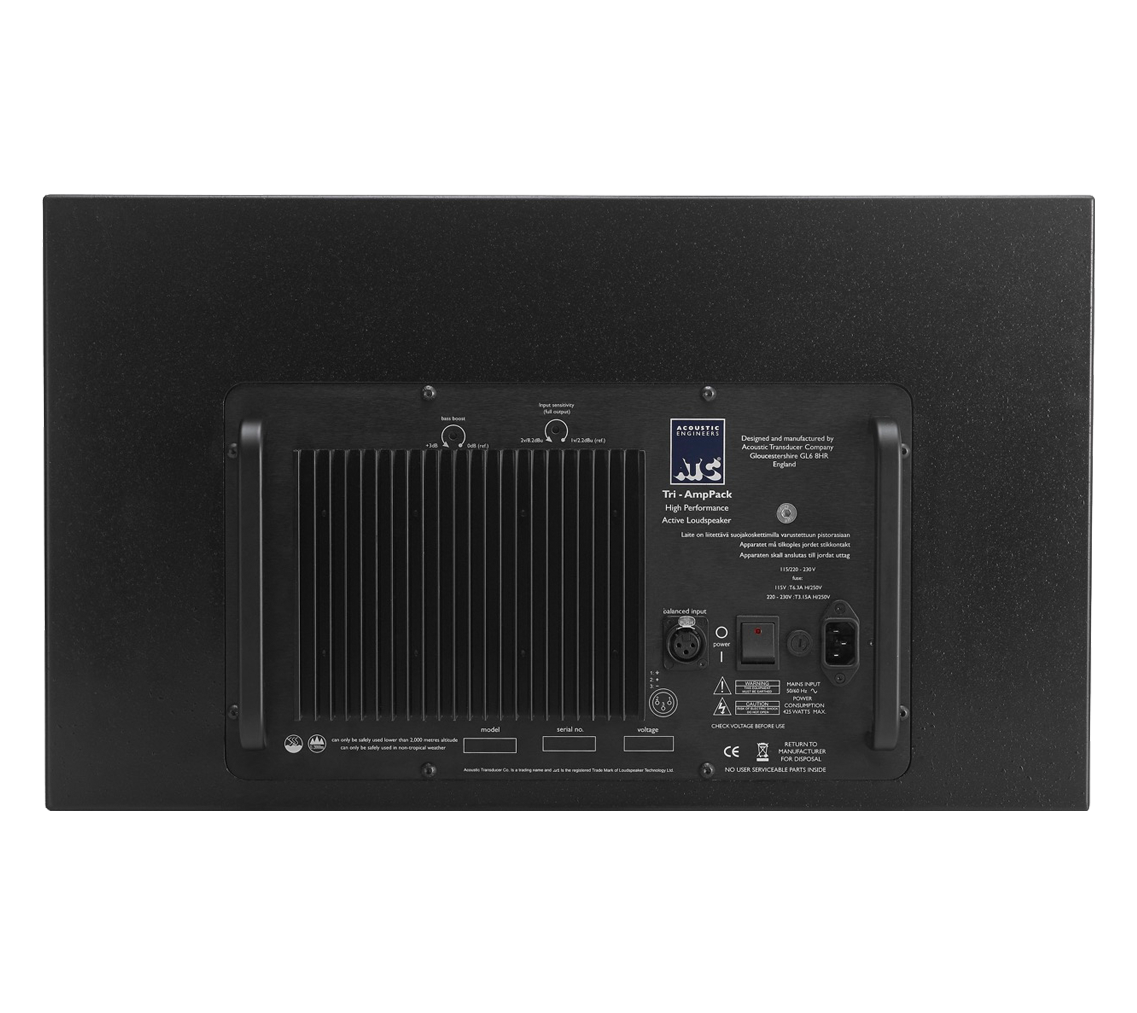

- Audio Input: Rear panel mounted female xlr (pin 2 +)
- Input Sensitivity: 1V rms (ref. full output)
- Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
- Input Impedance: Balanced > 10kΩ
- Amplifier Output Power: Bass 150W rms, Mid 60W rms, High 25W rms
- Crossover Frequencies: 380Hz & 3.5Khz
- Crossover Filters: 4th order critically damped with phase compensations
- Low Frequency Boost: 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
- Overload Protection: Active FET momentary gain reduction
- Dimensions (HxWxD): 353 x 600 x 375mm (13.9˝ x 23.6˝ x 14.8˝). Handles add an additional 39mm/1.5″ to depth.
- Weight: 36kg / 79.2lbs (per cabinet)
ATC Loudspeakers
ATC SCM45A PRO - Par
Fecha estimada de entrega Octubre 27 and Octubre 29. *
Garantía del Precio Más Bajo
Descuento por Compras Mayores
Facturaciones
Meses Sin Intereses con PayPal
Producto Original
Features
- Mid-size very high performance active 3-way studio monitor
- Ideally suited to:
- critical near-field listening applications in all control rooms
- LCR surround monitoring in medium control rooms
- surround channels in medium-to-large contol rooms - ATC hand built 6.5˝/164mm carbon-paper cone bass driver.
- ATC 25mm/1” Dual Suspension Super Tweeter
- Discrete MOSFET class A/B bi-amp pack with 150W/60W/25W
continuous power output
Specifications
- Drivers: HF 1″/25mm soft dome, Mid 3″/75mm Soft Dome, LF 6.5″/164mm short-coil carbon paper cone
- Amplitude Linearity (±2dB): 70Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing): 42Hz-25kHz
- Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
- Max. Continuous S.P.L (1 metre): 112dB
- Audio Input: Rear panel mounted female xlr (pin 2 +)
- Input Sensitivity: 1V rms (ref. full output)
- Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
- Input Impedance: Balanced > 10kΩ
- Amplifier Output Power: Bass 150W rms, Mid 60W rms, High 25W rms
- Crossover Frequencies: 380Hz & 3.5Khz
- Crossover Filters: 4th order critically damped with phase compensations
- Low Frequency Boost: 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
- Overload Protection: Active FET momentary gain reduction
- Dimensions (HxWxD): 353 x 600 x 375mm (13.9˝ x 23.6˝ x 14.8˝). Handles add an additional 39mm/1.5″ to depth.
- Weight: 36kg / 79.2lbs (per cabinet)
Autenticidad Garantizada
No se arriesgue a comprar imitaciones con vendedores ilegítimos. Audio Gate es distribuidor autorizado. Aparecemos en la página de los fabricantes y sólo ofrecemos producto original ¡Garantizado!
