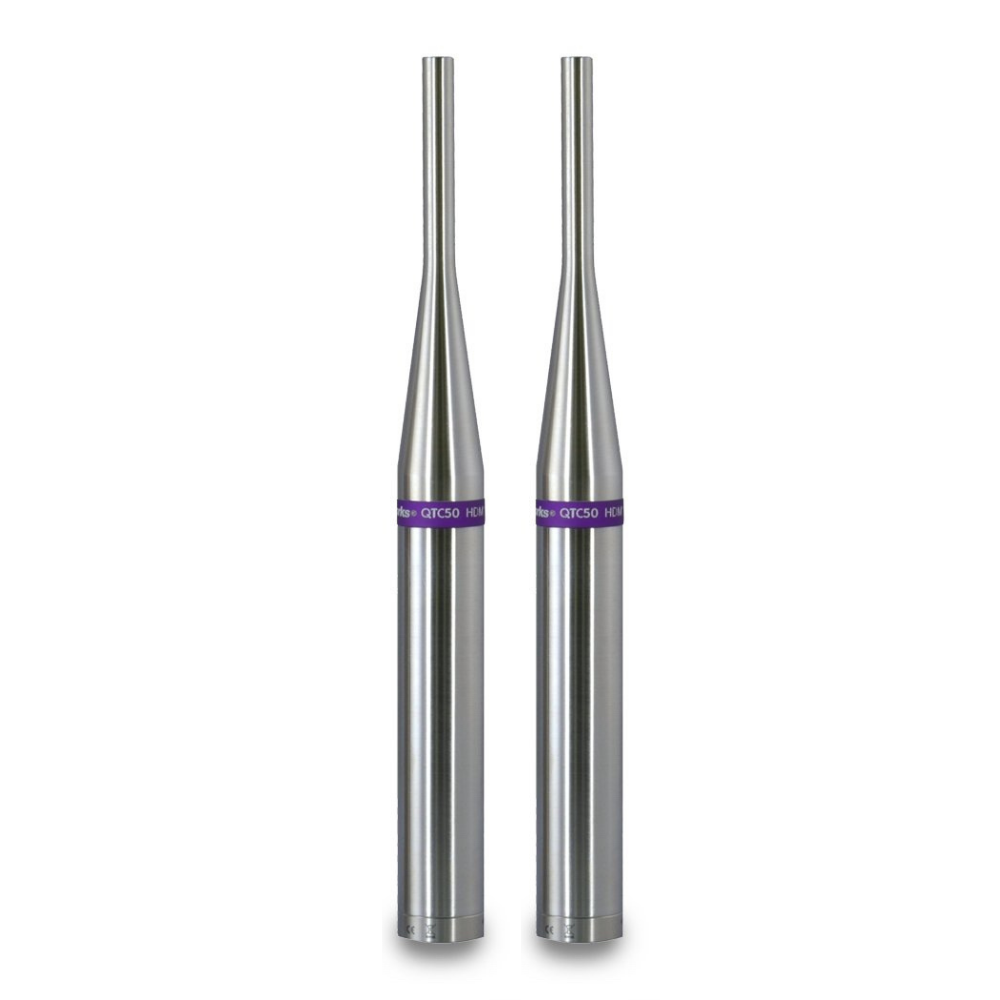

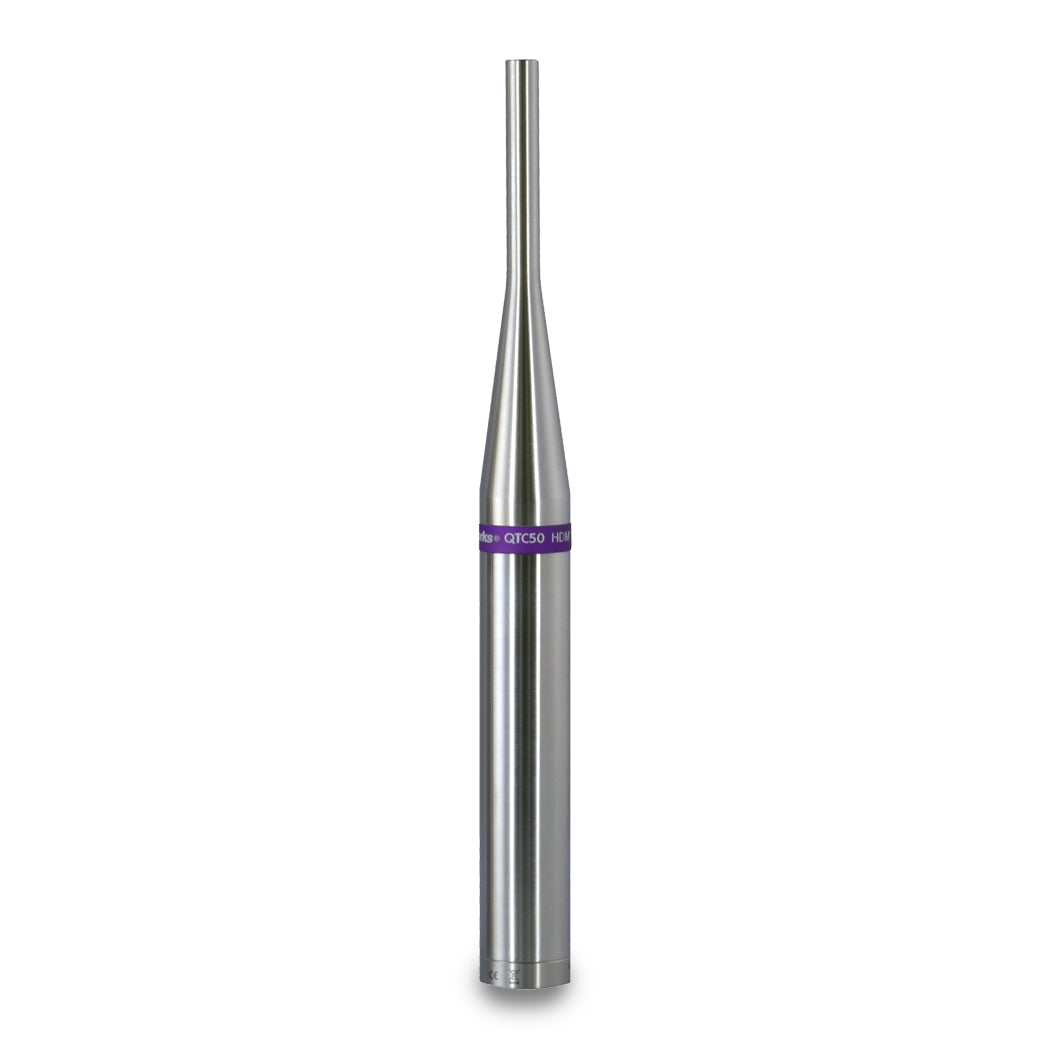

Earthworks QTC50

Ultra wideband, low noise omnidirectional recording microphone for quiet sources
3Hz – 50kHz flat frequency response
Omnidirectional polar pattern
Handles up to 140dB S.P.L without distortion

Delivering sound so detailed and real, the QTC50 brings recordings to life and delivers a truly accurate snapshot of your sound.
Its near-perfect omnidirectional polar pattern is uniform across all specified frequencies, letting the microphone capture rich and consistent detail at any position around the capsule.
With an extended 3Hz – 50kHz ruler-flat frequency response (with no frequencies exaggerated or attenuated) the result is a more accurate representation of the original sound.
The QTC50 is time coherent, precisely capturing high and low frequency sounds with no phase errors, which will smear transients and create other time related distortions.
With an S.P.L rating of 140dB the QTC50 has plenty of headroom, so there is no need to worry about the microphone distorting. And there is no proximity effect, you can get the QTC50 as close as you want to the sound source.
Ideal for for recording quieter sources such as vocals, strings and distant miked orchestras or choirs, these low noise omnis are also an excellent choice for drum overheads, close-miked wind and percussion instruments, and foley.

FEATURE

• Captures sounds with incredible precision
• With a frequency response to 50kHz and excellent impulse response
• Intended for detailed sources
• Omnidirectional polar pattern
• Flat frequency response, fast impulse response and exceptional polar characteristics
• Accurate and uncolored
• Handles sound levels up to 140dB with no proximity effect or handling noise

SPECIFICATIONS

• Frequency Response: 3Hz to 50kHz ±1dB
• Polar Pattern: Omnidirectional
• Sensitivity: 34mV/Pa (-29dBV/Pa)
• Power Requirements: 24-48V Phantom, 10mA
• Max Acoustic Input: 140dB S.P.L
• Output: XLR (pin 2+)
• Output Impedance: 65Ω balanced (between pins 2 & 3)
• Min Output Load: 600Ω between pins 2 & 3
• Noise: 20dB S.P.L equivalent (A weighted)
• Dimensions L x D: 229mm x 22mm (9 x .860 inches)
• Weight: .5 lb. (225g)
