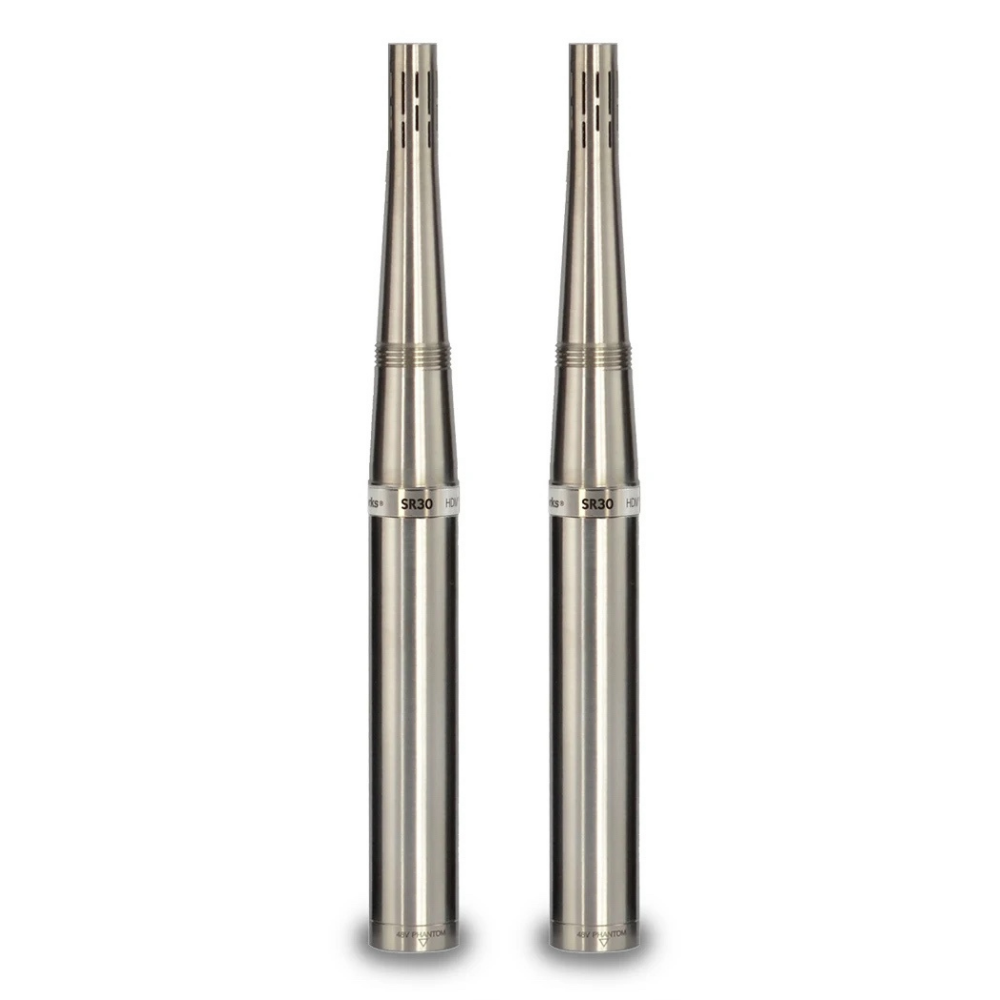

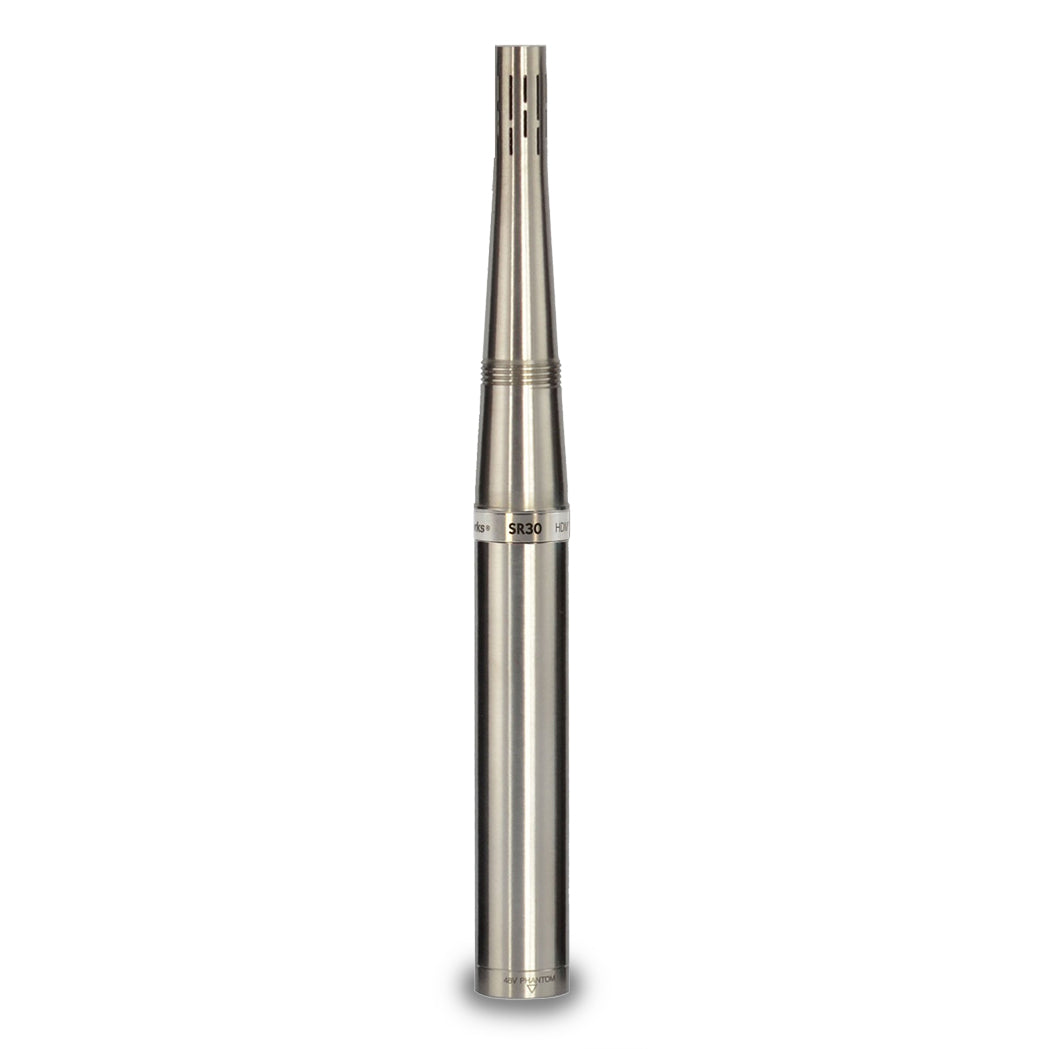

Earthworks SR30

30kHz Cardioid Instrument Microphone

Precision engineered cardioid condenser designed for acoustic string instruments, brass, woodwinds, piano, vocals and drums

• 30kHz frequency response

• Cardioid polar pattern

• Handles up to 139dB S.P.L without distortion


The Earthworks SR30 is a multi-purpose cardioid condenser microphone designed for instrument miking in live performance and studio recording environments.

Performance
A natural performer, the SR30 delivers a transparent, true to life sound no matter what the instrument.
Sonic timbre and frequency response stay uniform across the entire front of the microphone capsule, helping capture the true character of your instrument.

Its near-perfect cardioid polar pattern is consistent across all frequencies, simplifying mic placement and ensuring more gain before feedback. With over 30dB of off-axis rejection, the SR30 is ideally suited for capturing audio in highly ambient environments and near monitor speakers.

With a lighting fast transient response, the SR30 handles sharp attacks with ease, while still capture all of the subtle nuances and softest dynamics of your playing. With an S.P.L rating of 139dB, the SR30 delivers exceptional reproduction of without distortion.
Ideal for acoustic string instruments, brass, woodwinds, piano and drums.

Features:

• Extended frequency response to 30kHz
• Multi-purpose directional microphone
• More gain before feedback than other microphones
• Less leakage
• Textbook perfect cardioid polar pattern with natural on- and off-axis performance
• Provides excellent results for both live performance and recording applications
• Extreme accuracy in the time domain for faithful reproduction and no smearing or distortion
• Transparent sound quality
• Shorter diaphragm settling time to prevent quieter attacks from being blurred by earlier louder attacks

Specification:

• Frequency Response: 20Hz to 30kHz
• Polar Pattern: Cardioid
• Sensitivity: 20mV/Pa (-34dBV/Pa)
• Power Requirements: 24-48V Phantom, 10mA
• Max Acoustic Input: 139dB S.P.L
• Output: XLR (pin 2+)
• Output Impedance: 65Ω balanced (between pins 2 & 3)
• Min Output Load: 600Ω between pins 2 & 3
• Noise: 16dB S.P.L equivalent (A weighted)
• Dimensions L x D: 229mm x 22mm (9 x .860 inches)
• Weight: .5 lb (225g)
