Electrodyne Audio

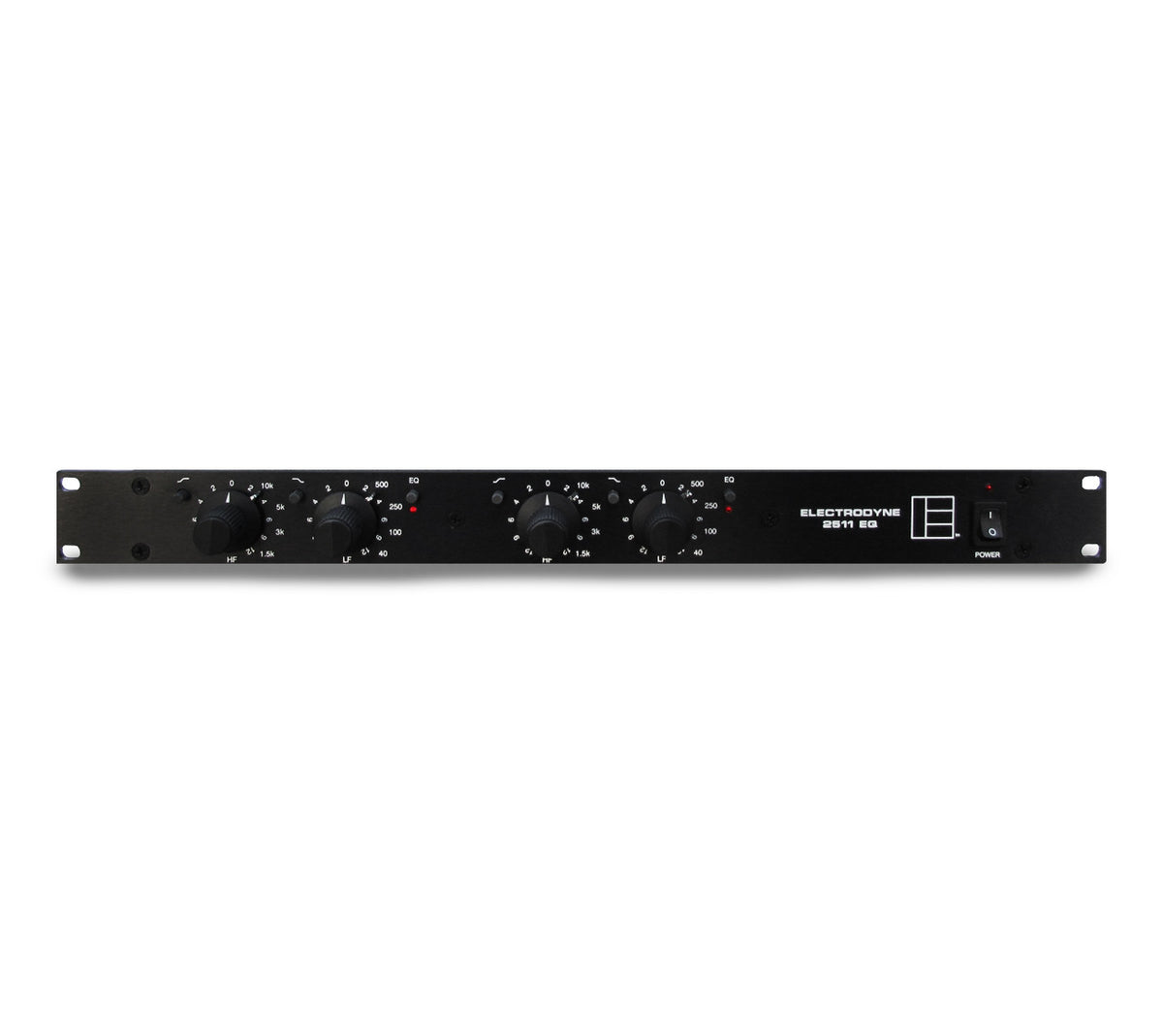

Electrodyne 2511
$2,300 Dólares
The Electrodyne 2511 is a classic two-band discrete transistor reciprocal active inductor equalizer using 1969/1970 design technology. The custom inductors and output transformer are made by Electrodyne’s original maker, to strict factory manufacturing tolerances as small as 2%. This allows consistent eq performance and repeatability from channel to channel that was not possible in the 60s. Smooth performance and eq response from minimum to maximum gain at all frequencies, provides unusually broad sonic and tonal options not experienced since the 1970s.
Features:
- Input: Active balanced discrete transistor impedance converter
- Output impedance: 150 ohms
- +/-12 db gain range: Equalize or Attenuate
- 4 frequencies selectable per band. LF: 40, 100, 250, 500hz. HF: 1.5k, 3k, 5k, 10k
- Peak/Shelf function on each band. Shelving at all frequencies, Peaking at 250, 500, 1.5k, 3k and 5k
- Distortion: 0.03% typical
- Maximum output: +30db at less than 0.8%thd. (+29.5db at 0.06%thd)
- Frequency response: +/- 0.25db, 10hz to 70khz typical
- Signal to noise: -85db typ
Electrodyne Audio
Electrodyne 2511
$2,300 Dólares
Fecha estimada de entrega Noviembre 17 and Noviembre 19. * Cuando aparece en bodega ó última pieza.
Garantía del Precio Más Bajo
Descuento por Compras Mayores
Facturaciones
Meses Sin Intereses con PayPal
Consultoría Experta Gratuita
$2,300 Dólares
$2,300 Dólares
Producto Original
The Electrodyne 2511 is a classic two-band discrete transistor reciprocal active inductor equalizer using 1969/1970 design technology. The custom inductors and output transformer are made by Electrodyne’s original maker, to strict factory manufacturing tolerances as small as 2%. This allows consistent eq performance and repeatability from channel to channel that was not possible in the 60s. Smooth performance and eq response from minimum to maximum gain at all frequencies, provides unusually broad sonic and tonal options not experienced since the 1970s.
Features:
- Input: Active balanced discrete transistor impedance converter
- Output impedance: 150 ohms
- +/-12 db gain range: Equalize or Attenuate
- 4 frequencies selectable per band. LF: 40, 100, 250, 500hz. HF: 1.5k, 3k, 5k, 10k
- Peak/Shelf function on each band. Shelving at all frequencies, Peaking at 250, 500, 1.5k, 3k and 5k
- Distortion: 0.03% typical
- Maximum output: +30db at less than 0.8%thd. (+29.5db at 0.06%thd)
- Frequency response: +/- 0.25db, 10hz to 70khz typical
- Signal to noise: -85db typ
