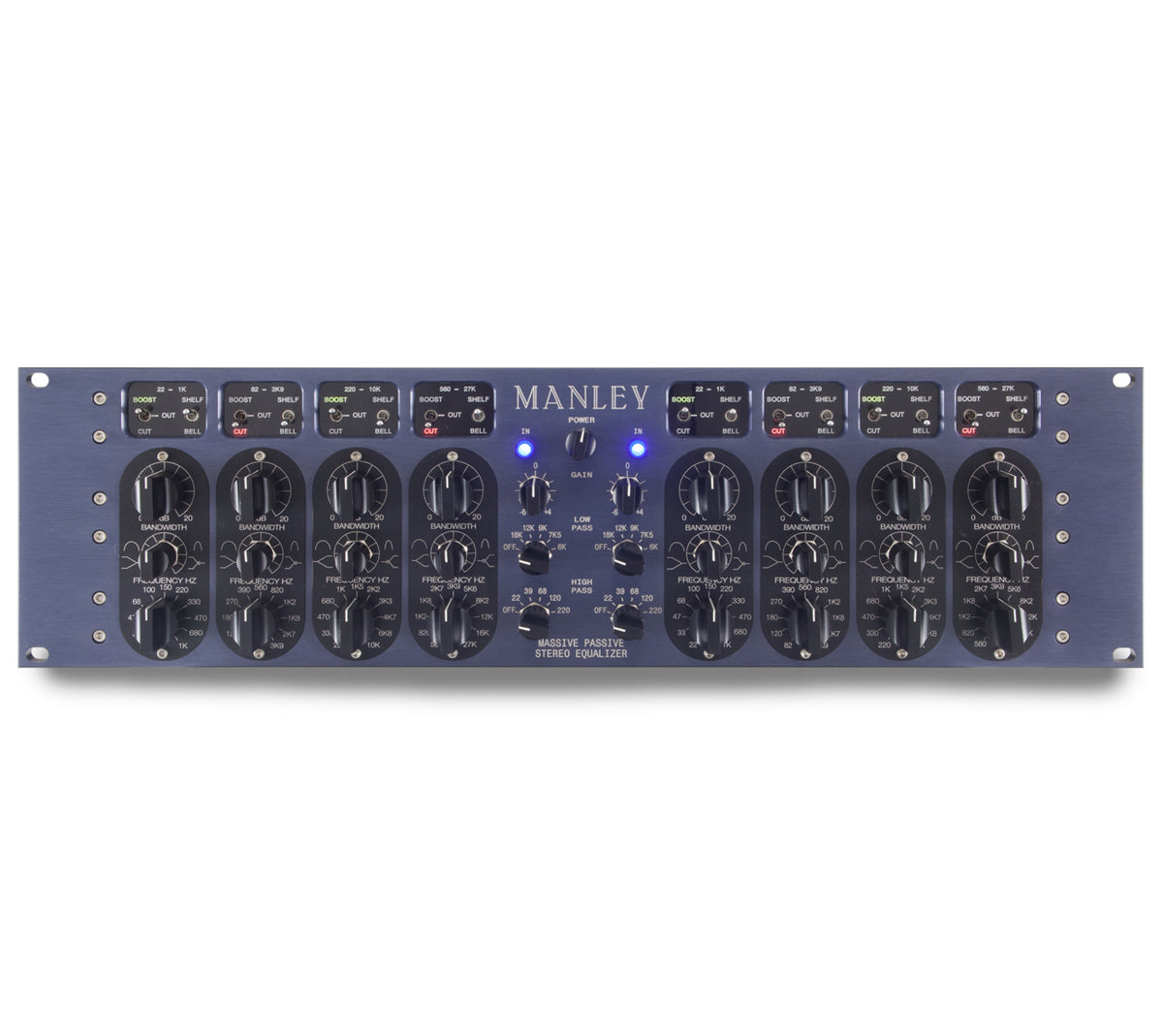

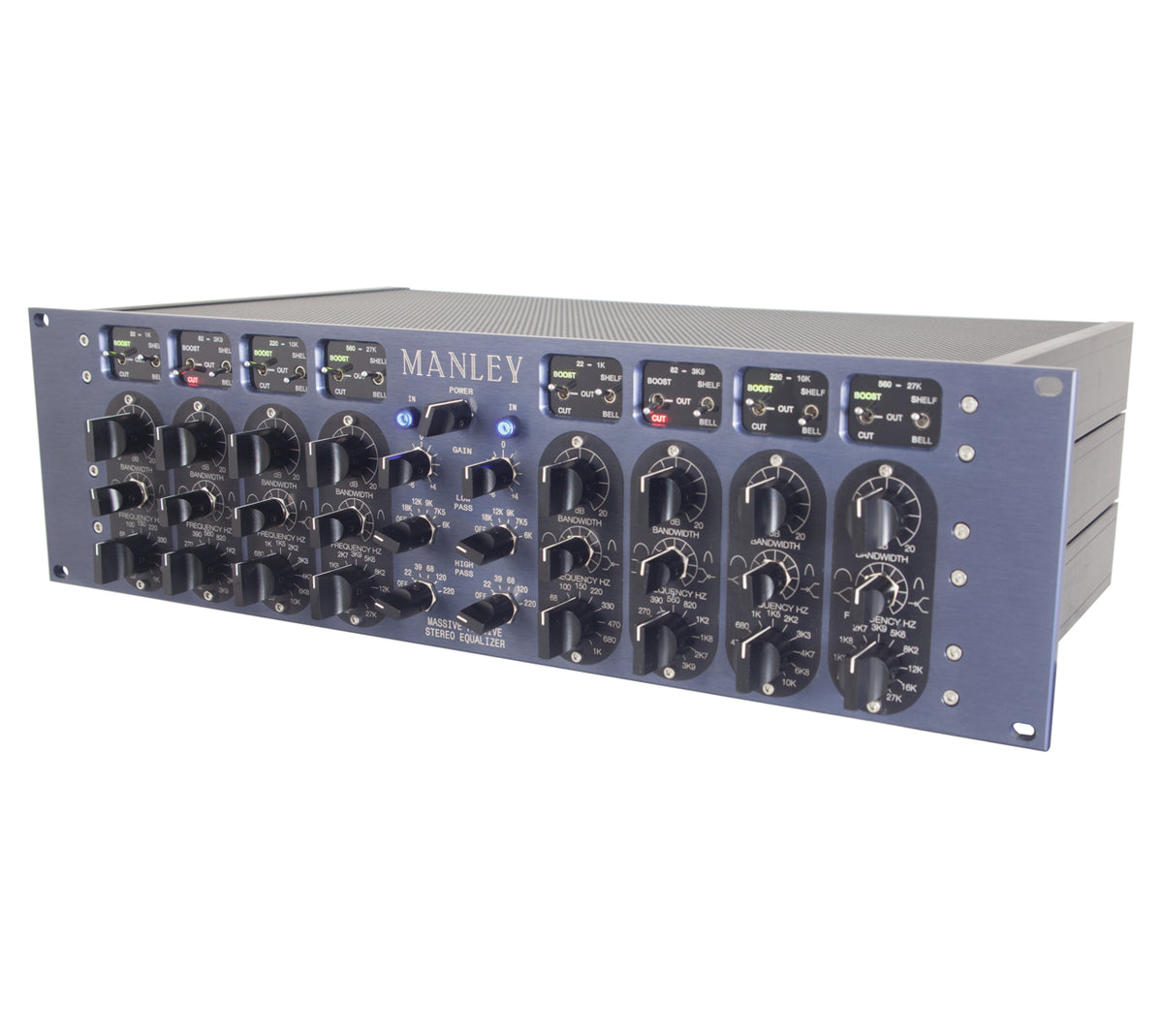

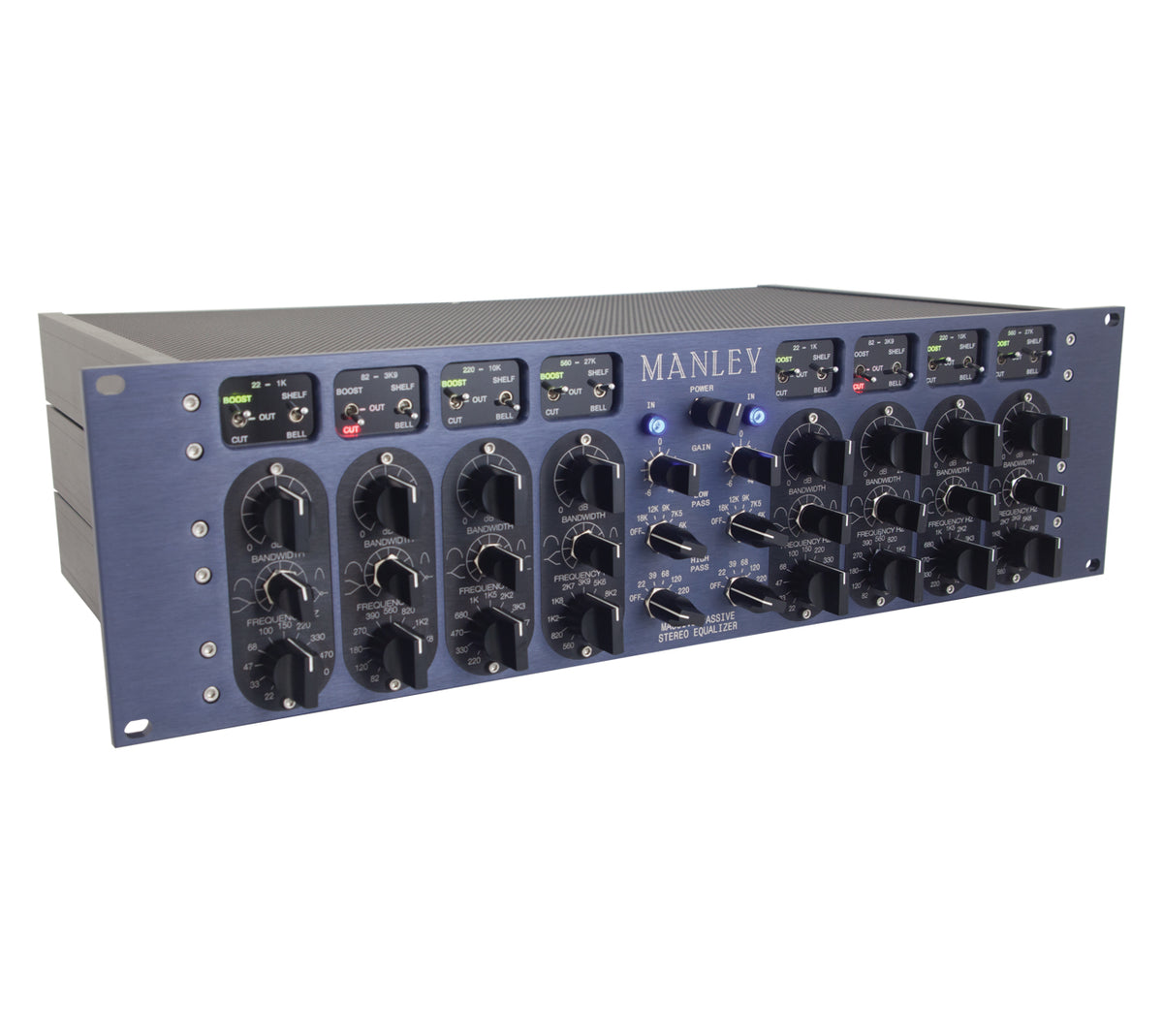

Manley Massive Passive

Colossal, timbre-twisting passive equalization using metal-film resistors, film capacitors, and hand-wound inductors to organically sculpt the tone from subtle to vivid. Manley’s tube stages handle huge HF boosts without sibilance and unbelievable fatness without mud. “It’s like a Pultec on steroids.”

he MASSIVE PASSIVE is a two channel, four band equalizer, with additional high pass and low pass filters. "Passive" refers to the tone shaping part of this clever new EQ design not using any active circuitry. Only metal film resistors, film capacitors and hand-wound inductors sculpt the sound, kinda like a Pultec EQ on hyper-steroids. Super-beefy, hugely-high-headroom Manley all-tube make-up gain amplifiers deliver your tunes into the next realm. "Massive".... it's a fitting word for this beast. You'll need to experience this.

DETAILS

THE FILTERS
HIGH PASS FILTERS
 22, 39, 68, 120, 220 Hz, OFF
LOW PASS FILTERS
 6 kHz, 7K5, 9 kHz, 12 kHz, 18 kHz, OFF

PARAMETRIC FREQUENCIES
LOW
 22, 33, 47, 68, 100, 150, 220, 330, 470, 680, 1K
LOW MID
 82, 120, 180, 270, 390, 560, 820, 1K2, 1K8, 2K7, 3K9
HIGH MID
 220, 330, 470, 680, 1K, 1K5, 2K2, 3K3, 4K7, 6K8, 10K
HIGH
 560, 820, 1K2, 1K8, 2K7, 3K9, 5K6, 8K2, 12K, 16K, 27K

FEATURES

• All-Passive tone sculpting circuitry
• Unique Shelf curves use the "bandwidth" control
• Overlapping and Interleaved Frequency choices
• Every band switchable to shelf or bell
• Vacuum tube make-up gain and line drivers
• Parallel symmetrical topology
• Premium components throughout
• Passive HP and LP Filters plus gain trims

SPECIFICATIONS

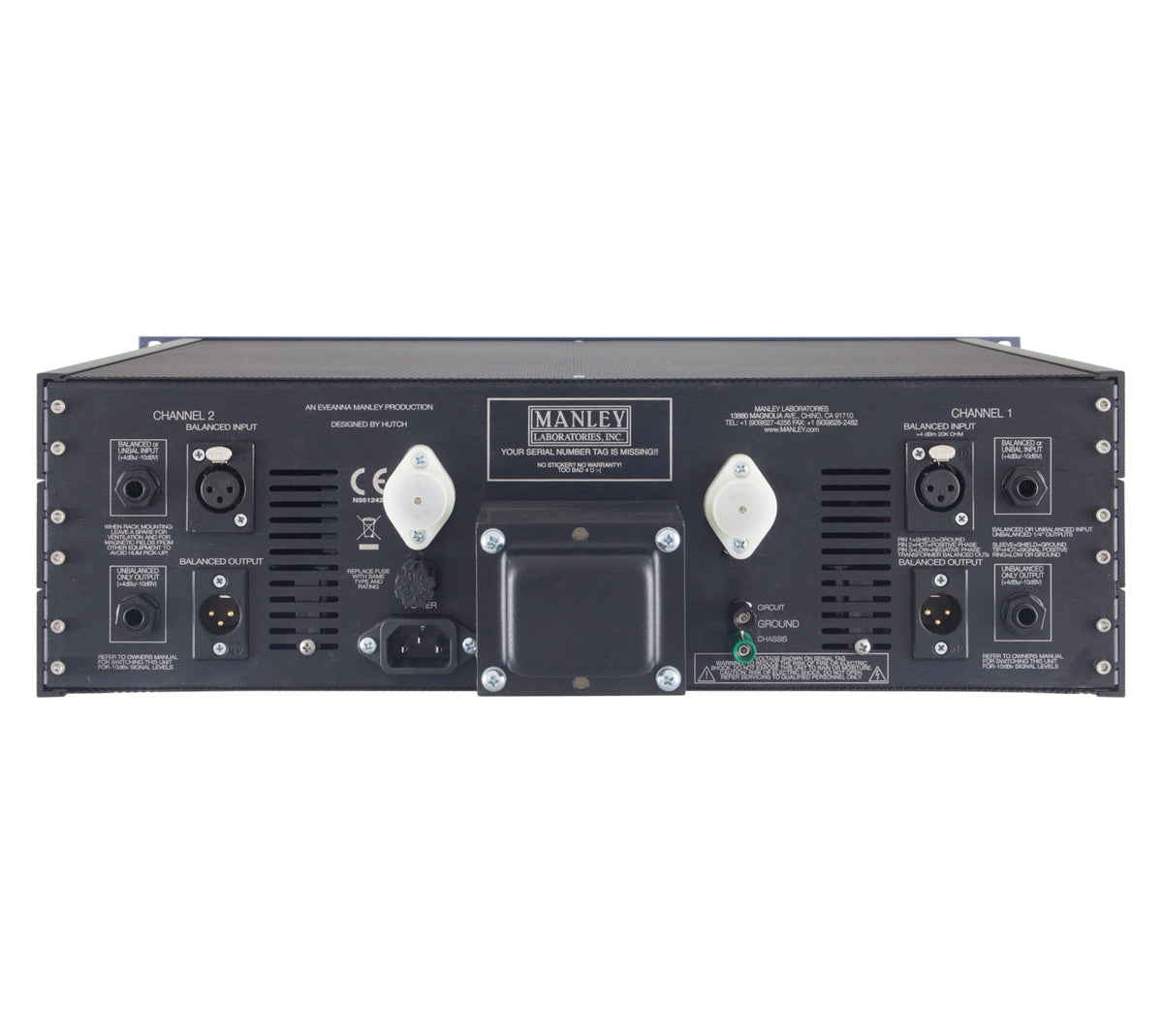

• Ins & Outs Balanced XLR & 1/4" (accepts unbalanced)
• Level +4 dBu nominal, internal switches for -10 operation
• Bypass Switch bypasses EQ & tube circuits (not hardwire)
• 44 Frequencies (roughly 1/4 octave spacing)
• Frequency Range: 22 Hz to 27 kHz
• EQ Boost/Cut Range : 20 dB boost, 20 dB cut
• Nominal Q range: 1.5 to 3 (uniquely active in shelf modes)
• Frequency Response: ±2 dB: 8 Hz to 60 KHz
• Maximum Output @ 1.5% THD +37 dBv; +26dBv @ 20 Hz
• THD & Noise (1KHz @ +4 dBu): 0.06%
• Noise Floor (referred to +4dBu): -85 dB (A Weight)
• Dynamic Range: 120 dB
• Tube Complement: 2 x 12AT7 EH, 4 x 12BH7EH for serial MSMPX### after 3/2014
• Tube Complement: 2 x 12AX7 EH, 4 x 6414 for serial MSMPX### after 2/2004
• Tube Complement: 2 x 5751, 4 x 6414 for serial MSMP### until 2/2004
• Power Consumption (120/240VAC): 72 watts
• Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
• Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.
• Mains Voltage Frequency: 50~ 60Hz
• Size (3U): 19" x 5.25" x 10"
• Weight: Unit 21 lbs. Shipping Weight: 27 lbs.

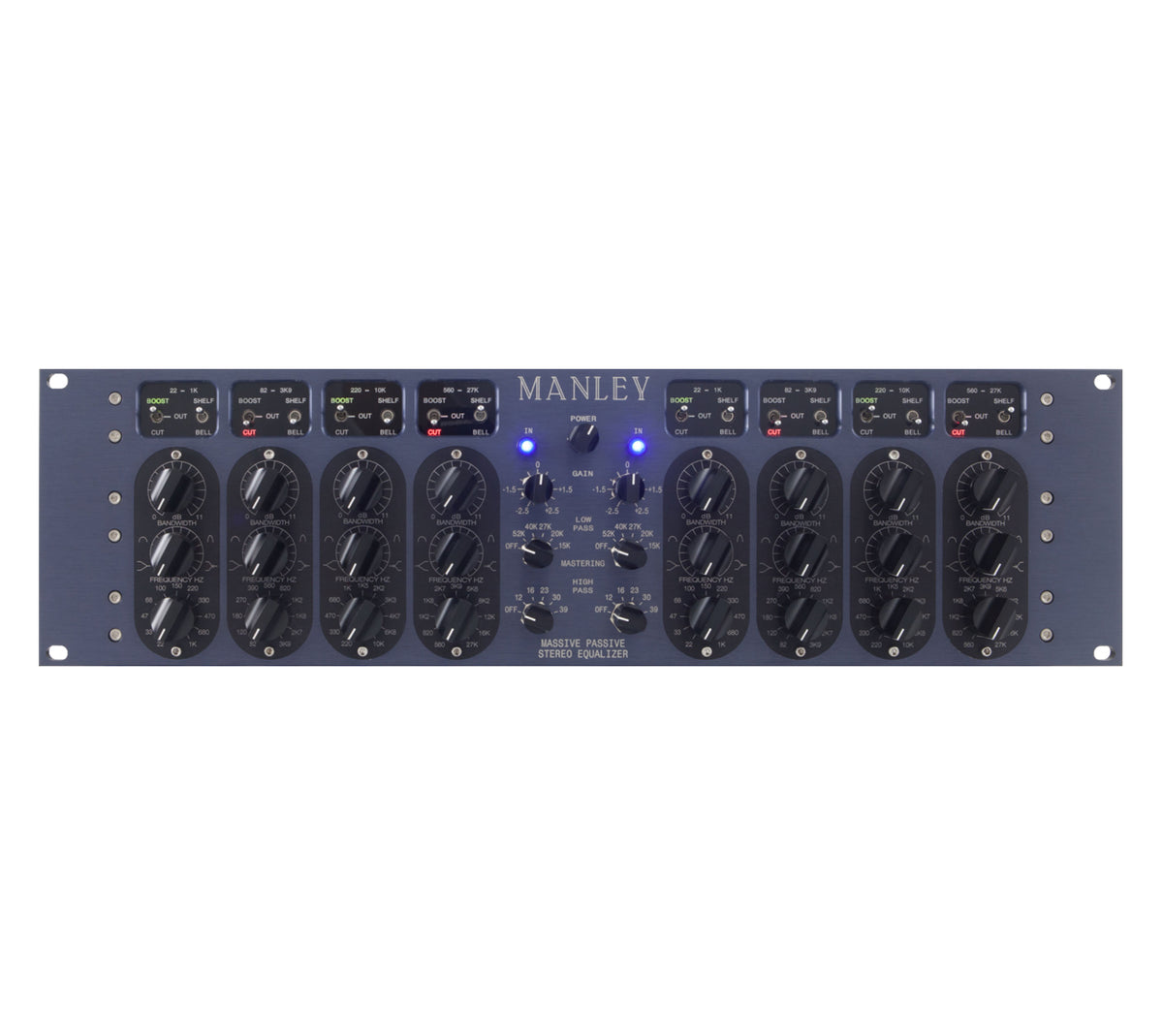

THE MASTERING VERSION
WE CAME UP WITH A CLEVER WAY TO PULL THIS OFF...

...WITHOUT breaking your bank account, thanks to these interesting mechanically detented knobs for the GAIN and BANDWIDTH controls! These knobs are of our own design. They are a clever two-part metal design using a ball and spring detent system. They ensure repeatability and a good, positive feel, without the incredible cost and space problems tons of Grayhill switches would have caused.

We have seen in the past that the only engineers who have asked about a mastering version had yet to try the Massive. Using your previous extensive and intensive experience with other EQs may be a mistake, especially if you expect the Massive Passive to be roughly similar to them. It isn't. Please, try it first, then decide.

MASTERING VERSION FEATURES

• All-Passive tone sculpting circuitry
• Unique Shelf curves use the "bandwidth" control
• Overlapping and Interleaved Frequency choices
• Every band switchable to shelf or bell
• Vacuum tube make-up gain and line drivers
• Parallel symmetrical topology
• Premium components throughout
• HP and LP Filters
• STEPPED GAIN trims -2.5 to +2.5dB in 11 steps of 1/2dB each
• Metal Manley mechanically detented GAIN and BANDWIDTH control knobs

MASTERING VERSION SPECIFICATIONS

• Ins & Outs Balanced XLR & 1/4" (accepts unbalanced)
• Level +4 dBu nominal, internal switches for -10 operation
• HARDWIRE Bypass Switch (unit does pass audio when powered off)
• 44 Frequencies (roughly 1/4 octave spacing)
• Frequency Range: 22 Hz to 27 kHz
• EQ Boost/Cut Range: Maximum 11dB boost or cut
• Nominal Q range: 1.5 to 3 (uniquely active in shelf modes)
• Frequency Response: ±2 dB: 8 Hz to 60 KHz
• Maximum Output @ 1.5% THD +37 dBv; +26dBv @ 20 Hz
• THD & Noise (1KHz @ +4 dBu): 0.06%
• Noise Floor (referred to +4dBu): -85 dB (A Weight)
• Dynamic Range: 120 dB
• Tube Complement: 2 x 12AU7, 4 x 6414
• Power Consumption (120/240VAC): 72 watts
• Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
• Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.
• Mains Voltage Frequency: 50~ 60Hz
• Size (3U): 19" x 5.25" x 10"
• Weight: Unit 21 lbs. Shipping Weight: 27 lbs.
