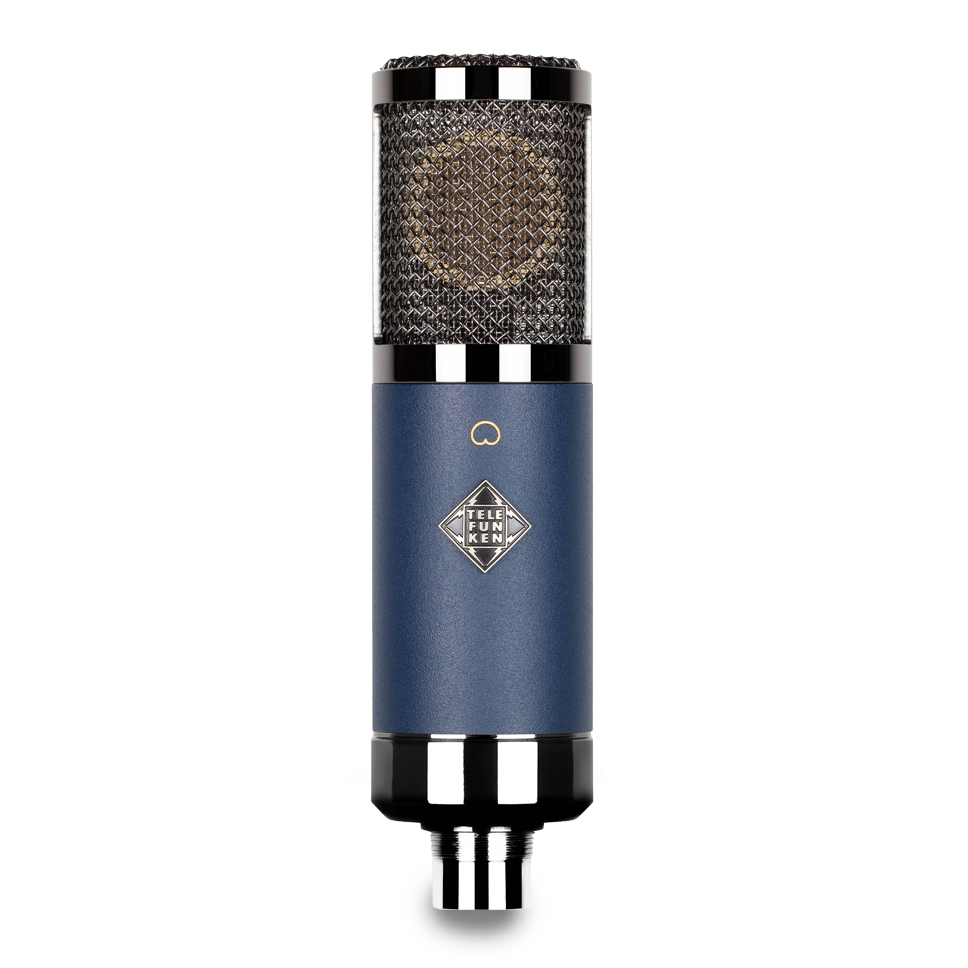

Telefunken TF11

$895 Dólares

Producto Original

Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high performance, the phantom-powered TF11 exhibits a beautifully open and detailed frequency response with exceptionally fast transient response, high S.P.L handling, and low self-noise. The compact, cardioid only TF11 is versatile, portable, and dependable for all recording environments from home to studio to stage.

Circuit Design
The TF11 features a unique combination of circuit elements shared with other TELEFUNKEN Elektroakustik designs. The CK12-style edge terminated capsule is a single membrane version of the capsule featured in the TF51. The amplifier is a unique proprietary take on the classic FET microphone amplifier similar to the M60, coupled with a custom large format nickel-iron core transformer made in the UK by OEP/Carnhill. Premium through-hole components include UK-made polystyrene film capacitors, Nichicon Fine Gold electrolytic capacitors, and a high-performance, ultra-low-noise JFET amplifier.

Features

Cardioid polar pattern
Compact travel and budget friendly design
Open and detailed tone with fast transient response
Designed and assembled by hand in the USA
High S.P.L handling, low noise phantom-powered FET amplifier
CK12-style capsule and UK-made OEP/Carnhill transformer

Applications

Live Sound: Drums, Piano, Acoustic Instruments
Vocals: Pop, Rock
Drums: Overheads
Acoustic Guitar
Cello, Upright Bass
Percussion

Accessories
Every TF11 FET microphone system comes with a MC11 Microphone Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

Specifications

Type: FET Condenser
Polar Pattern: Cardioid
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: +48V Phantom Power
Capsule: TK51S - Edge Terminated Large Diaphragm, Single Membrane
Tube: n/a
Transformer: OEP/Carnhill T218
Sensitivity: 14 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.01%
Output Impedance: 110 Ω
Maximum S.P.L (for 1% THD): > 135 dB
S/N Ratio: 90 dBA
Self Noise (Amplifier): 4 dBA
Dimensions: 175 mm L x 46 mm Dia
Weight: 545 g
Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case
