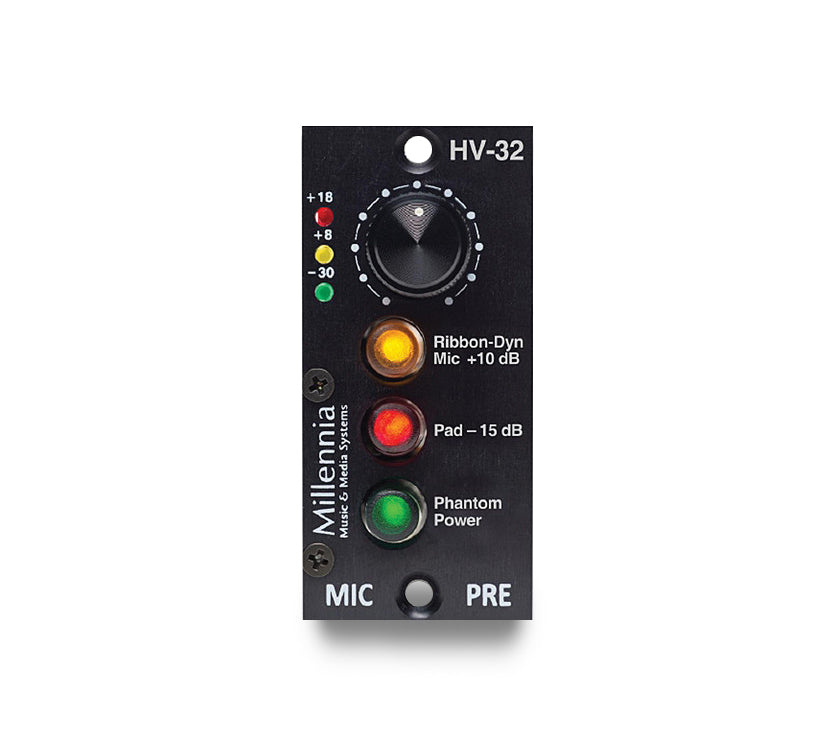

Millenia HV-32

$539 Dólares

Producto Original

Single Channel API 200-Rack Microphone Preamp

Authentic Transparency for Unrestricted Creativity

Fits in API 200 frame and API Legacy and Vision consoles
Continuously variable gain control
DC coupled ribbon mic with 10dB gain boost setting
48V phantom power
15 dB Pad

Specifications

Minimum Gain: 8.5 dB
Maximum Gain (continuously variable): 60 dB (70 dB in Ribbon Mode)
Frequency Response (+0 / -3 dB): sub 3 Hz to beyond 300 kHz
Noise (60 dB Gain, 10 Hz - 30 kHz, Inputs common): -130 dB EIN
Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out): < .001%, Typ. < .0005% (< 5 ppm)
Intermodulation Distortion ((50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out): < .0009%
Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out): < 2 degrees deviation
Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.): > 65 dB, Typ > 85 dB
Slew Rate (35 dB Gain, +27 dBu Out): > 25 Volts per microsecond
Maximum Input Level (20 Hz - 40 kHz): +20 dBu (no attenuator pads required)
Maximum Output Level (20 Hz - 40 kHz): +28 dBu
Phantom Input Impedance (1 kHz): 6,750 ohms
Output Impedance: 24.3 Ohms (x2)
Phantom Powering: +48 V dc, +/- 2 V dc
Dimensions/Shipping Weight: 1-1/8” W x 2-5/8” H x 5-7/8” D, 1 lb.
