Descripción del Producto
- Continuously variable gain control
- Front panel instrument input
- DC coupled ribbon mic with 10dB gain boost setting
- 80 Hz rolloff filter
- 48V phantom power
- 15 dB Pad
- Polarity flip
- API 500 series compatible format
- Minimum Gain:14.5 dB, 1dB with Pad
- Maximum Gain (continuously variable): 60 dB (70 dB in Ribbon Mode)
- Frequency Response (-3 dB): < 10 Hz to > 200 kHz - typical -1.0 dB @ 10 Hz - typical -1.5 dB @ 200 kHz
- Noise (60 dB Gain, 10 Hz - 30 kHz, Inputs common): -130 dB EIN
- Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, +24 dBu Out): < .003%, Typical < .001%
- Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain: < .0006% +12 dBu Out < .001% +20 dBu Out
- Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out): < 2 degrees deviation
- Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.): > 65 dB, Typ > 85 dB
- Slew Rate (35 dB Gain, +24 dBu Out): > 25 Volts per microsecond
- Maximum Input Level (20 Hz - 40 kHz): +12dBu @ 0.02% THD+N +18dBu @ 0.02% THD+N with pad<
- Maximum Output Level: 1 kHz @ 35dB of gain, THD+N is: < 0.001% at +26dBu output < 0.05% @ +28 dBu output.
- Input Impedance (1 kHz): 2k2 phantom / 1M inst
- Output Impedance: 24.3 Ohms (x2)
- Phantom Powering: provided by 500 rack
- Dimensions/Shipping Weight: 1.5” W x 5.25” H x 6” D, 2 lbs..
Hand-signed by John La Grou and the Millennia Team

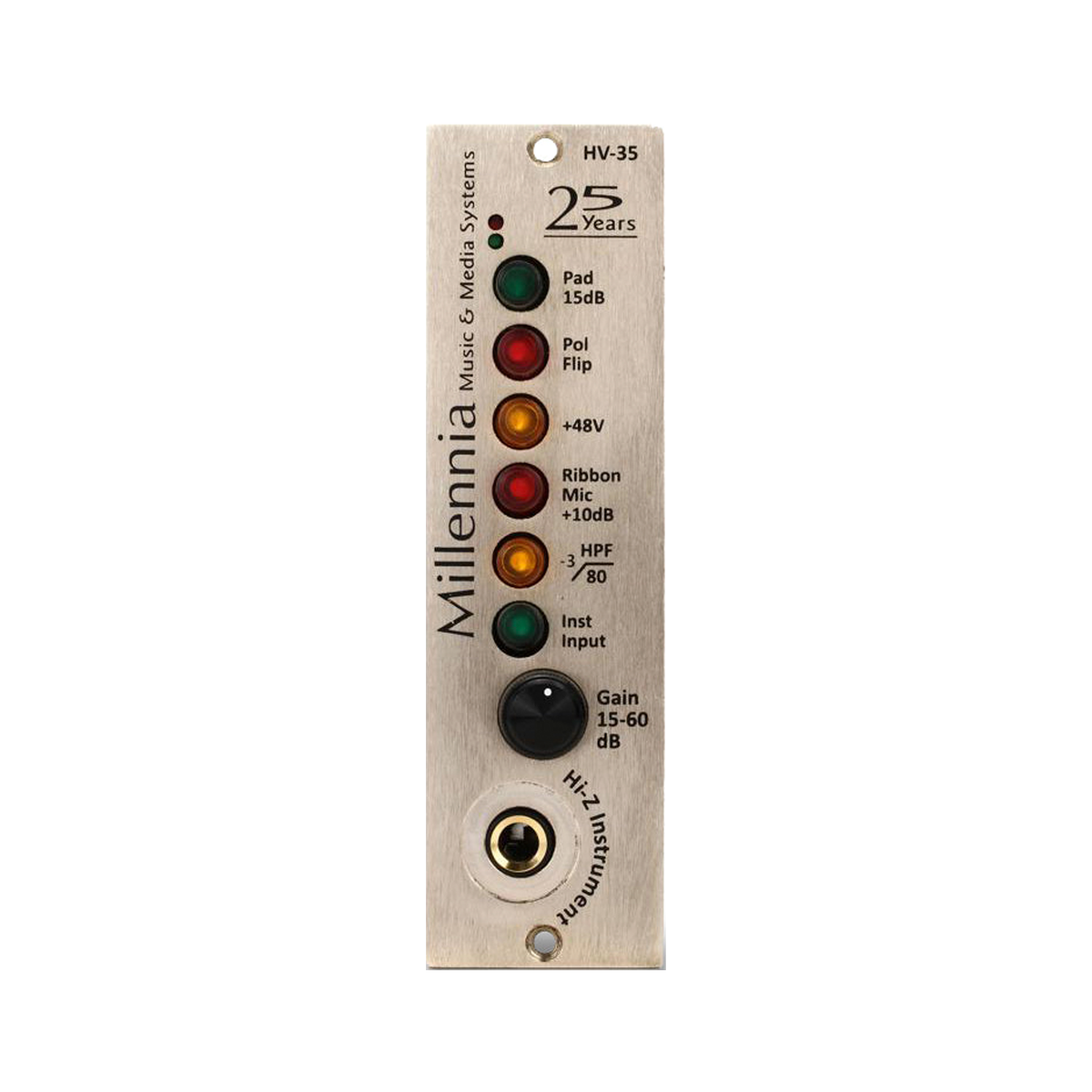

To celebrate our 25th anniversary, along with our 2019 induction into the prestigious NAMM Technology Hall of Fame, we have made a special limited edition HV-35 Anniversary micamp. Production is limited to 100 individually-numbered units. Sporting a champagne-gold anodized finish and "25 Year" logo, each HV-35-ANIV is hand-signed by John La Grou and the Millennia team.
-
Reseñas
-
-
Detalles del Producto
- Marca: Millennia
Distribuidor Oficial de Pro Audio High-End
