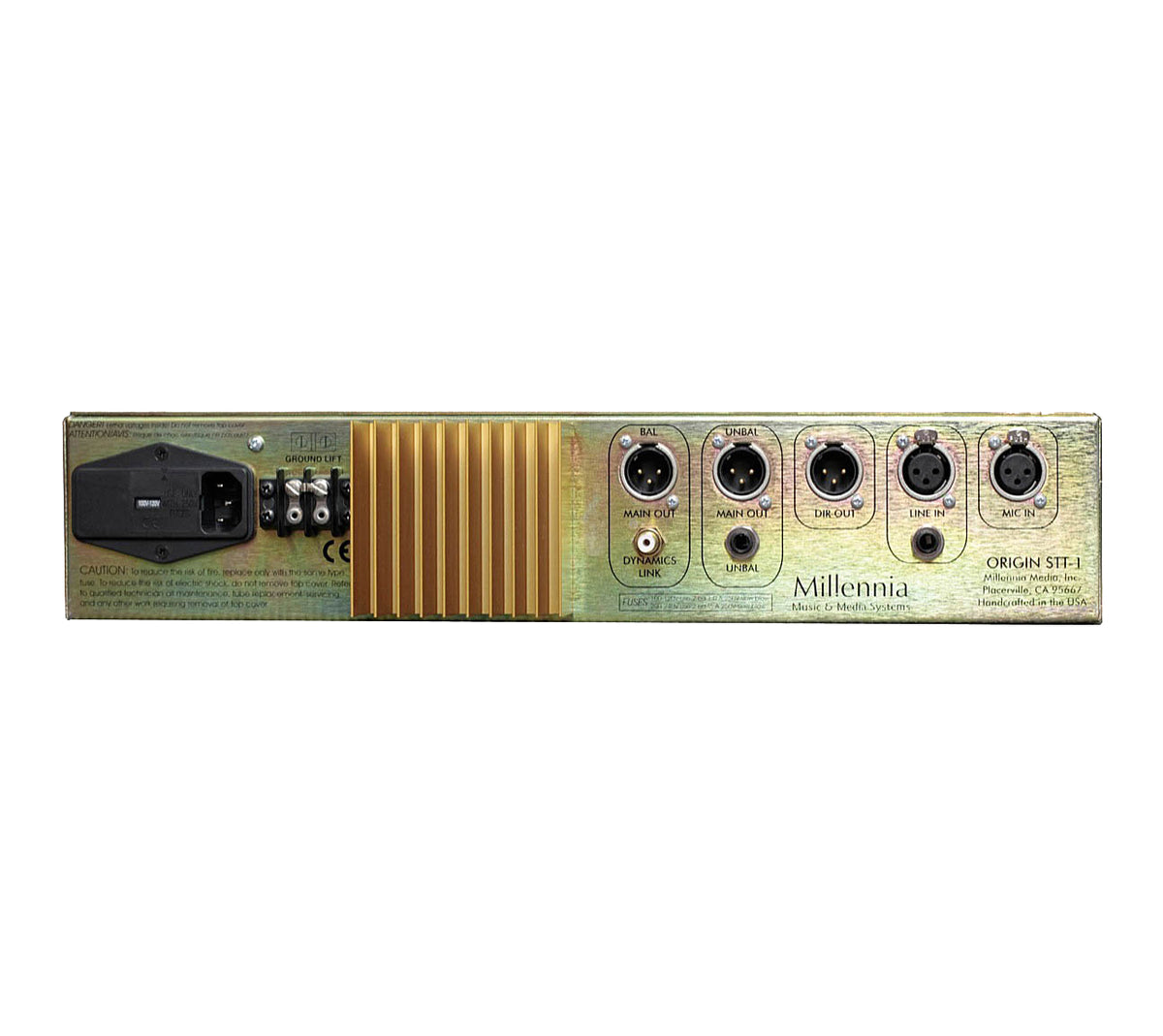

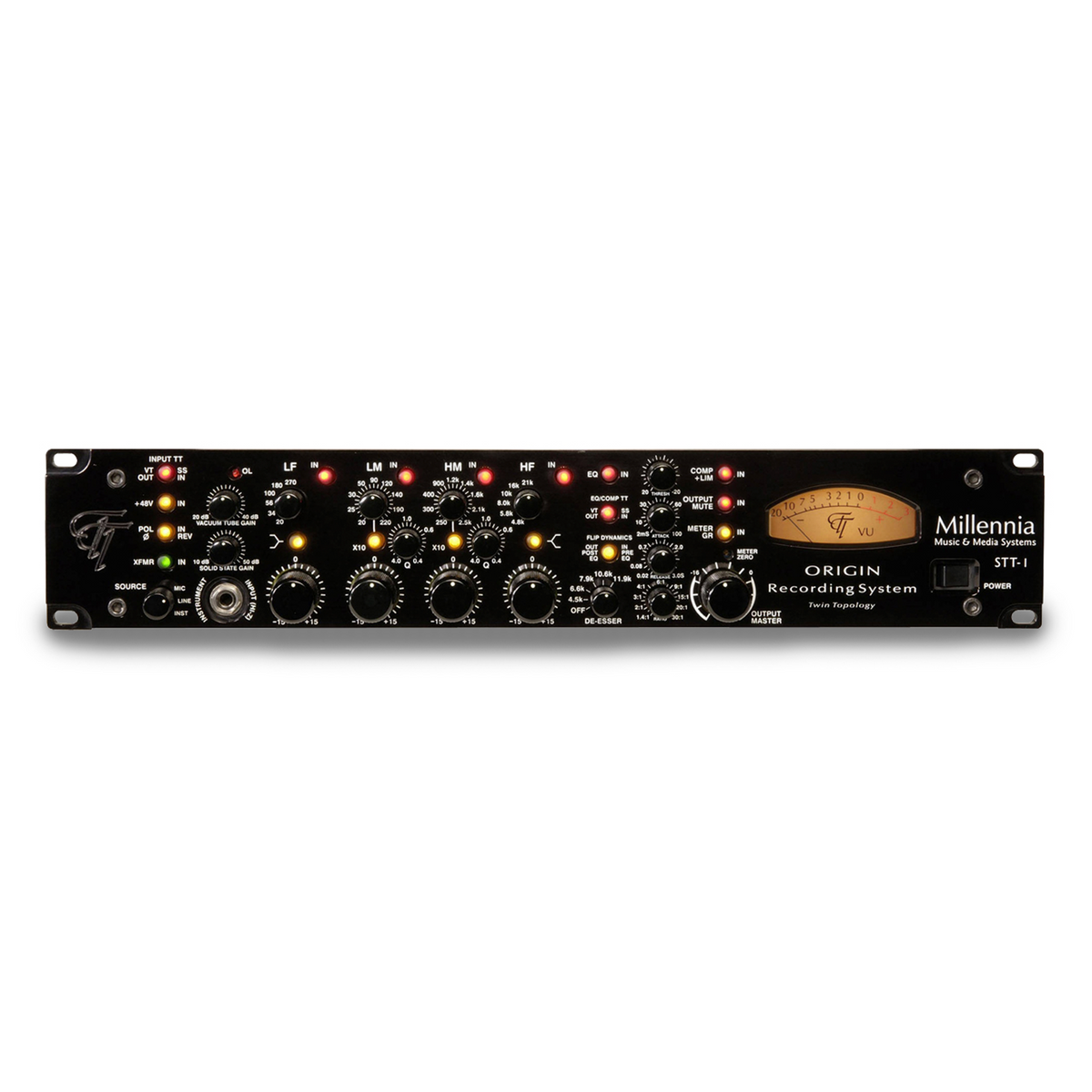

Millennia STT-1 Origin

Twin Topology Channel Strip

Over 130 Optimized Signal Topologies

• Twin Mic Preamps — M-2B vacuum tube or HV-3 discrete solid state
• Twin NSEQ-2 Mastering-Grade Parametric EQs — vacuum tube or discrete solid state
• Three Opto Compressor/Limiter Paths — TCL vacuum tube, discrete solid state, passive
• Twin Opto De-Esser Paths — vacuum tube or discrete solid state
• Vacuum tube or discrete solid state line level paths
• Input coupling with or without MIT-01 audio transformer
• 1/4” vacuum tube DI input — route via tube or solid state gain path
• Effortless, lifelike musical performance at all levels
• Musically rich vacuum tubes available
• Gold audio connectors, tube sockets, relays and switches
• 3/8“ thick radius extruded aluminum face plate
• Durable black mirror-gloss anodized finish
• Mil spec 16 gauge cold-rolled steel chassis
• Ultra-clean toroid power supply: internal sub-chassis
• Hand machined aluminum knobs, illuminated IT&T pushbuttons
• Mogami Neglex OFC audio wiring
• Silver Teflon power wiring
• True audio VU meter for output level or dynamics gain reduction

Specifications

Microphone Preamplifiers & General:


• Twin Topology Mic Preamplifier Selection: Switchable, Vacuum Tubes or Solid-State
• Twin Topology EQ & Compressor: Switchable, Vacuum Tubes or Solid-State
• Twin Topology Input Coupling: Switchable, Transformer or Transformerless
• Maximum Output Level (Balanced): + 32 dBu
• Frequency Response (+0 / -3 dB (S/S)): sub 5 Hz to beyond 300 kHz
• Equivalent Input Noise: -131 dBu (SS, Common Source, Direct Out)
• THD + Noise (20 Hz - 22 kHz) (S/S): < .05 %, typ < .003 %
• Common Mode Rejection Ratio (S/S): > 40 dB, Typ > 70 dB @ 60 Hz
• Input Impedance (Mic): 6,200 ohms
• Input Impedance (Line): 2,200 ohms (x2)
• Input Impedance (DI - Instrument): > 1 megohm
• Output Impedance (Balanced): 24.3 ohms (x2)

Parametric Equalizer:


• Maximum EQ Boost/Cut Range (21 Step Detented):+/- 15 dB
• EQ Frequencies,Low Range Switch (Centers - Peak/Shelf Selectable): 20, 34, 56, 100, 180, 270
• Low Mid Sweep:20 Hz - 220 Hz or 200 Hz - 2.2 kHz. 10X Range switch selectable
• Hi Mid Sweep: 250 Hz - 2.5 kHz or 2.5 kHz - 25 kHz. 10X Range switch selectable
• High Range Switch (Centers - Peak/Shelf Selectable): 4.8 k, 5.8 k, 8.0 k, 10 k, 16 k, 21 k
• “Q” Range: Q = 0.4 to 4.0 Adjustable on middle ranges Q = 1.0 Fixed on low & high ranges

Optoelectronic Compressor/Limiter


• Threshold Range: Infinite to +20 dBu
• Attack Range: 2 ms to 100 ms
• Release Range: 80 ms to 3.0 s
• Compression Ratio Range: minimum 1.4 : 1, maximum 30 : 1
• De-Essing Frequency Switch: OFF, 4.9 k, 6.8 k, 8.2 k, 10.7 k , 12.0 k
• Power Consumption: 50 watts maximum
• Power Requirements: Selectable: 100-120, 200-240 V ac, 50/60 Hz
• Dimensions/Shipping Weight: 19” W x 3.5” H x 15.5” D, 25 lbs.
