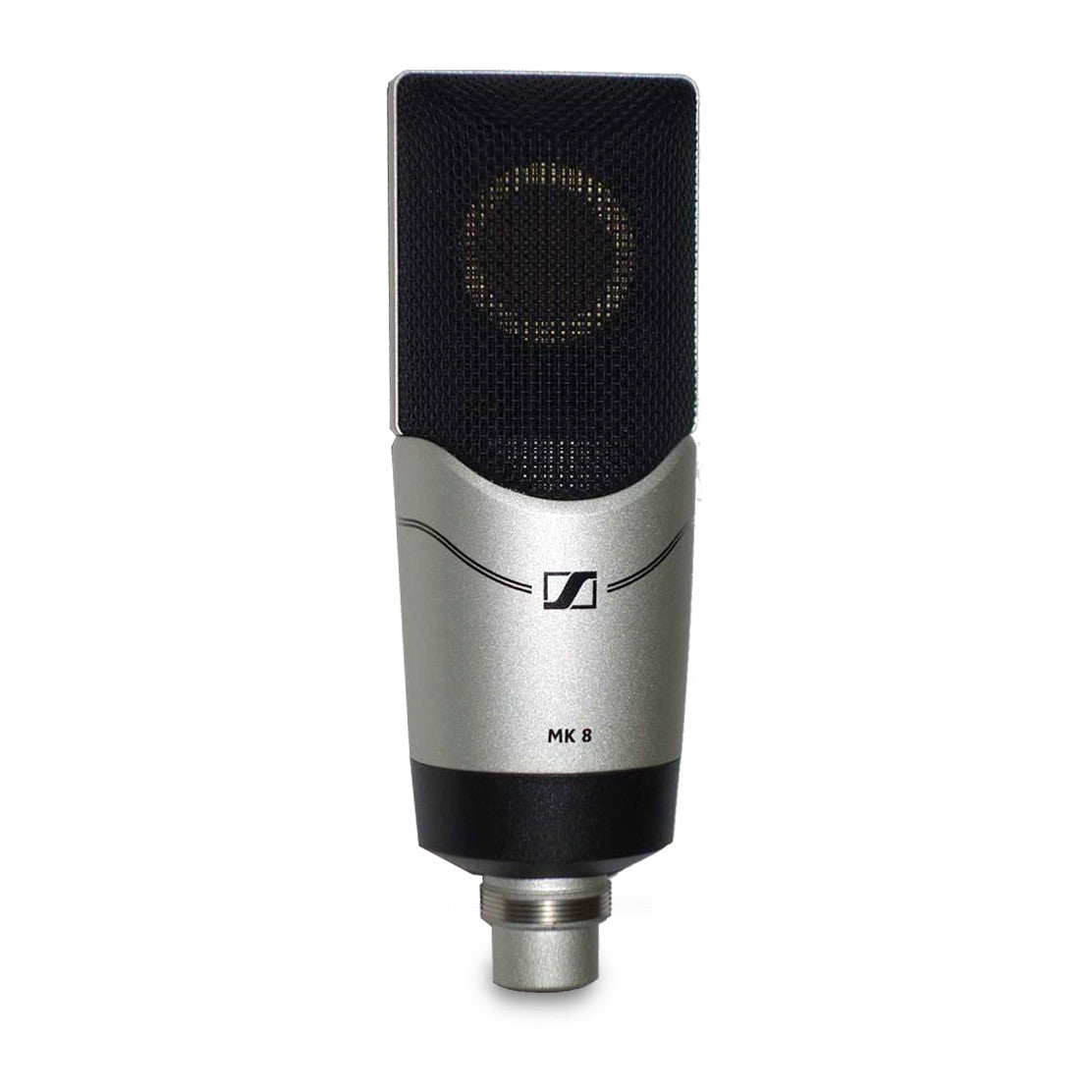

The MK 8 offers a great solution for advanced home recording applications and project studios alike. It is the microphone for people who pour all of their passion into their audio projects. The MK 8 offers sophisticated options to sign off your sound with your own personal handwriting. The dual-diaphragm condenser microphone delivers warm and precise sound reproduction. Its five independent polar patters allow for a multitude of recording applications and sound design options. No matter which mixing desk or recording device is used, the MK 8 matches the input sensitivity with a 3-step attenuator. Two adjustable filters compensate for the proximity effect as well as low frequency rumble or structure born noise.
The MK 8 has dual one-inch diaphragms precisely spattered with 24-carat gold. The shock-mounted capsule is accommodated within a sturdy metal housing.
The MK 8 will be available in late summer 2014.
The MK 8. Pride in Sound - Made in Germany.
- Dual-diaphragm true condenser microphone
- Five switchable polar patterns
- 3-position switchable low cut/roll-off filter
- 3-position pad switch
- Two 24-carat gold plated 1” diaphragms
- Shock-mounted capsule
- Rugged metal housing
- Safely sheltered electronics
- Designed and made in Germany
What's in the box?
- MK 8 microphone
- MZQ 4 Microphone clamp
- Instruction manual
- Dimensions: 160 x 57 mm (L x D)
- Frequency response: 20 Hz – 20 kHz
- Transducer principle: externally polarised condenser microphone, 1‘‘ diaphragm
- Weight: 485 g
- Pick-up pattern: Switchable: omni-directional, wide cardioid, cardioid, super-cardioid, figure-of-eight
- Nominal impedance: 50 Ohms
- Min. terminating impedance: 1000 Ohms
- Storage temperature: -20°C to 60°C
- Operating temperature: 0°C to +40°C
- AF sensitivity: 14,1 mV /-37 dB dBV
- Equivalent noise level: 10 dB(A)
- Maximum sound pressure level (passiv): 142 dB SPL (Dämpfung 0 dB)
- Power supply: 48 V phantom powering (P48)
- Current consumption: 4,1 mA
- Dynamic range: 132 dB
- Low-cut filter: Switchable: Low cut: 60 Hz, -18dB/Octave / Roll off: 100 Hz, -6dB/Octave
- Pre-emphasis: Switchable: 0dB, -10dB, -20dB
