Townsend Labs Sphere L22

*Por la escasez global de componentes electrónicos, tenemos pocas piezas en bodega. Es recomendable contactarnos si desea confirmar disponibilidad inmediata*

The Sphere L22™ microphone system from Townsend Labs models the characteristics of the most sought-after large-diaphragm condenser microphones with amazing accuracy, and allows selection of different mics and patterns even after tracking.

The Sphere™ system consists of a high precision dual channel microphone, which when paired with the included Sphere DSP plug-in (UAD, VST, AU, AAX Native) accurately models the response of a wide range of mics, including transient response, harmonics, proximity effect and three-dimensional polar response.

Now You Can:

• Record with the sound of microphones many have only dreamt about
• Change mic type, polar pattern, and other microphone characteristics, even after tracking!
• Audition the sound of different microphones without tiring the vocalist
• Reduce bleed, undesirable room coloration, and other common issues using Off-Axis Correction™
• Record in stereo from a single microphone

Specifications and System Requirements

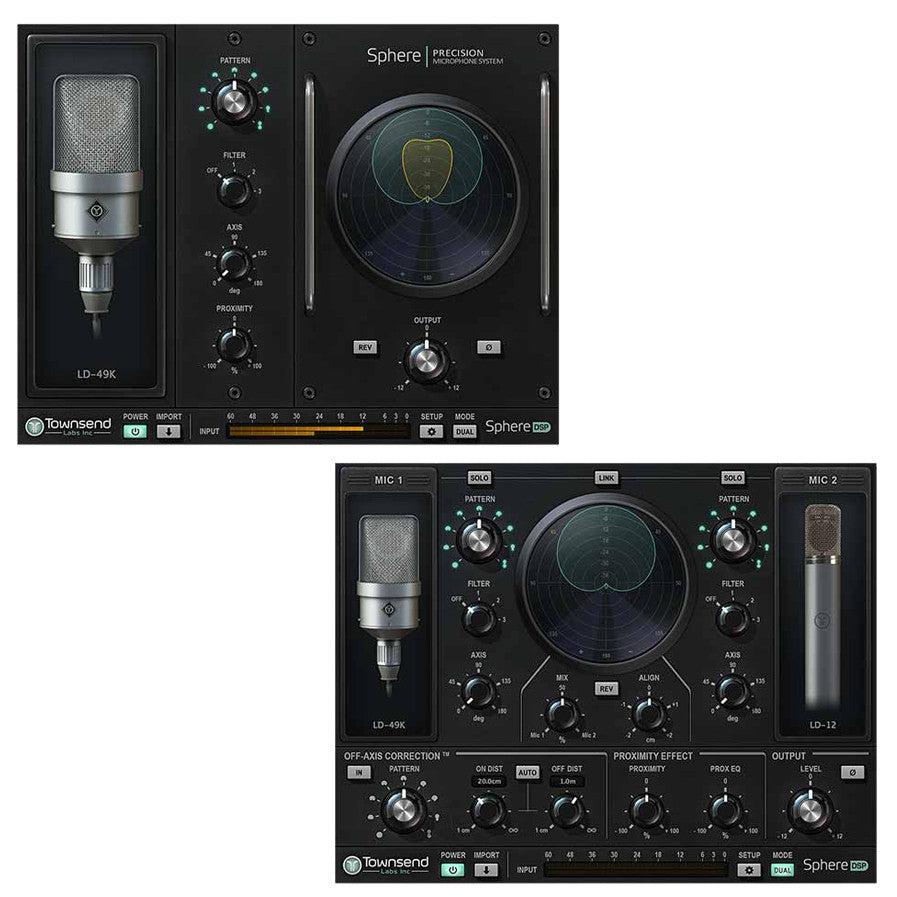

Polar Meter
The Sphere plug-in features a visually informative (and very cool) Polar Meter that dynamically displays the direction and level of sound being picked up by the microphone, as well as the currently selected polar pattern.

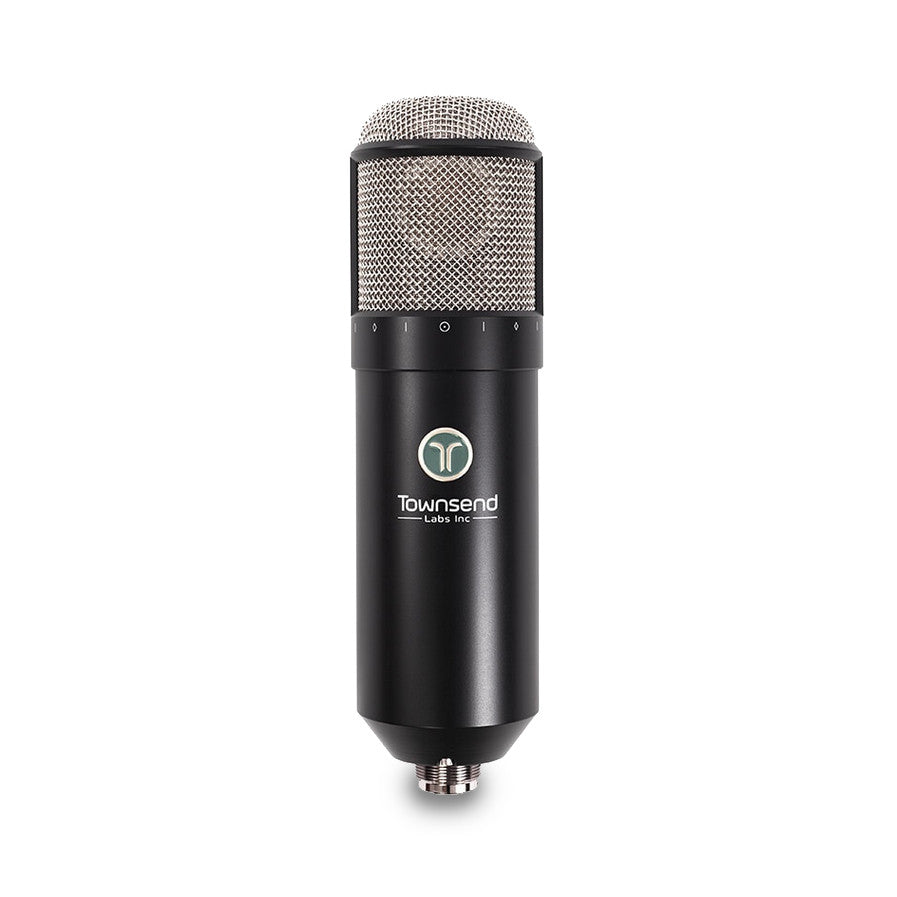

Sphere L22™ Microphone

• Equivalent Noise Level: 7 dB-A
• Max SPL at 0.5% THD: 140dB (with -20dB pad engaged)
• Pad Attenuation: -10db and -20dB
• Sensitivity: 22 mV/Pa
• Output Connector: 5-pin male XLR
• Breakout Cable: 10’ (3m) 5-pin female XLR to dual 3-pin male XLR
• Weight (mic only): 1.7 lbs. (770 grams)
• Dimensions (mic only): 8.9" x 2.5" (225mm x 63mm)
• Output Impedance: 200 Ohms
• Recommended Load Impedance: >1000 Ohms
• Phantom Power

• Voltage: 44 to 52 V per channel
• Current: 5 mA per channel typical, 8 mA at max SPL

Sphere™ DSP Plug-In
Supported Plug-in Formats:

• UAD
• AAX Native
• VST2
• VST3
• Audio Units (Mac only)

Supported Operating Systems:

• Native (AAX, VST and AU):

• Mac OSX 10.8.5 and above
• Windows 7 and above

• Apollo Interfaces and UAD-2 hardware (AAX, VST, AU, and RTAS)

• Mac OSX 10.9.5 and above
• Windows 7 and above

System Requirements:

• 4 GB of RAM
• 200 MB free disk space
• 1024 x 768 display resolution
• Internet connection to download software
• Two microphone preamplifiers with phantom power
• Compatible plug-in host application (DAW) software supporting AAX, VST2, VST3, AU or UAD.

Current Microphone Models:

• LD-47
• LD-49
• LD-67
• LD-87
• LD-12
• LD-251
• LD-800
• SD-451
• RB-4038
• DN-57
• Sphere Linear

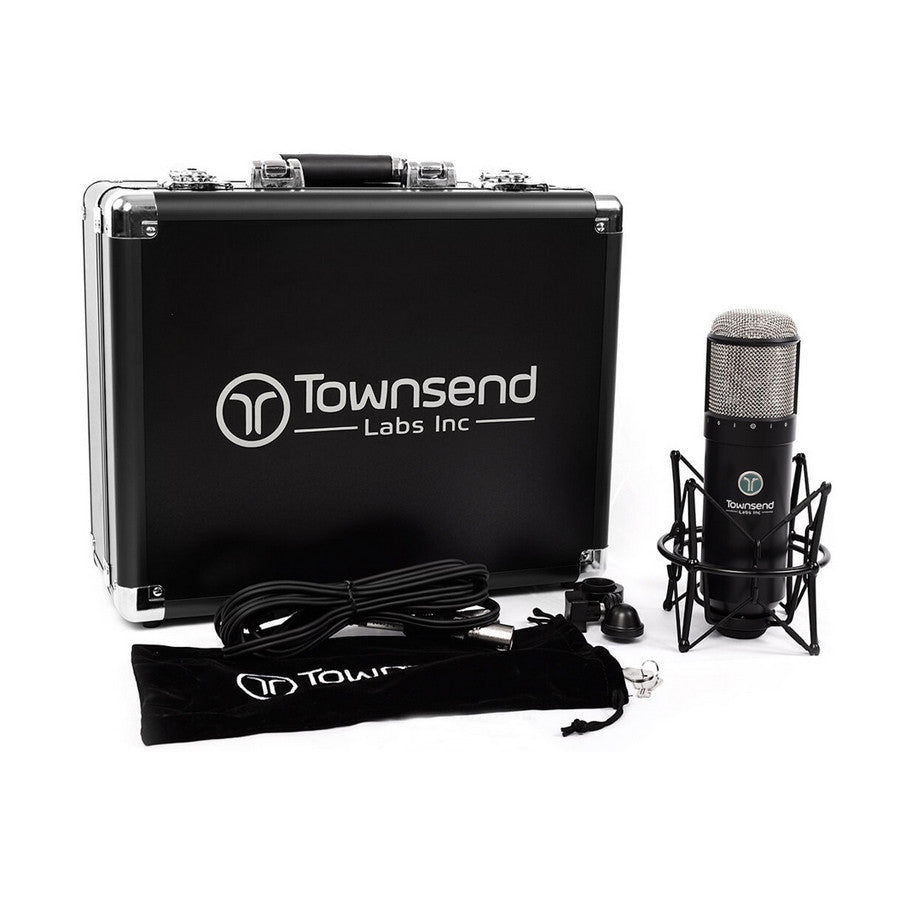

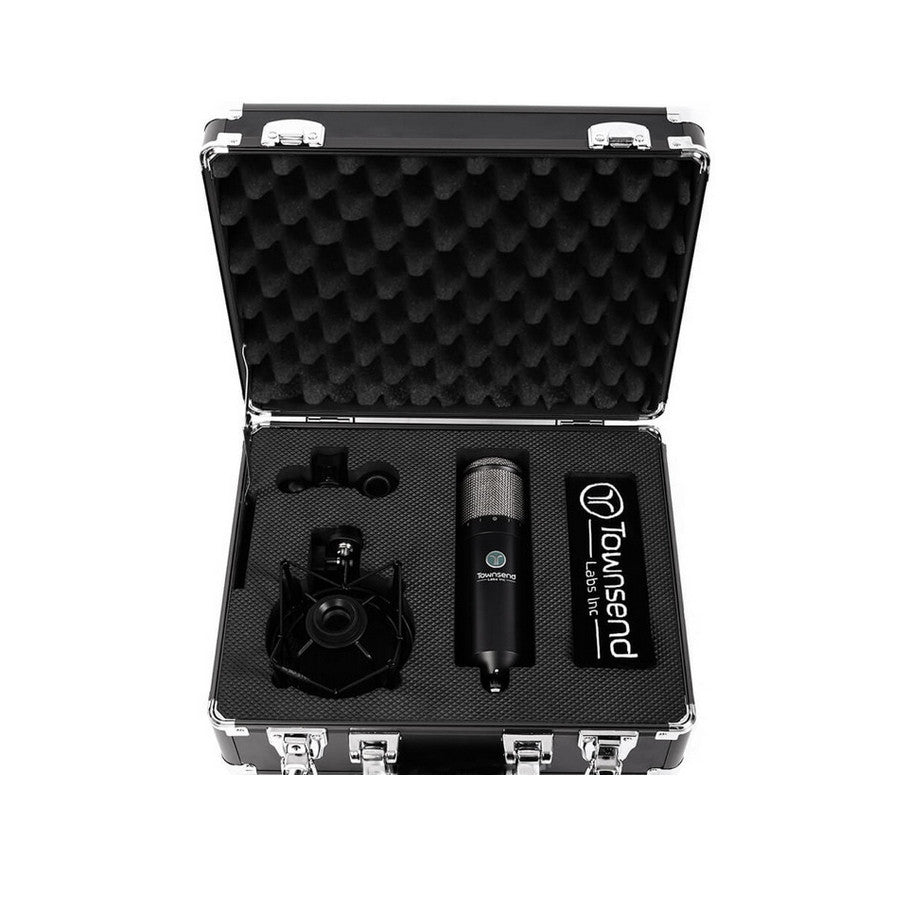

Bundled Accessories

• 10 Foot (3 Meter) Breakout Cable
• Shock Mount
• Swivel Mount
• Hard Carrying Case
• Plush Dust Cover
