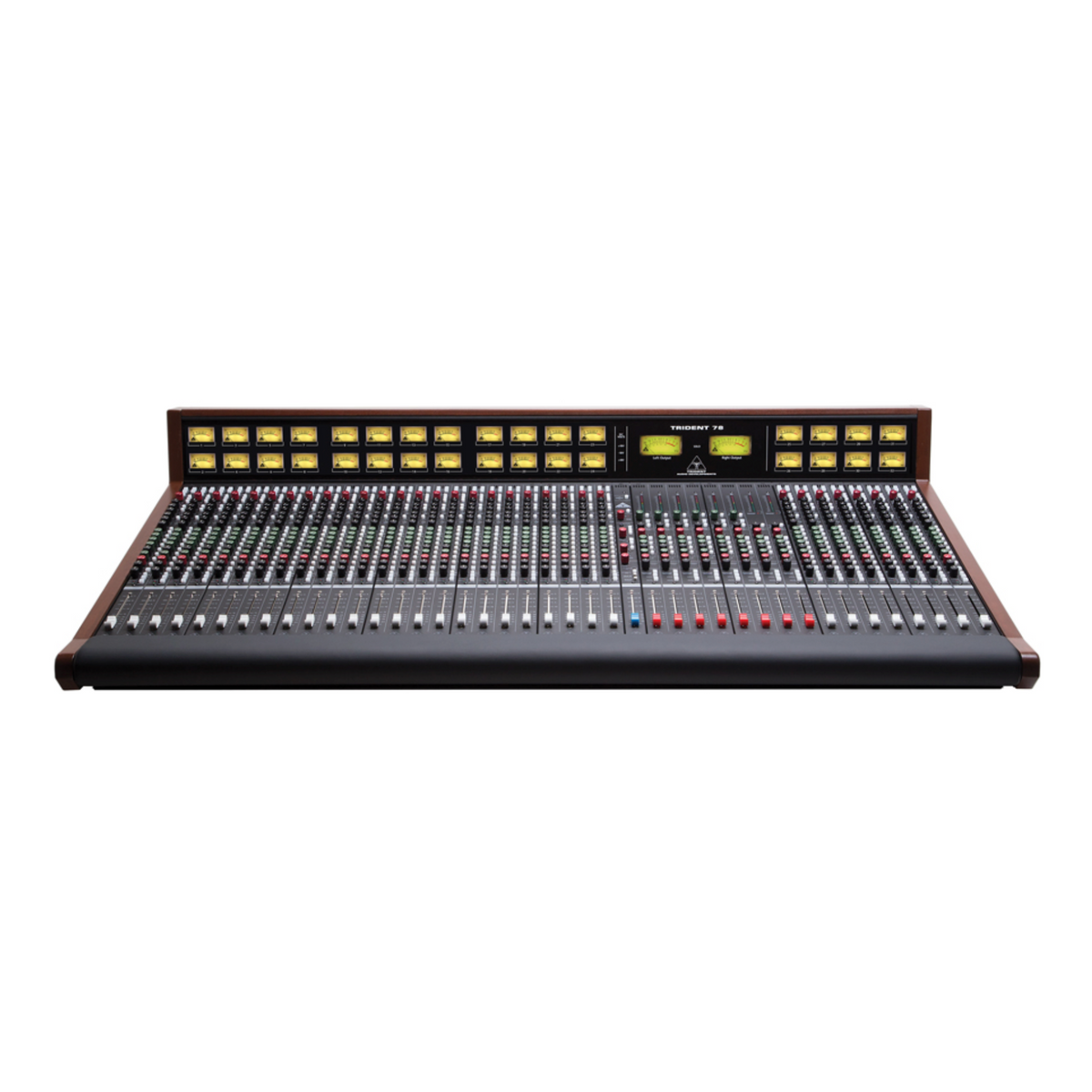

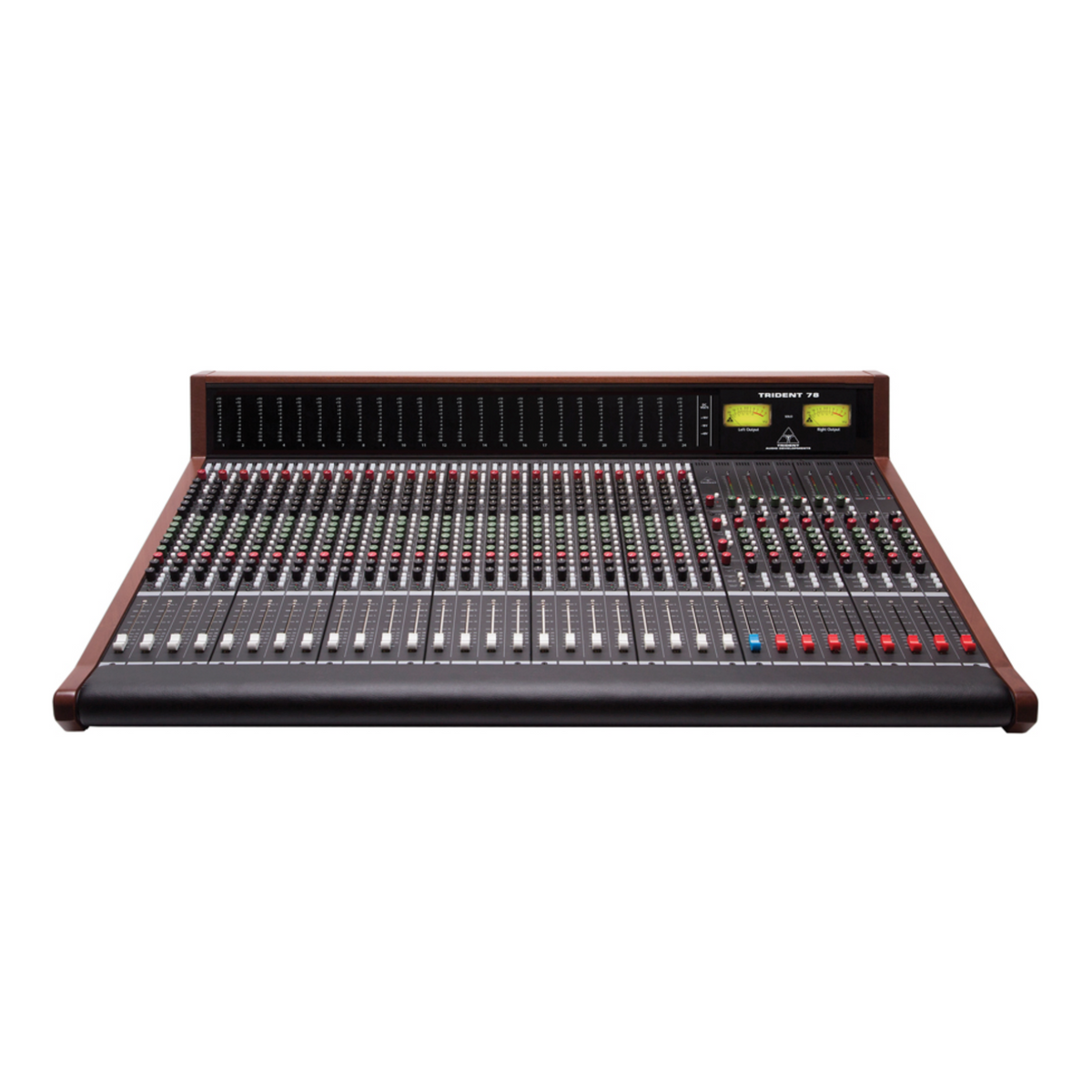

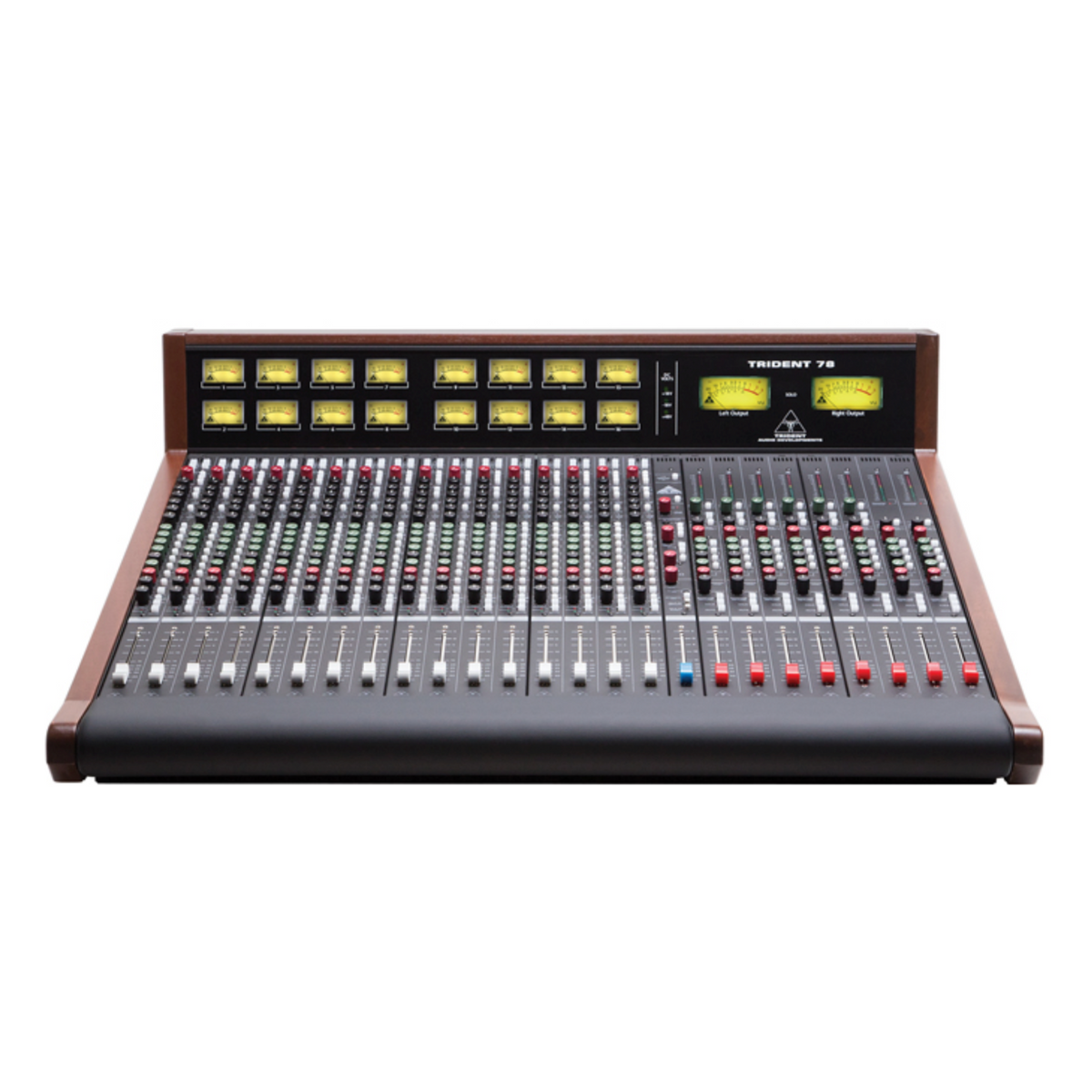

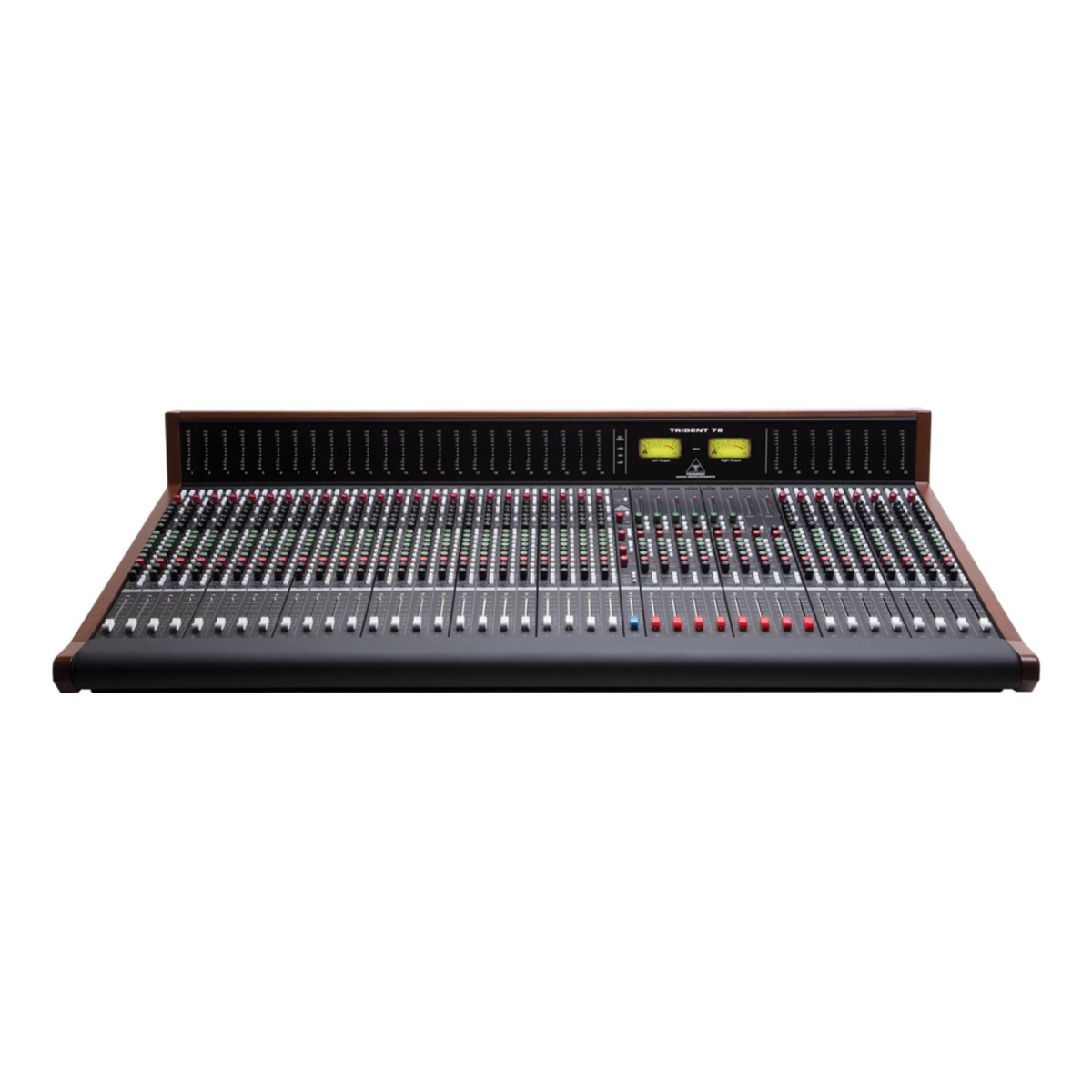

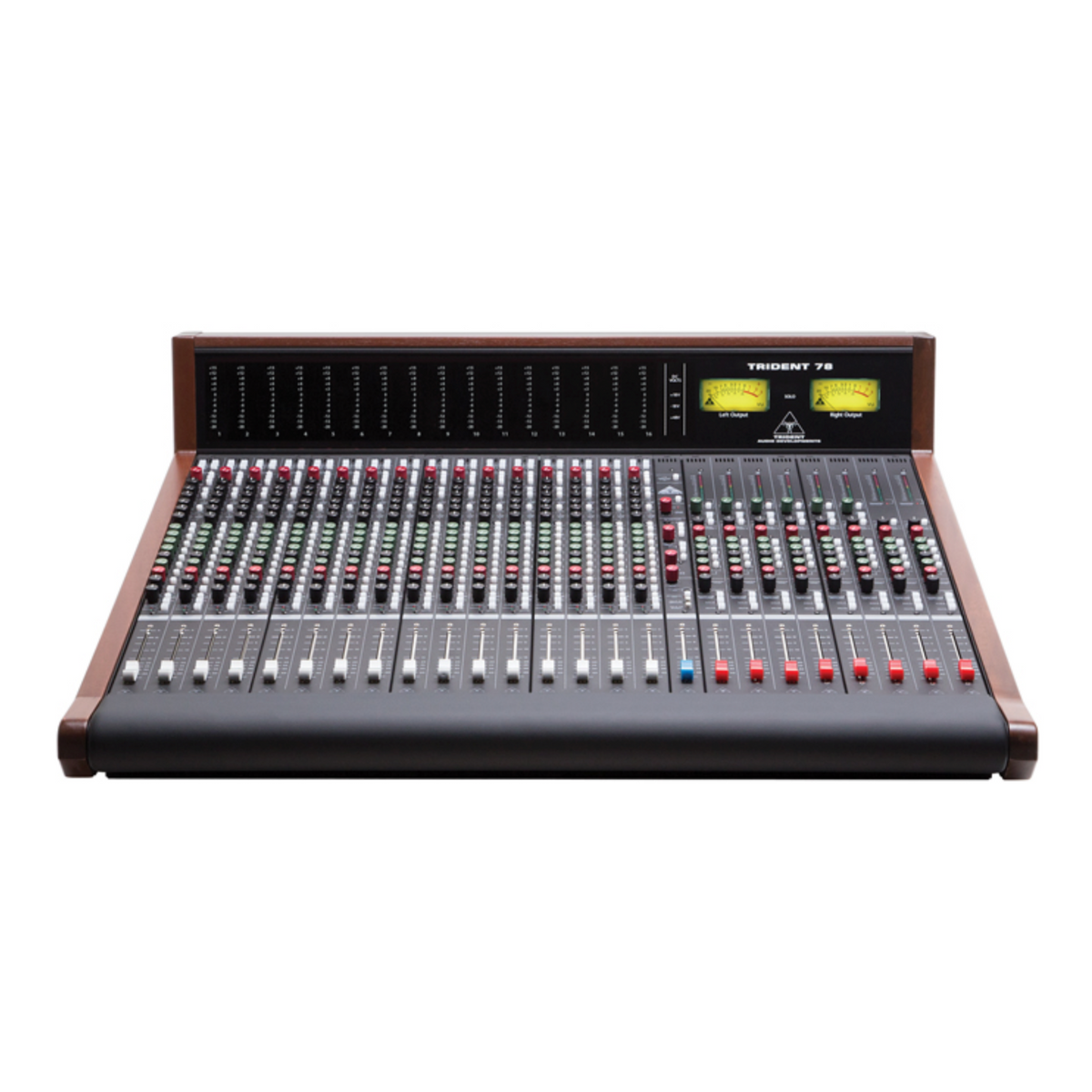

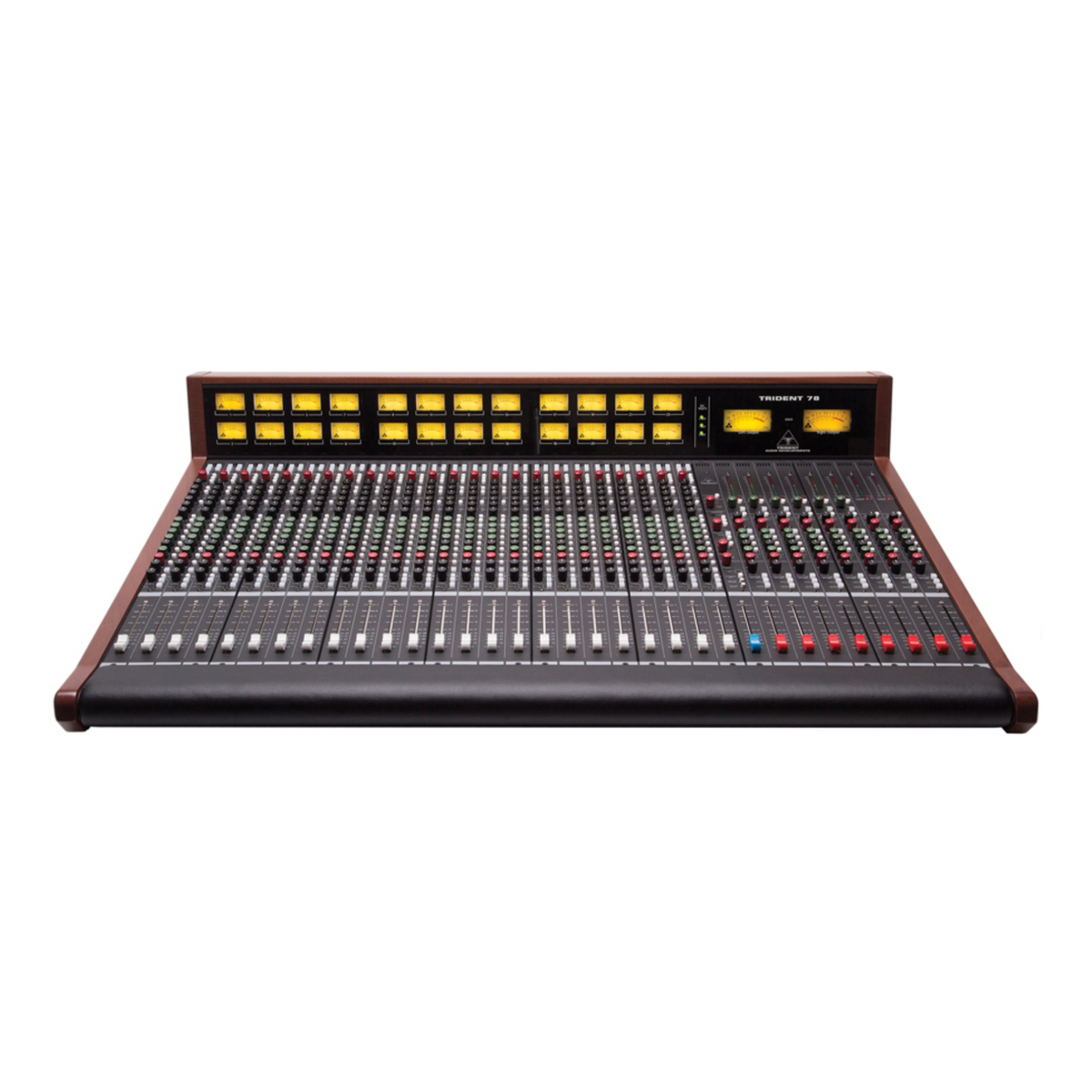

Trident 78 - 8 Buss Console

$21,000 Dólares

Configuración

16 Canales

Tipo de medidores

LED

  • Descripción del Producto


      Analog console all Trident through and through!

      The Trident Series 78 is a cost effective mixing console tailored for engineers, studio owners, educational facilities, houses of worship, and live sound applications.

      The 78s are split/inline consoles with individual channels in 4-way panels. Using an 8 subgroup configuration and incorporating 6 Aux sends, its routing options are vast and simple to use. Connections are fast and easy with DB-25’s throughout the board and XLR’s for all Mic inputs.

      With the 808 EQ at its core, including selectable channel inserts and discrete preamps driving the inputs, the Series 78 consoles offer a wide array of summing and mixing options. The uncompromising sonic quality and compact footprint of the 78s are able to meet any demand.

      Features found throughout the 78 make for a straightforward and powerful package, but paramount to all else is The Sound. Among the many styles, preferences and methods of recording exists the expectation that a board must have the ability to be pushed hard and sound big. This is a hallmark of the series 80 consoles and the 78 carries that tradition forward.

      Bottom line: the Trident 78 was created with all of this in mind so that you can use it to make great sounding tracks.

      Modularity Throughout

      The 78s by design are manufactured to be a more cost effective variant of the fully modular 88s. Incorporating a similar chassis design and the same meter bridge, the 78s have a rugged and proven core. Using a semi-modular design, the 78s are able to effectively reduce their overall costs without a significant sacrifice to serviceability.

      • All input channels are individual boards, faders included, each in a 4 channel pack
      • Subgroups are individual boards, faders included, each in a 4 channel pack
      • Master Channel is an individual channel separated from all others

      Split/Inline Console

      Since the inception of this configuration by Trident Audio on the A-Range console in the late 1960’s it has been adopted throughout the industry and remains a standard configuration for our consoles today.

      • Dual Inputs to the channels with line and monitor inputs
      • 4-band EQ with sweeping mid bands and selectable low and high bands

      Microphone Preamp

      The 78s incorporate the same high quality Class A Discrete preamp as the 88s. These preamps have lots of headroom and high gain fully capable of driving ribbon microphones.

      • 60 dB gain discrete preamp
      • Balanced inputs
      • Balanced inserts with full bypass

      Powerful EQ

      The 78s incorporate the iconic Series 80B console EQ as the main channel EQ throughout the console. This EQ is known throughout the industry for its musicality and ease of use.

      • Selectable high bands at 8k and 12k
      • Sweepable High and Low Mids
      • Selectable low bands at 60Hz and 120Hz
      • 50 Hz High Pass Filter
      • Selectable Channel Insert
      • Powerful-EQ

      Master Section

      The master section of the 78s are laid out for ease of use and have all the necessary features to manage your monitors, talkback, and stereo returns. The 78s master section is an independent channel from the rest of console to ensure that your console’s master output functions can be easily and quickly serviced with little or no downtime.

      • 8 Subgroups
      • Subgroup Monitor Returns
      • 2 Mono and 1 Stereo AUX
      • Subgroup Stereo FX Returns
      • 1/8″ TRS Selectable Input
      • Onboard Talkback
      • Selectable Output Transformer Option
