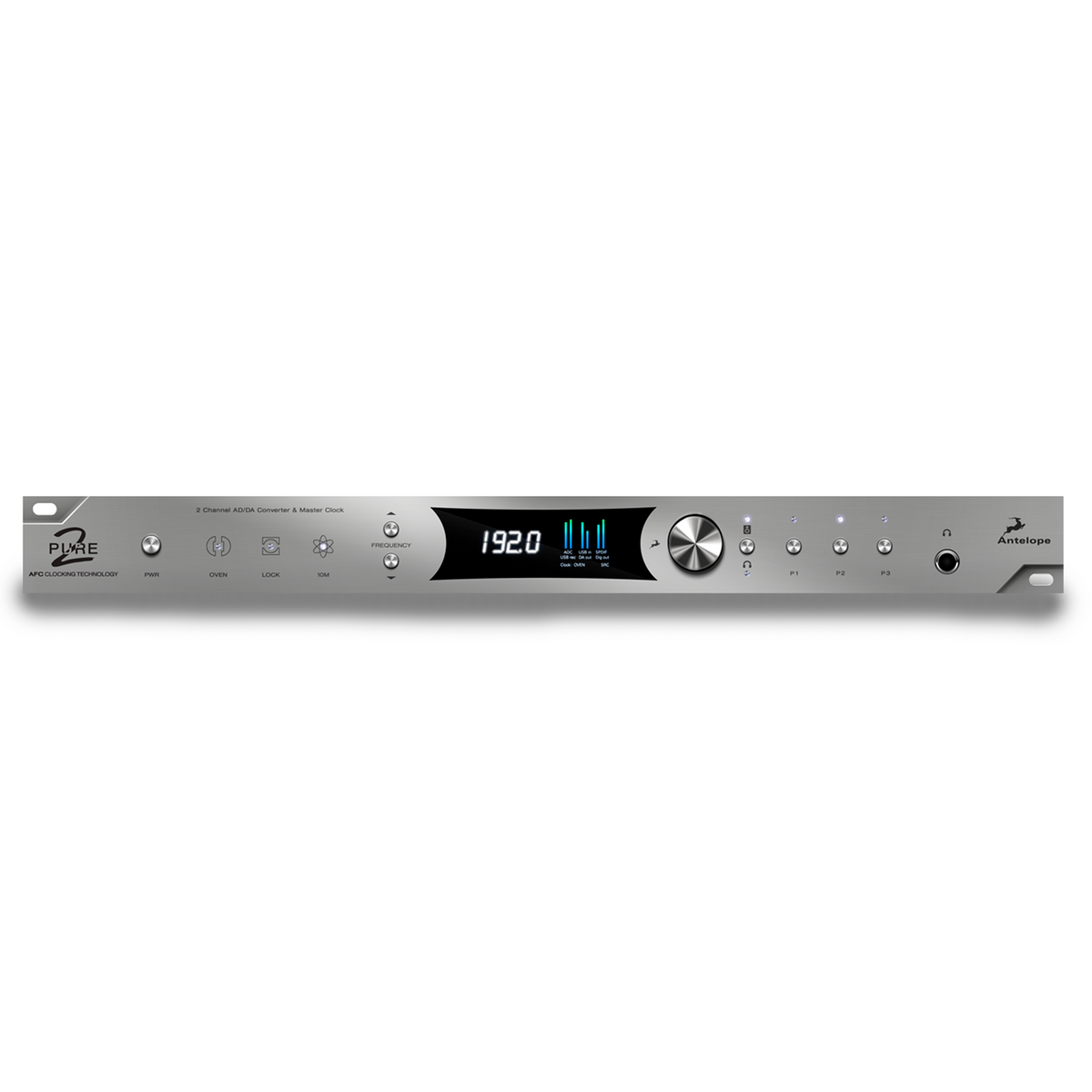

Antelope Audio Pure2 - 2-Channel Mastering Converter

Creating Premium Audio Easily

Antelope Audio’s Pure2 is a mastering grade 2-channel converter and master clock that builds off the successful model of the Eclipse 384. Delivering simply stunning audio via an A/D converter, D/A converter and a master clock featuring Antelopes signature Acoustically Focused Clocking technology, the Pure2 makes the world of mastering a process that anyone can attain in their own studio.

The Make Up Of Mastering

The conversion and AFC technology in the Pure2 is highly impactful and gives it a pristine sound. Additionally, the system also features masterful analog circuitry driven by a multi-stage power supply. Packed with Antelope Audio’s dual-DAC technology, with different chips for both the right and left channels, the Pure2 is able to gain exceptional imaging and separation. The system’s relay-based attenuator provides first-class transparency, which offers an exceptional audio experience when listening back on all types of monitors.

Clocking In: The Right Way

Featuring several Word Clock outputs, the Pure2 instantly adds an impressive master clock to your studio setup. Additionally, the system can be run with Antelope’s 10M Atomic Clock to provide your space with an even more stable method of clocking. With zero jitter and 100% accuracy, this combination of clocking will ensure that your projects have all the dynamic separation and clarity that you’ve always wanted.

Features:

• Pure2 includes five high-performance components:
  • A/D converter with optimized overload handling
  • D/A converter with dual-DAC architecture
  • High-end headphone amp with dedicated D/A converter
  • Relay-based analog volume control for accurate monitoring
  • Master clock with 4th-generation Antelope AFC jitter management



• Connections for S/PDIF, TOSlink, AES, and USB
• Includes intuitive control panel software for Mac and Windows

Specification

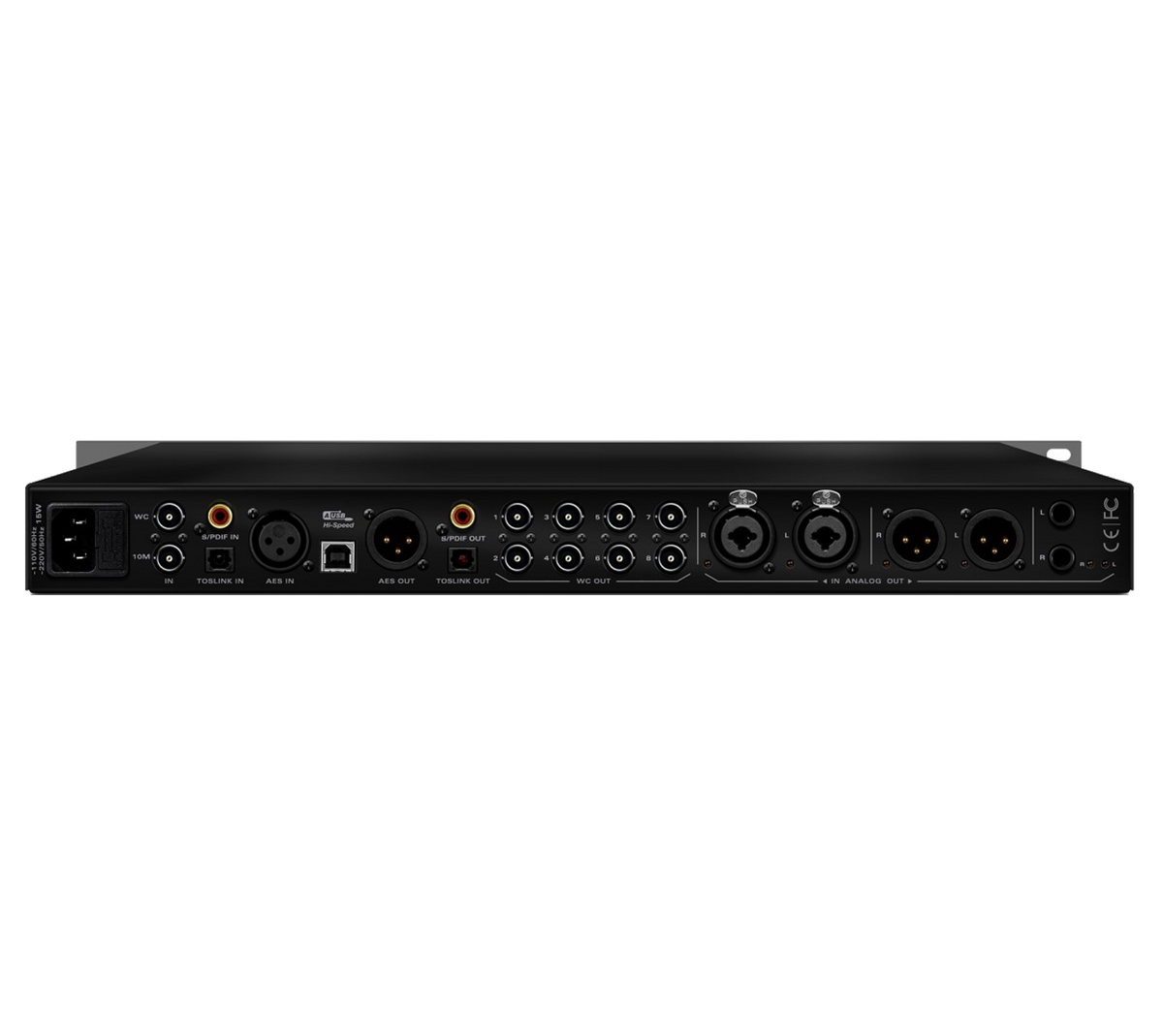

Analog Inputs
1 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu

Digital Outputs
1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x TOSLINK on optical fiber: up to 96kHz

Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Analog Outputs
1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu and user adjustable from 8dBu to 26dBu
1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS)
1 x 1/4 TRS Front Headphones 20dBu

Digital Outputs
1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x TOSLINK on optical fiber: up to 96kHz

Word Clock Outputs
8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

USB I/O
USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz,
4 channels I/O playback/record, Type B

External Reference Clock
1 x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC
1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

A/D Converter
Dynamic Range: 122dB
THD+N: -105dB

D/A Converters
Main DAC Dynamic Range 127dB; THD+N -107dB
Monitor DAC Dynamic Range 120dB; THD+N -103dB
Headphones DAC Dynamic Range 120dB; THD+N -100dB

Clock Specifications
<+/-0.02 PPM, oven controlled at 64.5°C/ 148.1°F

Clock Aging
< 1 ppm per year

Clock Calibration
< +/-0.001 ppm

Atomic Clock Input
10MHz @ 1Vpp, BNC

Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192

Operating Temperature

0-50°C, 32-122°F

Weight

3 kg, 6.6 lb approx.

Dimensions (Approx)
483mm(W) x 44mm(H) x 220mm (D)
19”(W) x 1.75”(H) x 8.66”(D)

Power Supply
~110VAC 60Hz/ ~220VAC 50Hz selectable

Atomic Clock Input
1 x 10M Input @ 75 Ohms 1Vpp on BNC

Fuses
2 x 0.8A 250VAC 5mm x 20mm Type T (or Time delay)
