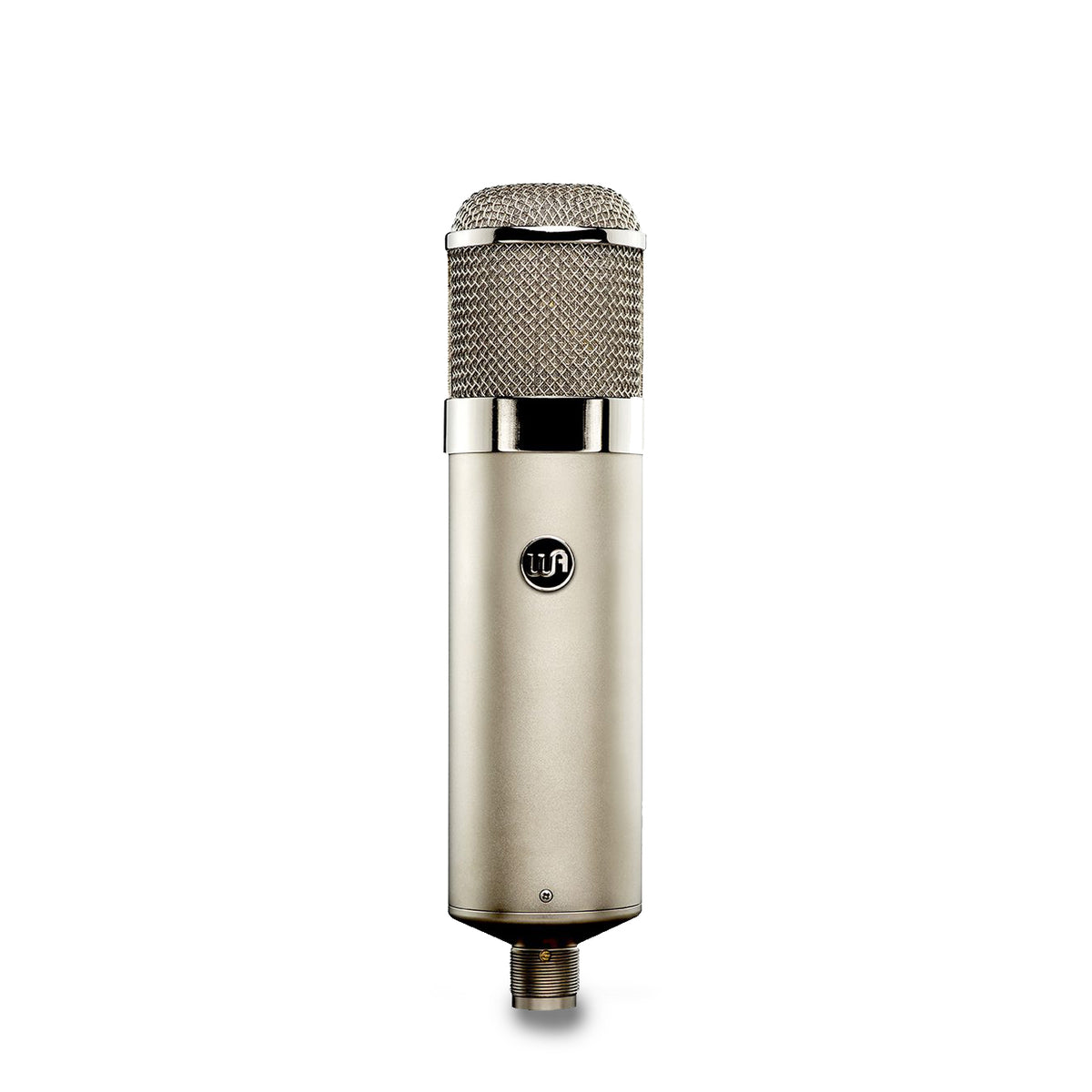

Warm Audio WA-47

Blast from the past
The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone, based on the classic ‘47 that has been used on countless hit records for the last 50+ years.  The WA-47 is designed for pro studio, home studio, live, and broadcast applications and sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.  The classic ‘47 became extremely popular in the 1960’s and is now considered one of the greatest microphones every made.  The classic ‘47 is still widely used today in professional recording studios but have become extremely rare and expensive to acquire.

Designing the WA-47 to sound like the classic ‘47 was no easy task, especially considering that some of the vintage components are no longer available.  We compared and listened to 2 different vintage ‘47 mics and found that they both sounded amazing but also sounded a little different from each other.  These comparison tests became the benchmark for tailoring our WA-47 sonics to sit right in with these 2 vintage ‘47 mics.  We are pleased to release such a gorgeous sounding classic to the market at a price that’s reachable to more people than ever before.  We are also proud to mention that the WA-47 sounds legitimately indistinguishable to the vintage ‘47’s we auditioned on several sources.

As with all Warm Audio products, we focus heavily on quality components to ensure we release the best sounding product possible.  The WA-47 is packed with top end components that are carefully sourced from many of the top pro audio component suppliers in the world.

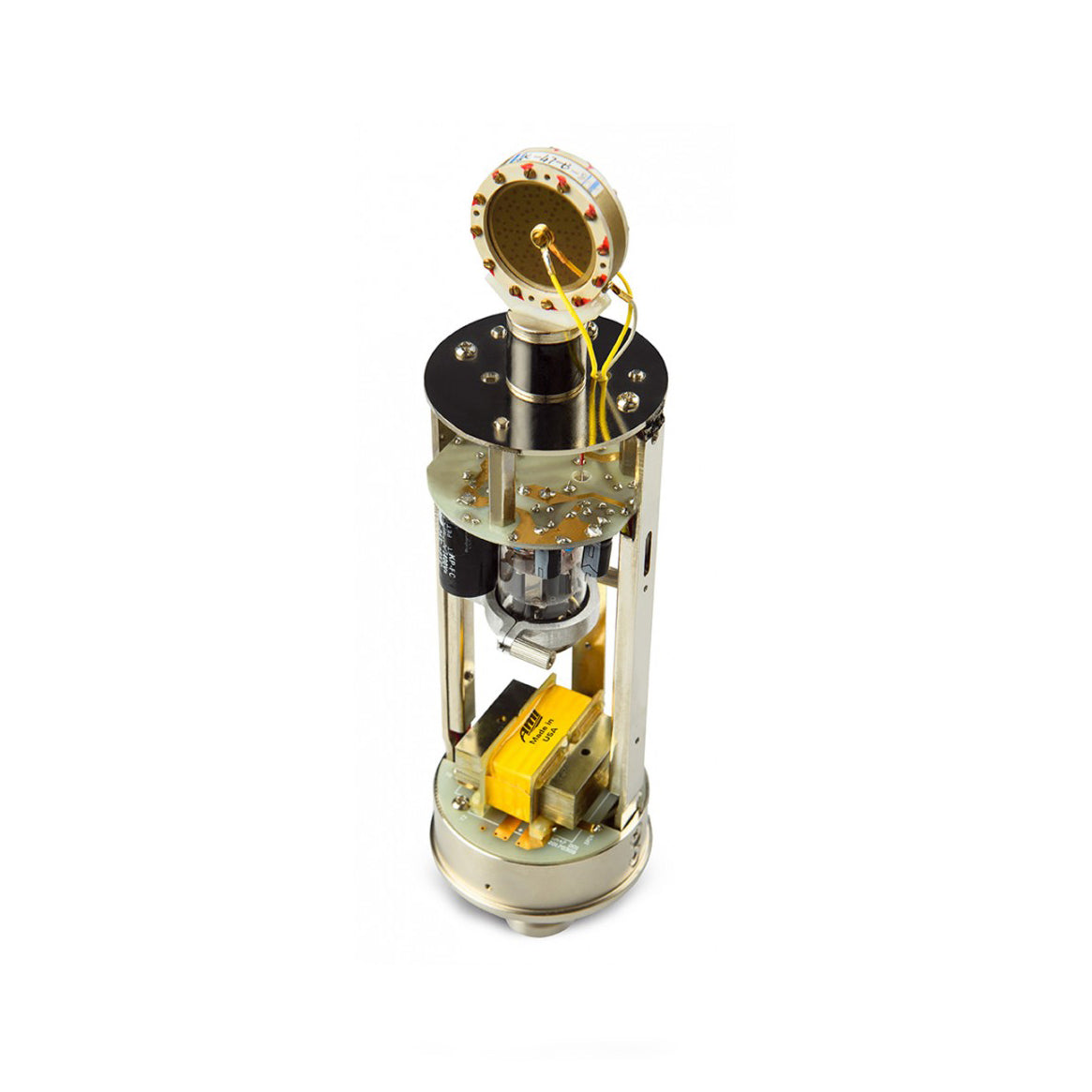

A look inside
The Capsule
The WA-47 utilizes a custom reproduction of the vintage k47 style capsule that was used in the classic ‘47 microphone - designed with the same hole pattern and frequency response.  Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer who's precision and repeatability allows us to nail the vintage sonics of the most important sonic piece of this classic style of microphone.

The Tube
A Slovak Republic JJ 5751 vacuum tube is a lower gain, low noise tube that forces much of the sonics of the capsule and transformer to be heard more significantly than some higher gain tubes might allow.  We auditioned 4 different tube brands and fell in love with the JJ 5751.  The frequency response of the JJ 5751 and the way it contributes to the circuit is tonally smooth and vintage in nature.

The Transformer
The WA-47 utilizes an American made TAB-Funkenwerk (AMI) USA transformer with large core imported German laminations.  This transformer helps provide the creamy smooth top end, and the LARGER THAN LIFE bottom end one would expect from a '47 style condenser microphone.

The Capacitors
The WA-47 uses a polystyrene coupling capacitor for uncompressed top-end response from the capsule, wima film capacitors throughout, and an imported Solen French capacitor on its output driving the TAB-Funkenwerk (AMI) USA output transformer.

• Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film)

• TAB-Funkenwerk (AMI) USA output transformer

• JJ Slovak 5751 vacuum tube
• Gotham 5 meter GAC-7, 7-pin tube microphone cable

• Wima, Solen French, and Polystyrene capacitors

• Polar Patterns: 9 patterns - Cardioid, Omni, figure-of-eight + 6 mixed patterns
• Self-noise: 11dBA

• Dynamic range: 130dBA

• Maximum S.P.L: 140dB  (<0.5% THD)

• Frequency Range: 20 Hz~20 kHz

• Output Impedance: 200 ohms

• Rated Load Impedance: ≥2kOhms

• S/N Ratio: 82dBA
• Equivalent Noise: 10dBA (IEC651)
• External IEC grounded PSU

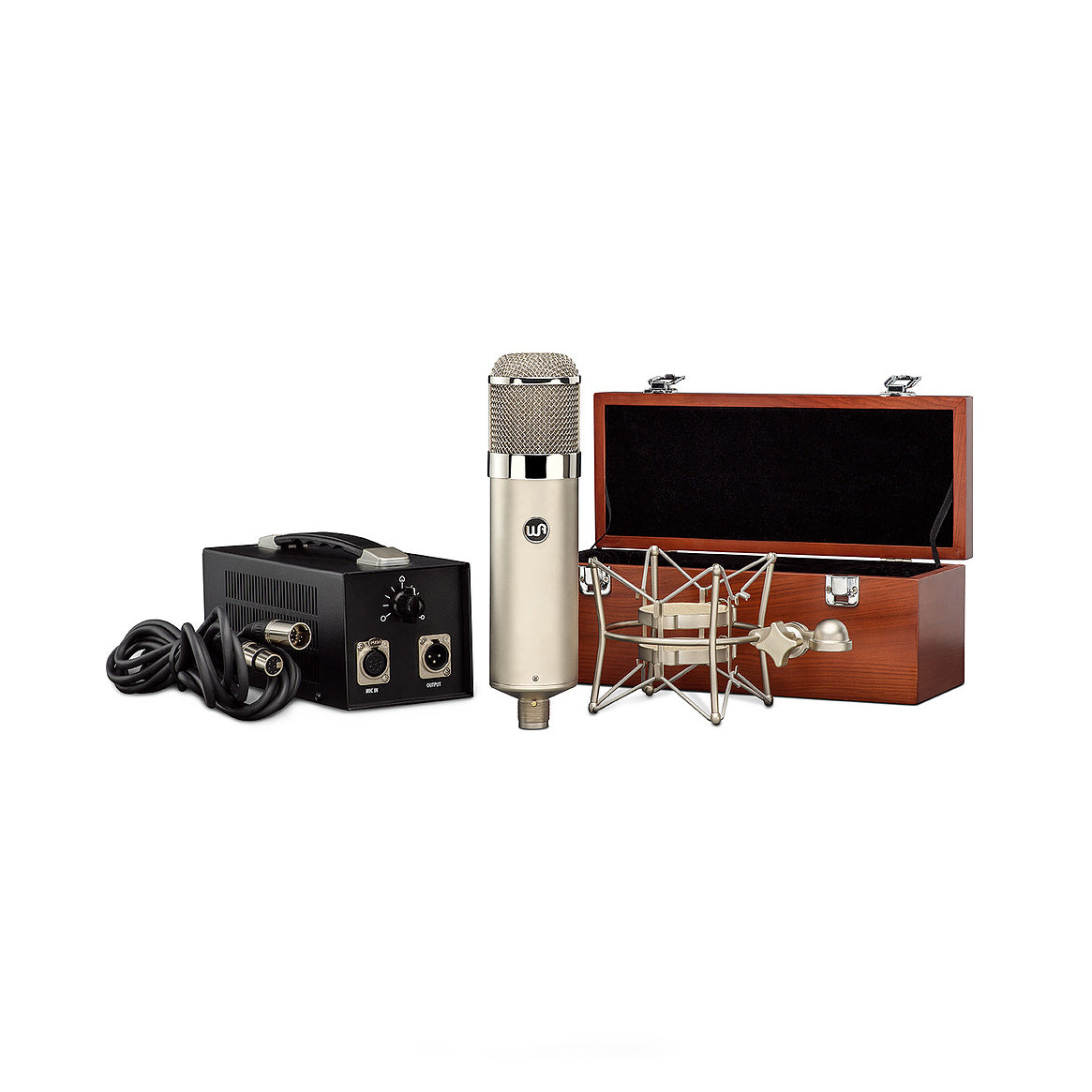

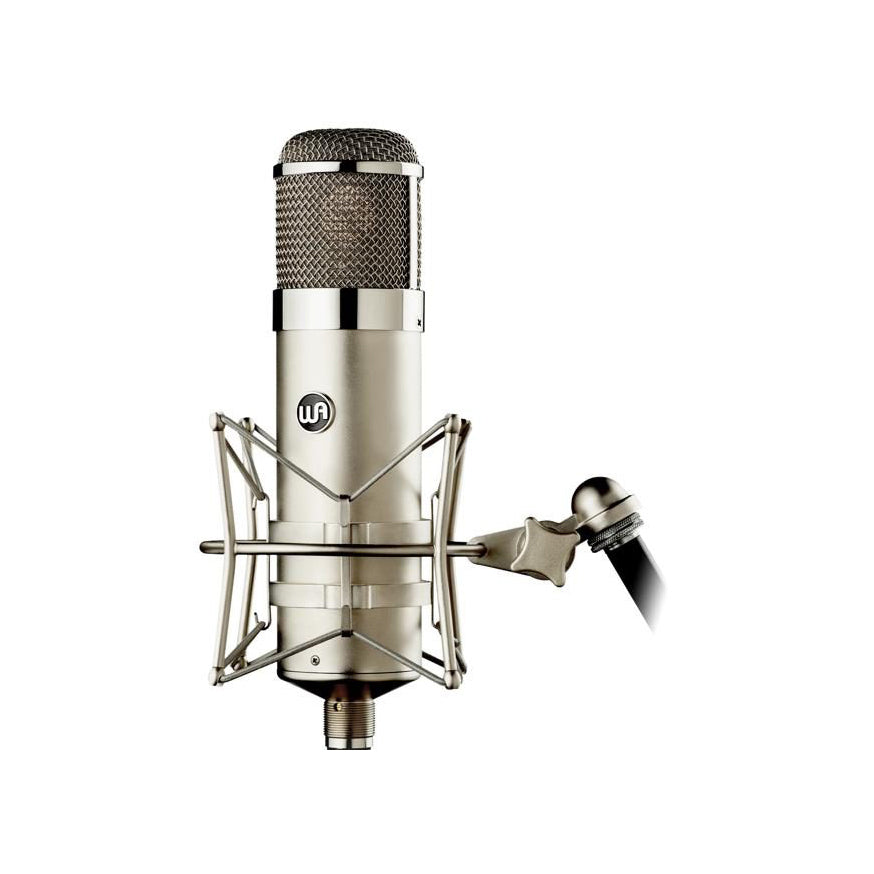

• Includes: Microphone, Wood box, PSU, Shockmount, Gotham 7 pin GAC-7 cable, IEC power cable
• Total Weight - 9 lbs
• Mic Diameter: 90mm
• Mic Length: 254mm
